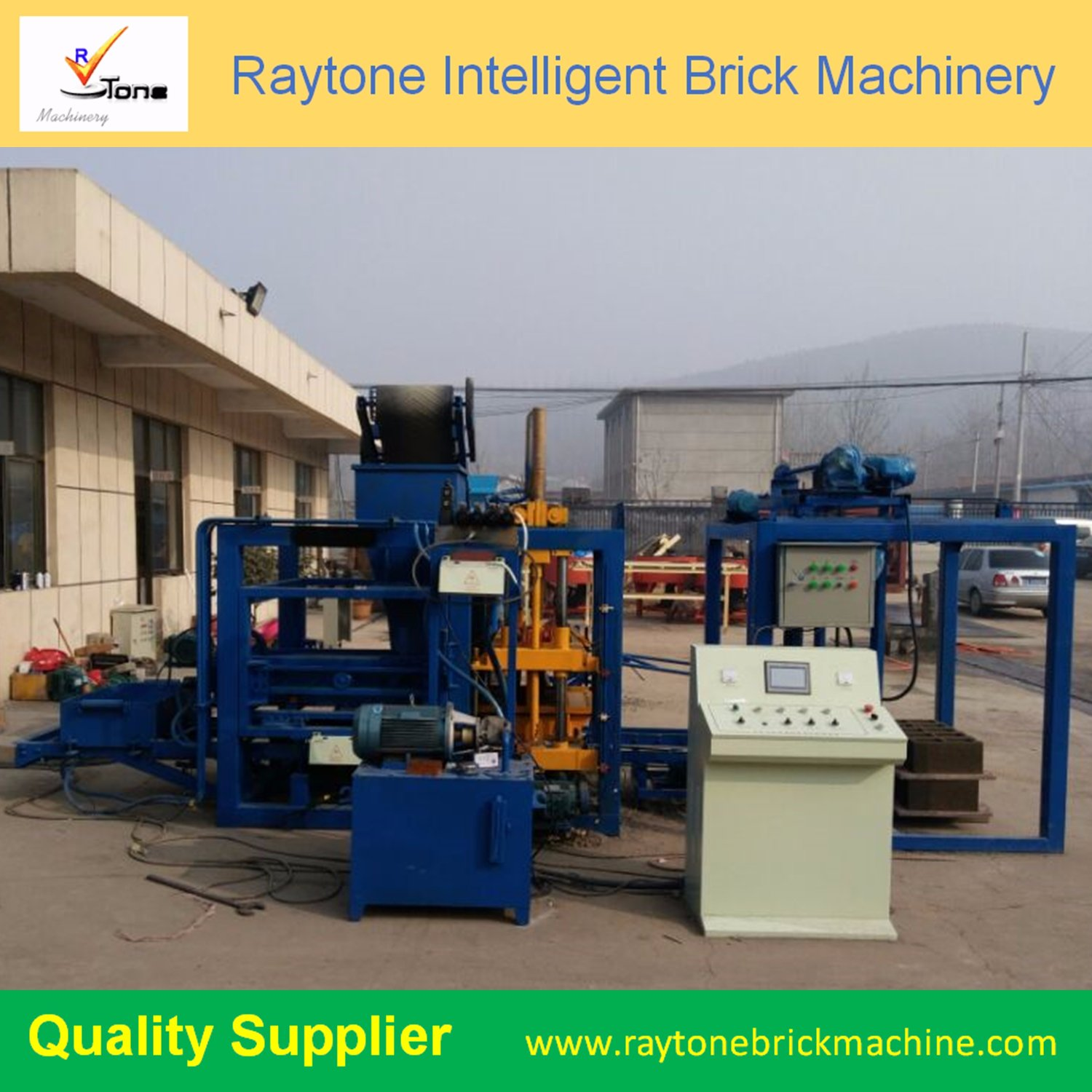

Qt4-18 Automatic Concrete Block Making Machine Cement Brick Machinery
QT4-18 Concrete Block Making machine Brief Introduction:the machine line is configurated with the following items:1. the mixer is JQ500 type, Diaeter: 1500mm; height:1200mm; power: 7.5KW weight: 700KG Volume: 500L2. the conveyor belt, it is 8M length, with 2.2KW power.Main Technical Parameters: mai......
Send Inquiry
Product Description
QT4-18 Concrete Block Making machine Brief Introduction:
the machine line is configurated with the following items:
1. the mixer is JQ500 type, Diaeter: 1500mm; height:1200mm; power: 7.5KW weight: 700KG Volume: 500L
2. the conveyor belt, it is 8M length, with 2.2KW power.
Main Technical Parameters:
Theoretical Productivity:

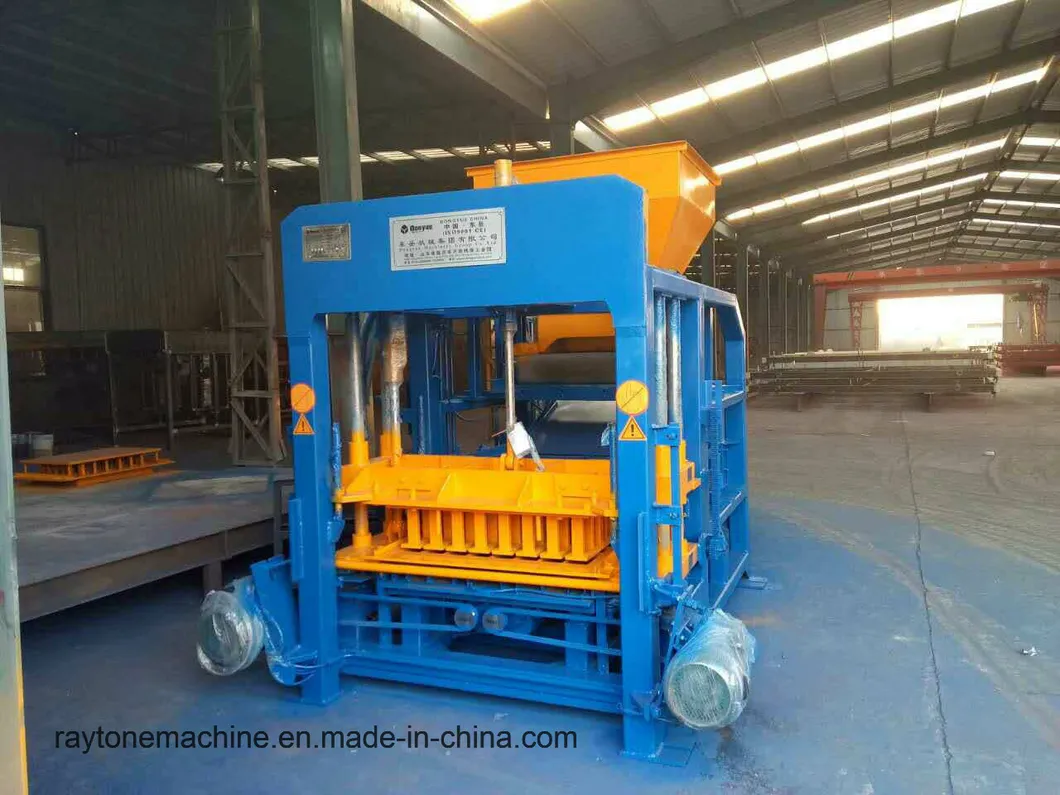

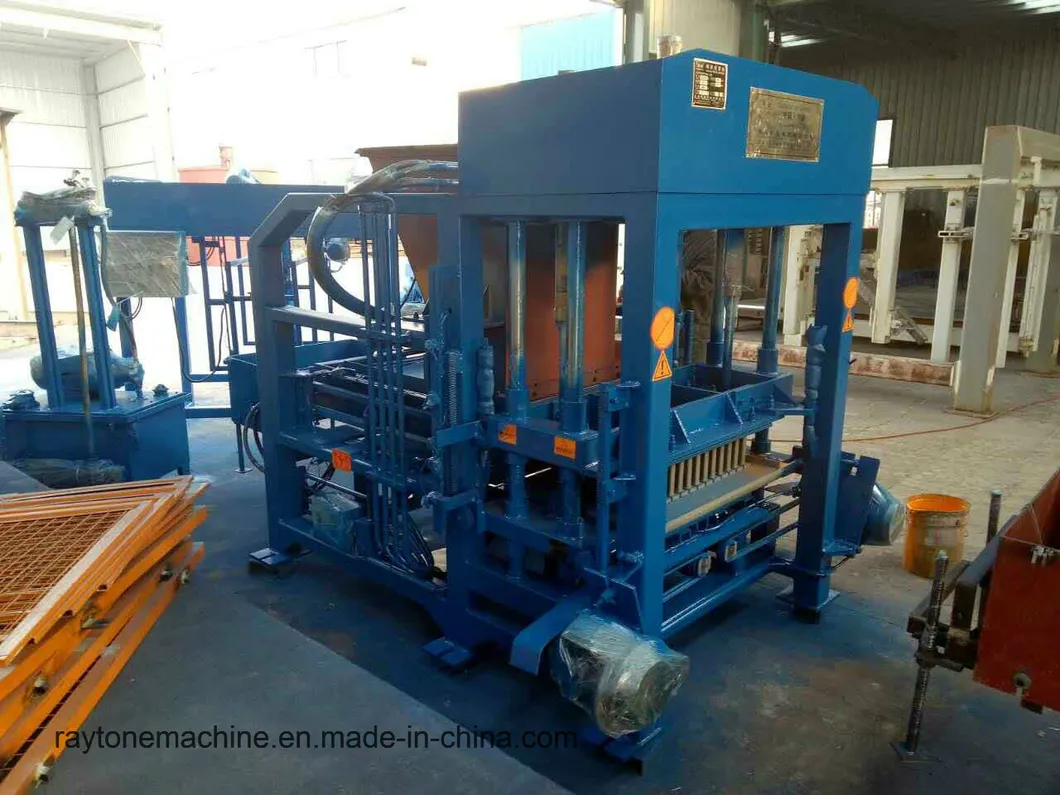

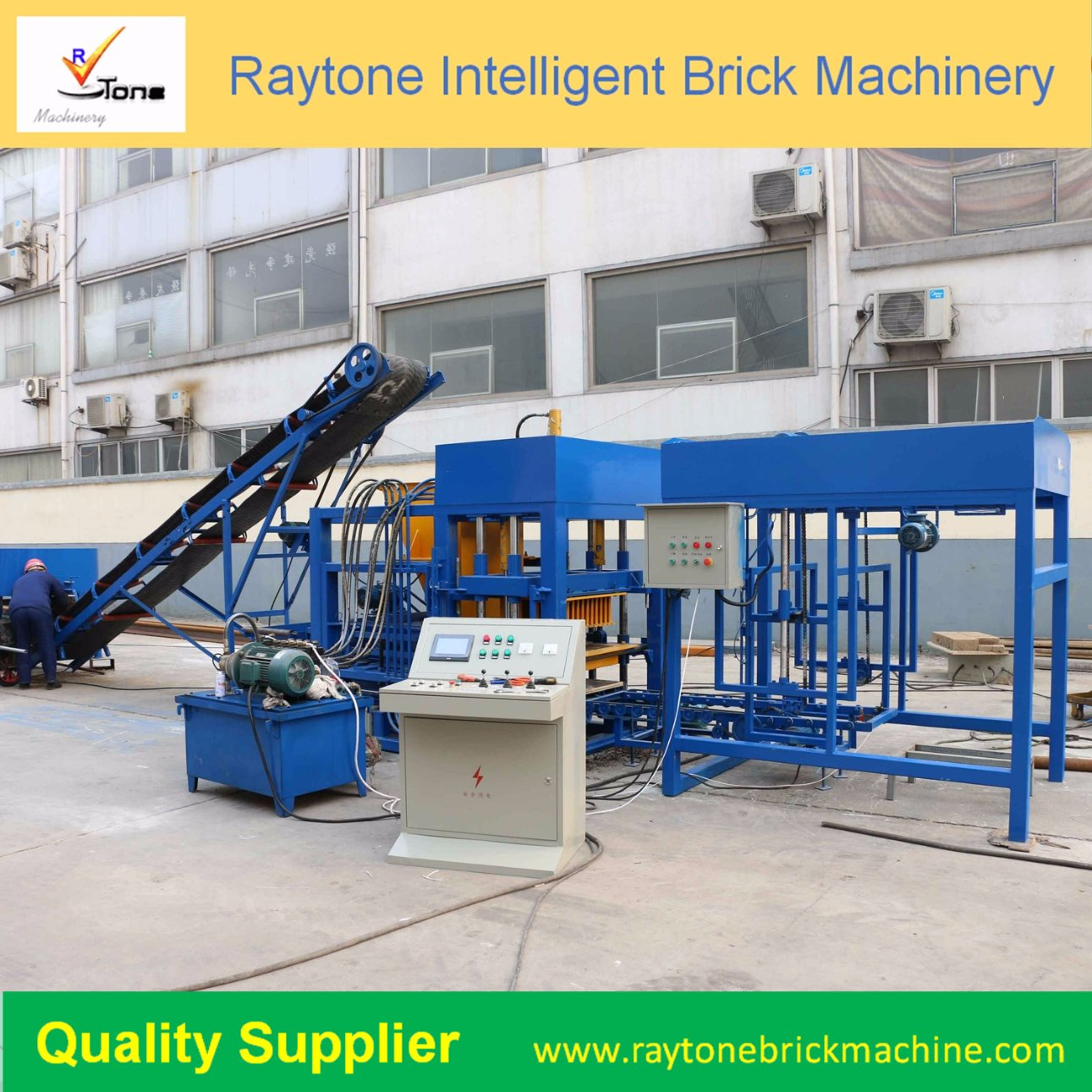

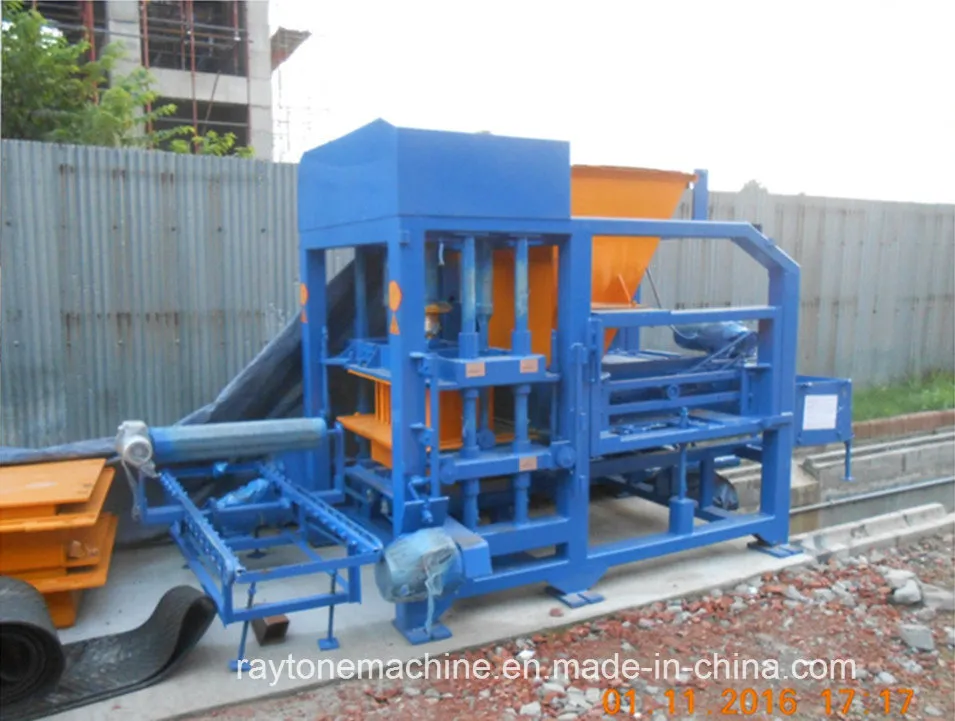

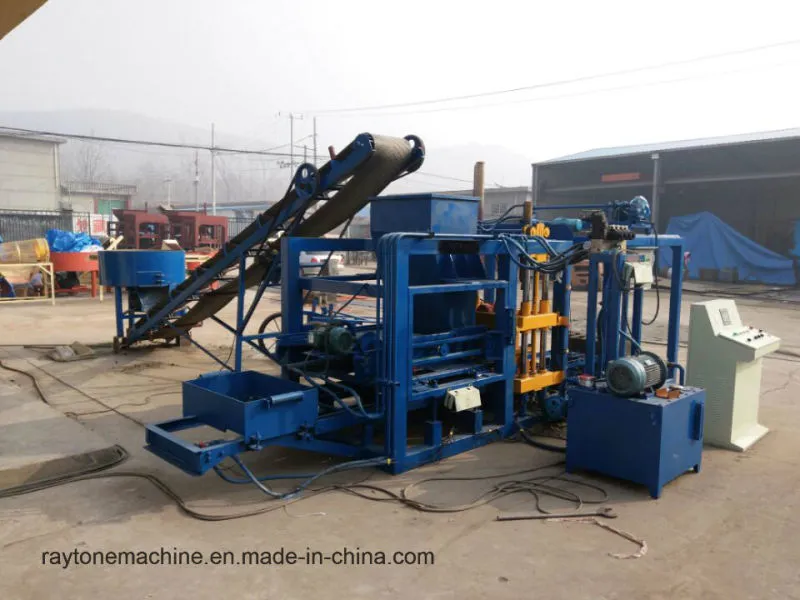

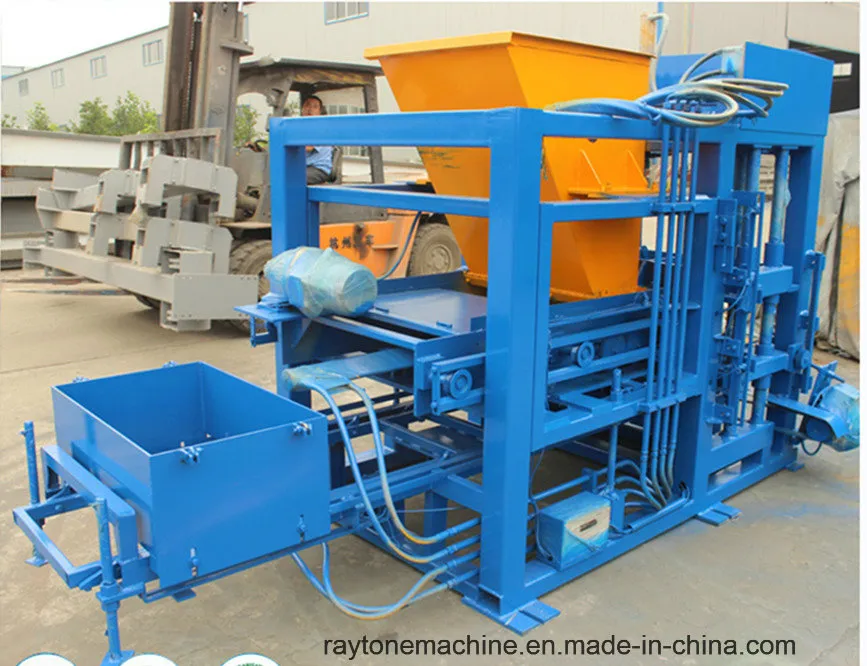

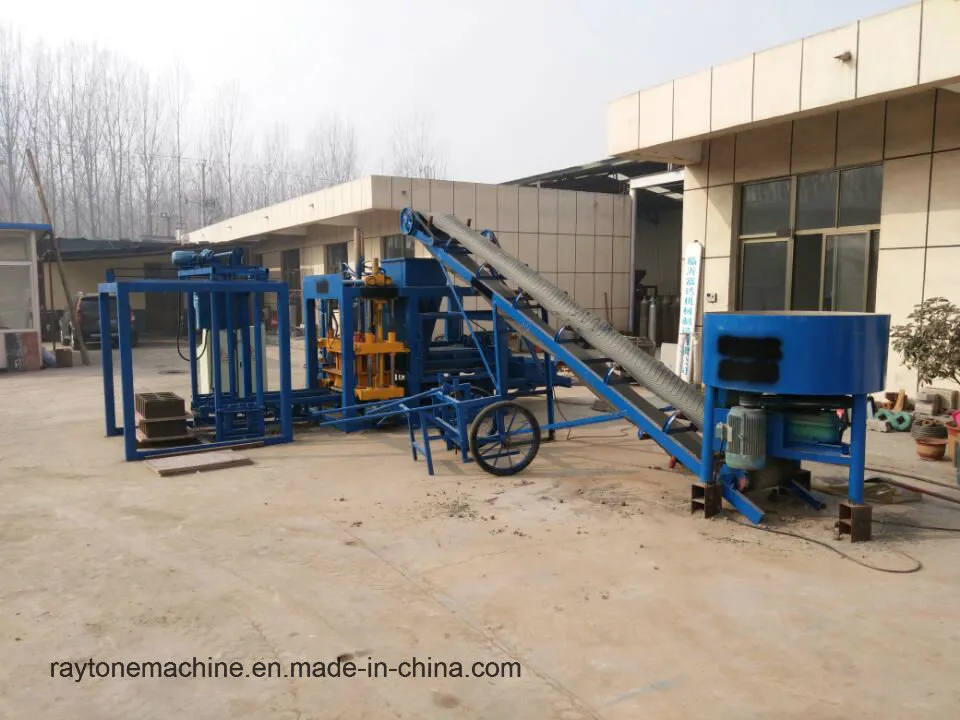

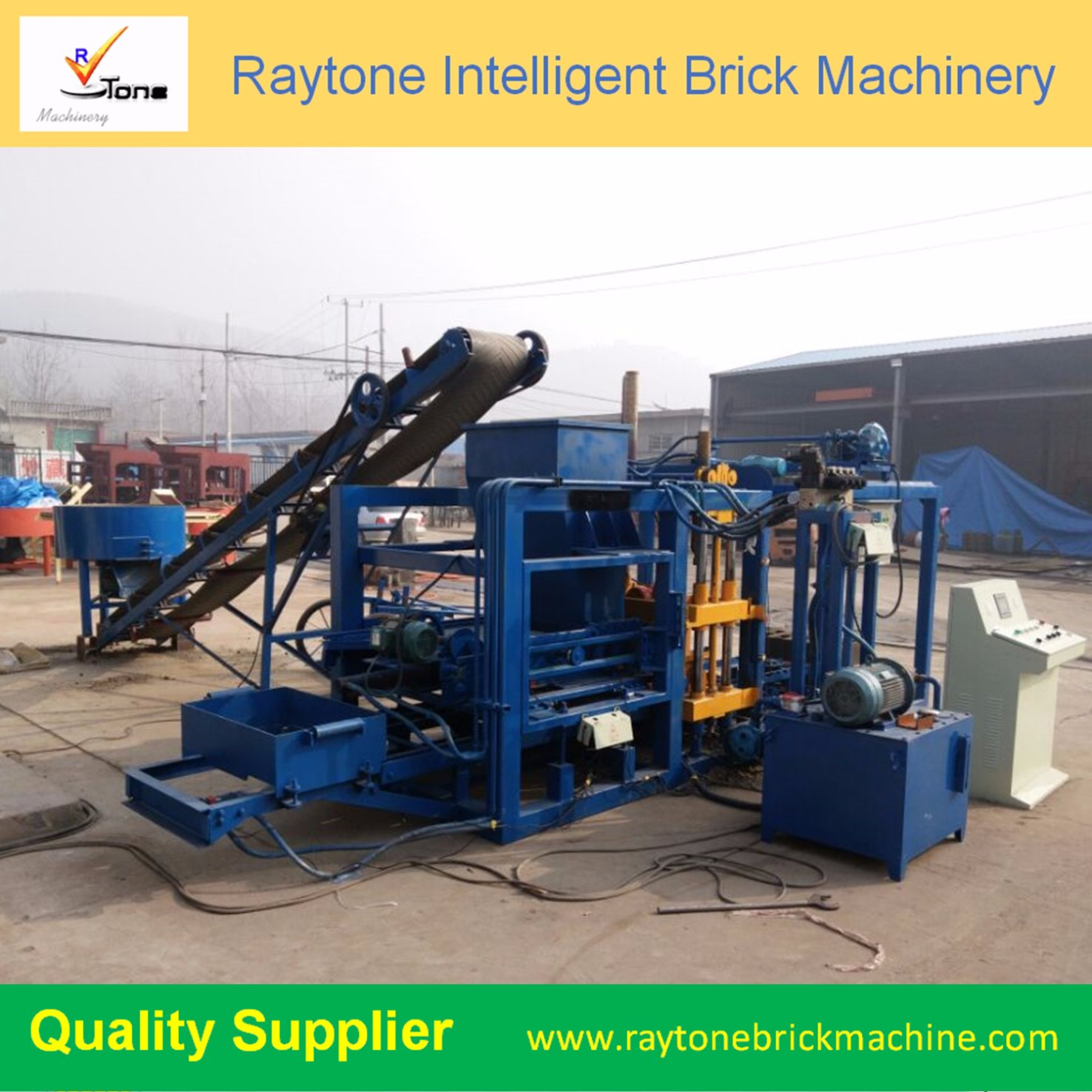

Detailed Pictures:
the machine line is configurated with the following items:
1. the mixer is JQ500 type, Diaeter: 1500mm; height:1200mm; power: 7.5KW weight: 700KG Volume: 500L
2. the conveyor belt, it is 8M length, with 2.2KW power.
Main Technical Parameters:
| main technical parameters | |||||||
| (1) | Dimension of host machine | 3700*2100*2300mm | (7) | Host machine power | 29kw | ||
| (2) | Moulding area | 1006*600mm | (8) | Vibration force | 35KN | ||
| (3) | Moulding period | 20-24S | (9) | Mixer model | JQ500 | ||
| (4) | bamboo pallet size | 850*550*25mm | (10) | Voltage | 380V/415V | ||
| (5) | Weight of the host machine | 3.2T | (11) | labour | 5to 6 | ||
| (6) | workshop area | 160 m2 | |||||
| 1. production capacity | |||||||
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr | pcs/month | |||
| (1) | 400*250*200 | 3 | 432 | 3456 | 103680 | ||
| (2) | 400*200*200 | 4 | 576 | 4608 | 138240 | ||
| (3) | 400*150*200 | 5 | 720 | 5760 | 46080 | ||
| (4) | 400*100*200 | 7 | 1008 | 8064 | 64512 | ||
