China 2540 Frontal Swing Type Spiral Welded Pipe Mill SSAW Automatic Tubes

Product Description

Introduction:
Spiral pipe can be made from a variety of raw materials, such as carbon steel, galvanized steel, stainless steel, aluminum, and coated metals. A wide range of diameters can be made from almost any width of raw material, and as a result, inventory requirements can be reduced.
2540 Frontal Swing Type Spiral Welded Pipe Mill SSAW Automatic Tubes

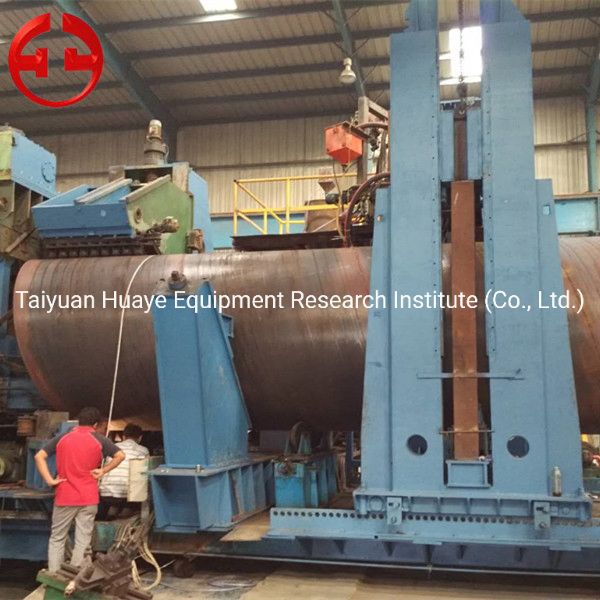

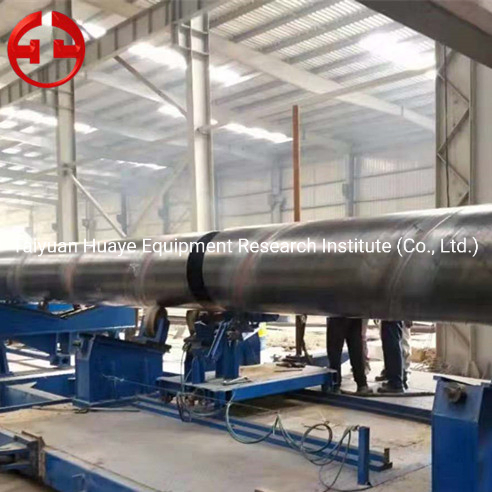

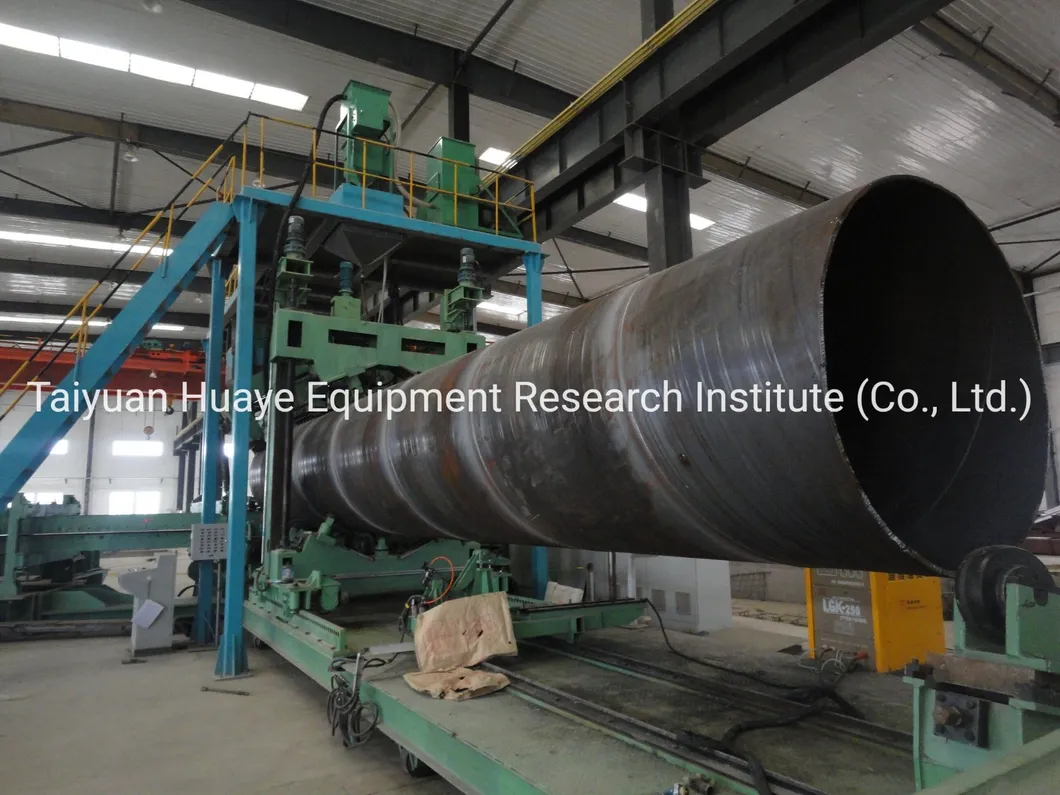

Spiral welded pipe mill is HUAYE most competitive, most mature technical characteristics product. Product specifications range from Φ60mm to Φ3000mm, divided into international-type mills, special series mills and so on.

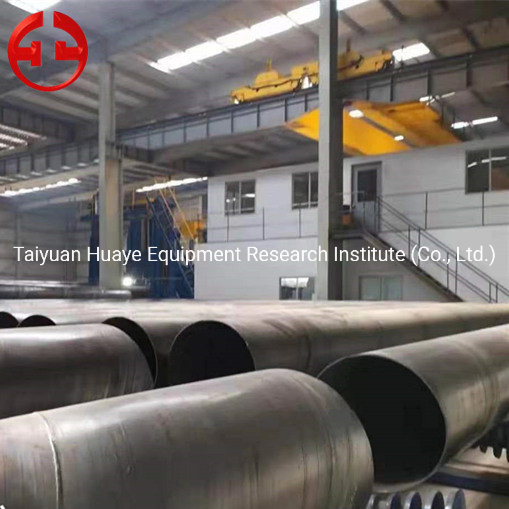

Usage of spiral welded pipes
For liquid delivery: water supply& drainage
For gas delivery: coal gas, steam and LPG
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.

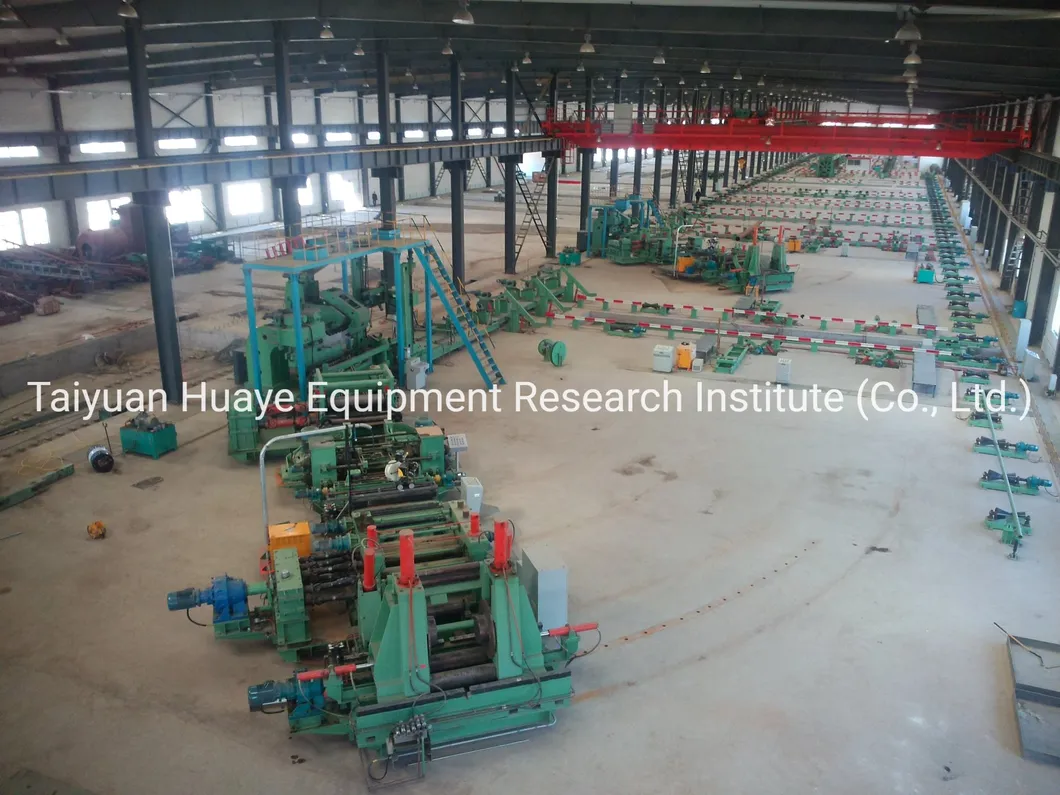

Technical process of the spiral welded pipe line
feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection 2540 Frontal Swing Type Spiral Welded Pipe Mill SSAW Automatic Tubes

Machine parts in the working line
1) Uncoiled
2) Pinching & leveling machine
3) Manual/Electrical roll
4) End - Cutting & butt-welding machine
5) Rotary shear
6) Delivery machine
7) Guide board
8) Forming unit
9) Front bridge
10) Inside/outside welding device
11) Rear bridge
12) Flying saw cutter
13) Buried parts
14) Hydraulic system
15) Electric system
16) Inside/outside welder
17) Butt-weld car
18) Plasma cutter
19) Weld flux processing device
20) Beveling & end-facing machine
21) Hydraulic tester
22) Finishing equipment
