Automatic 2540 *25.4 mm Pipe End Expander Expanding Machine
Pipe Expanding MachineThis pipe end expander adopts special mould outward expanding technology to stretch material flowing along the pipe wall. The mould expanding is controlled strictly to desired shape. The maximum wall thickness is 25.4 mm and the diameter is Φ2540 mm.The machine consists......
Send Inquiry
Product Description
Pipe Expanding Machine
This pipe end expander adopts special mould outward expanding technology to stretch material flowing along the pipe wall. The mould expanding is controlled strictly to desired shape. The maximum wall thickness is 25.4 mm and the diameter is Φ2540 mm.

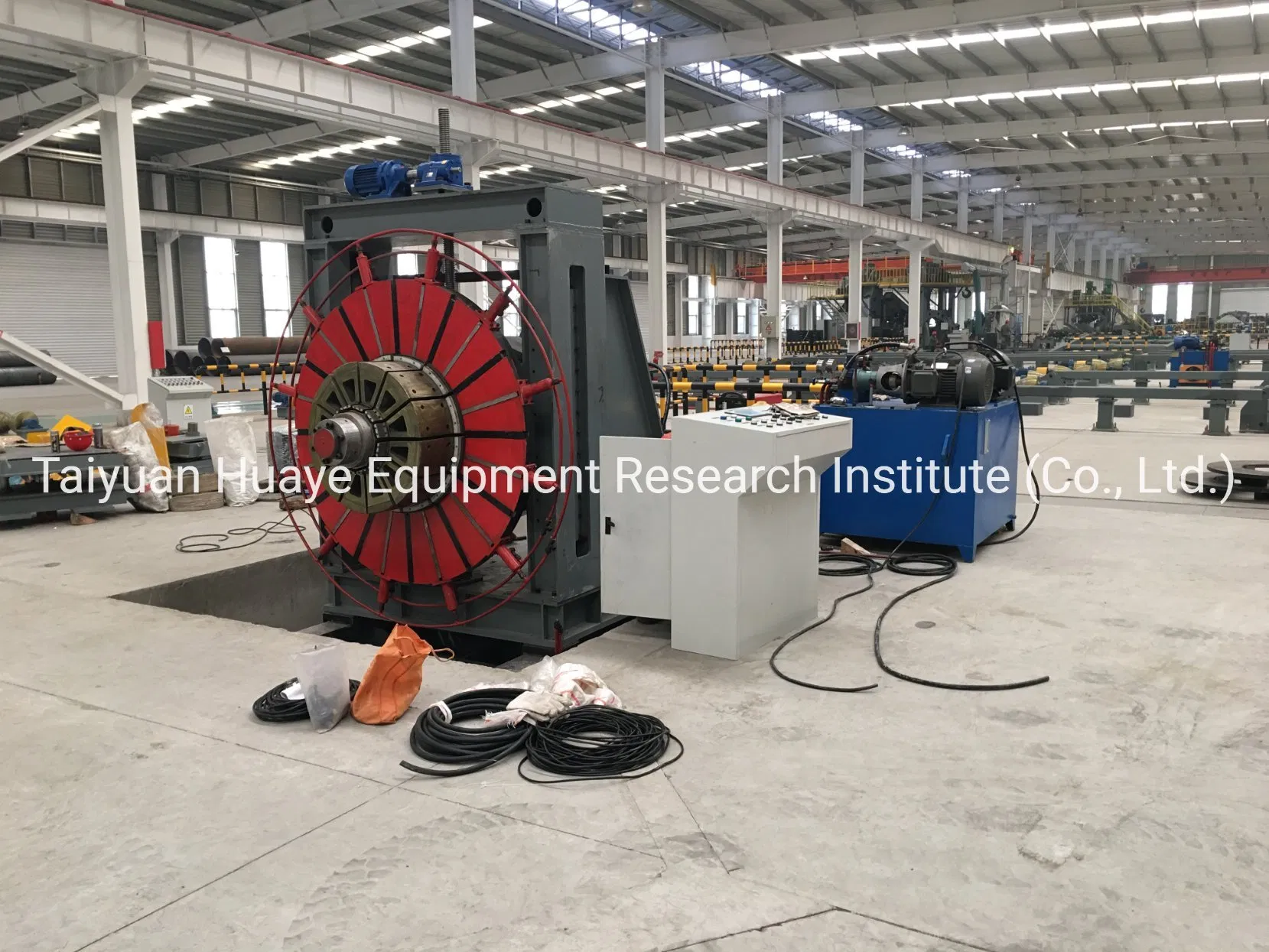

The machine consists of a host, an auxiliary device, hydraulic, lubrication and electrical systems.

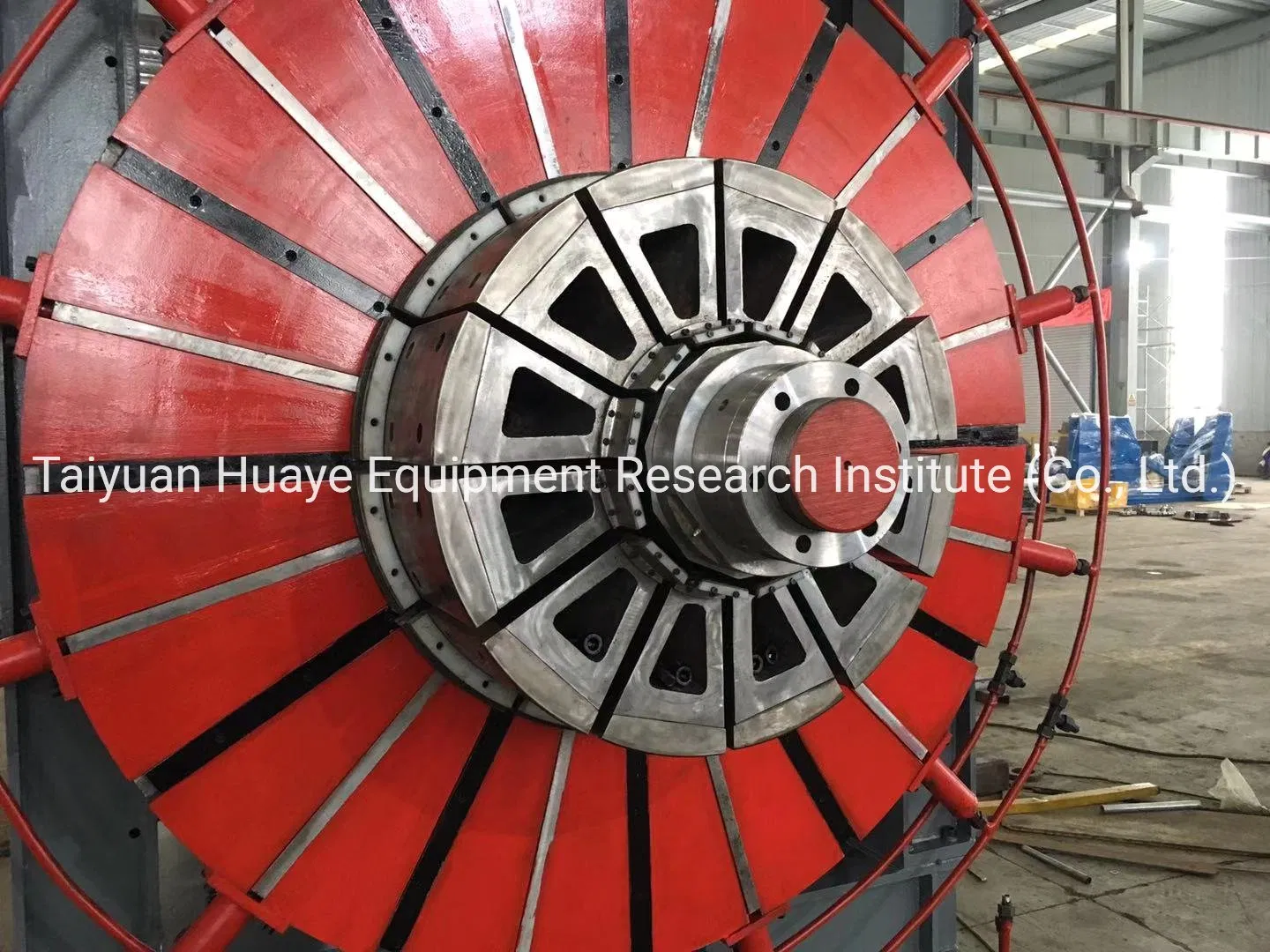

The machine adopts a unique module expansion technology to make the base material stretch along the pipe wall to generate flow. The size of the mold expansion can be strictly controlled to obtain the size, and the accuracy of the roundness of the pipe end is improved. This process is called Expand the diameter.

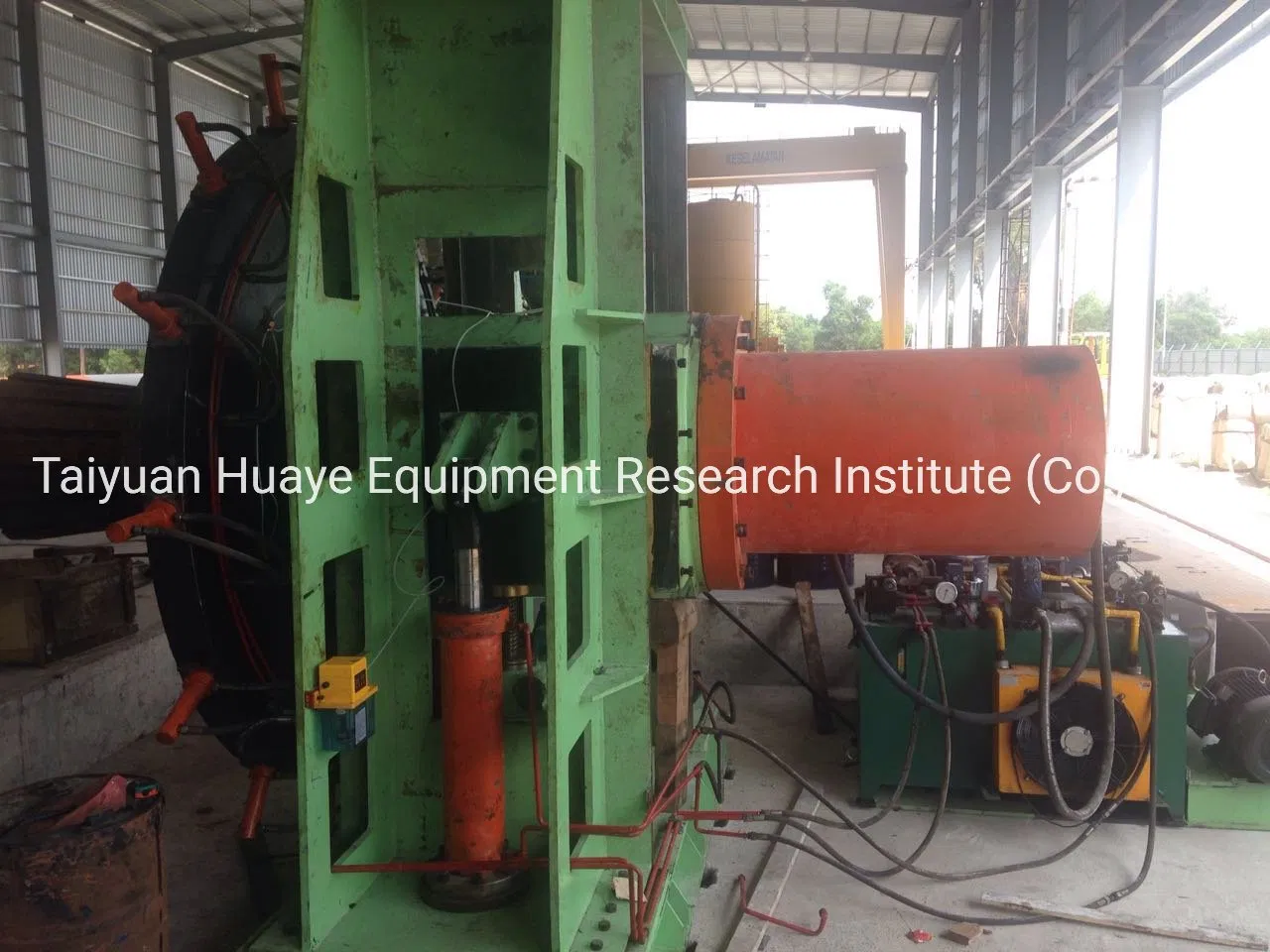

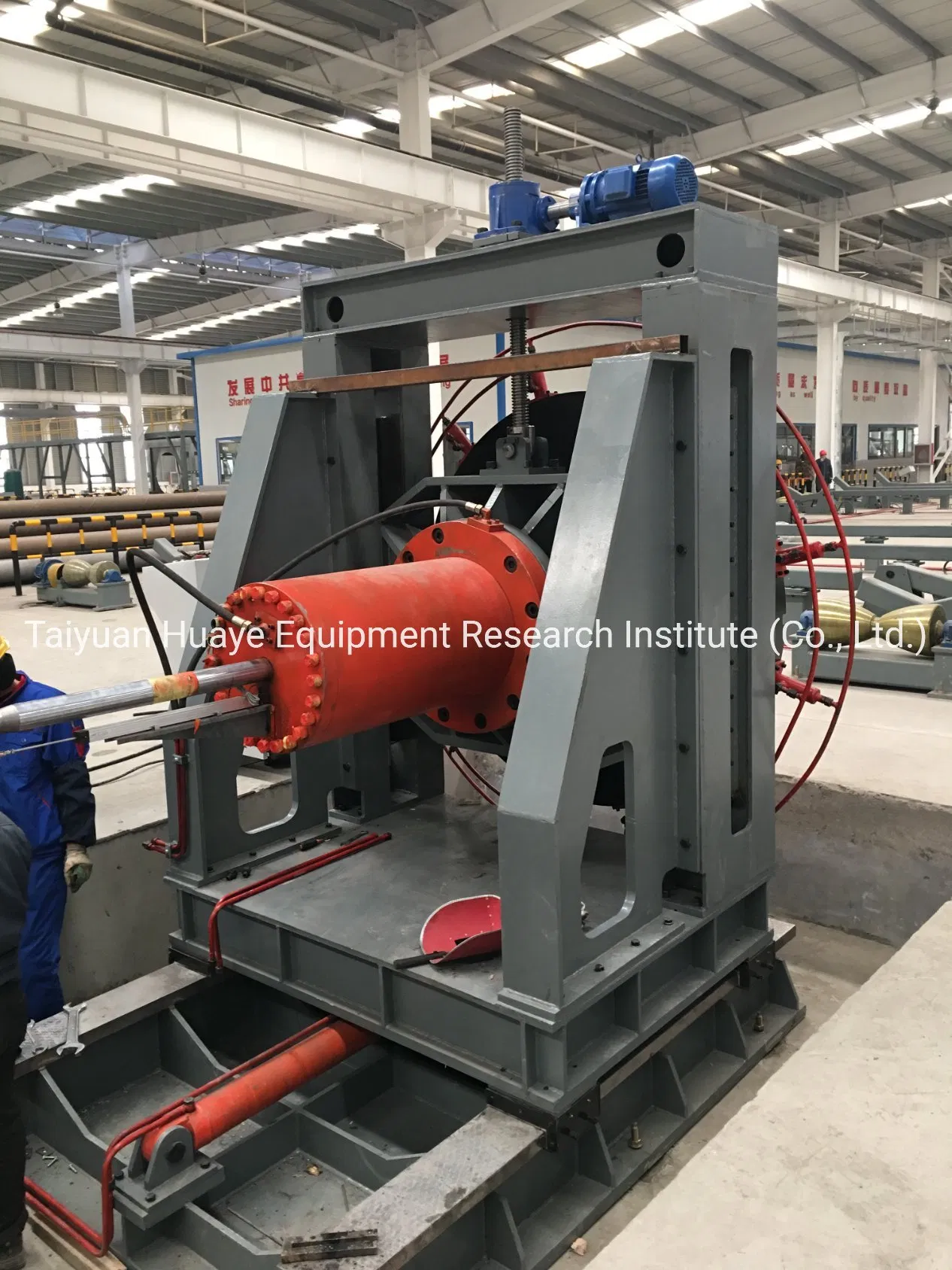

The expander is equipped with an independent hydraulic station. The main pump of the station fulfills fast moving, expanding, pressure retainment and unloading of expanding cylinder. Supporting cylinder aligns mould and expanding head lifting.
The power supply for the expander is three-phase and four-wire, AC380V, 50HZ. All input signal circuits are DC24V. Output signal and relay control signal are DC24V and AC110V.
Ambient temperature: 0°C-45°C.
This pipe end expander adopts special mould outward expanding technology to stretch material flowing along the pipe wall. The mould expanding is controlled strictly to desired shape. The maximum wall thickness is 25.4 mm and the diameter is Φ2540 mm.
The machine consists of a host, an auxiliary device, hydraulic, lubrication and electrical systems.
The machine adopts a unique module expansion technology to make the base material stretch along the pipe wall to generate flow. The size of the mold expansion can be strictly controlled to obtain the size, and the accuracy of the roundness of the pipe end is improved. This process is called Expand the diameter.
The expander is equipped with an independent hydraulic station. The main pump of the station fulfills fast moving, expanding, pressure retainment and unloading of expanding cylinder. Supporting cylinder aligns mould and expanding head lifting.
The power supply for the expander is three-phase and four-wire, AC380V, 50HZ. All input signal circuits are DC24V. Output signal and relay control signal are DC24V and AC110V.
Ambient temperature: 0°C-45°C.
