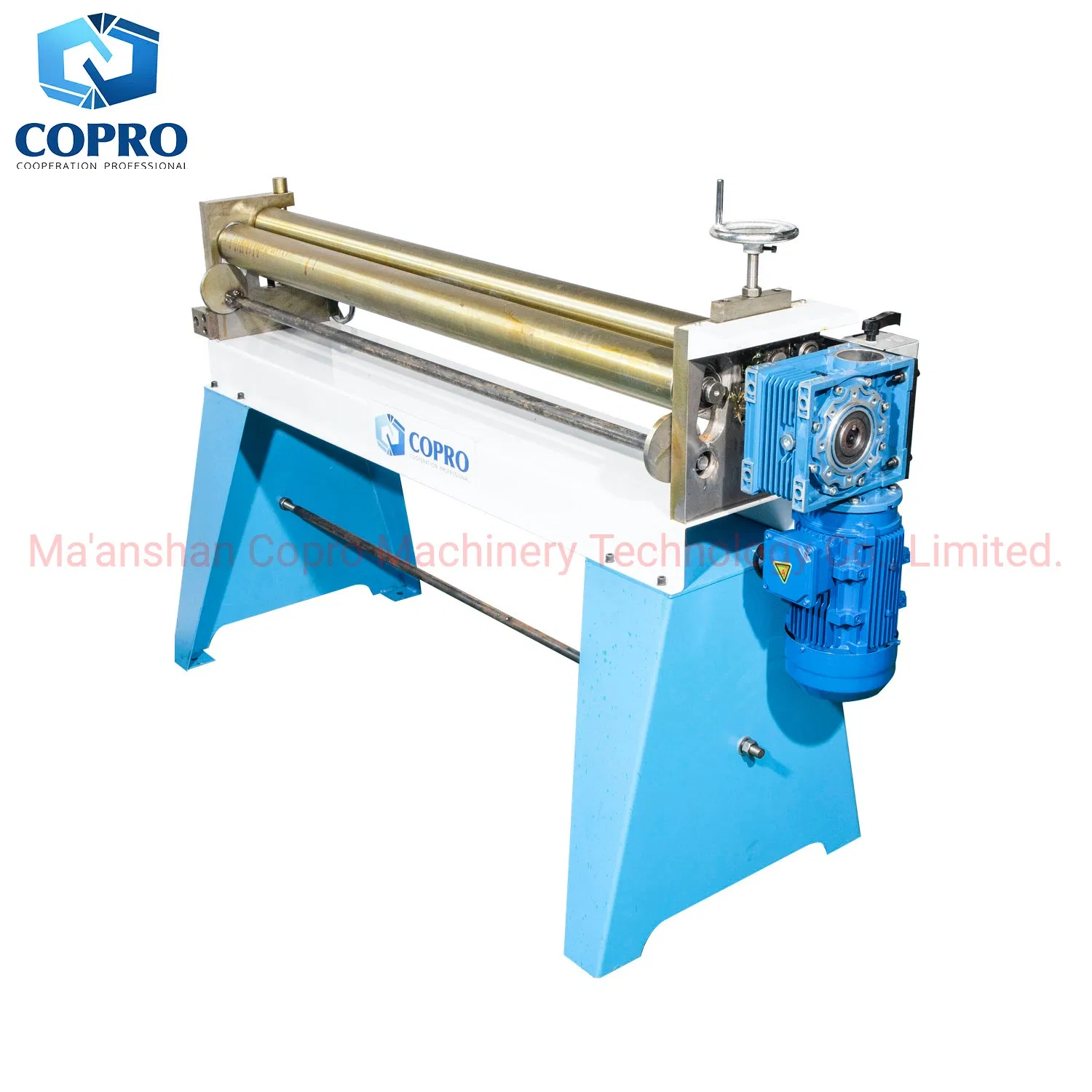

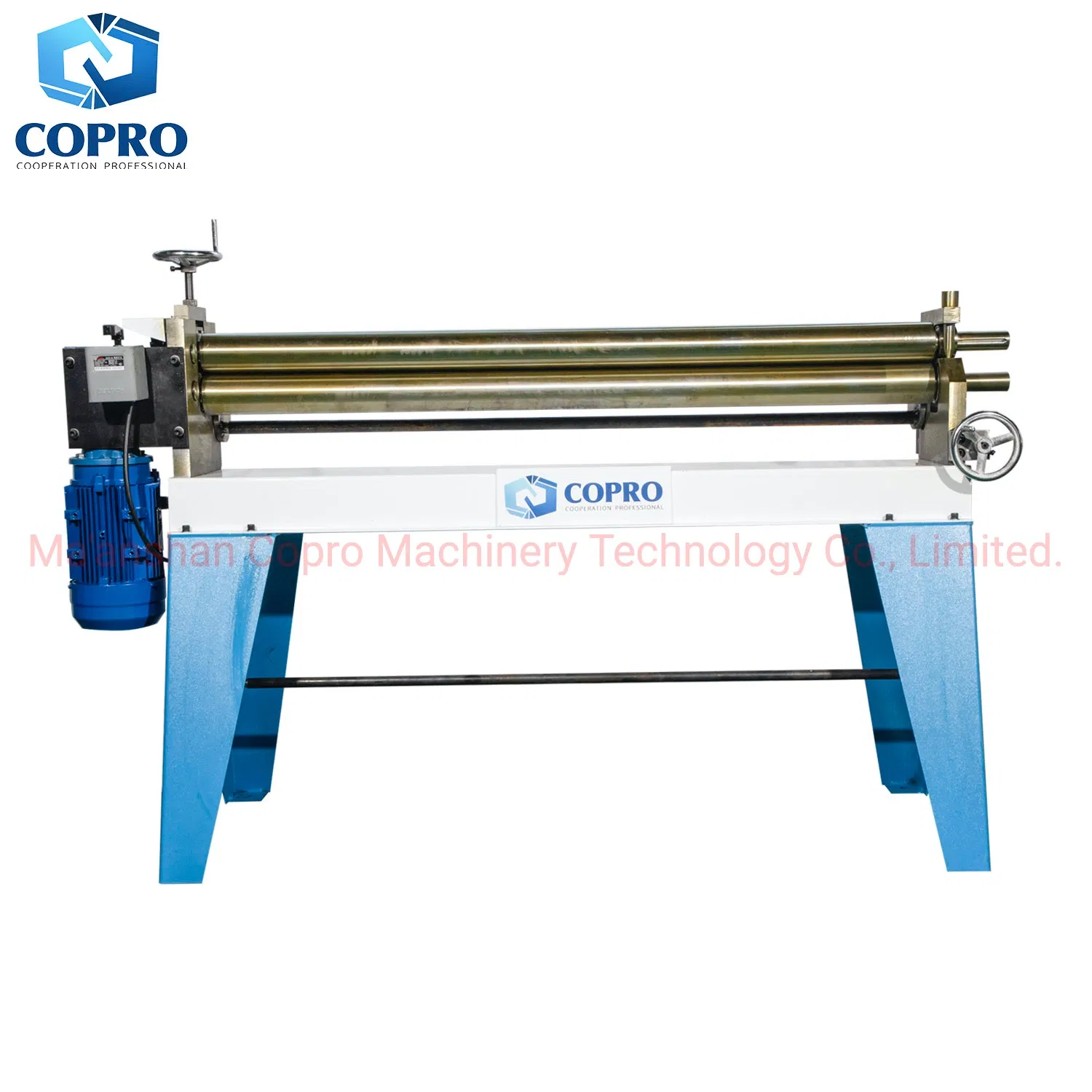

Ductwork Electric Auto Slip Roll Machine with High Quality
Performance features:Per-bending function makes straight edges narrower, and it can even round small round pipe with diameter of 100mm. Combined with manual worm gear and eccentric wheel device the machine can quickly move side rollers up and down to improve efficiency.Main technical parameters:Mode......
Send Inquiry
Product Description
Performance features:

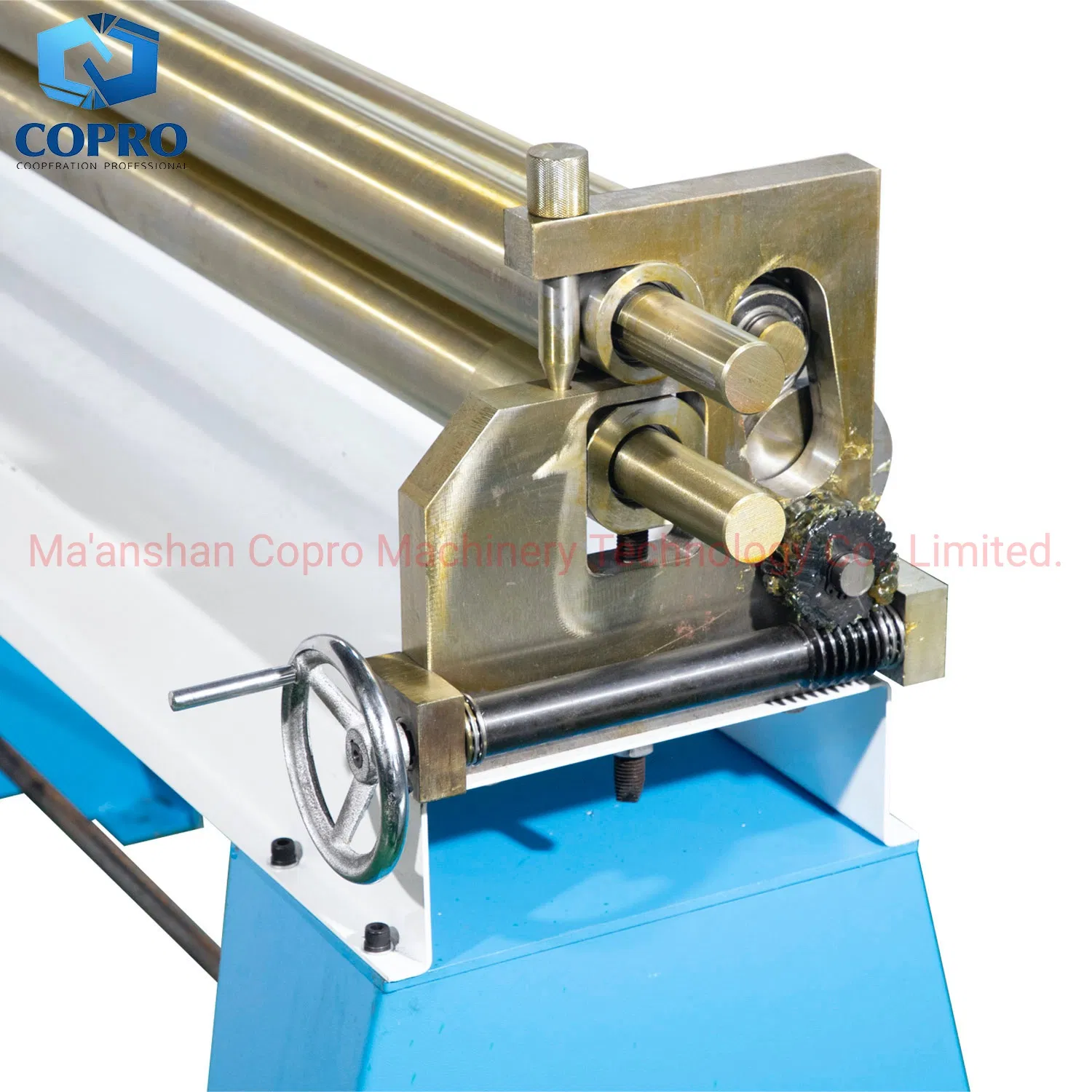

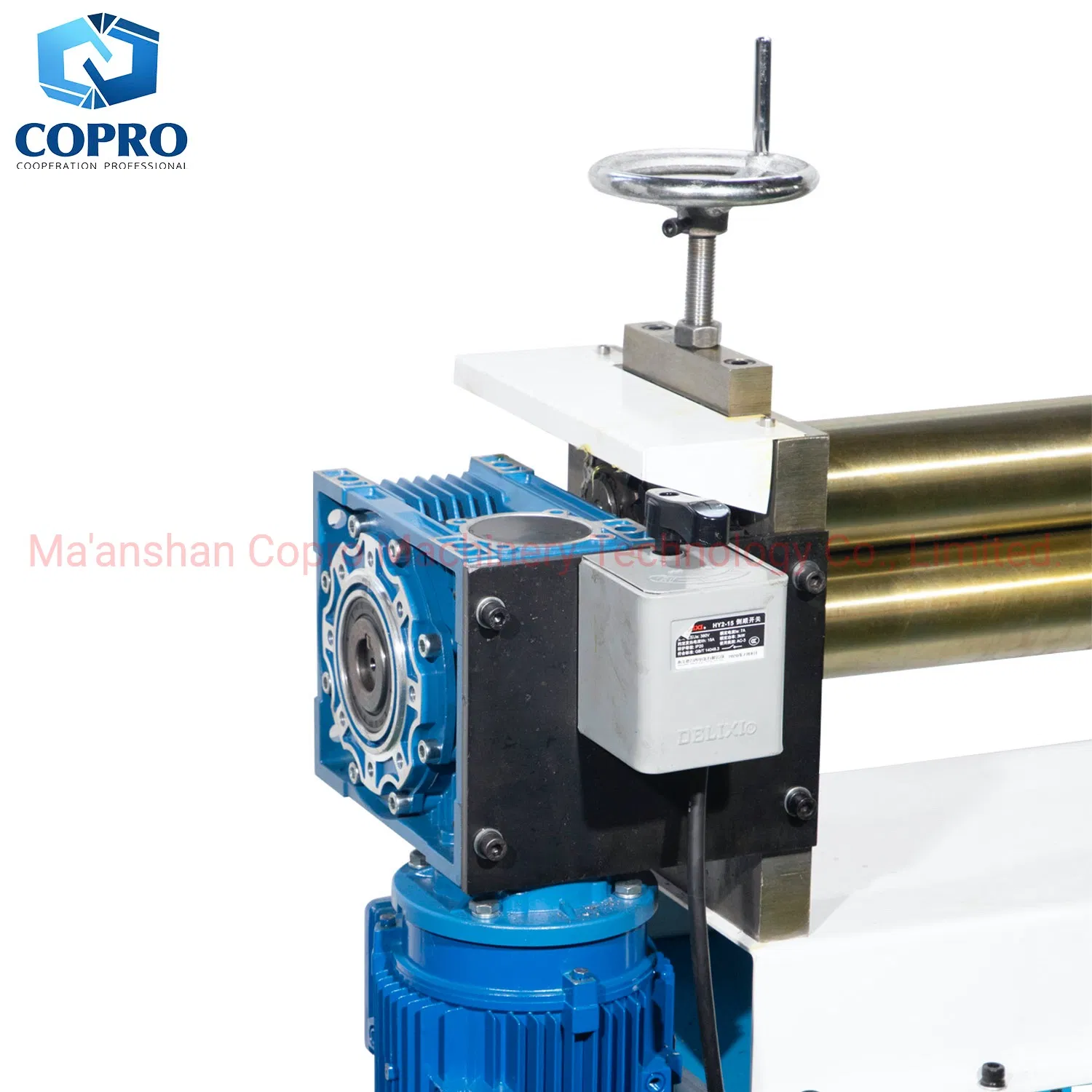

Per-bending function makes straight edges narrower, and it can even round small round pipe with diameter of 100mm. Combined with manual worm gear and eccentric wheel device the machine can quickly move side rollers up and down to improve efficiency.
Main technical parameters:
Model | Max thickness(mm) | Max width(mm) | Min diameter(mm) | Power(kw) | Weight(kg) | Dimension L*W*H(mm) |
W11-G1.5*1300 | 1.5 | 1300 | 100 | 1.5 | 225 | 1700*600*1100 |
W11-G1.5*1500 | 1.5 | 1500 | 100 | 1.5 | 260 | 1800*600*1100 |
W11-G1.5*2000 | 1.5 | 2000 | 100 | 2 | 280 | 2300*600*1100 |

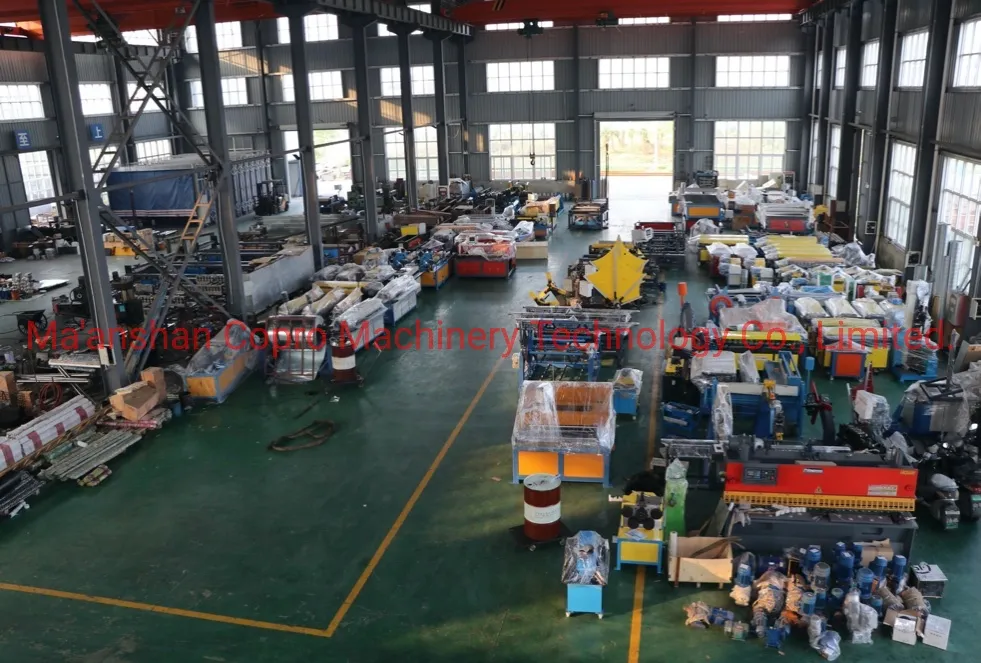

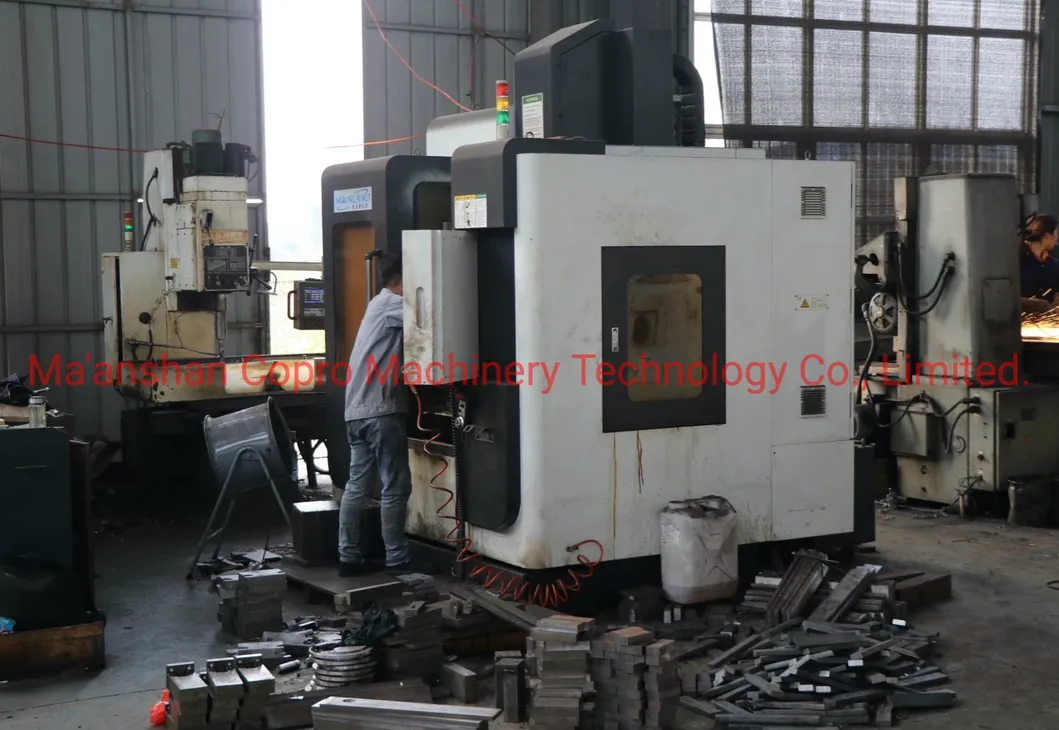

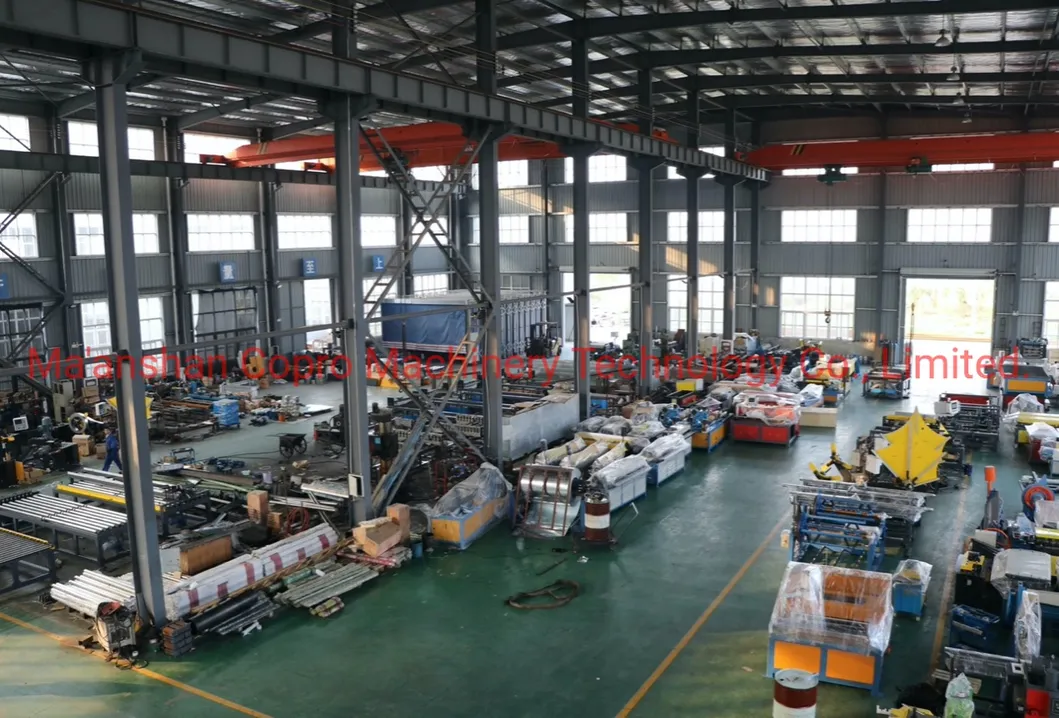

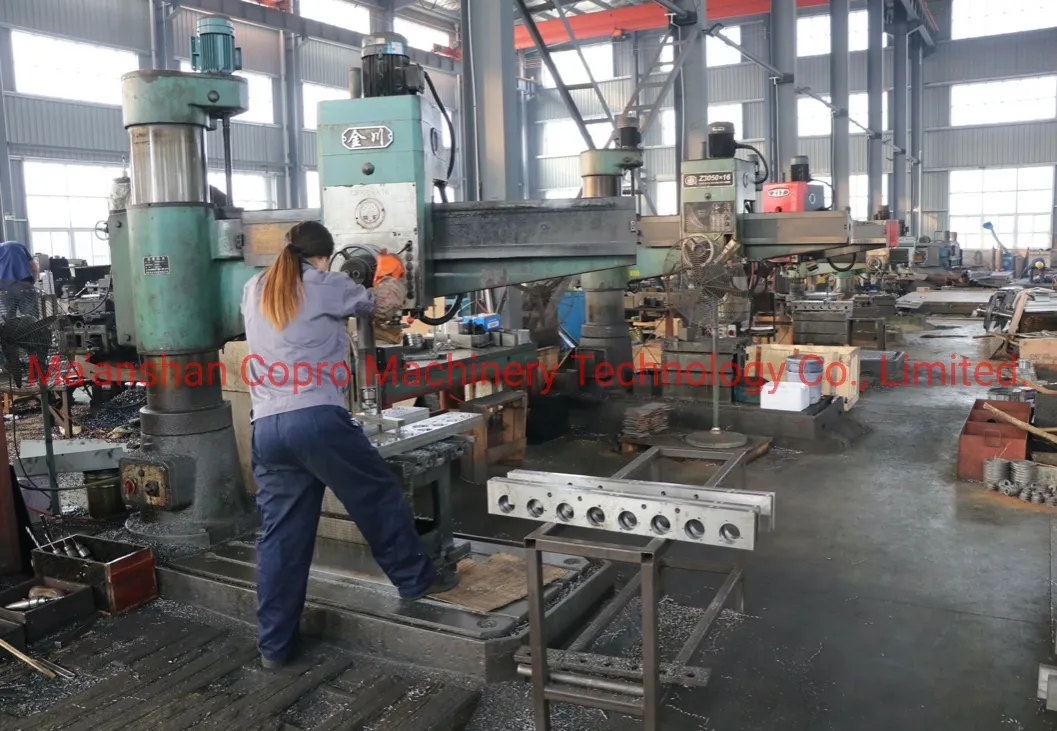

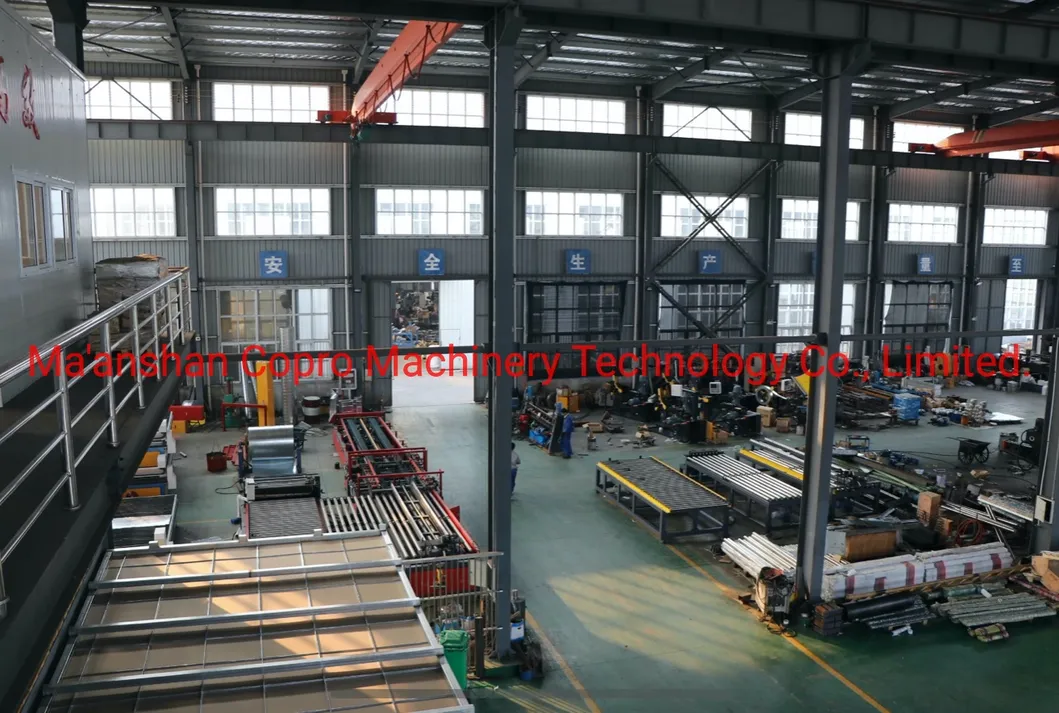

Workwhop

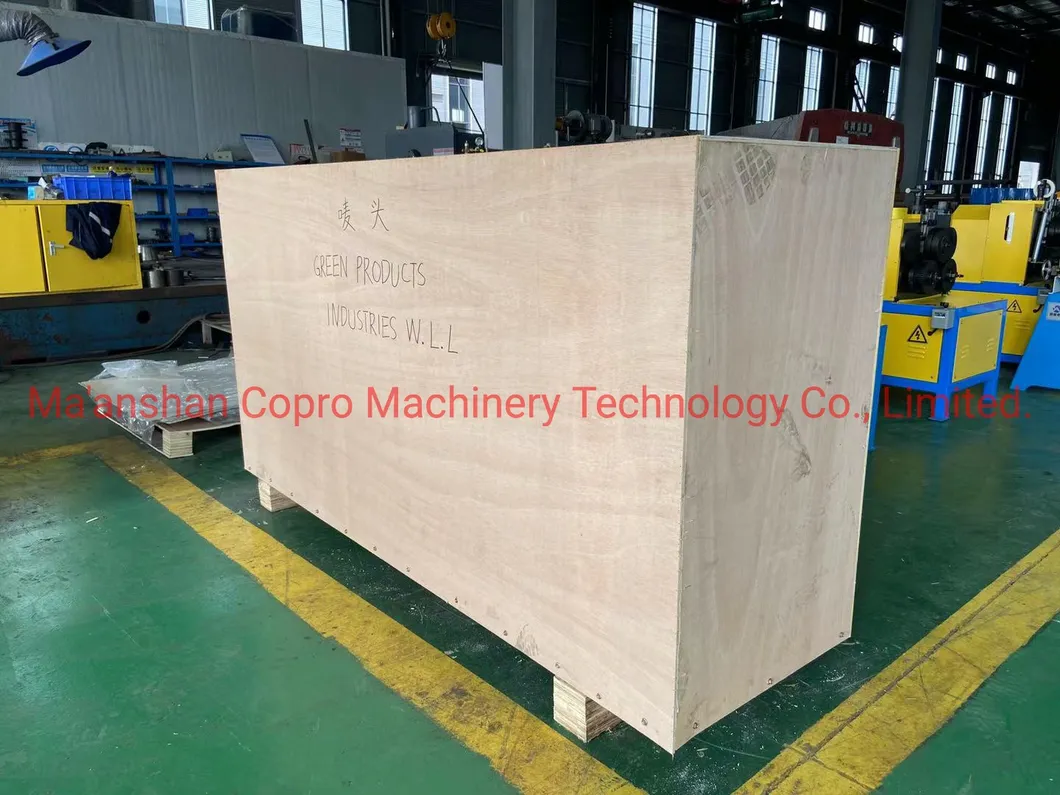

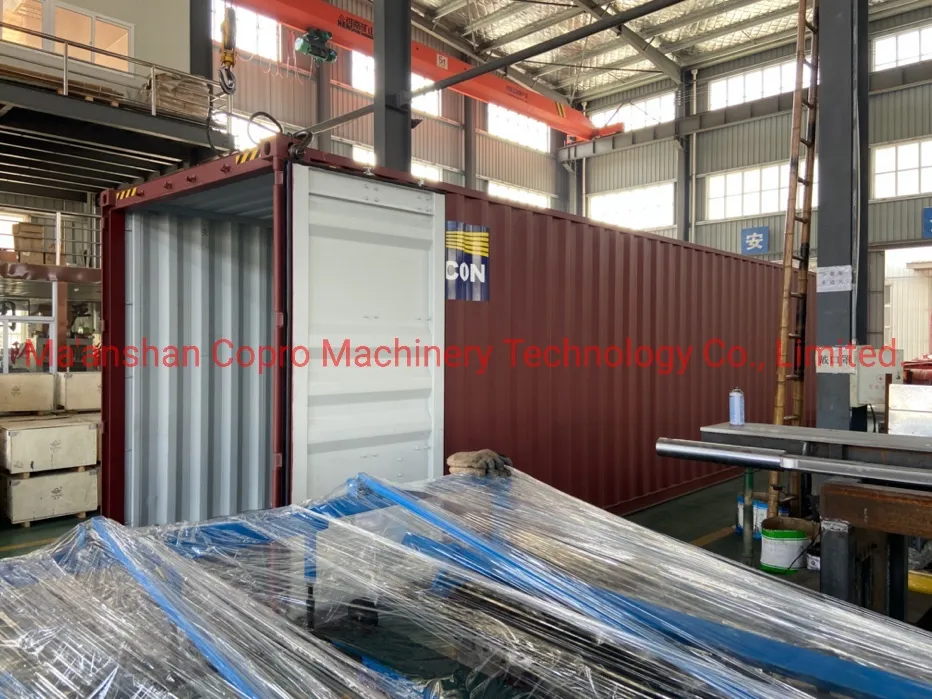

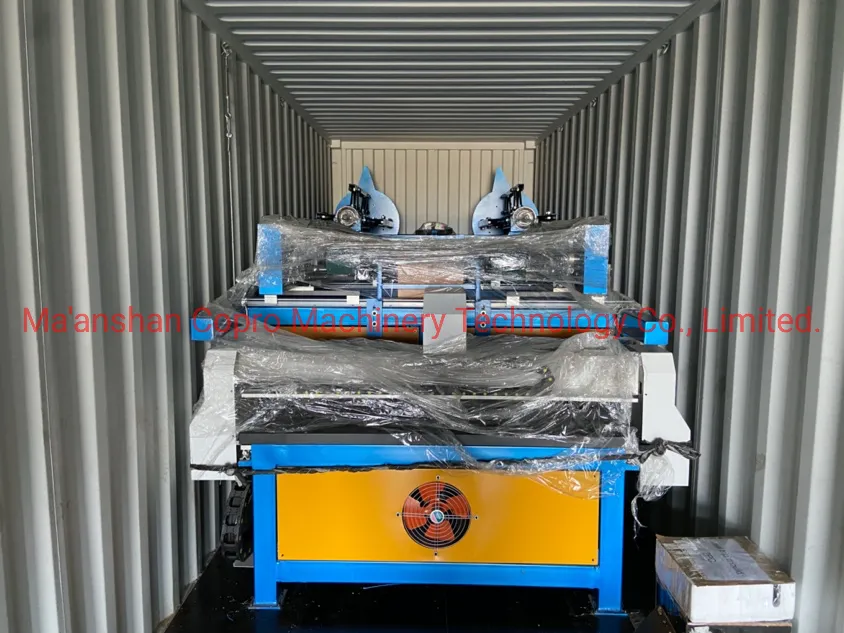

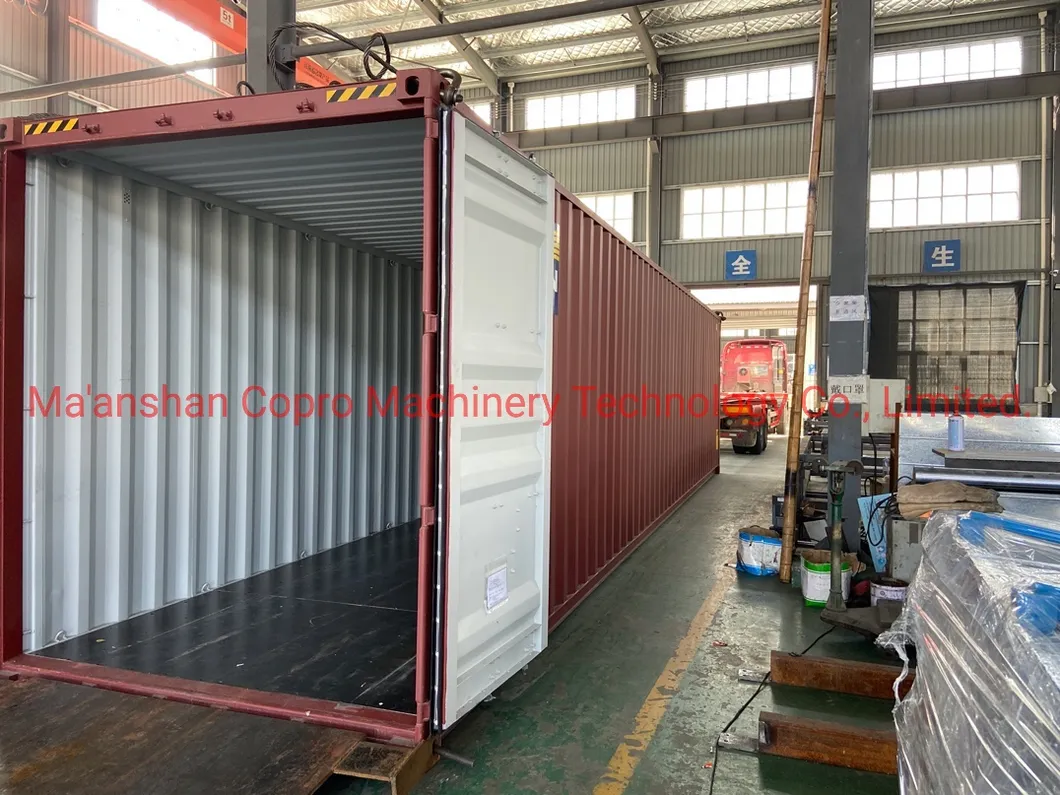

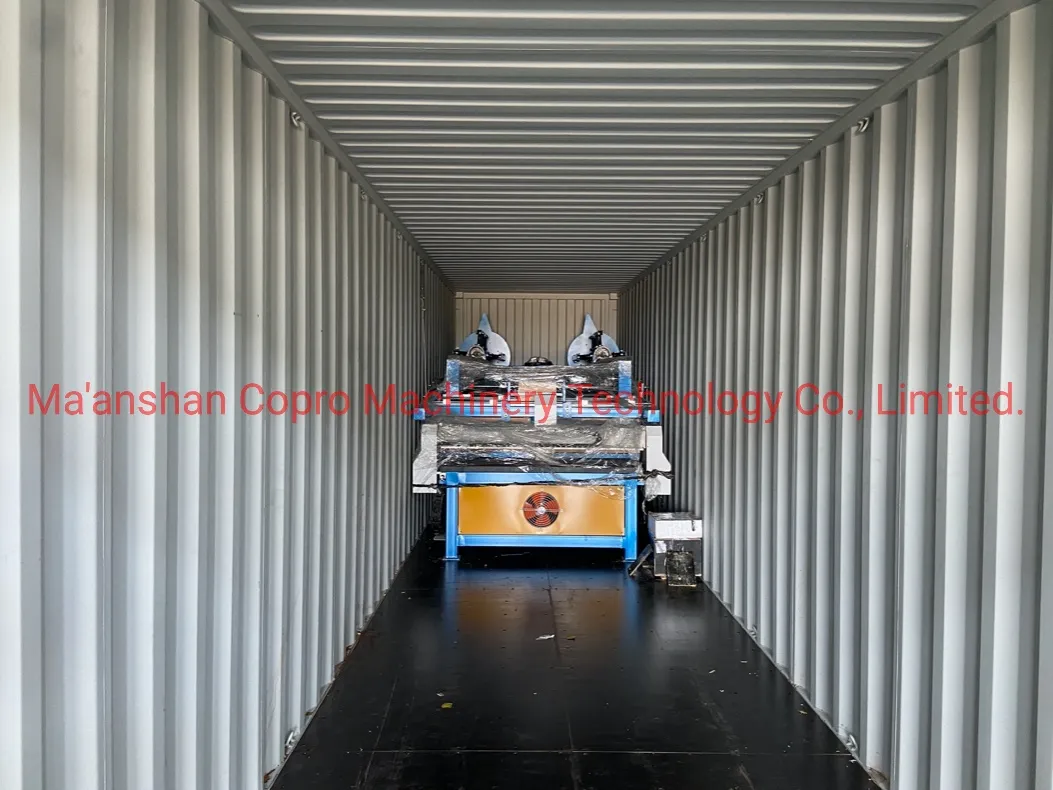

Loading Photos
