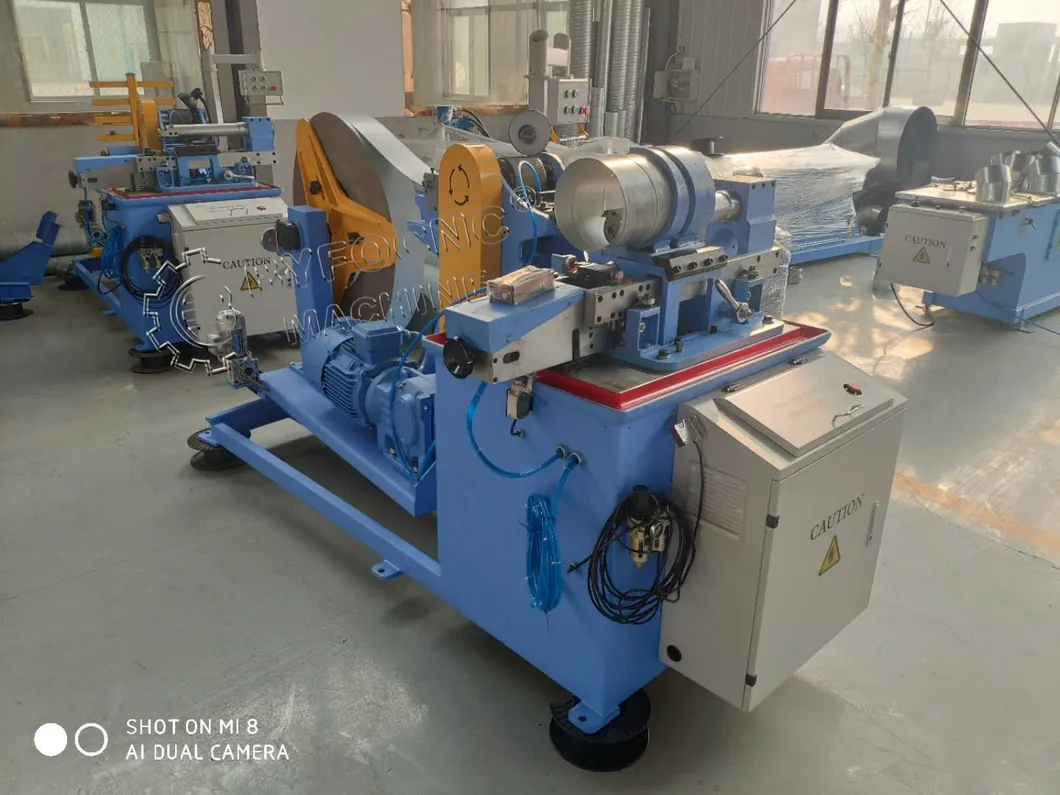

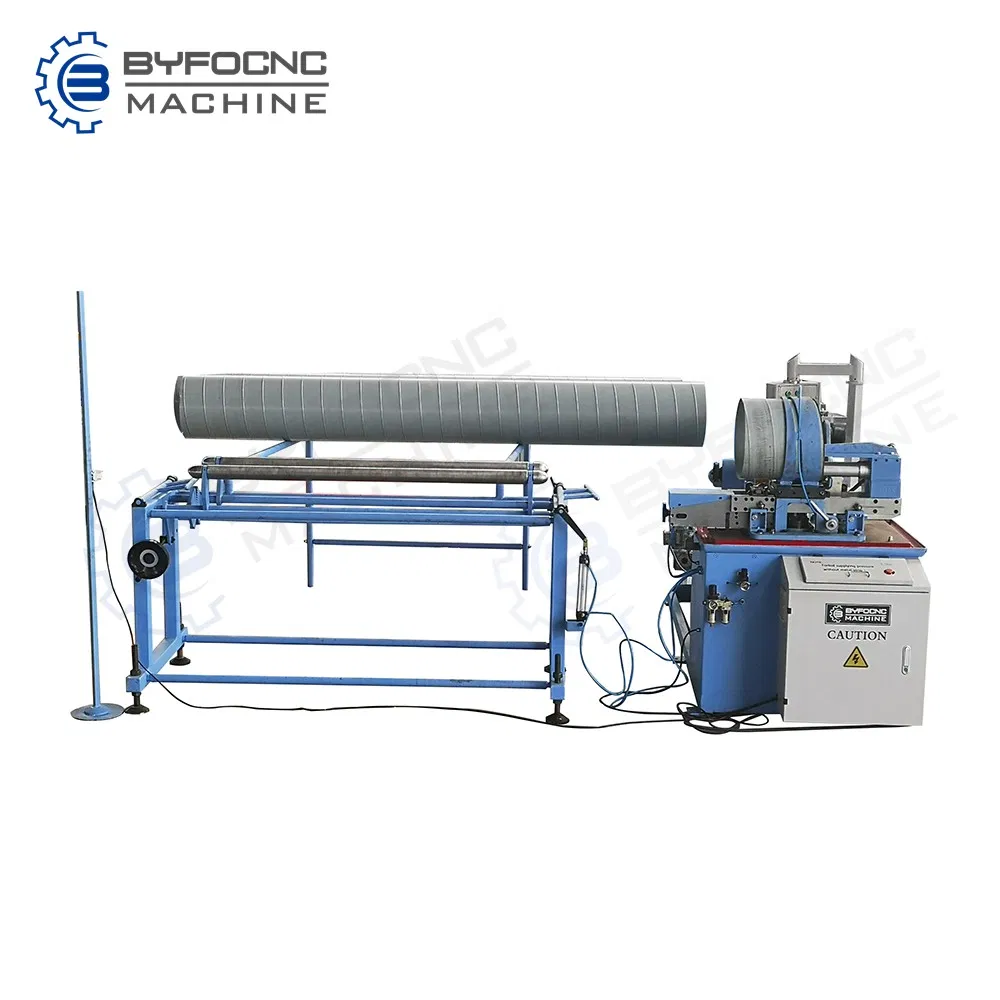

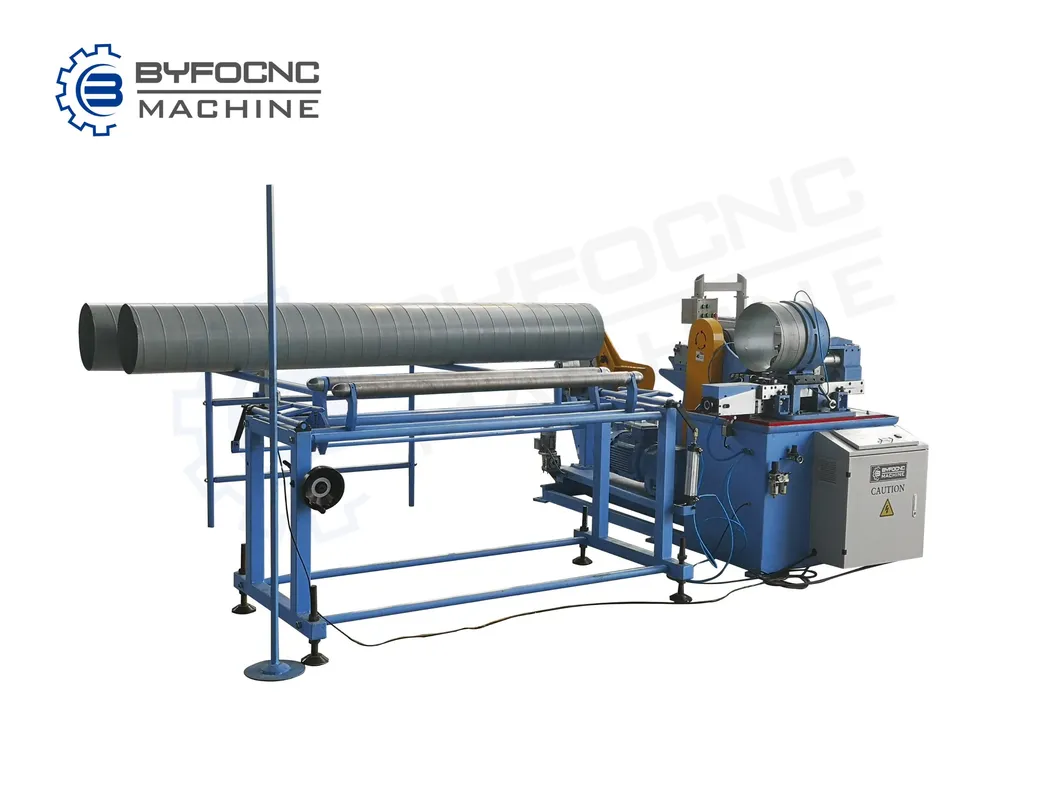

HVAC Ductwork Spiral Duct Making Machine
Fast Speed Roll Cutter Spiral round duct forming machineB1600 spiral machine is the most advanced air control equipment, easy to install and move, flexible regulation, field construction.Main Technical Data:Diameter rangeΦ80-Φ1500mmThickness of StripGalvanized steel:0.5-1.2mm Stainl......
Send Inquiry
Product Description
Fast Speed Roll Cutter Spiral round duct forming machine
Main Technical Data:

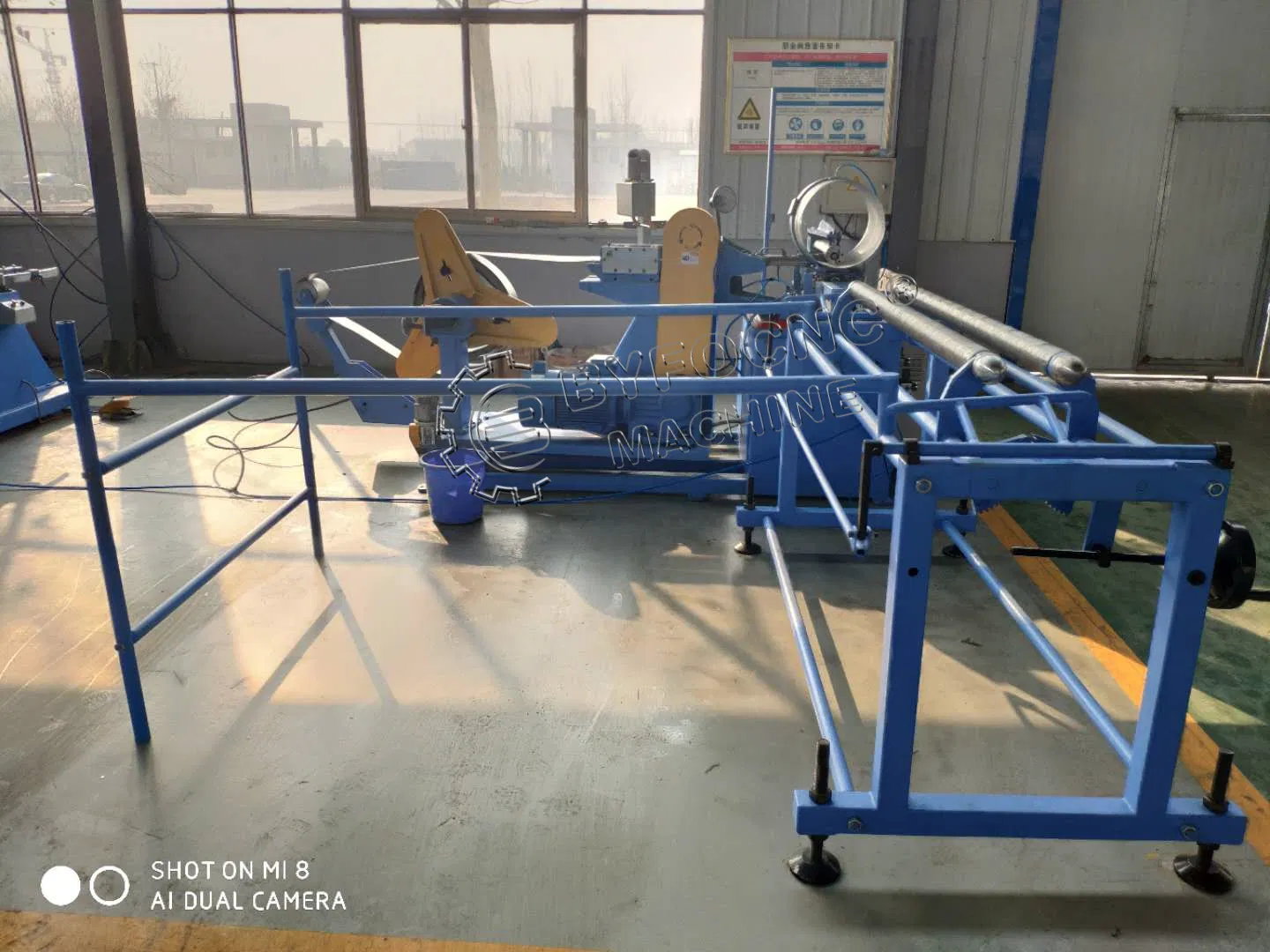

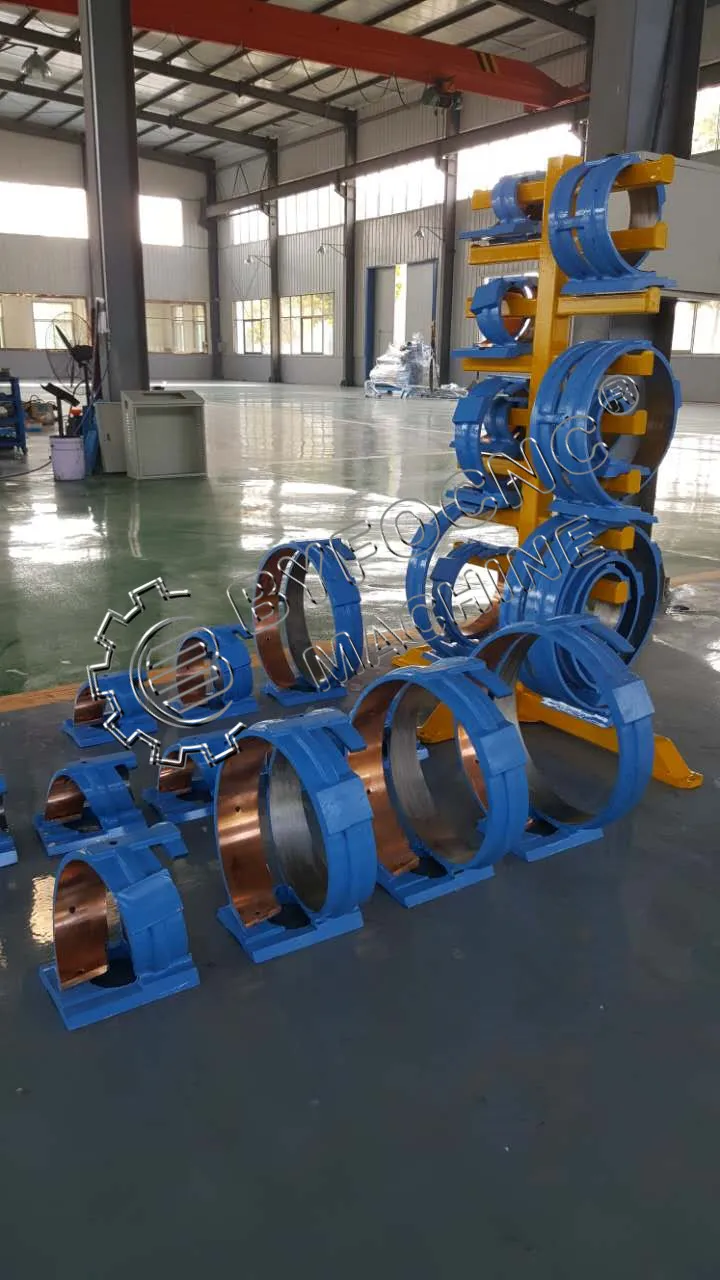

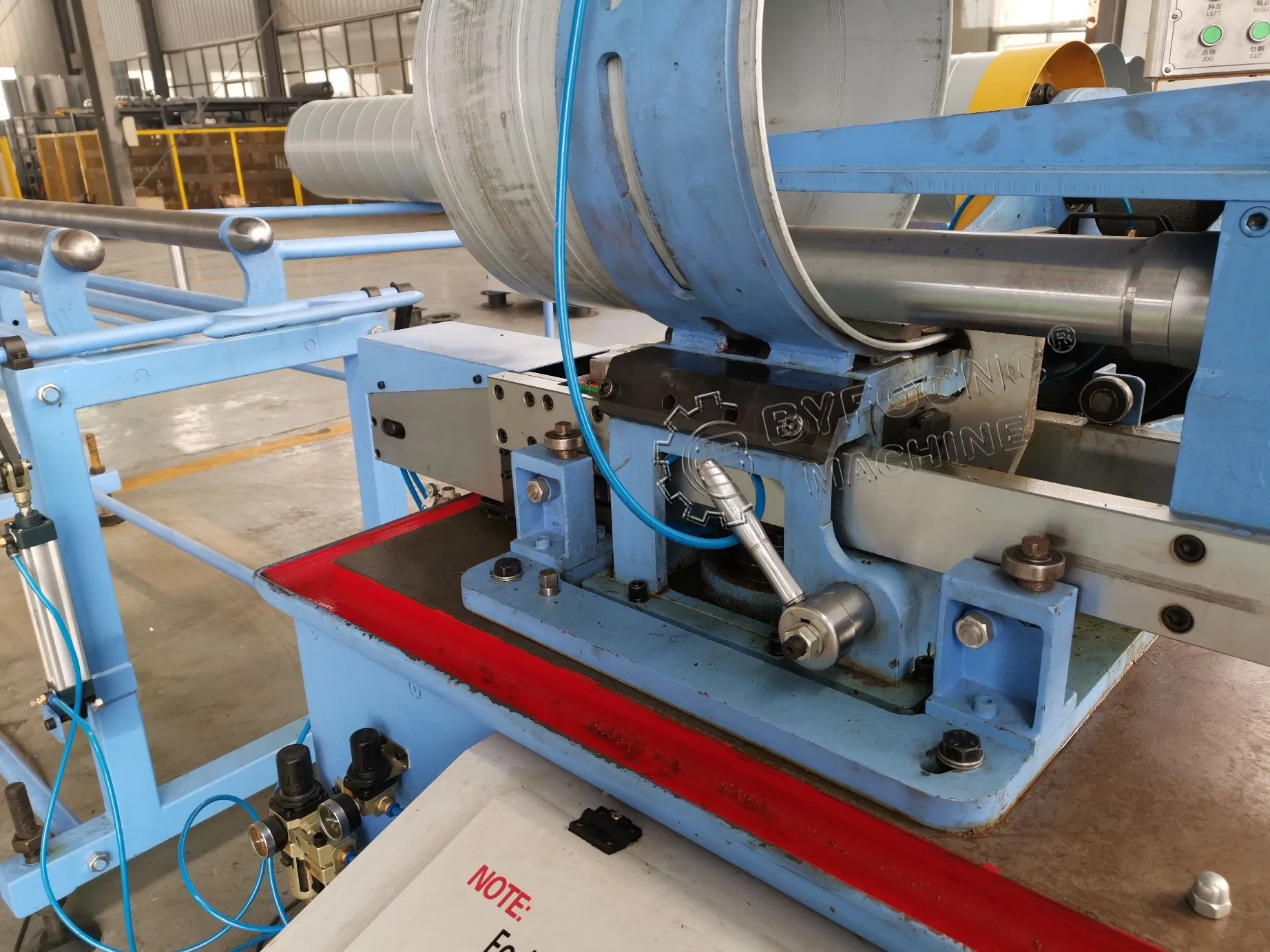

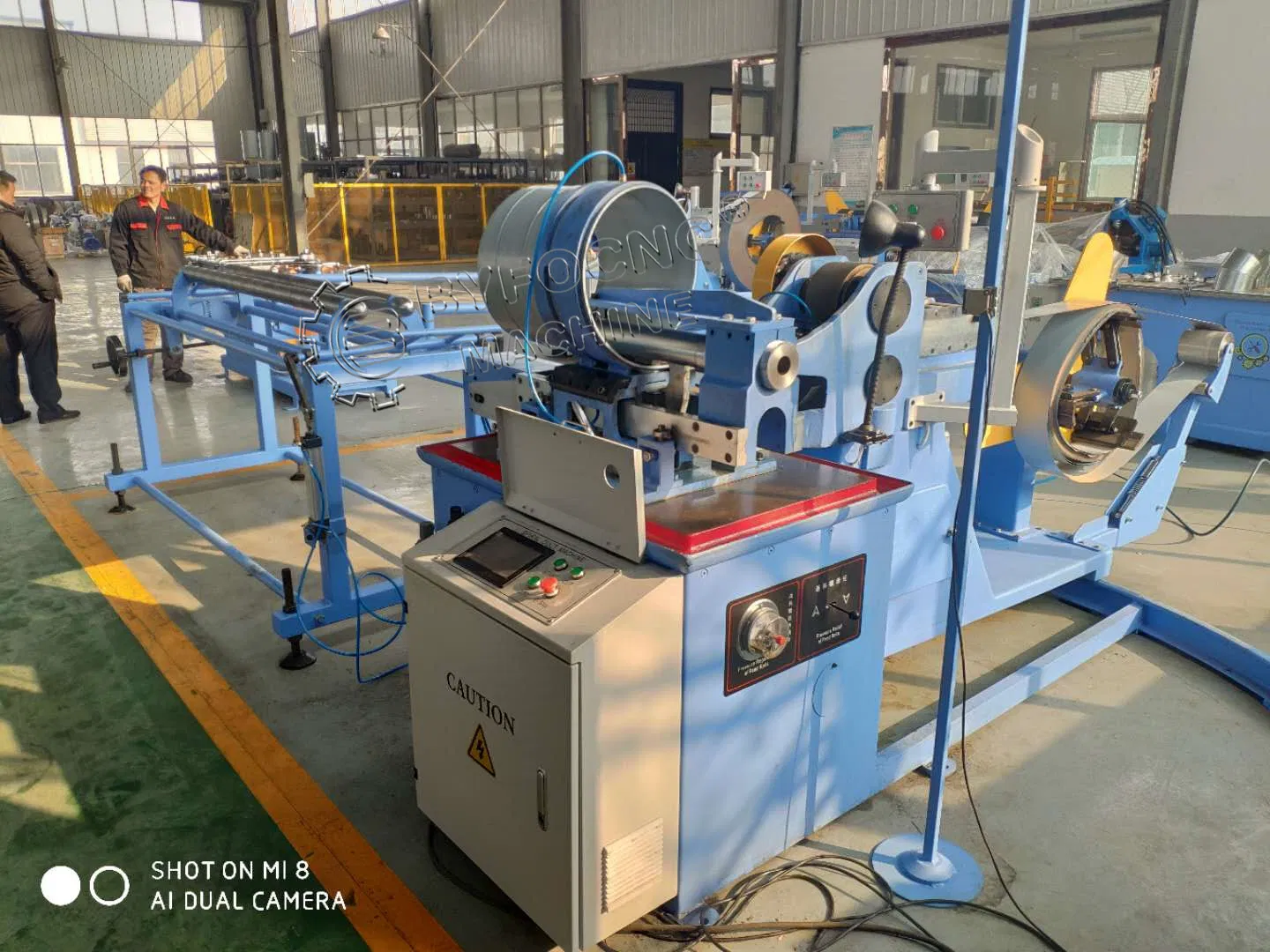

More detailed photos:
B1600 spiral machine is the most advanced air control equipment, easy to install and move, flexible regulation, field construction.
Main Technical Data:
| Diameter range | Φ80-Φ1500mm |
| Thickness of Strip | Galvanized steel:0.5-1.2mm Stainless steel:0.4-0.8mm |
| Width of Strip | 137mm |
| Strip Speed | 1-27m/min |
| Dimension (L x W x H): | 3300*1700*1500mm(main part),2100*1000*1000mm(standard support) |
| Lock seam | Outside tube, on the inside on request |
| Weight | 2300kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical | 380V/3PH/60HZ(According to customer's request) |
| Total Motor Power | 12kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
| Cutting system | Roller cutter |
