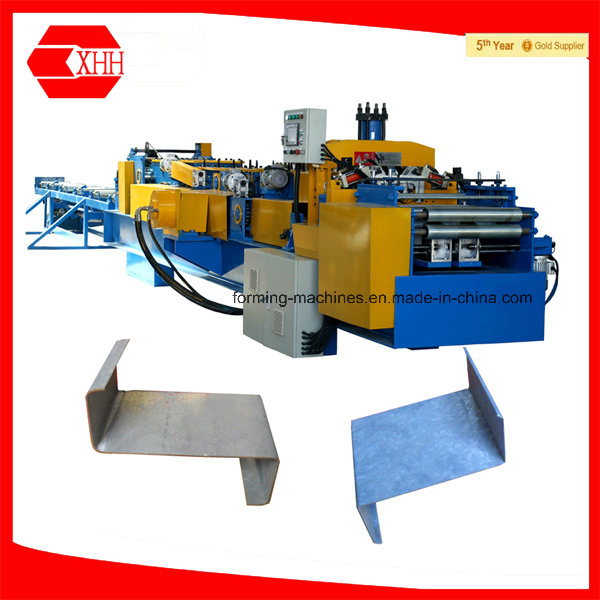

Z Type Purlin Forming Machines with Pre-Punching and Pre-Cutting ( Z150 -300)
The informations of Z150-300 Purline Forming Machines with Pre-punching and Pre-cutting, Z Purline roll Forming Machines and Z Channel Machine with Pr-punching and Pre-cutting are as follows: (1). Hydraulic Motor Power: 22kw; (2). Forming Speed: 10-16m/min; (3). Thickness: 1.6-3.0mm; (4). Width for ......
Send Inquiry
Product Description
The informations of Z150-300 Purline Forming Machines with Pre-punching and Pre-cutting, Z Purline roll Forming Machines and Z Channel Machine with Pr-punching and Pre-cutting are as follows:
(1). Hydraulic Motor Power: 22kw;
(2). Forming Speed: 10-16m/min;
(3). Thickness: 1.6-3.0mm;
(4). Width for purline: 150-300mm.
1. | Size | 8500*1500*1400mm |
| 2. | Weight | 7500KGS |
| 3. | Hydraulic Motor Power | 22KW |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Forming Steps | 13+3 steps for reshaping |
| 6. | Forming Speed | 10-14m/min |
| 7. | Forming Theckness | 1.6-3.0mm |
| 8. | Flange of Purline | 50mm to 80mm |
| 9. | Width Purline E | 150mm to 300mm |
