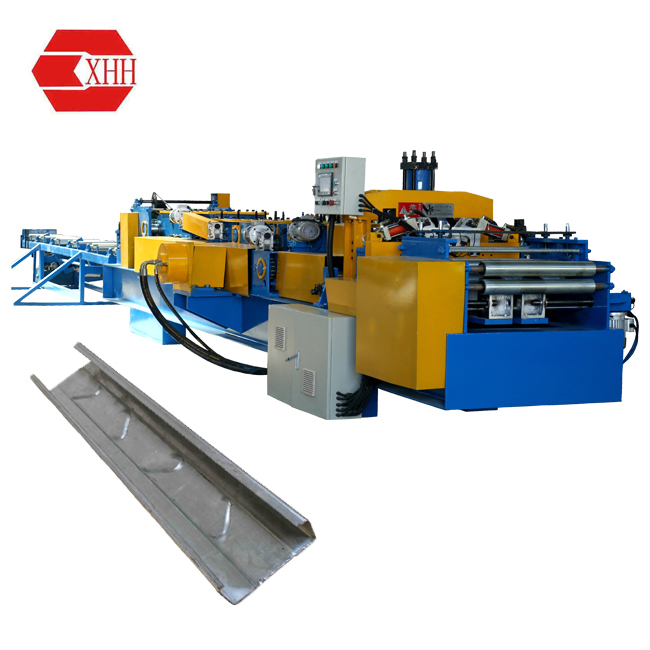

Z Type Purlin Machines with Pre-Punching and Pre-Cutting

Product Description

The detail informations of Z Purline Forming Machine, Z Purlin Machine, Z Purline Machines are as following:

Main Techincal Data:

1.	Dimension	850015001400mm
2.	Weight	7500KGS
3.	Motor Power	22kw
4.	Motor Power for auto adjustment size	0.75kw*2
5.	Voltage	380V/50HZ/3PH
6.	Processing Speed	10-16m/min
7.	Forming Steps	13 steps+3 steps for reshaping
8.	Material of principal axis	high grade 45# forged steel
9.	Material of roller	45#steel with hard chrome plating
10.	Material of blade	Cr12 mould steel with quenched treatment 60-62°C

Main Accessories:
(1) Main Purline Forming Machine;
(2) 5 Tons Hydraulic Un-coiler;
(3) Automatic Guide Device;
(4) Hydraulic Motor System ;
(5) PLC Computer Controlling System with Touching Screen ;
(6) Pre-punching Holes Device;
(7) Pre-cutting Device;
(8) Reshaping Device;
(9) PLC Automatic Controlling System For Adjusting Size From 60mm to 300mm; PLC Automatic Controlling System For interchange C to Z Purline;
(11) Run Out Table(4 pcs);
(12) Tools;
(13) Operation Manual.

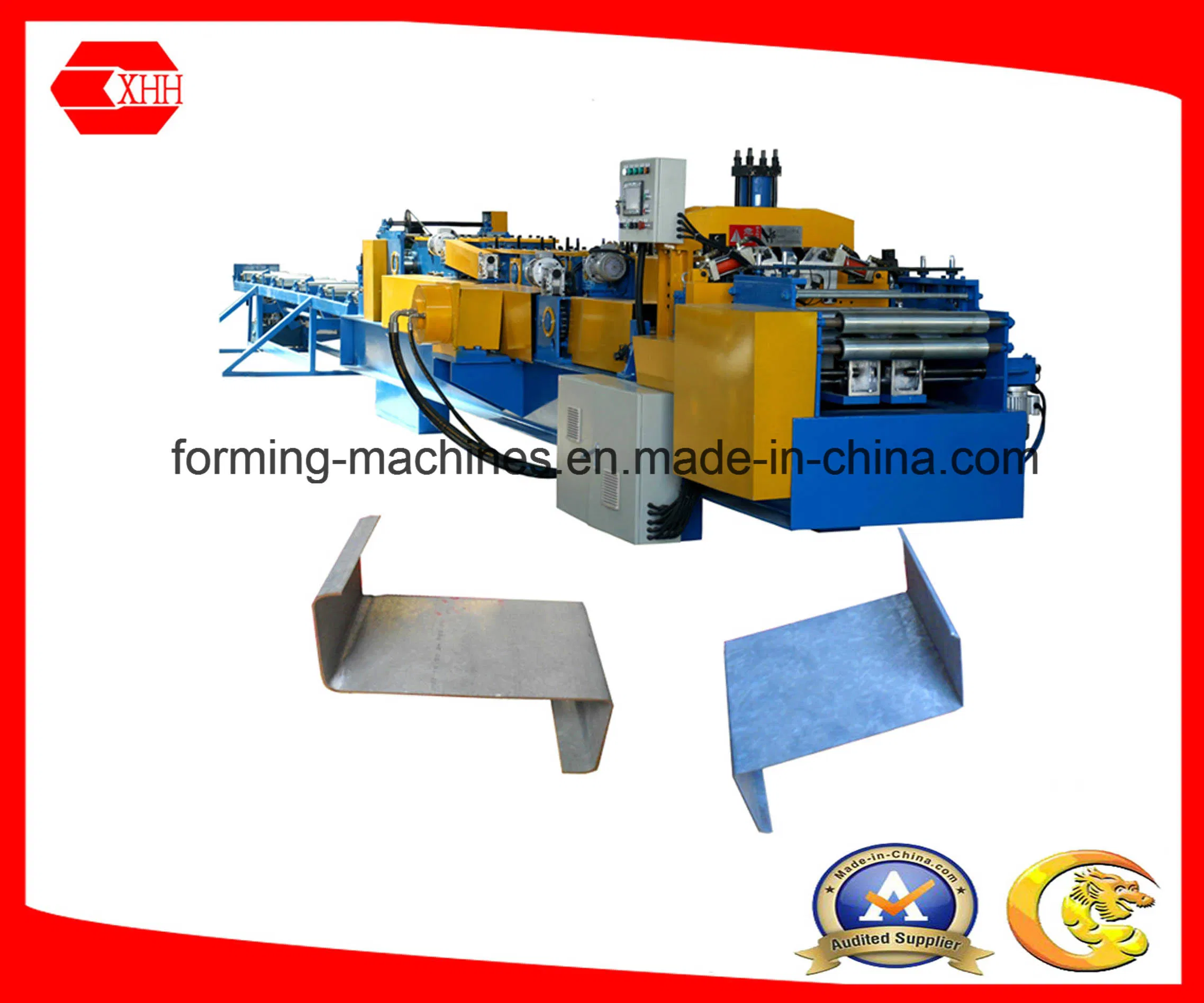

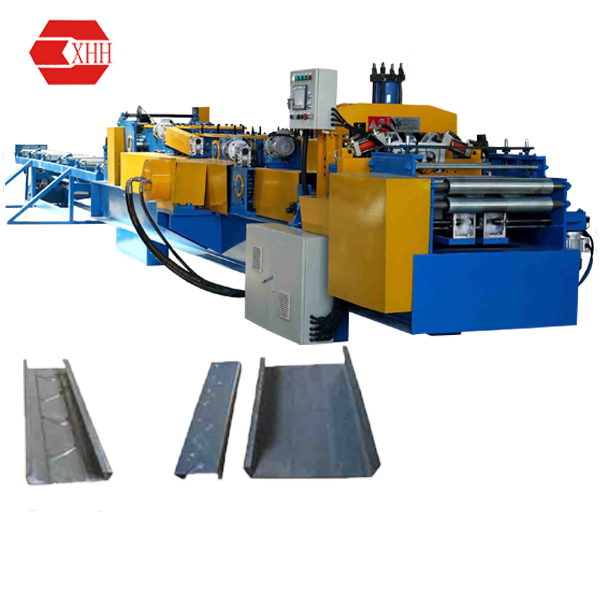

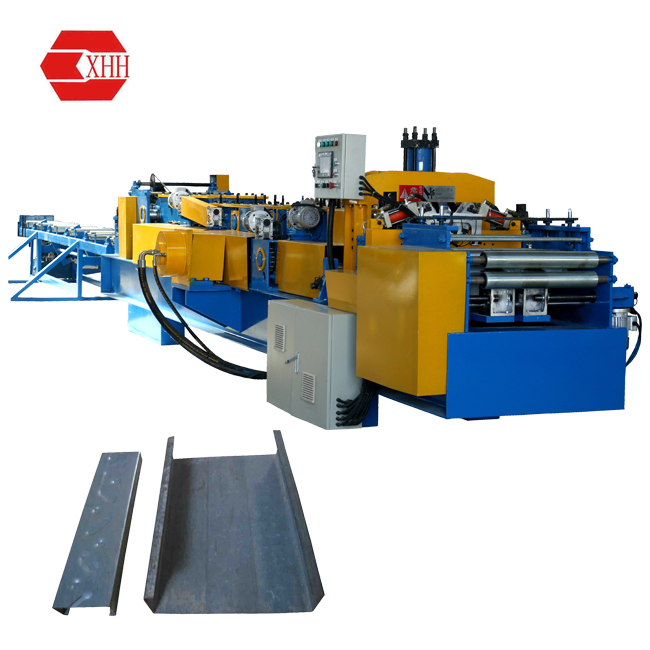

Reference profile:

Usage:Roof Tile is used for industry plant,warehouse and roofing,wall space.
