Product Description

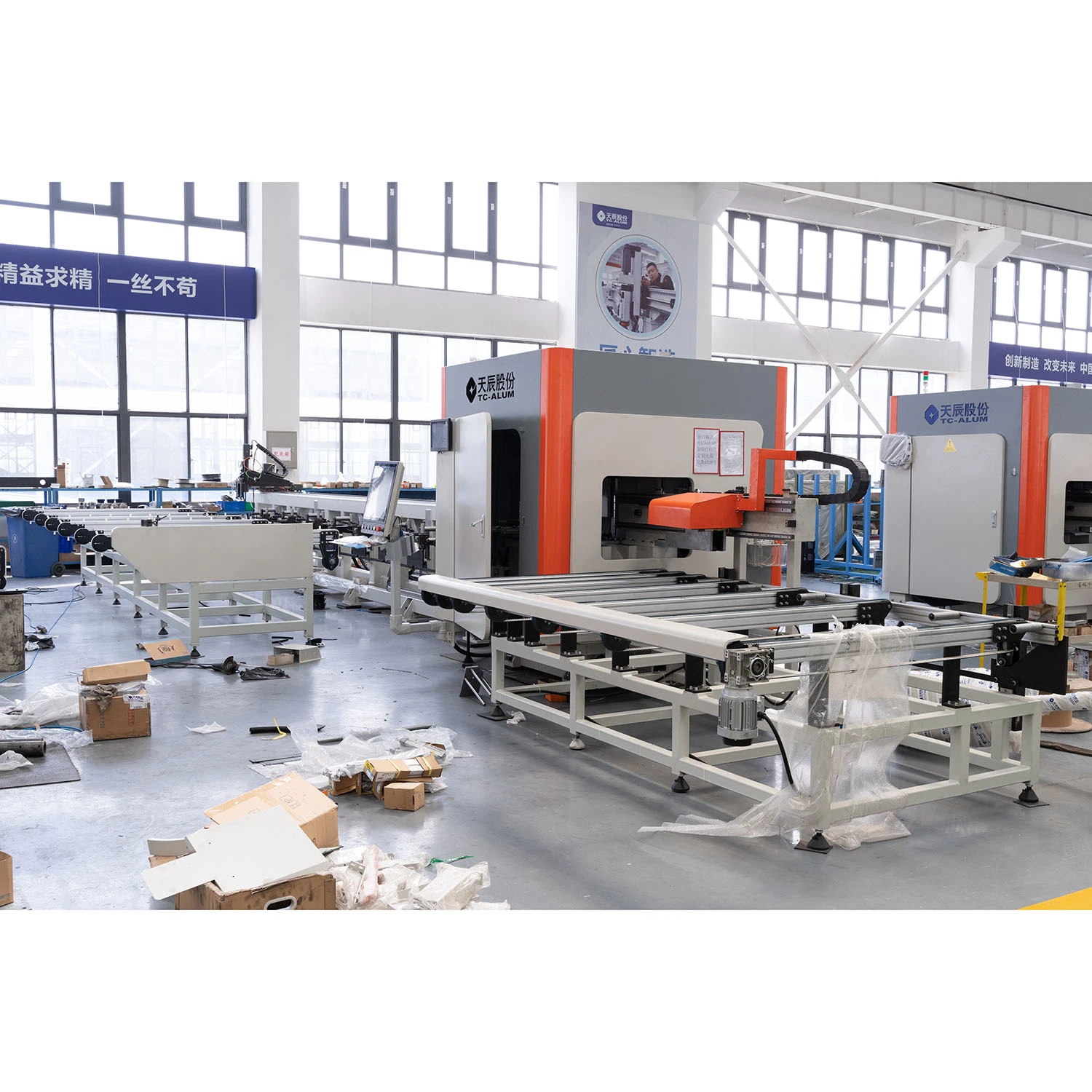

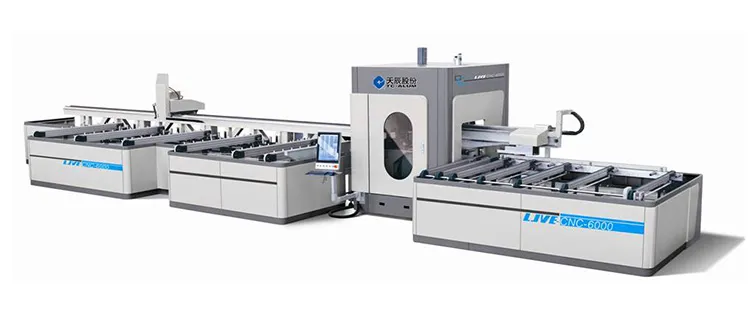

Automatic Aluminium Cutting Saw Center Window Door Machine LJVE-CNC-6000
Machine Features

It is used for high effective cutting aluminum profile at 45°or 90°.
The auto worktable continuous feeding and clamping profile.
It adopts high precision straight guide rail pair to ensure stability and reliable operation.
Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision
gear rack drive to ensure reliable feeding.

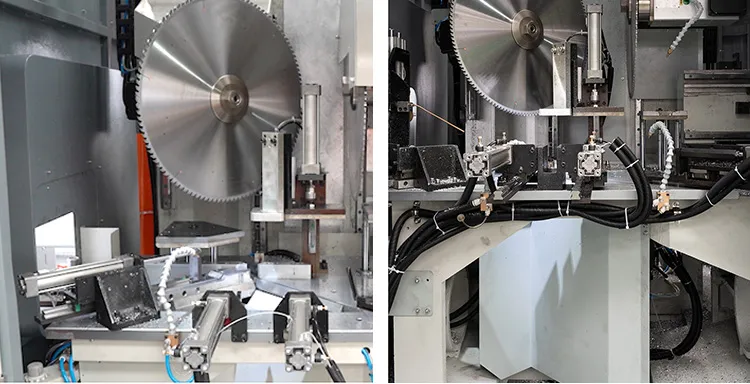

Blade connected with imported motor. Cut smooth, steady and high precision.

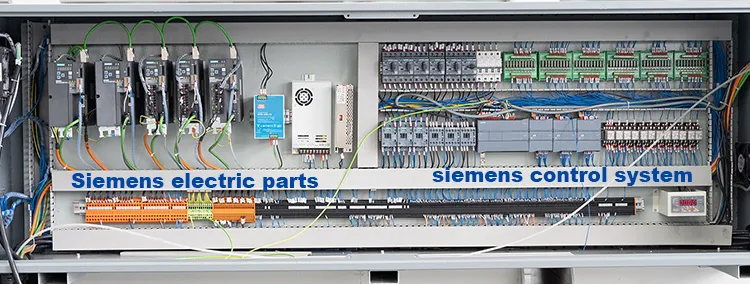

Siemens control system makes machine working steady and reliable.

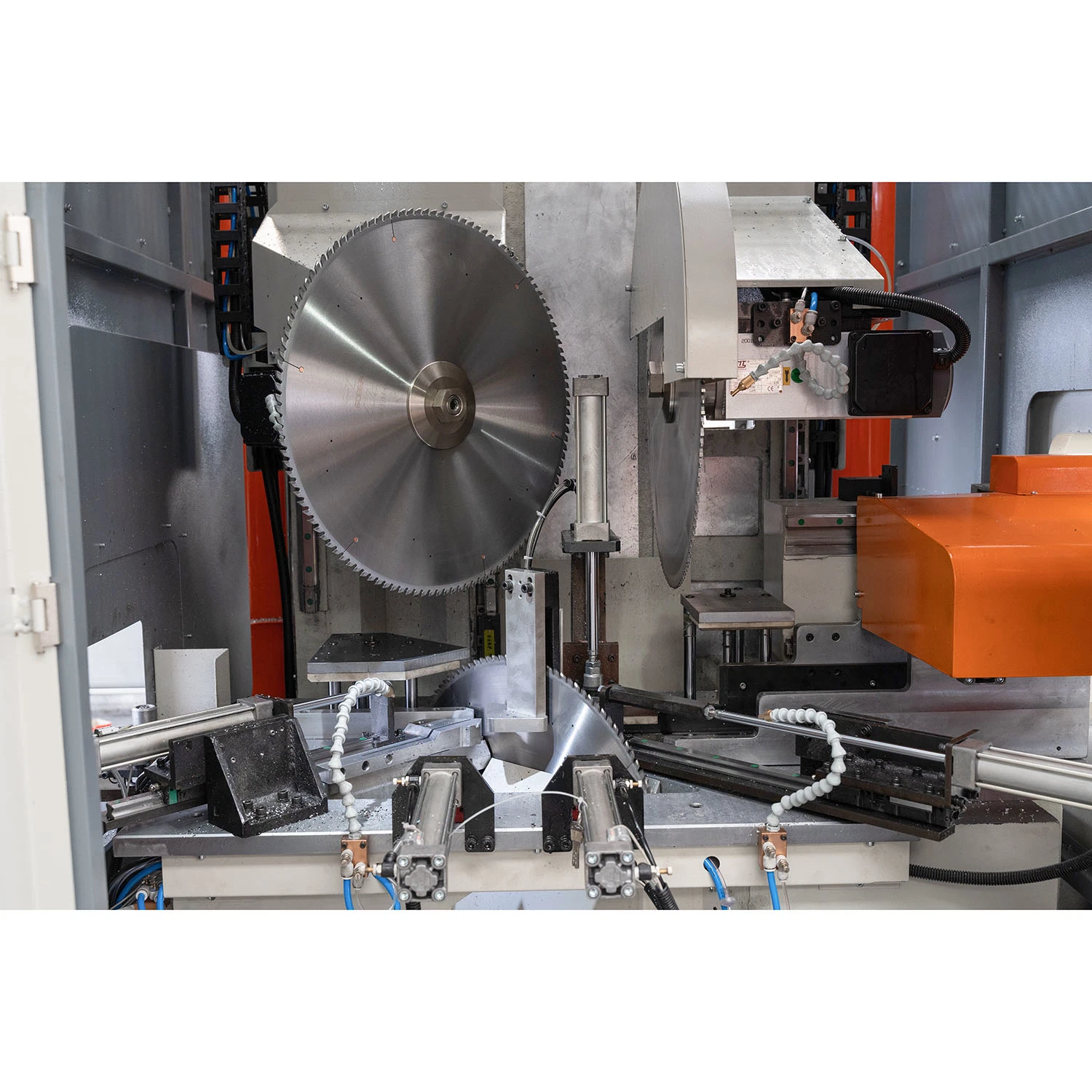

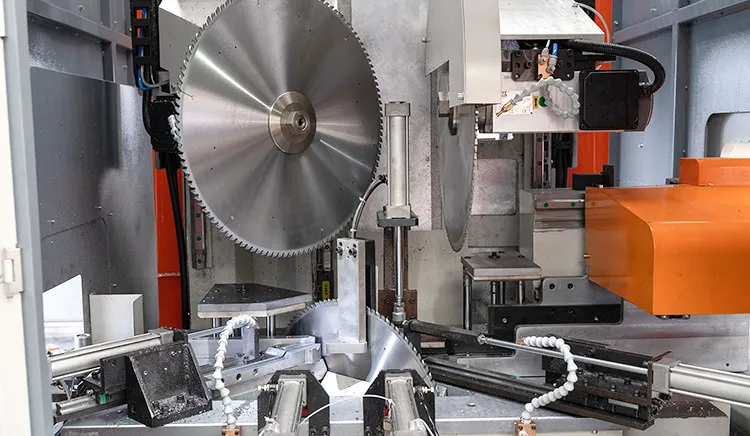

It can complete the 45°cutting through up and down saw blades' separate cutting, high cutting precision, which can avoid
partial breakage of profile.
It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach
the auto output of the shortest profile 260mm.
Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
Hinge type constantly conveys scrap and aluminum scrap to the outside.
The totally enclosed safety cover to ensure the personal security.
Option: Profile lifting platform to achieve the single person feeding operation
Option: Bar code printer for E-works.
Technical Parameters

Cutting Motor Power	3*3.0KW
Total Power	18KW
Power Supply	Customized Value
Operation Air Pressure	0.6~0.8MPa
45 Degree Sawing Blade Size	φ650φ304.4*120T
Cutting Height	30~150mm
Cutting Width	30~150mm
Cutting Length	290~6000mm
Cutting Angle Deviation	±5′
Length Deviation	±0.15mm
Repeat Locating Length Deviation	±0.05mm
Overall Dimension	1400050002500mm
Weight	About 7500KGS
