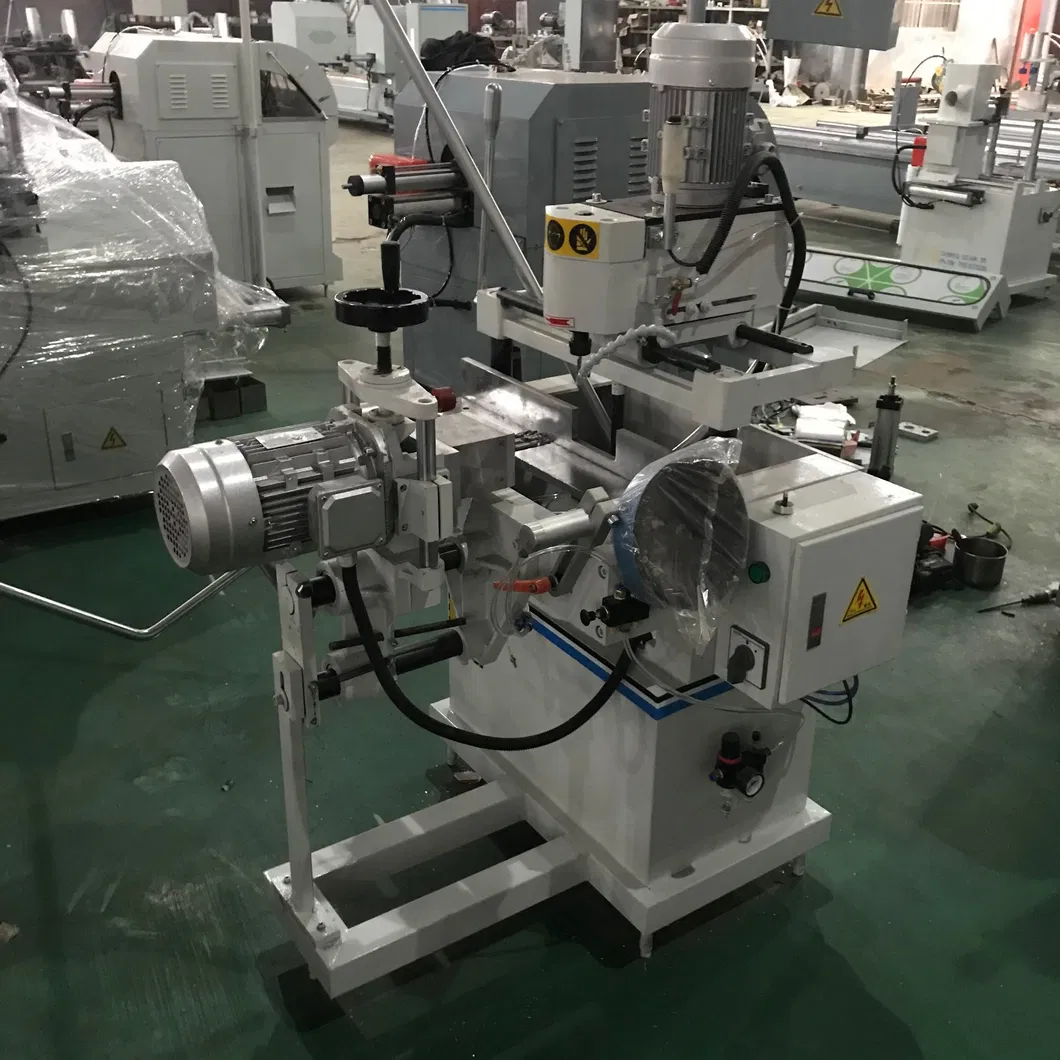

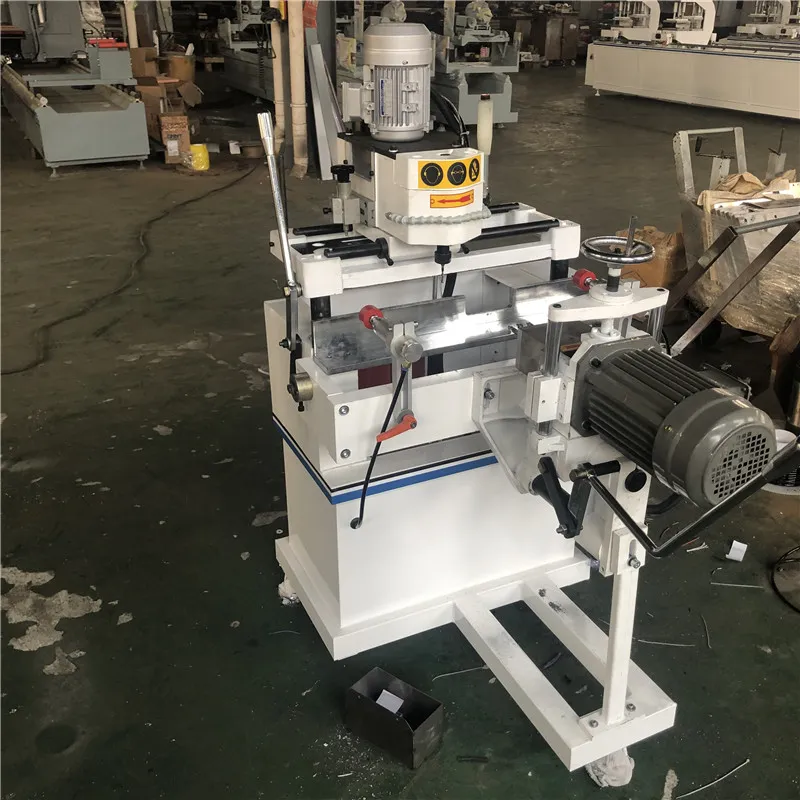

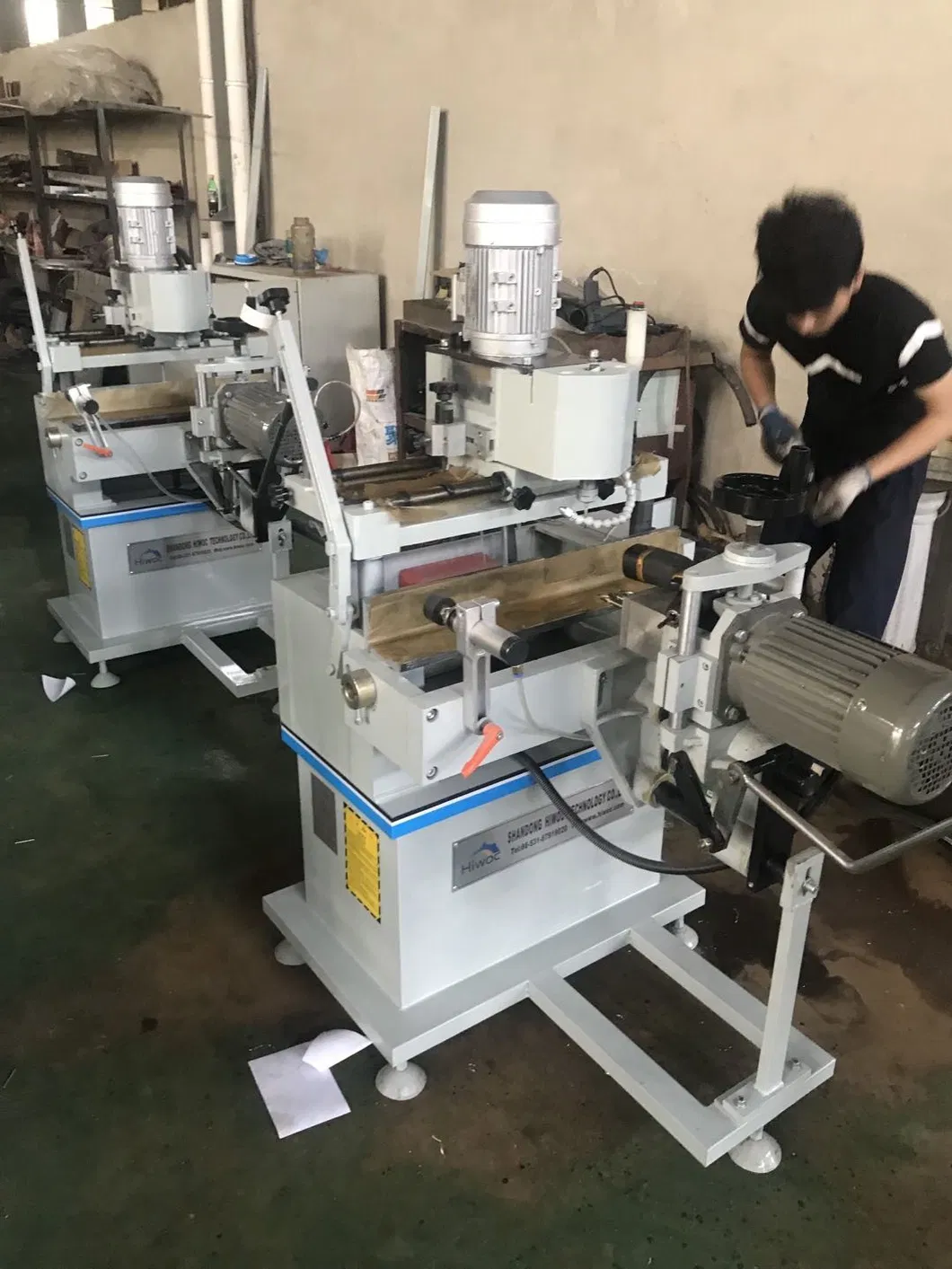

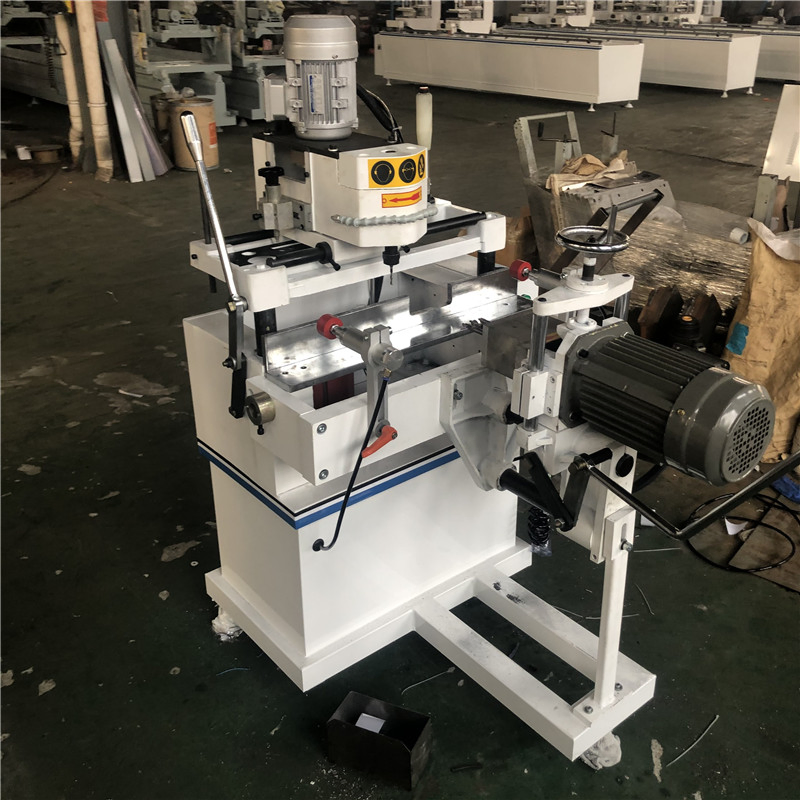

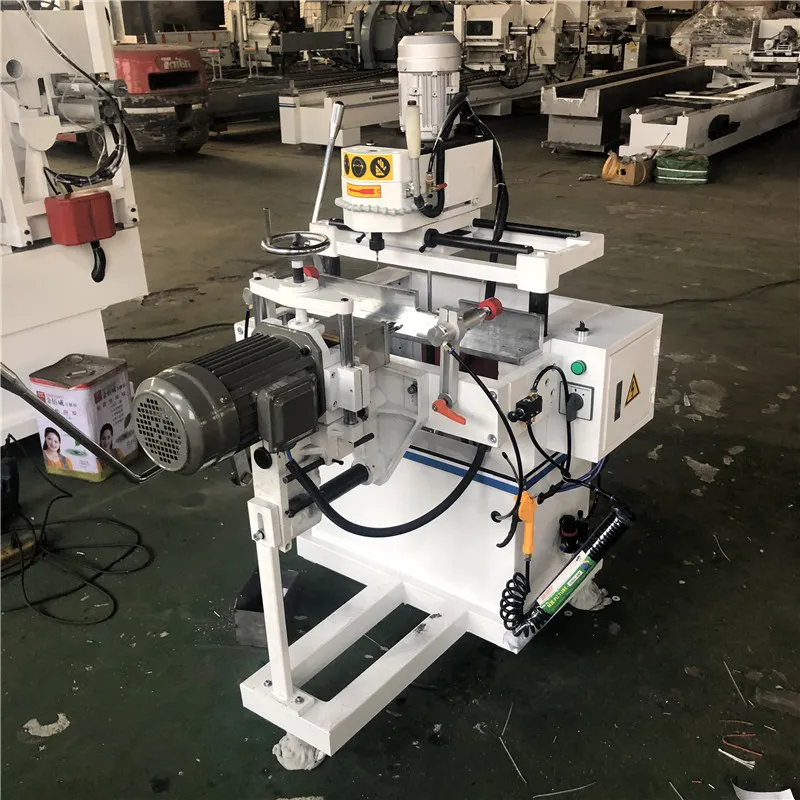

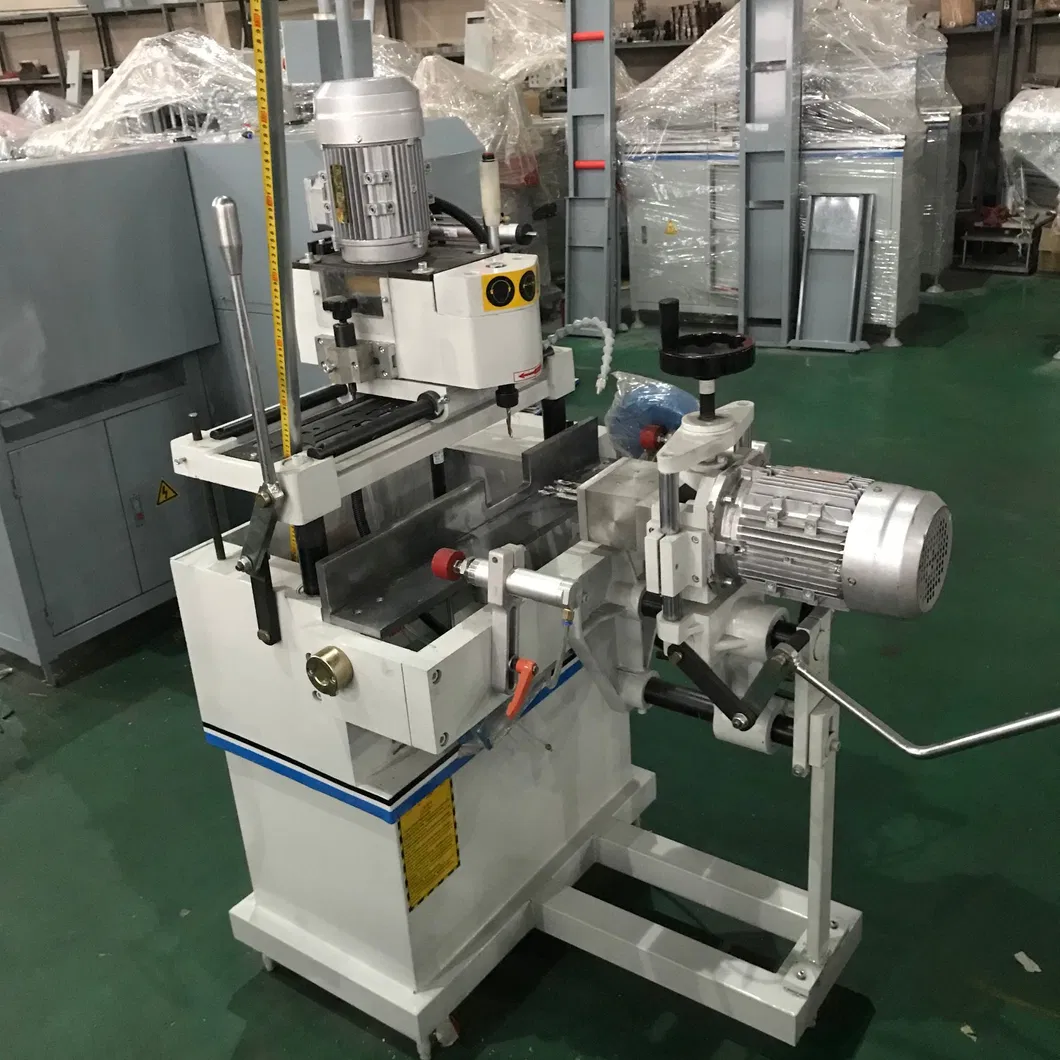

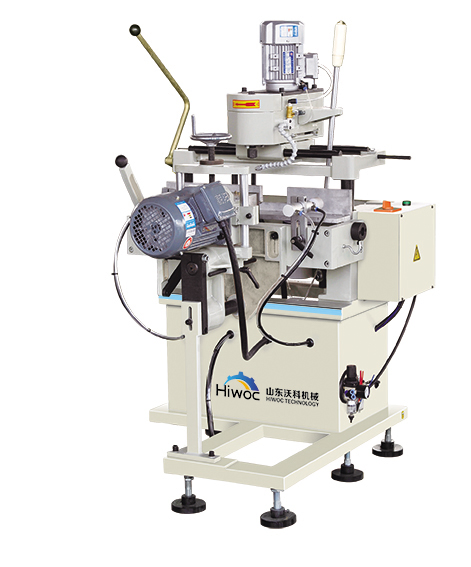

Aluminium Window Frame Lock Hole Drill Machine/ Window Door Making Machine

Product Description

Feature

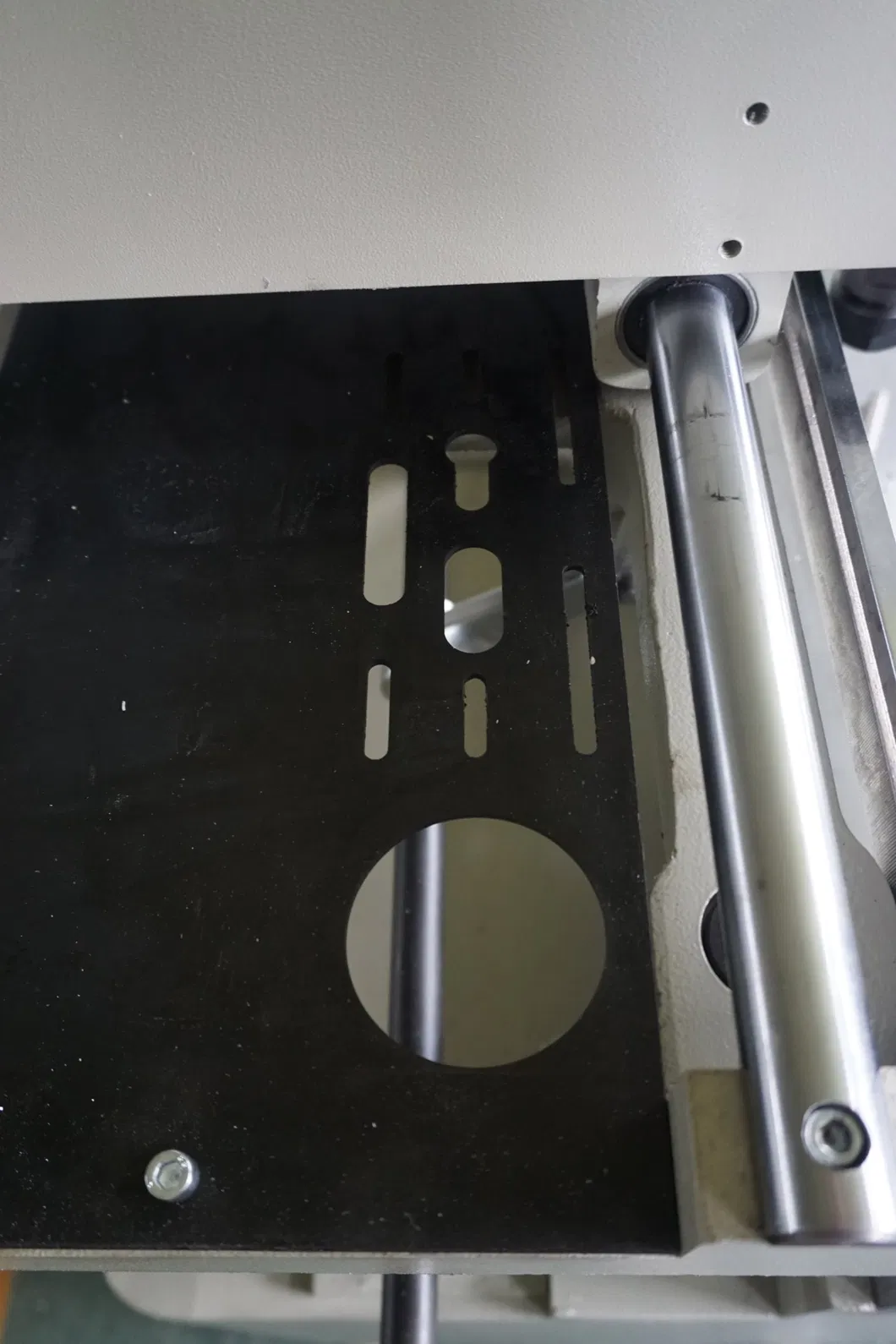

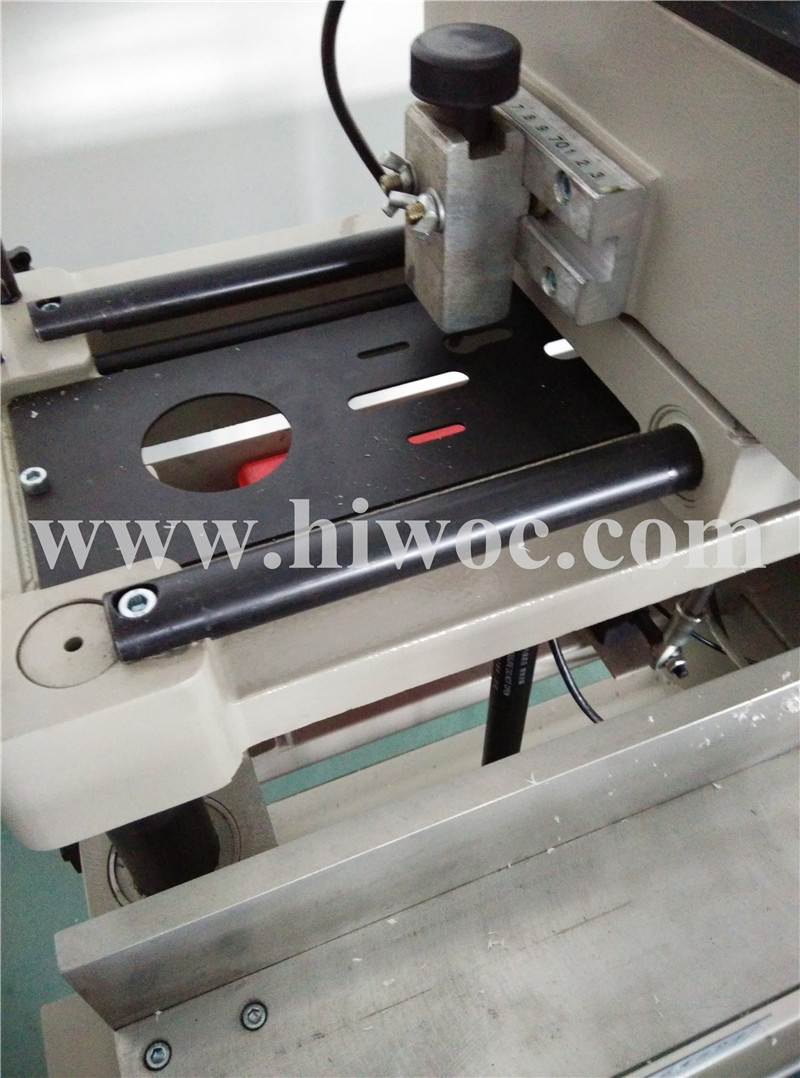

1. Used for copy-routering processing various holes, grooves and water slots on aluminium windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
2. By copying template and auxiliary position two copying method.
3. using a foot switch control the pressing cylinder, safe and reliable.
4. It has features of compact structure and small volume.
Main specification
1. Used for copy-routering processing various holes, grooves and water slots on aluminium/PVC windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
2. By copying template and auxiliary position two copying method.
3. using a foot switch control the pressing cylinder, safe and reliable.
4. It has features of compact structure and small volume.
Main specification

Power supply	380V 50HZ or customer specification.
Input power	2.25KW

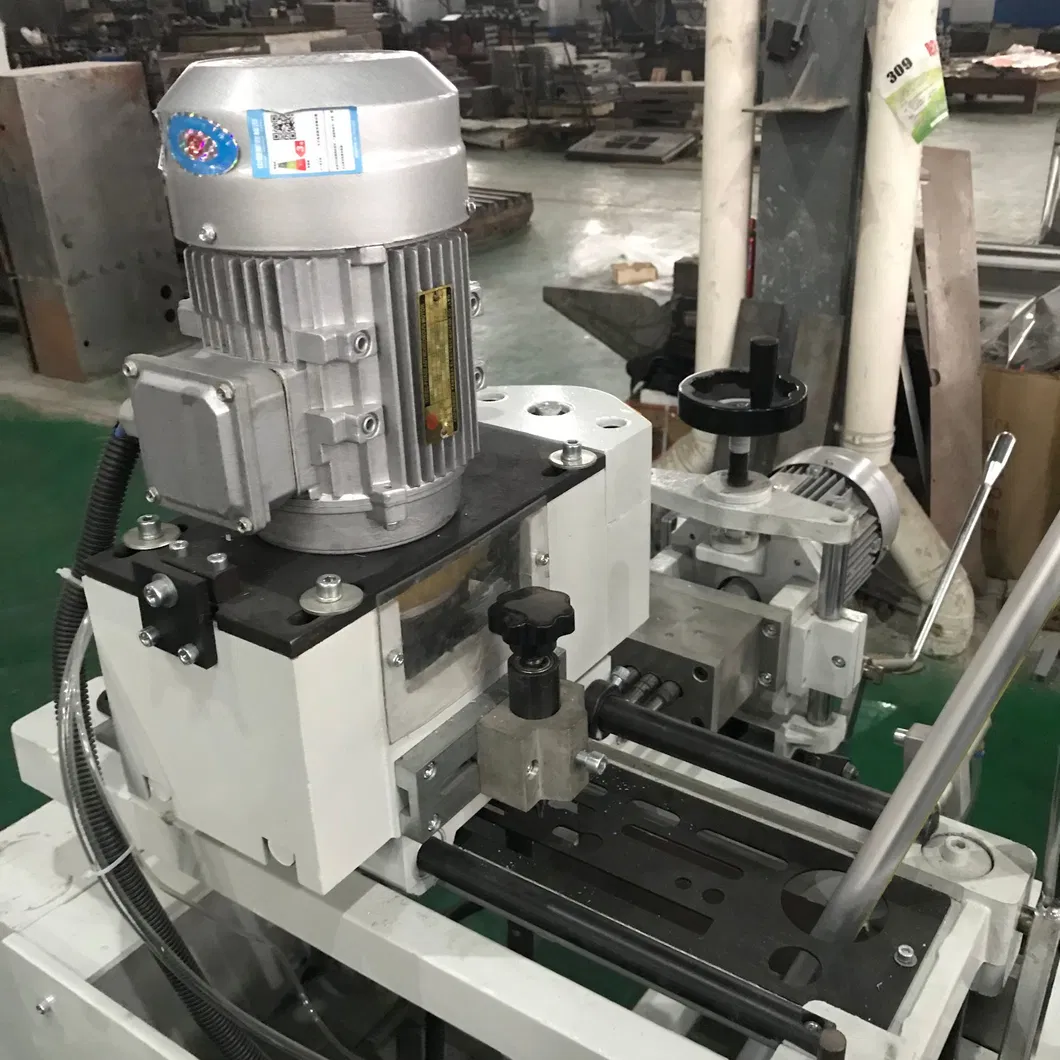

Motor rotary speed	2800r /min
Operation air pressure	0.6-0.8MPa
Milling cutter diameter	Φ5, Φ8

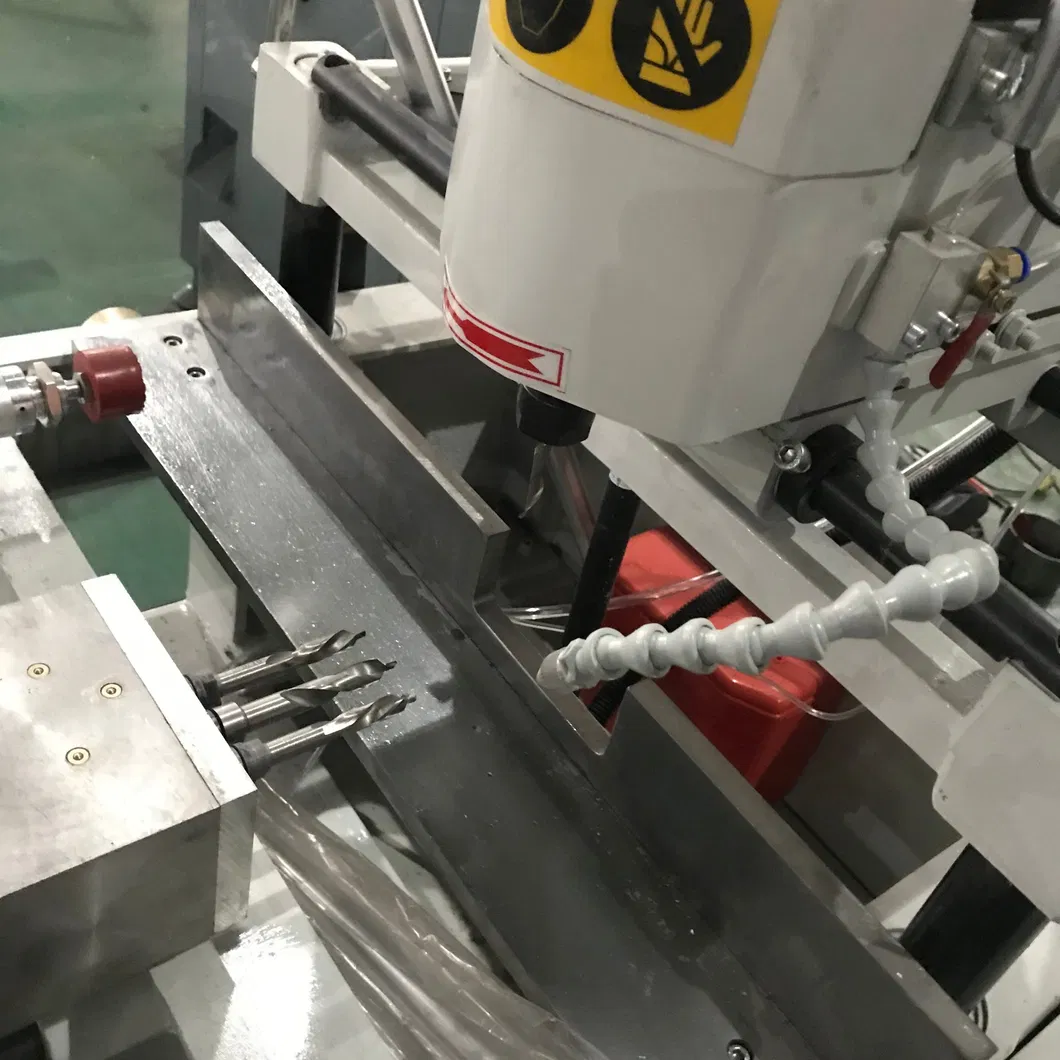

Diameter of the three-hole drilling head	Φ12
Distance of the three-hole drilling head	21.5mmx21.5mm

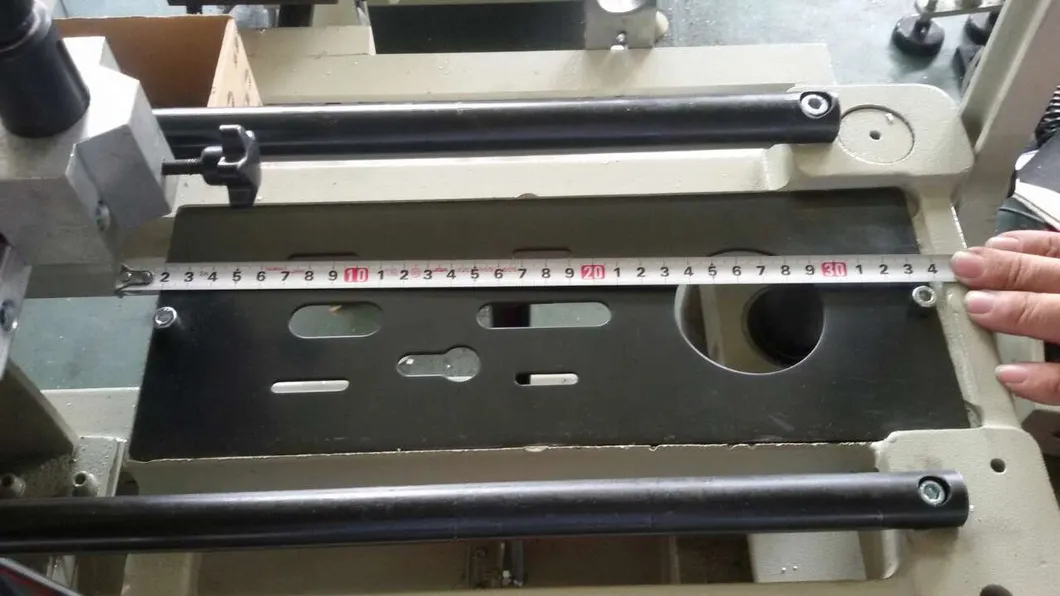

Copy-routing range	290*100mm
Overall dimension	100011301600
Weight	310kg

Standard accessory

Solenoid Valve	Airtec
Cylinder	Airtec
Motor	Anhui Sanyang
Air Filter Device	Airtec
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron
