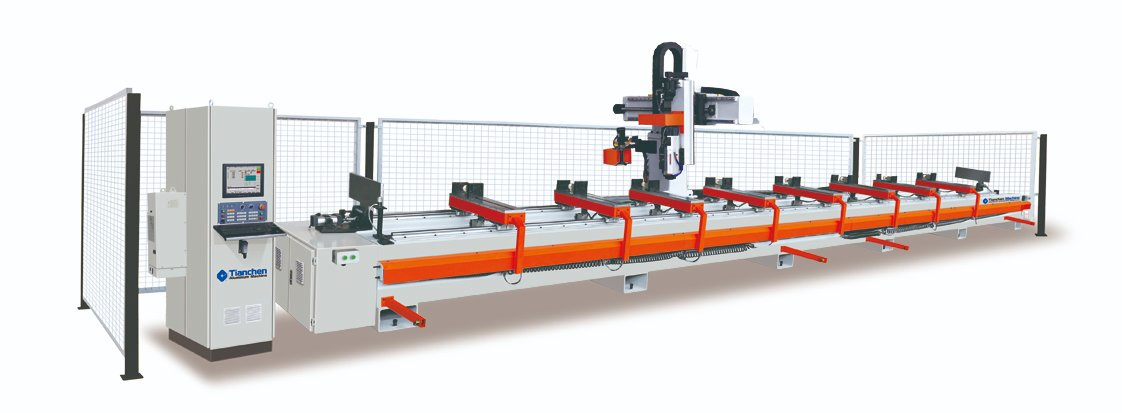

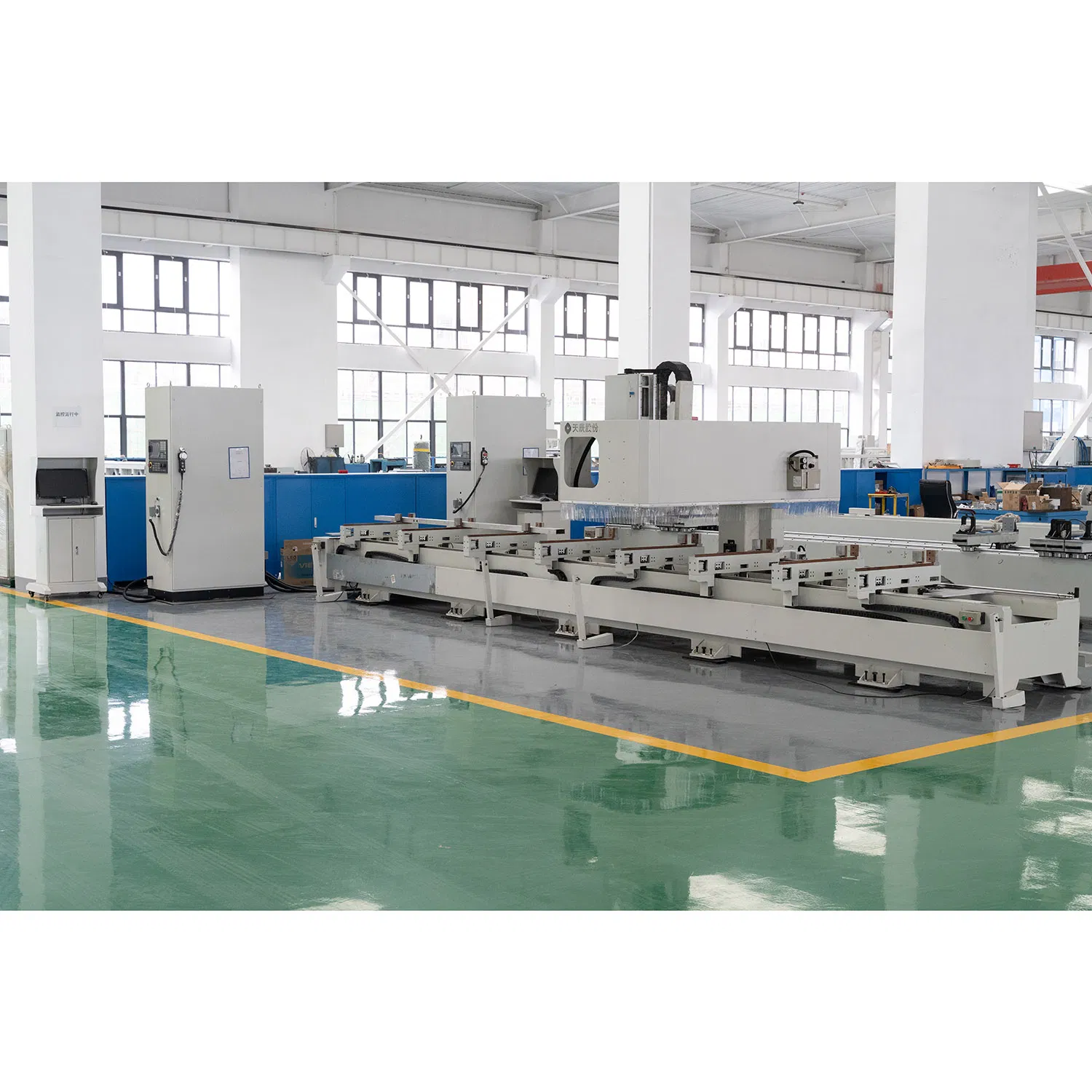

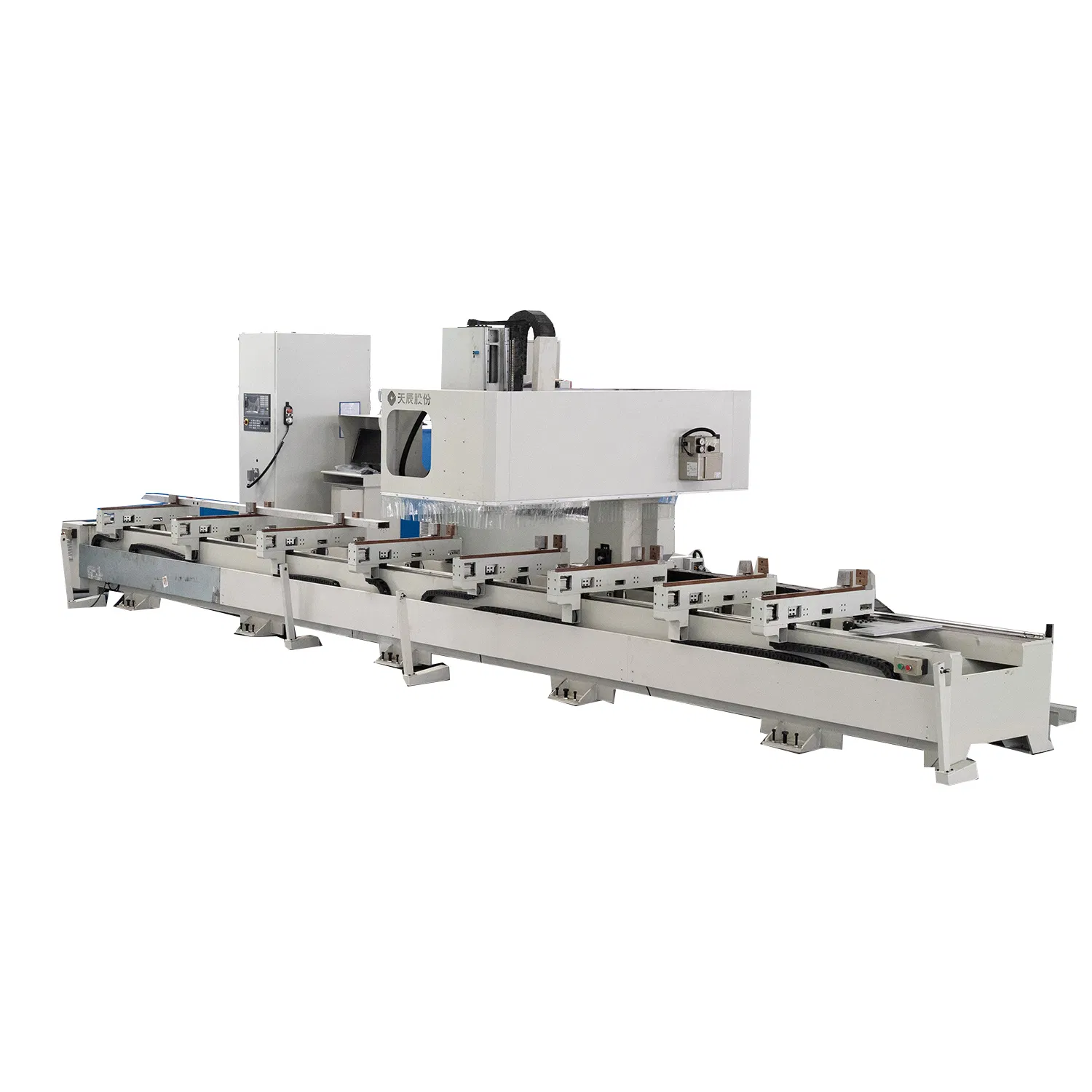

Aluminum Milling Drilling 3 Axis CNC Machining Center

Model: GCGZ-CNC-7000

Product Description

Applicable for milling and cutting processing for various holes and slots of aluminum window and door curtain wall or industrial aluminum profile.

Features & Advantages

Adopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software, perfectly realized the milling process.

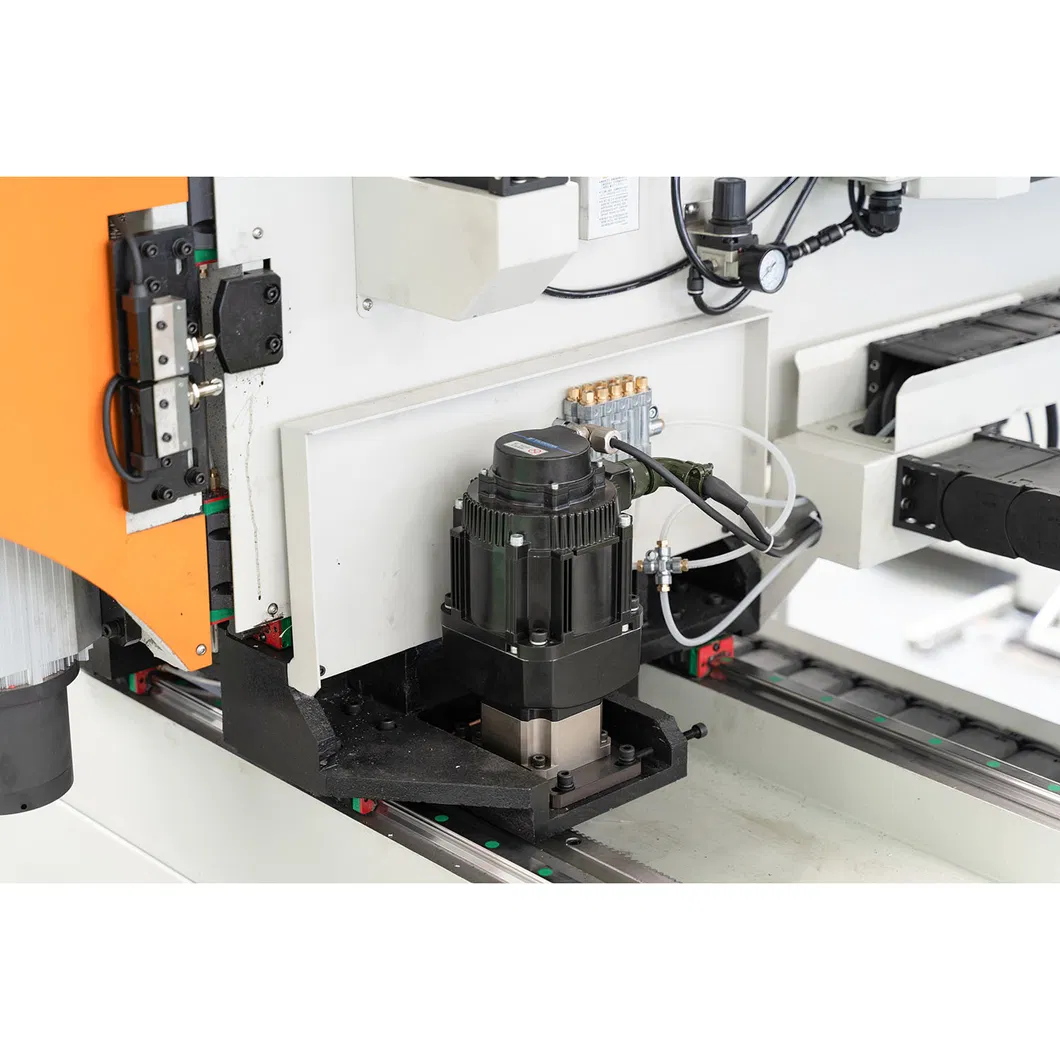

Adopting original imported high quality servo motor, high quality ball screw, linear guide rail pair, bearing and other parts to make sure a high processing accuracy.

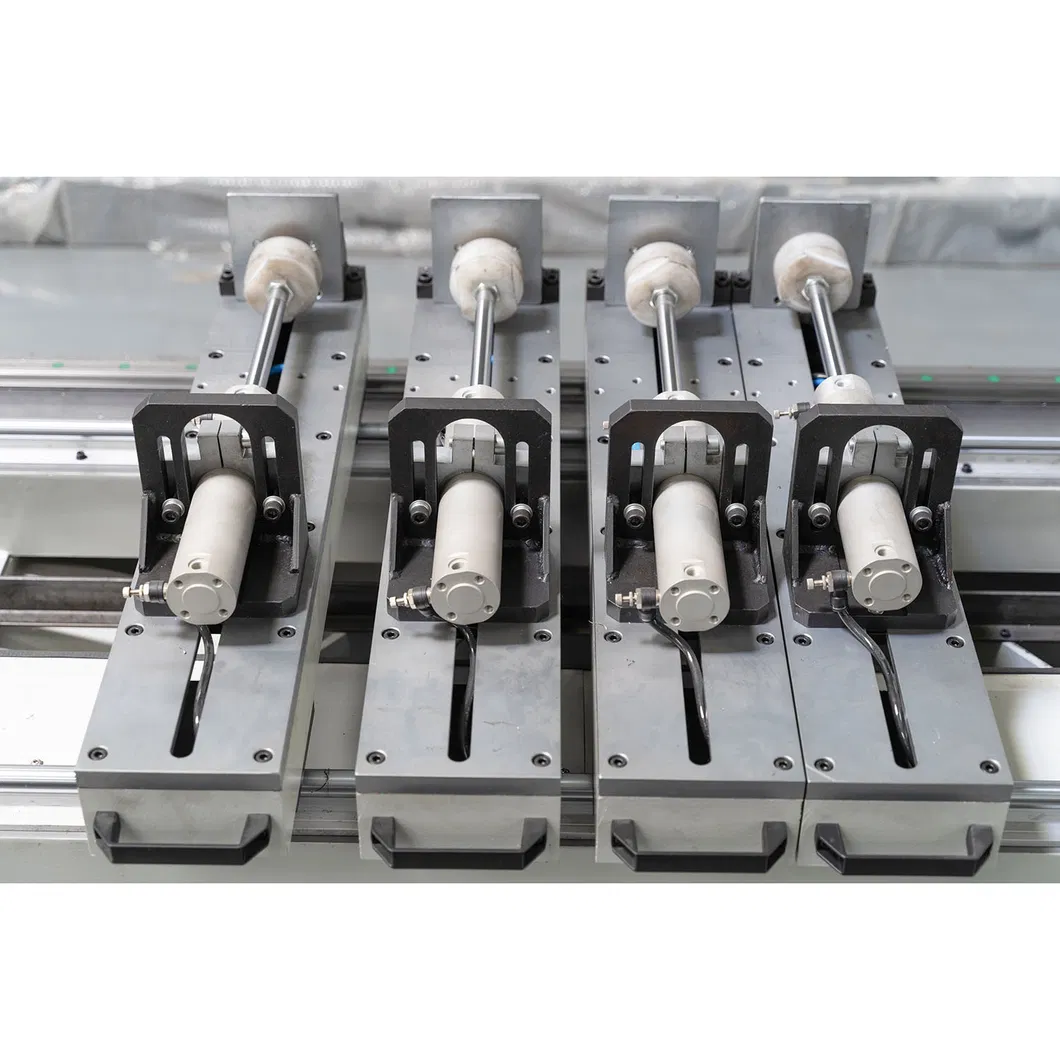

The fixture can be located freely.

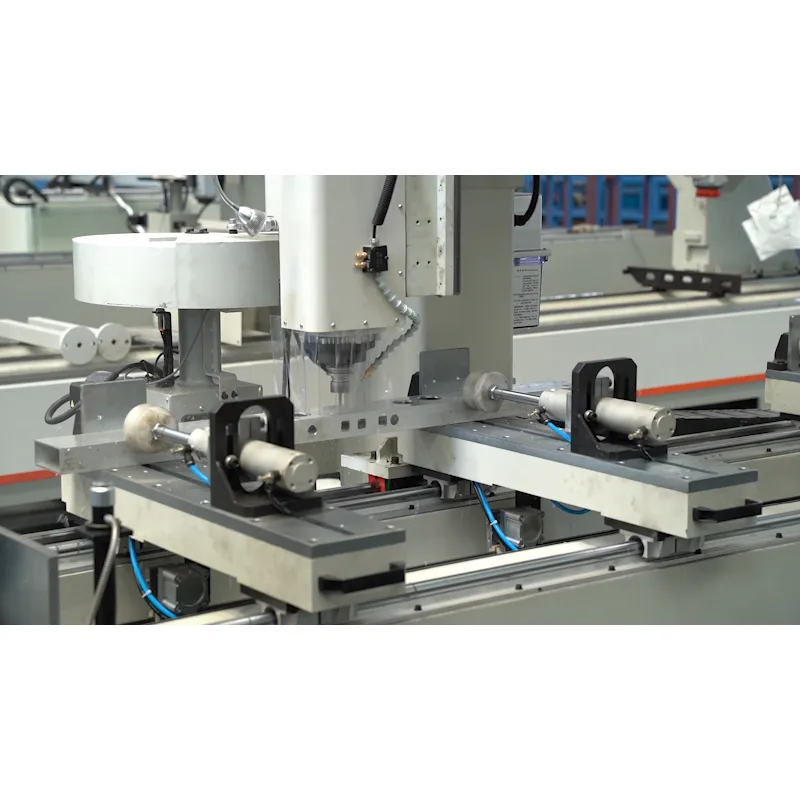

Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.

Equipped with 12 position cutting tool, and able to automatically changing tools.

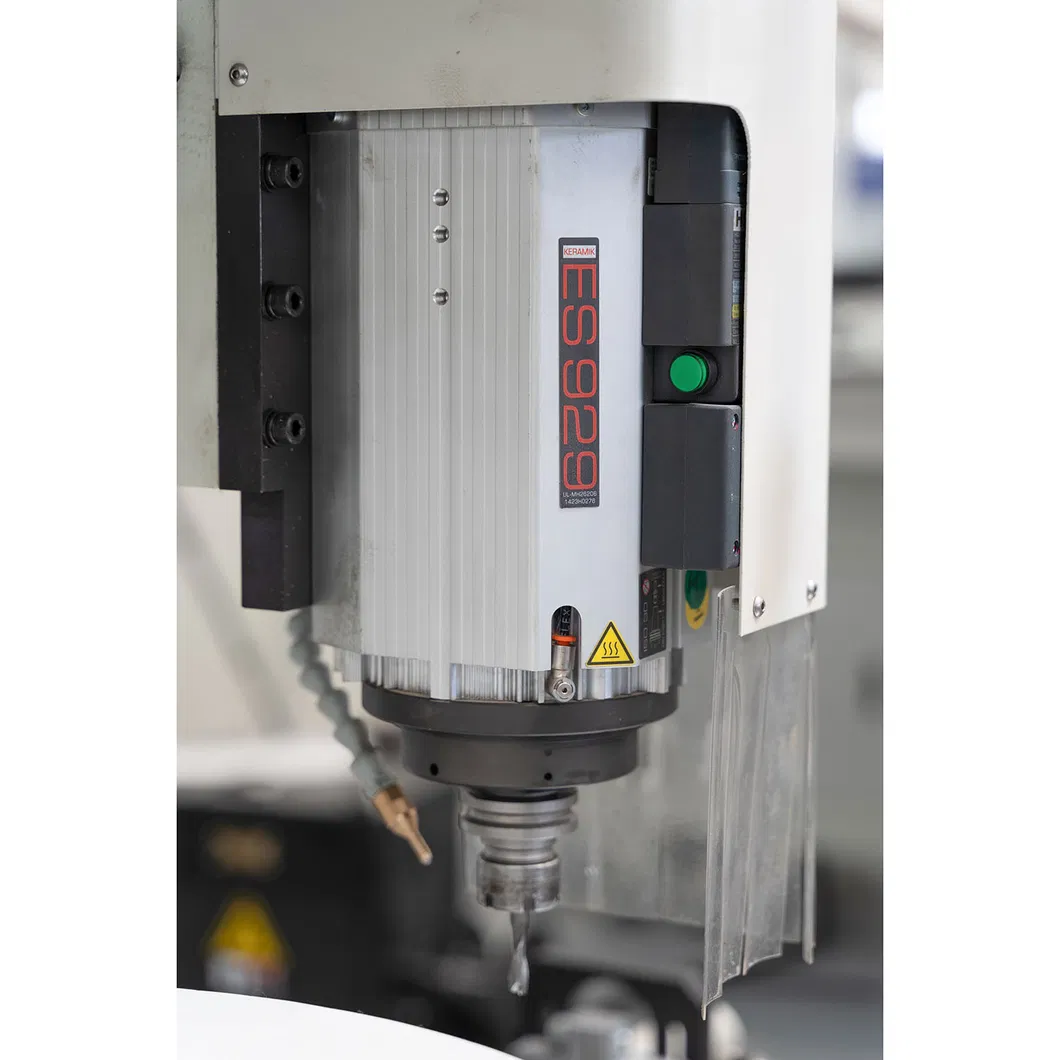

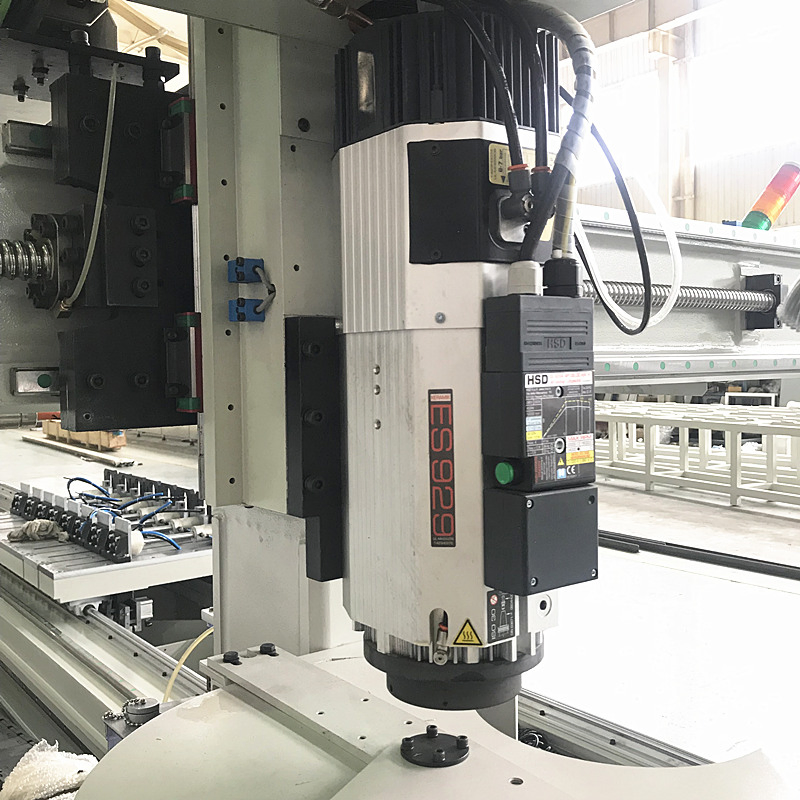

Adopting high speed electrical spindle imported from Italy, able to finished the process of milling and drilling in various figure on aluminium profiles
A 9 meter extra length model can be customized.

Technical Parameters

X-axis Range	7000mm
Y-axis Range	1300mm
Z-axis Range	550mm
X-axis Speed	0~60m/min
Y-axis Speed	0~30m/min
Z-axis Speed	0~20m/min
Main shaft Rev./power	0~18000rpm/7.5kw
Cutter Magazine	12 cutter positions, cutters auto-change is available in the program
Cutter Max length	165mm
Total Power	12KW
Clamp Station	8
Work Area(W x H x L)	500x250x7000mm
Contour Dimension (W x H x L)	11300x2350x2550mm
Weight	about 4500kg
