Automatic Steel Door Frame Forming Making Machine

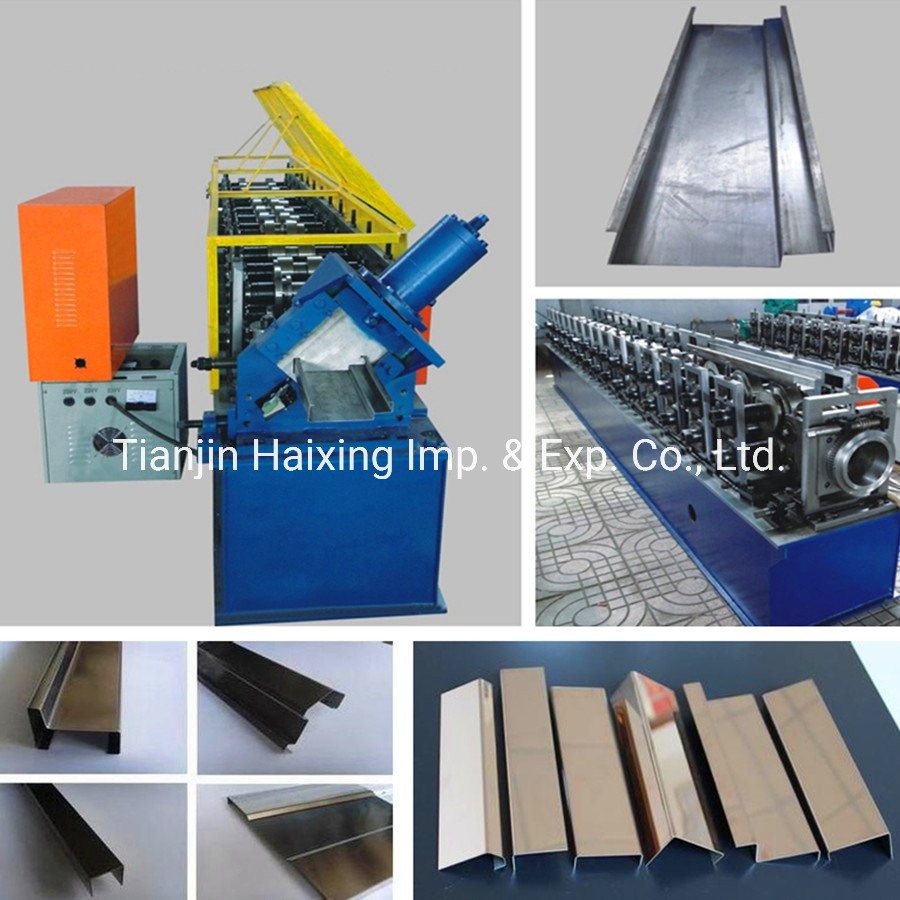

Automatic Steel Door Frame Forming Making Machine Door Frame Making Machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our production line,......
Send Inquiry
Product Description
Automatic Steel Door Frame Forming Making Machine
Door Frame Making Machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.

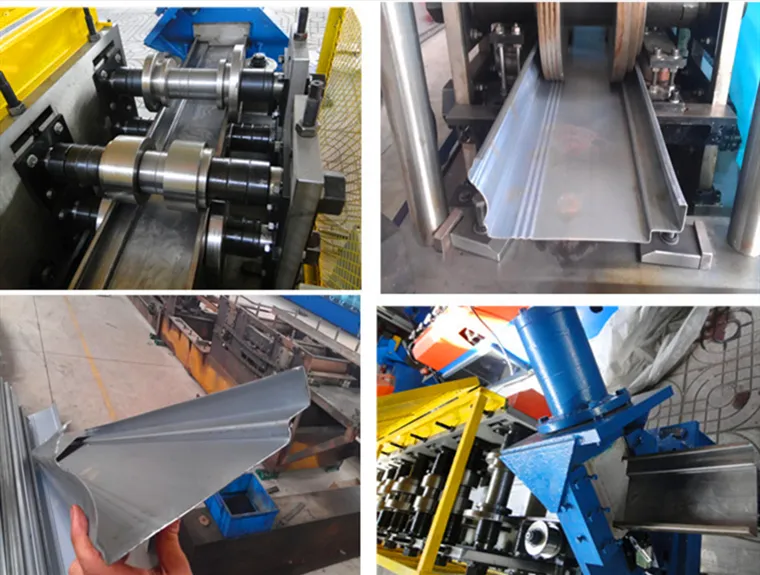

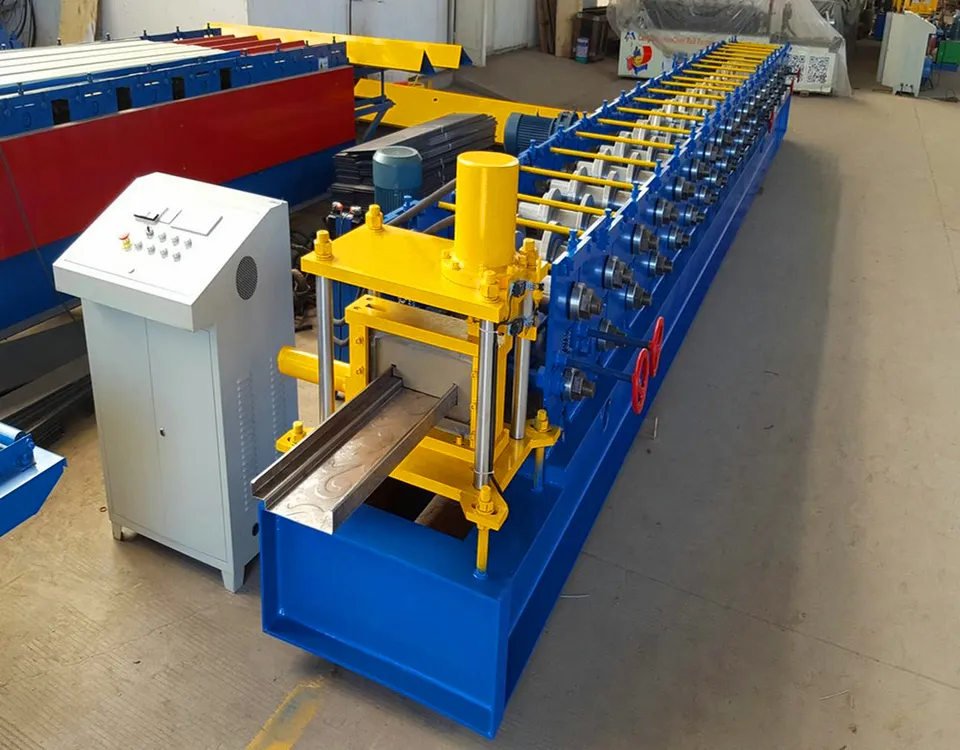

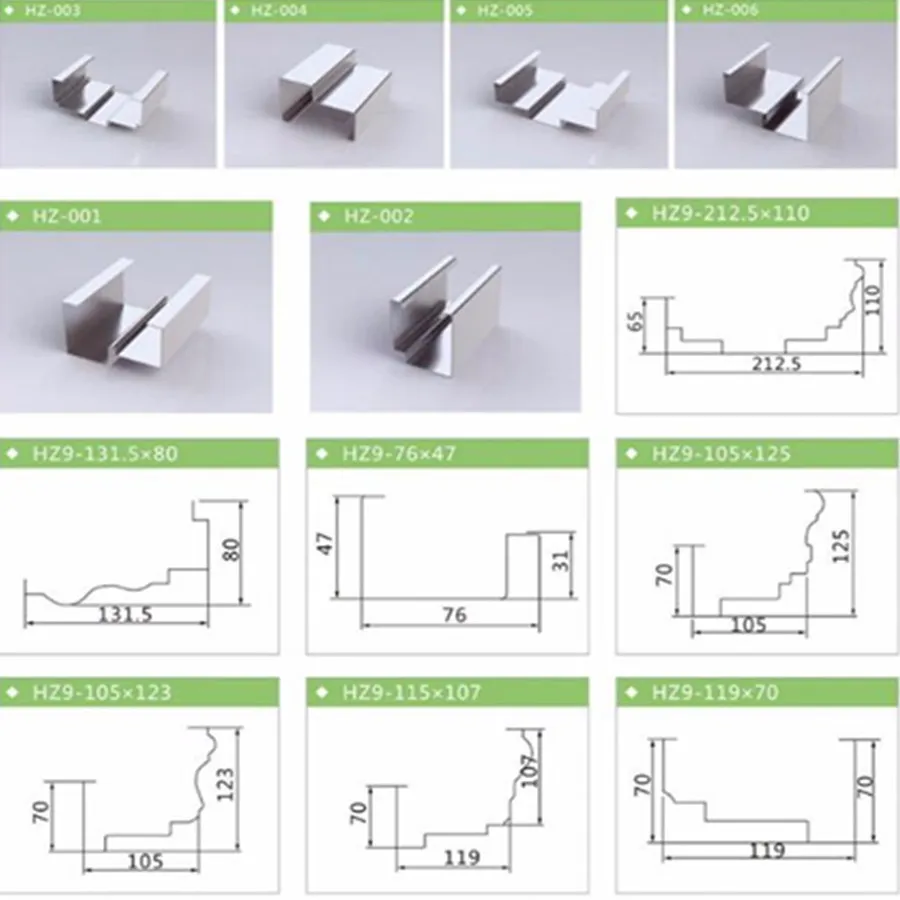

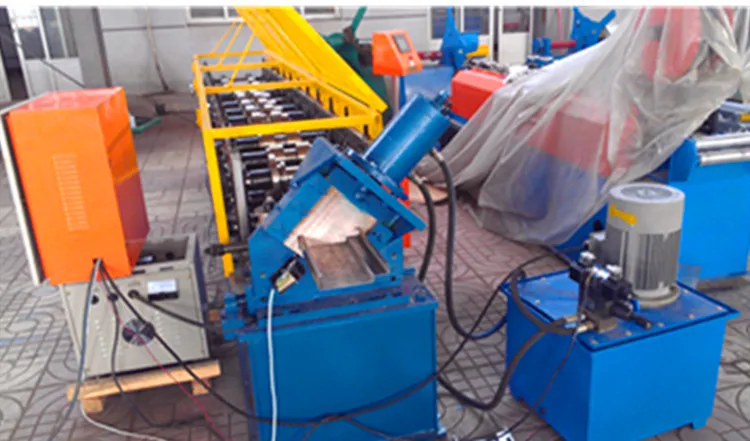

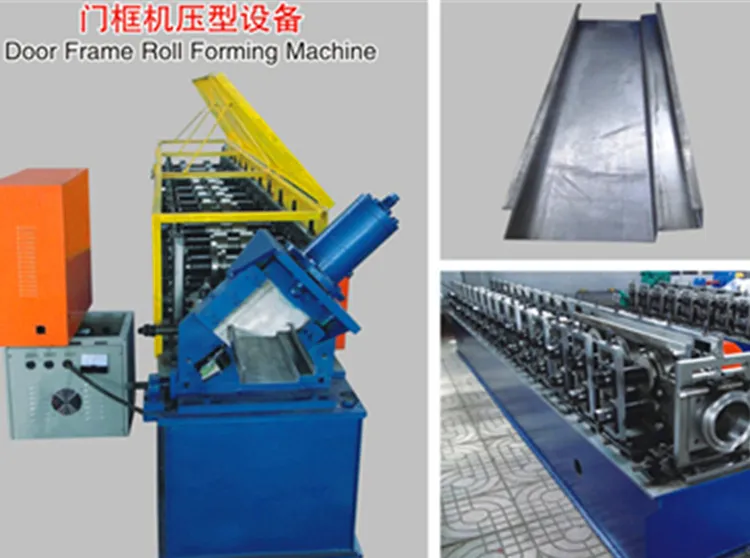

Details Images of Automatic Steel Door Frame Forming Making Machine:

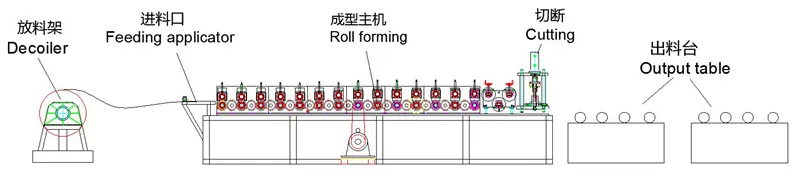

Production Flow of Automatic Steel Door Frame Forming Making Machine:

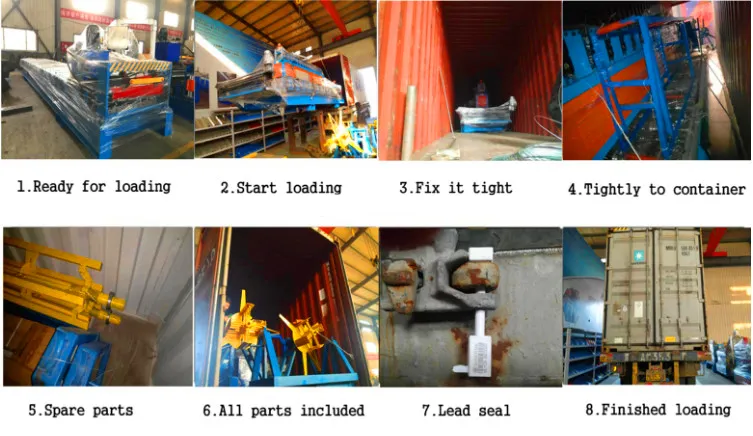

Export standard packing of Automatic Steel Door Frame Forming Making Machine:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
After Sales Service of Automatic Steel Door Frame Forming Making Machine:
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style profile?
A: Not complete. Suitable for flowers design manufacturing machines. It can produce more than 3 kinds on one machine(change flower mold roller )
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 35 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation

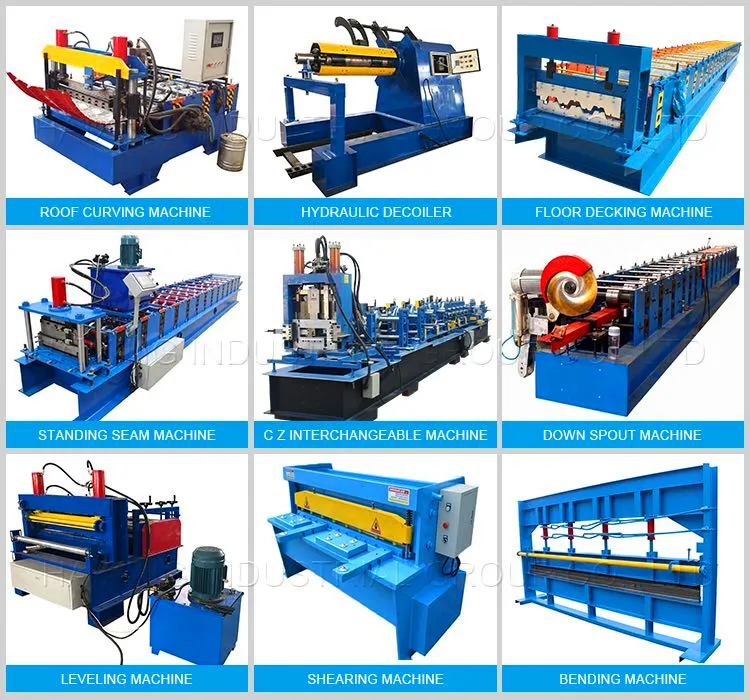

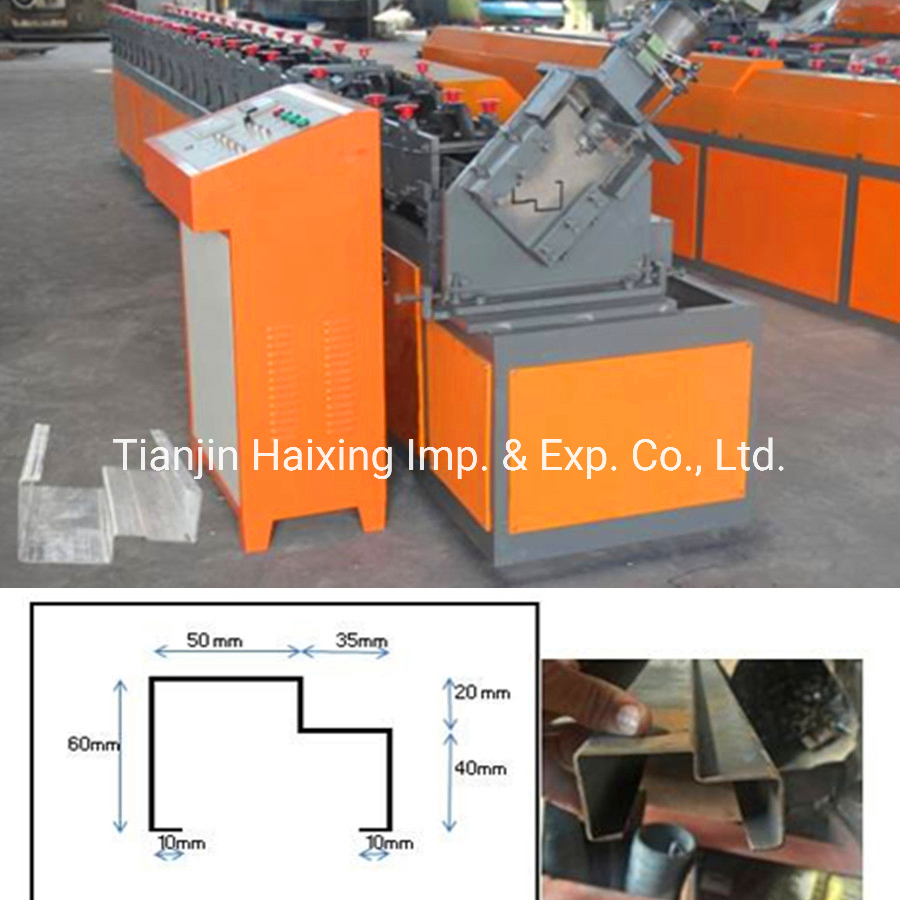

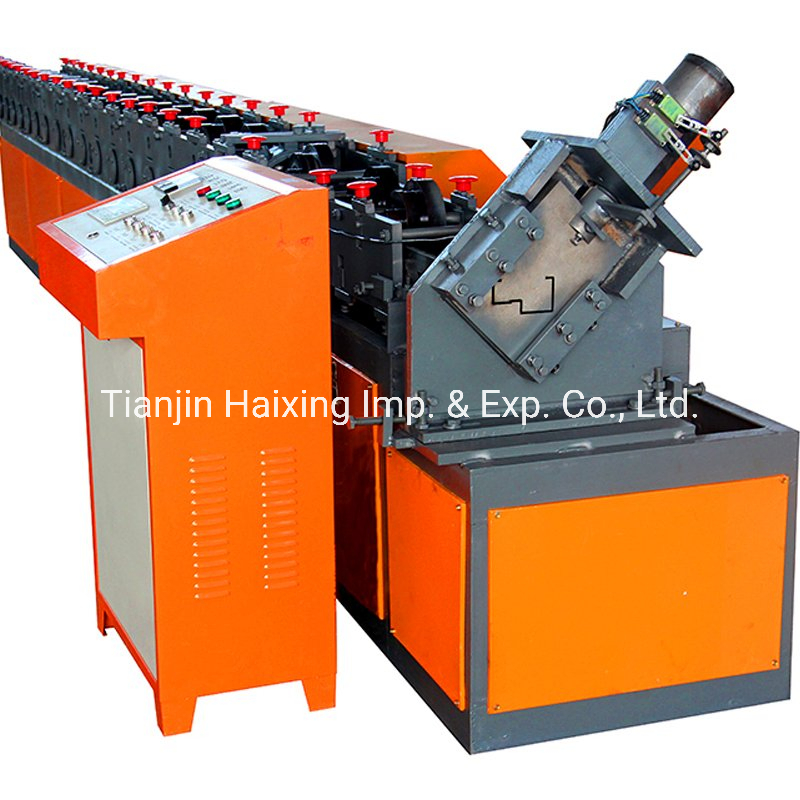

Relative popular sell machines photos showing
Door Frame Making Machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.
| Automatic Steel Door Frame Forming Making Machine | |
| Roll Forming Machine | Double door frame |
| Material width | 3 sizes. Waiting for buyer exactly profile |
| How to adjust size | Option : by PLC (It can be adjust by PLC and also in hand wheel) One side fixed and the other is adjustable by manual or PLC |
| Base frame | Base frame 30 mm thick steel plate process the surface on CNC planer to keep it leveling and drill boltes and key slot by CNC |
| Rolling Speed | 12-15m/min(not include cutting time) |
| Rolling Thickness | 1.2-2.0mm |
| Material | GI or metal |
| Control System | PLC (Panasonic) as list in the note |
| Un Coiler | 3 Ton manual decoiler |
| Leveling | Up in 3 roller, down in 4 roller |
| Roller Stations | About 16 stations |
| Roller Material | Gcr15, coated with chrome HRC58-62 degree |
| Shaft Material and DIA | ¢70mm, material is 45# forge steel |
| Maim Motor Power | 7.5kw brake motor |
| Hydraulic Station Power | 5.5kw |
| Hydraulic Pressure | 20Mpa |
| Capacity of tonnage for punching | 22Tons |
| Hydraulic pump brand | Lichao |
| Bearing brand | Harbin |
| Other brand list | PLC: Panasonic Touch screen: MCGS Inverter: Yaskawa Main components for low pressure electricity: Schneider Encoder: Omron |
| Punching | 3 units pre-punching and one unit cutting&punching include including 6 set 45 degree angle moulds The punishing tonnage to make the hole and cutting to make the 45 degree |

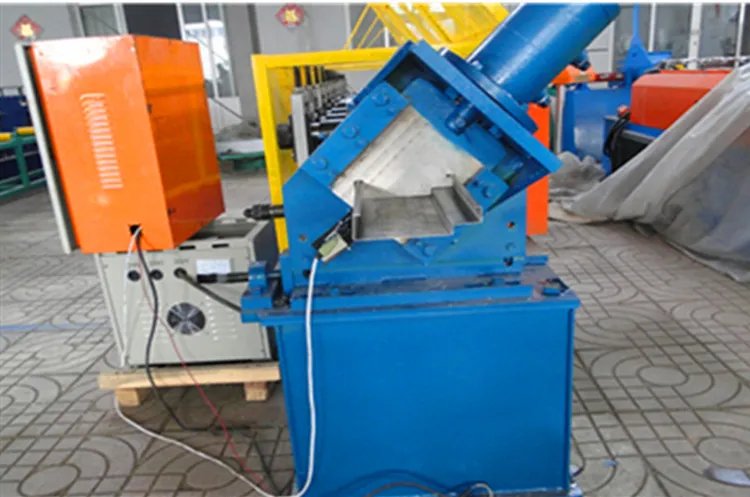

| Cutting | Hydraulic post-cutting for cut end product |
| Extra cutter | One more cutter for each profile |
| Material Of Cutting | Cr12Mov quenching 58-62ºC |
| Electric Source | 380V, 60HZ,3 phase |
| Way Of Drive | 1.2 inch single chain |
| Color Of The Machine | Yellow and blue |
| Machine Type | Iron Cast |
| Emergency switch | In main machine and control panel all have emergency switch for forbid any urgently accident |
| Protect cover | Complete mobile safty cover from roll forming to the cutter |
| Size of the machine | L*W*H 8m*1.2m*1.2m |
| Container Need | 1 x40 feet (base on final) |
Production Flow of Automatic Steel Door Frame Forming Making Machine:
| Passive Decoiler | 1Set |
| Feeding Platform with Pre-cutter | 1Set |
| Roll Forming Machine | 1Set |
| PLC Control System | 1Set |
| Hydraulic Cutting System | 1Set |
| Exit Rack for roofing production | 2Pieces 3Meters |
| Spare parts | One carton box |
Export standard packing of Automatic Steel Door Frame Forming Making Machine:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.

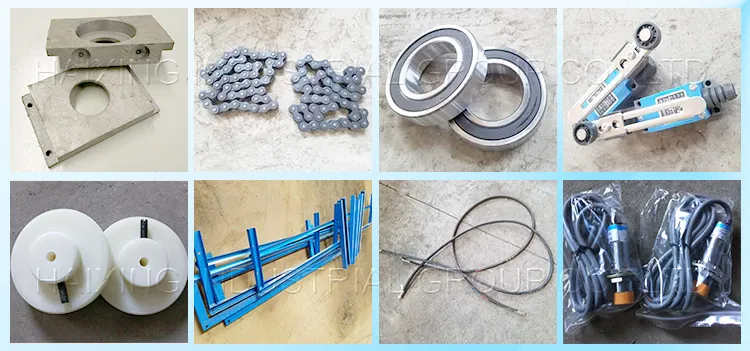

3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
After Sales Service of Automatic Steel Door Frame Forming Making Machine:
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style profile?
A: Not complete. Suitable for flowers design manufacturing machines. It can produce more than 3 kinds on one machine(change flower mold roller )
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 35 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation
Relative popular sell machines photos showing
