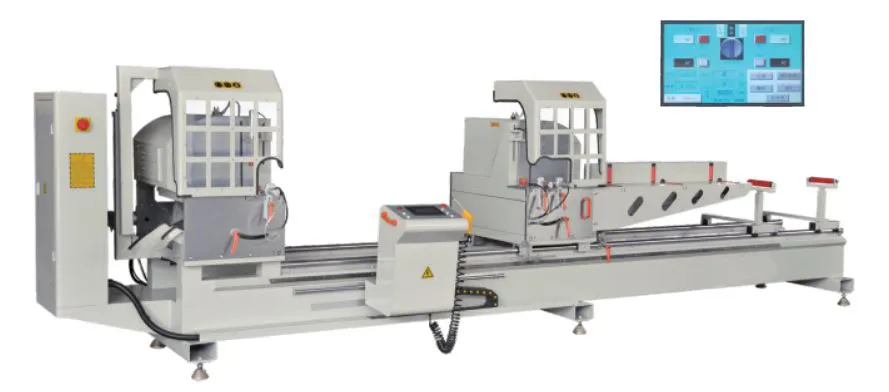

CNC Aluminum Window Door Double Head Miter Saw Machine
1.Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.
2.Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically.
3.Right head feed the profiles automatically; can also use for cutting aluminum connectors.

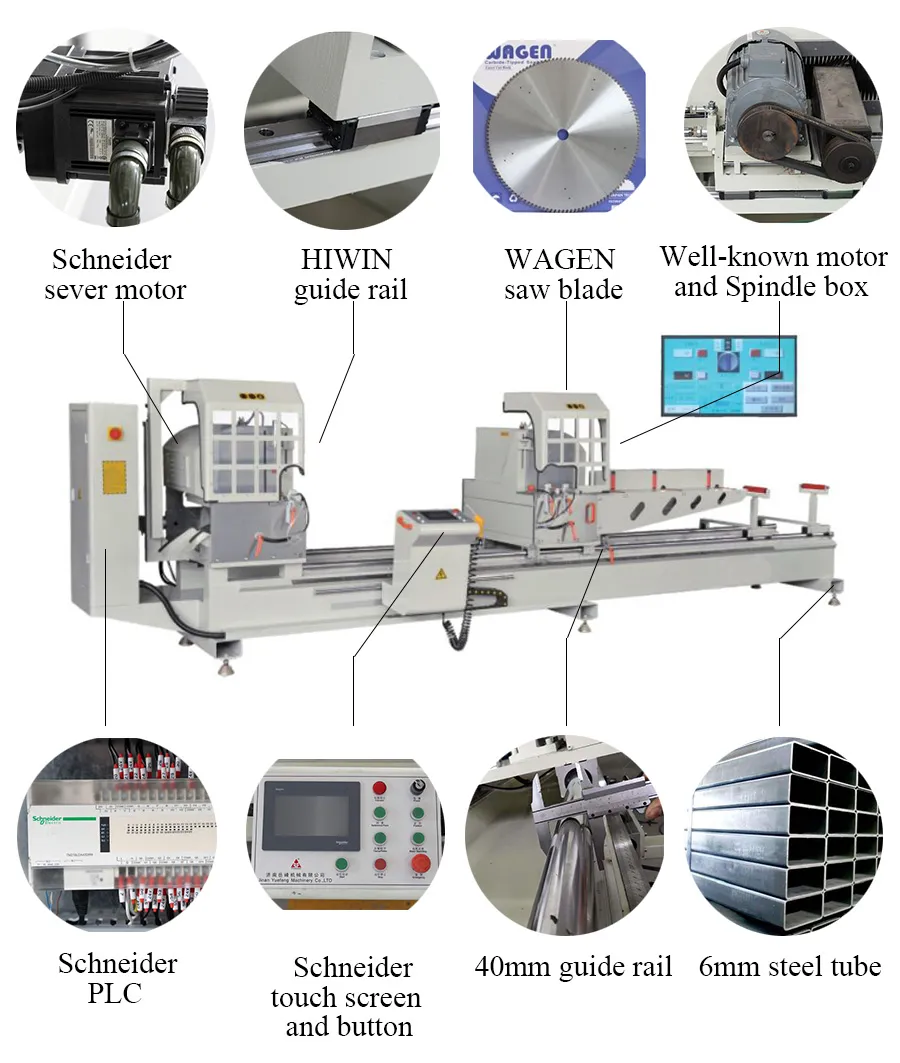

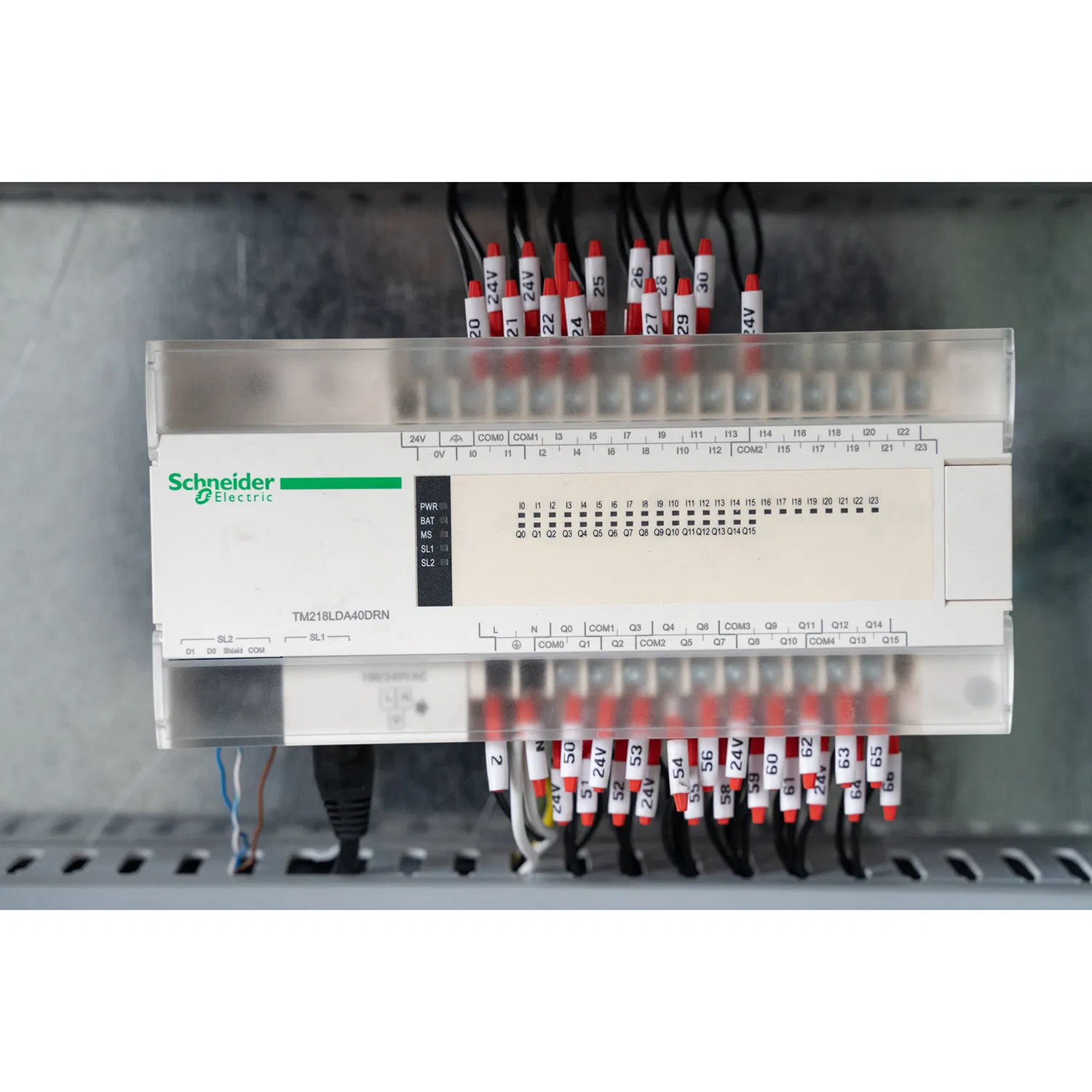

4.Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch,
and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.
5.Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
6.Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
Automatic protecting guards result convenience and safety.
Technical Parameter:
| Model | LJZ2-CNC-500×4200 |
| Input voltage | 380V 50Hz |
| Input power | 6.0Kw |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 200L/min |
| Spindle speed | 3200r/min |
| Cutting length | 400~4200mm |
| Cutting width | 10~130mm |
| Cutting height | 10~300mm |
| Cutting angle | 90° 45° 67.5° |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | φ500×4.4×φ30×Z120 |
| Overall dimension | 5500×1700×1600mm |
1.Are your company a trading one or a factory?

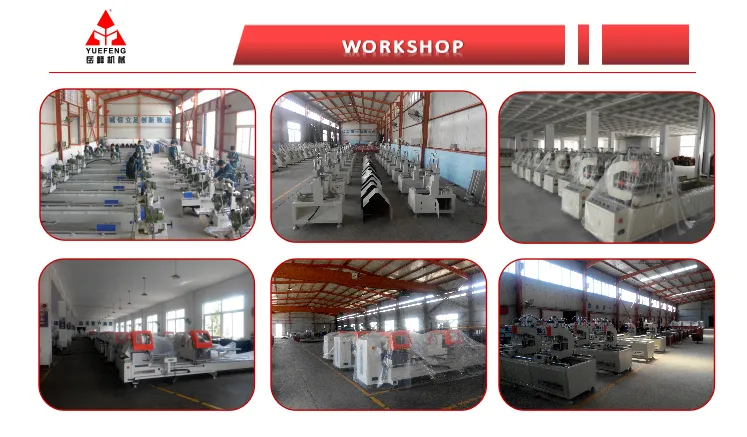

Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
♦ Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;
♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.
♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
