CNC Automatic Double Head Aluminum Window Cutting Machine
CNC automatic double head aluminum window cutting machineMachine feature:1. For cutting Aluminum profile.2. The feeding system adopts imported linear guide pair, with high accuracy and stability.3. Auto 45°and 90°cutting change4. Imported linear guiding pair ensured steady processing......
Send Inquiry
Product Description

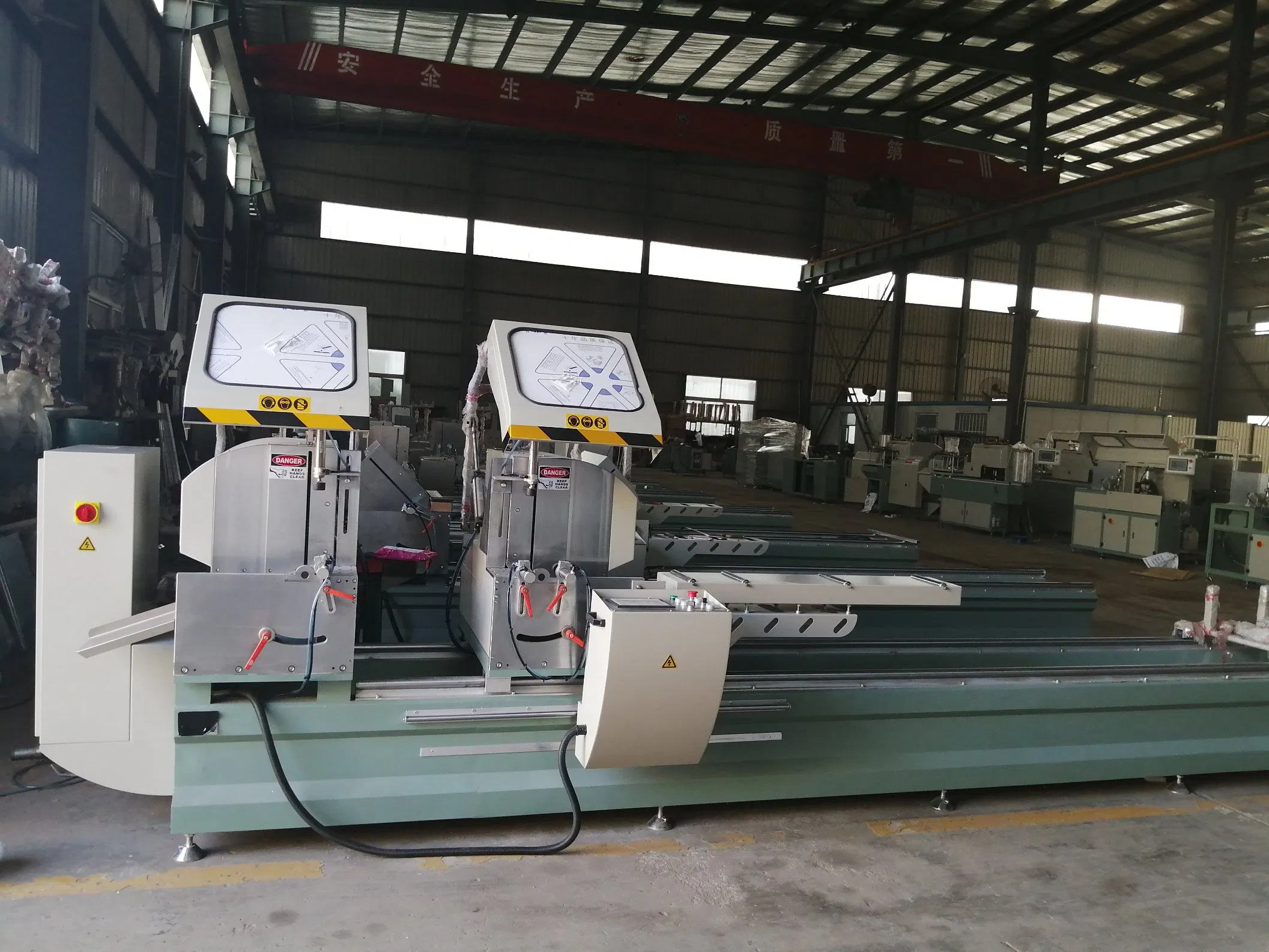

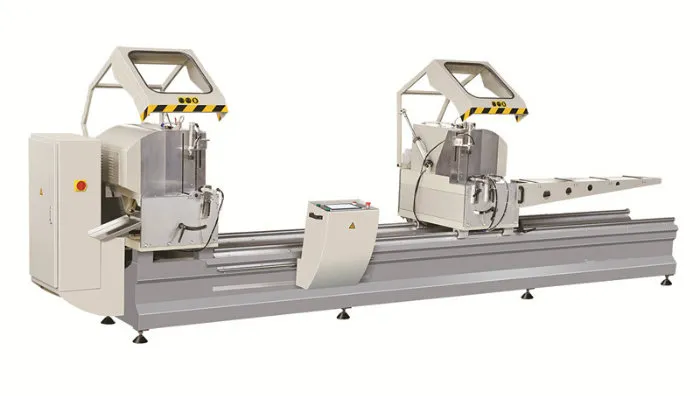

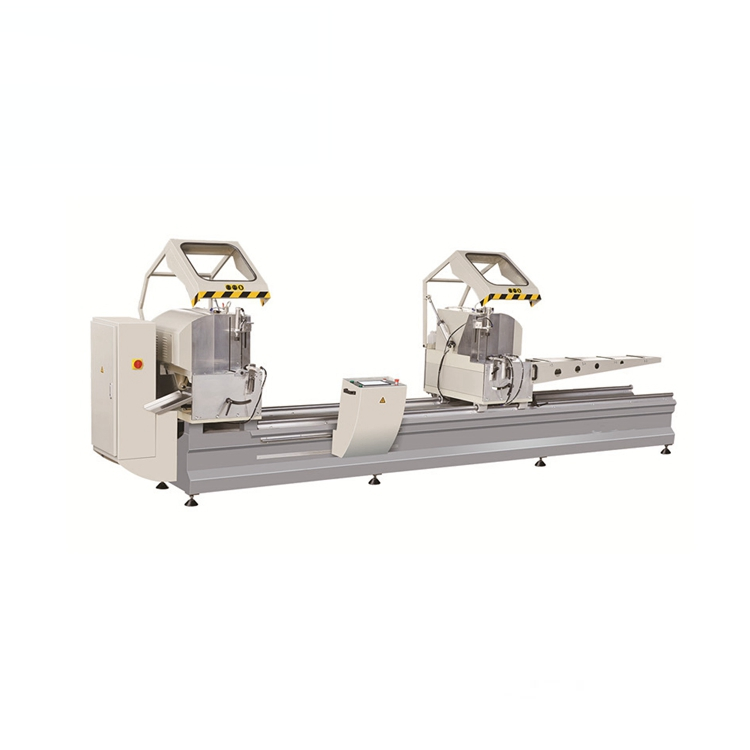

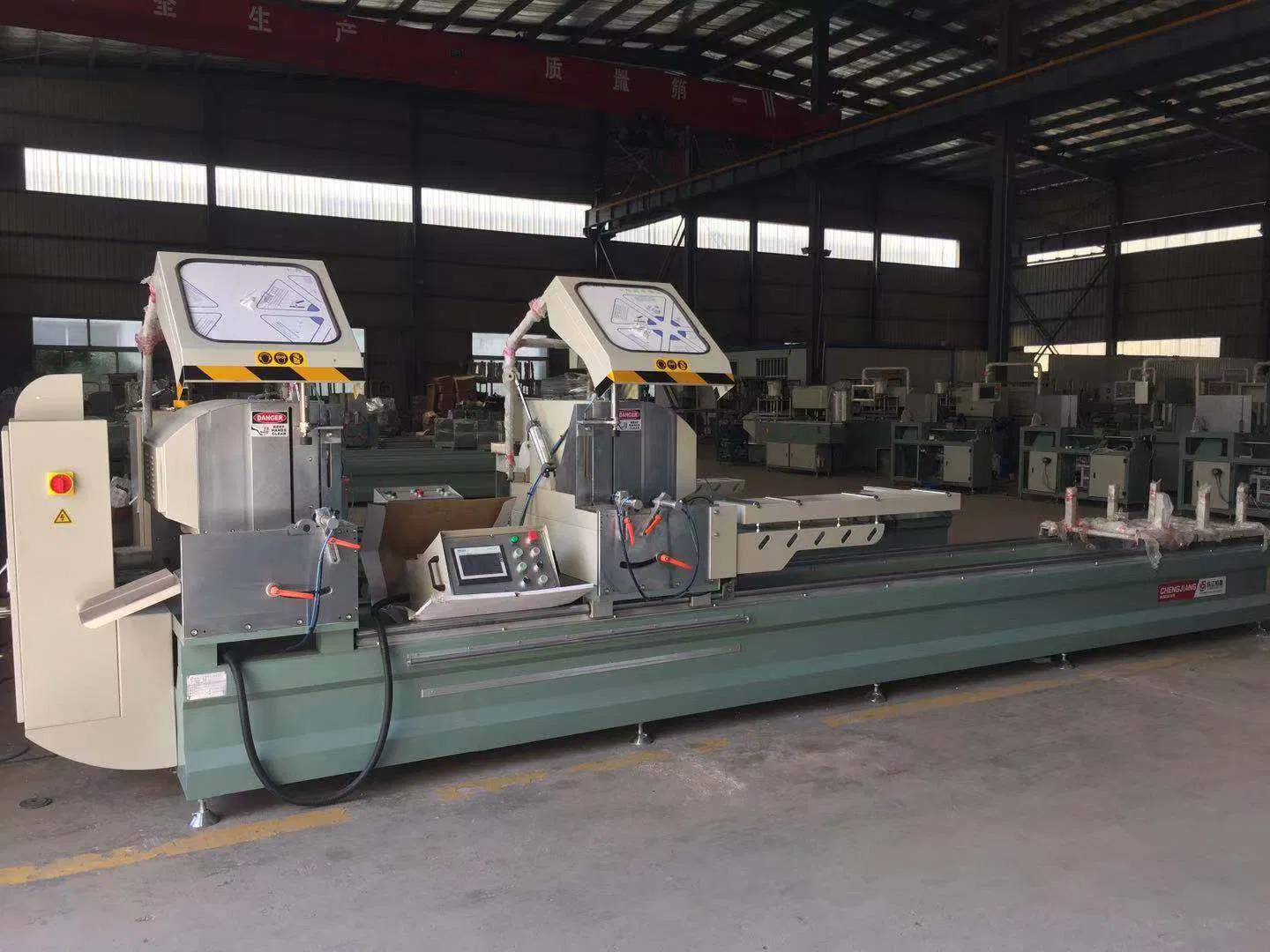

CNC automatic double head aluminum window cutting machine
Machine feature:

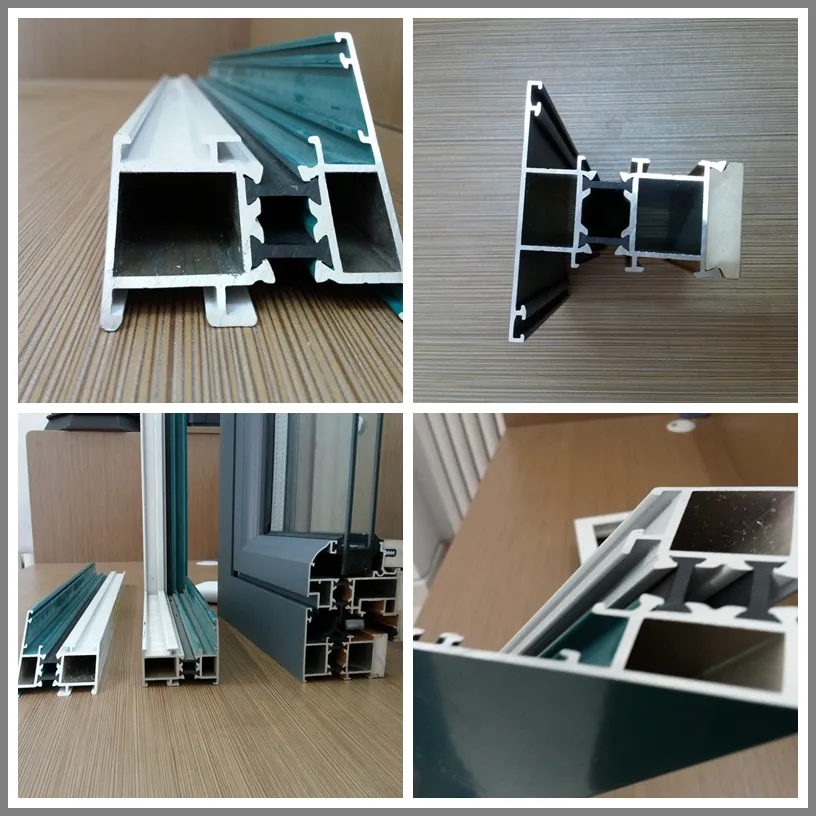

1. For cutting Aluminum profile.
2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Carbide saw blade is of accurate processing and high efficiency.
9. Two heads can work together or single, when together work, one time can cut off the required length and angle.
Parameter:

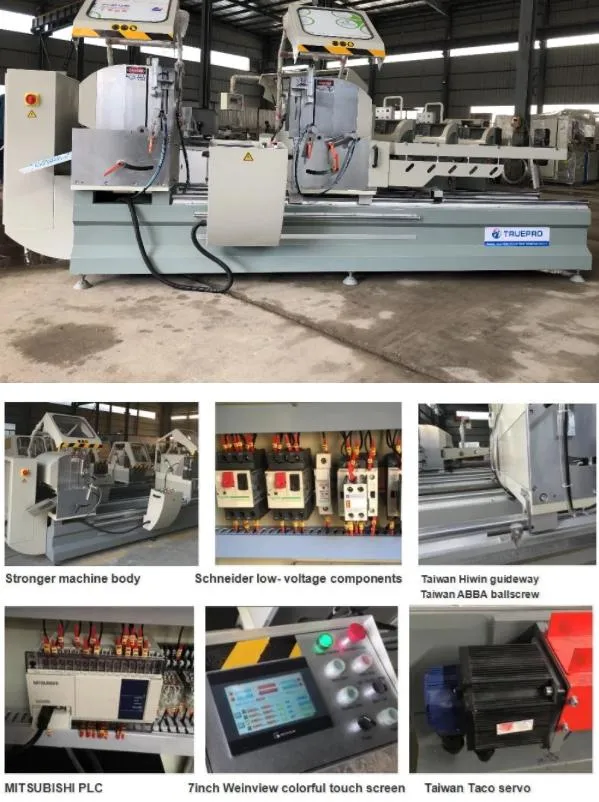

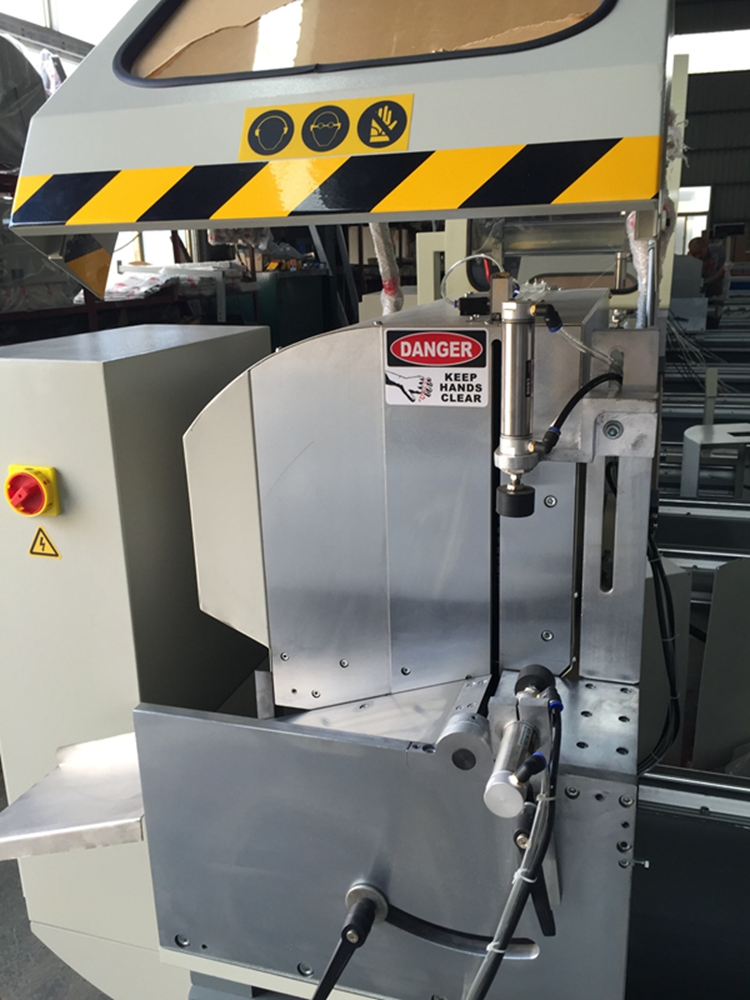

Machine details:
Our Service
Free professional design for each customer especially.
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
Alibaba trade assurance , which will protect your money in safe and ensure our quality.
FAQ:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

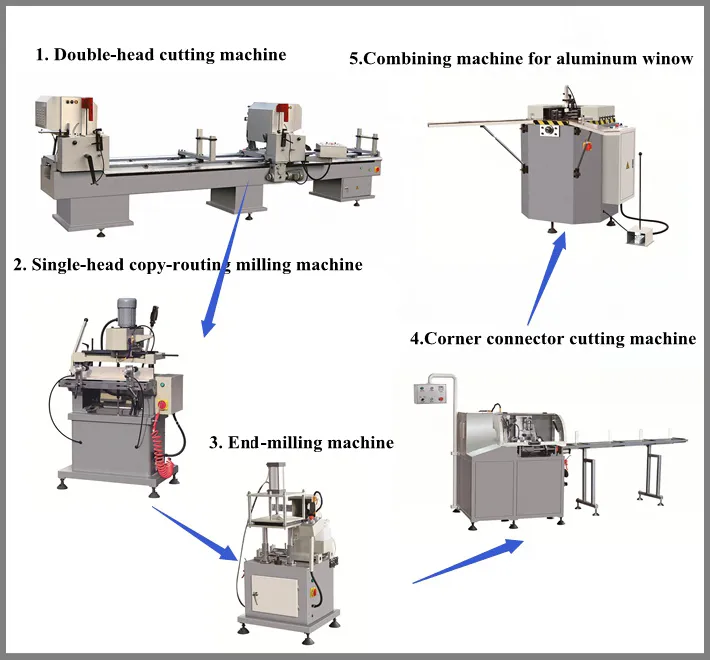

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
Machine feature:
1. For cutting Aluminum profile.
2. The feeding system adopts imported linear guide pair, with high accuracy and stability.
3. Auto 45°and 90°cutting change
4. Imported linear guiding pair ensured steady processing accuracy.
5. Saw blade rotates smoothly due to high accuracy spindle.
6. Hydraulic feeding systems ensure precise and stable feeding.
7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
8. Carbide saw blade is of accurate processing and high efficiency.
9. Two heads can work together or single, when together work, one time can cut off the required length and angle.
Parameter:
| Power supply | 3N~50Hz 380/220V or As Customer Specification |
| Cutting motor power | 5.9KW |
| Cutting motor rotary speed | 2800r/min |
| Operation air pressure | 0.5~0.8MPa |
| Air consumption | 60L/min |
| Blade specification | ø500×ø30×4.4×Z120 |
| Cutting speed | stepless speed regulation0~3m/min |
| Max. cutting length | 4200 mm |
| Min. cutting length | 400 mm |
| Cutting width | max 135mm |
| Cutting height | 900 : max 300mm 450: max 200mm |
| Cutting angle | 90°,45° |
| Repeat locating length tolerance | ±0.2mm |
| Cutting profile surface plane | ≤0.10mm |
| Cutting angle tolerance | ±5′ |
| Cutting profile surface roughness | Ra12.5µm |
| Contour dimension | 5700 mm×1650mm×1500mm |
| Weight | 1850KGS |
Our Service
Pre-sale service
Free contact for the most suitable machineFree professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Payment
L/C, 30% deposit by T/T,70% spare payment L/C.T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
Alibaba trade assurance , which will protect your money in safe and ensure our quality.
FAQ:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
