Factory Supply High Precision Double Head Cutting Saw with Ce Certificate Window Door Machine
Factory Supply High Precision Double Head Cutting Saw with Ce Certificate Window Door MachineMachine feature:1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.2. The profile cutting size adopts and digital display technique to ensure high e......
Send Inquiry
Product Description

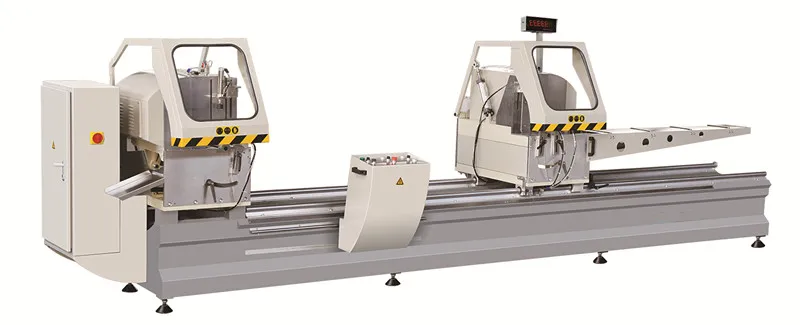

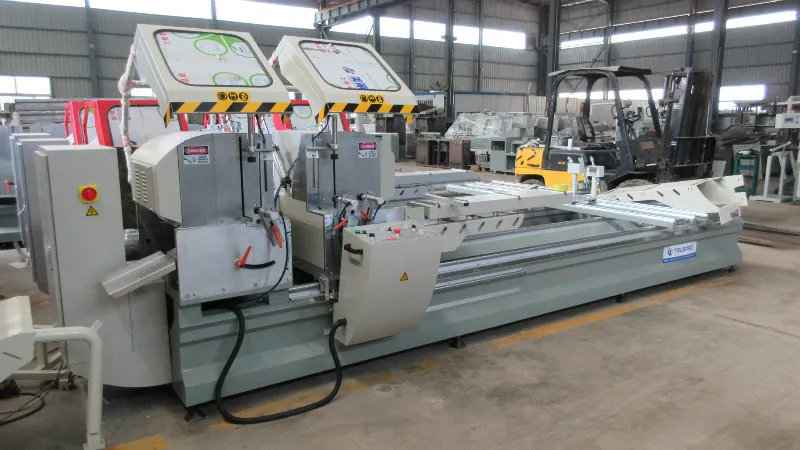

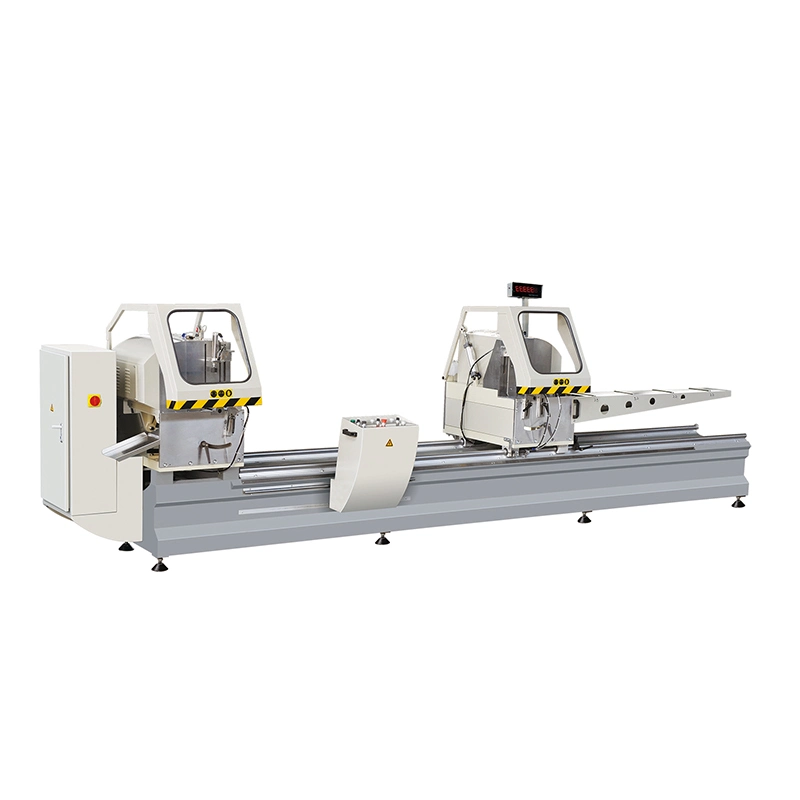

Factory Supply High Precision Double Head Cutting Saw with Ce Certificate Window Door Machine
Machine feature:
1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
2. The profile cutting size adopts and digital display technique to ensure high efficiency and accuracy.
3. Imported carbide saw blade gives accurate processing and high efficiency.
4. Two cutting head can work together or single. When together work, one time can cut off the required length and angle
5. With digital display to show cutting length, easy operate.
Parameter:
Machine feature:
1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
2. The profile cutting size adopts and digital display technique to ensure high efficiency and accuracy.
3. Imported carbide saw blade gives accurate processing and high efficiency.
4. Two cutting head can work together or single. When together work, one time can cut off the required length and angle
5. With digital display to show cutting length, easy operate.
Parameter:
| Power supply | 3N~50Hz 380/220V or As Customer Specification |
| Cutting motor power | 4.4KW |
| Cutting motor rotary speed | 2800r/min |
| Operation air pressure | 0.5~0.8MPa |
| Air consumption | 60L/min |
| Blade specification | ø500×ø30×4.4×Z120 |
| Cutting speed | stepless speed regulation0~3m/min |
| Max. cutting length | 4200 mm |
| Min. cutting length | 400 mm |
| Cutting width | max 135mm |
| Cutting height | 90 : max 300mm 45: max 200mm |
| Cutting angle | 90°,45° |
| Repeat locating length tolerance | ±0.2mm |
| Cutting profile surface plane | ≤0.10mm |
| Cutting angle tolerance | ±5′ |
| Cutting profile surface roughness | Ra12.5µm |
| Contour dimension | 5700 mm×1750mm×1950mm |
| Weight | 1800KGS |

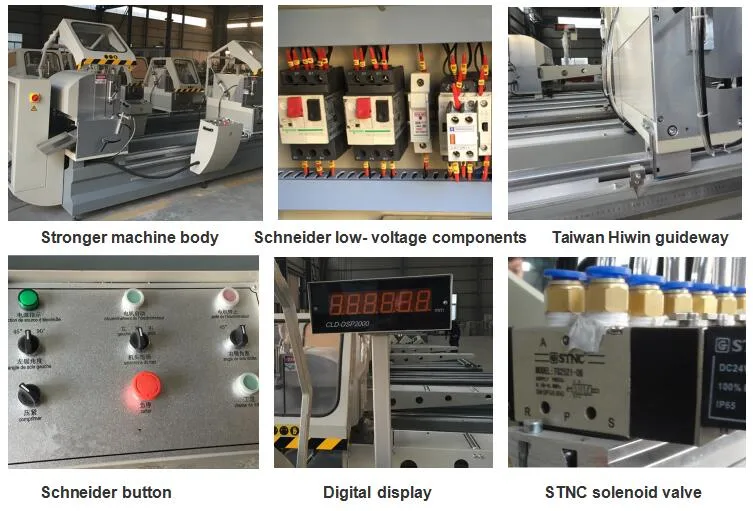

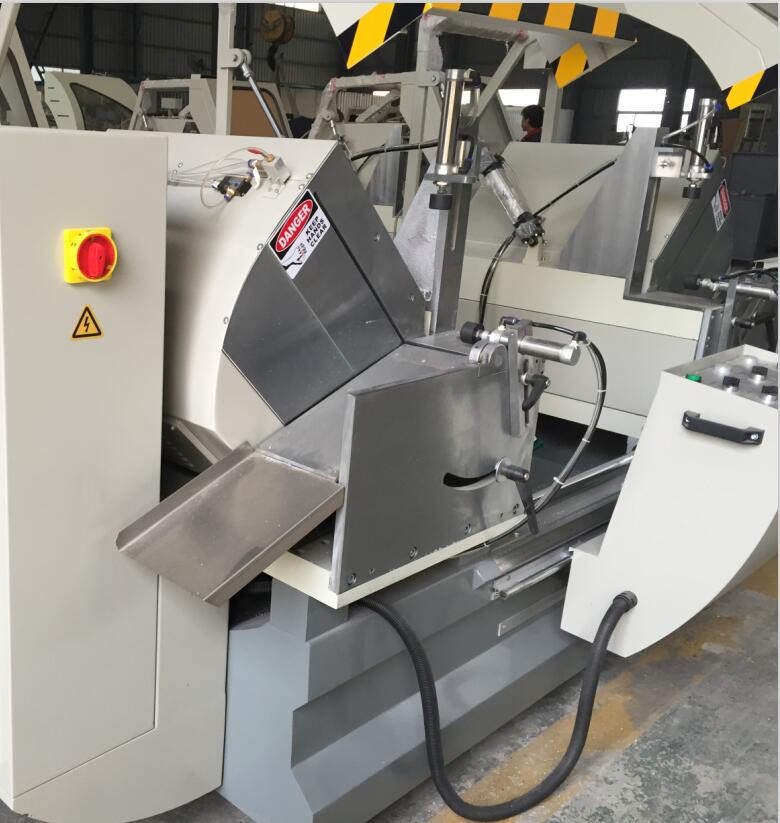

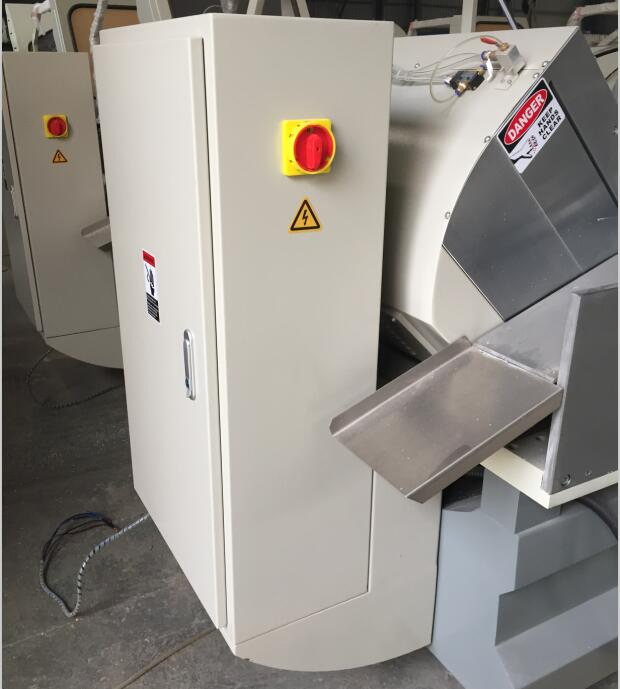

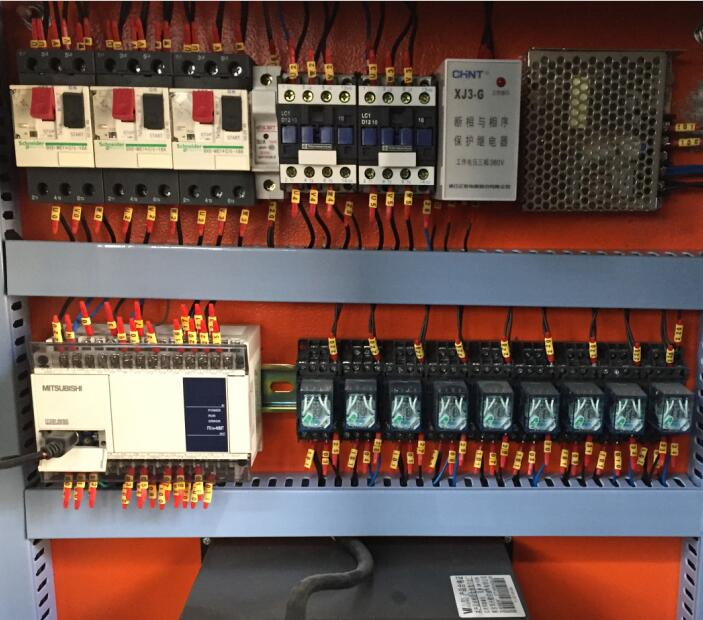

Machine details:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

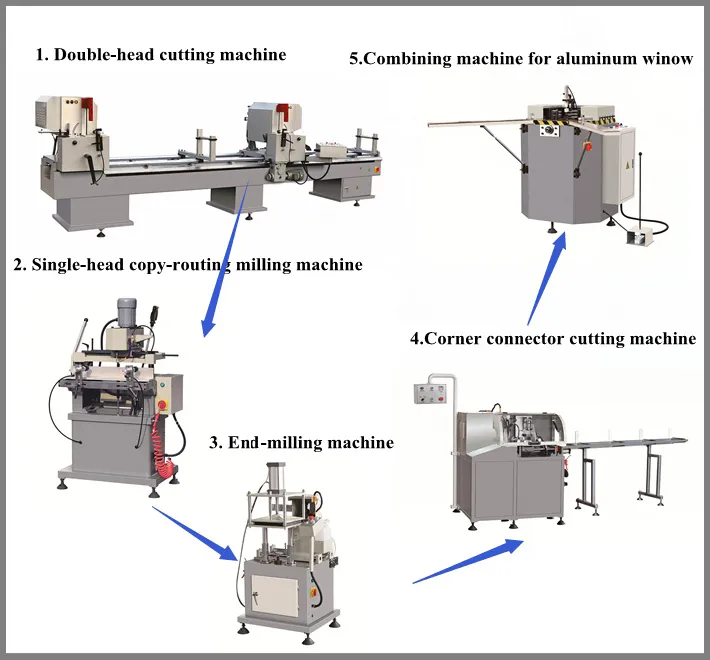

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
