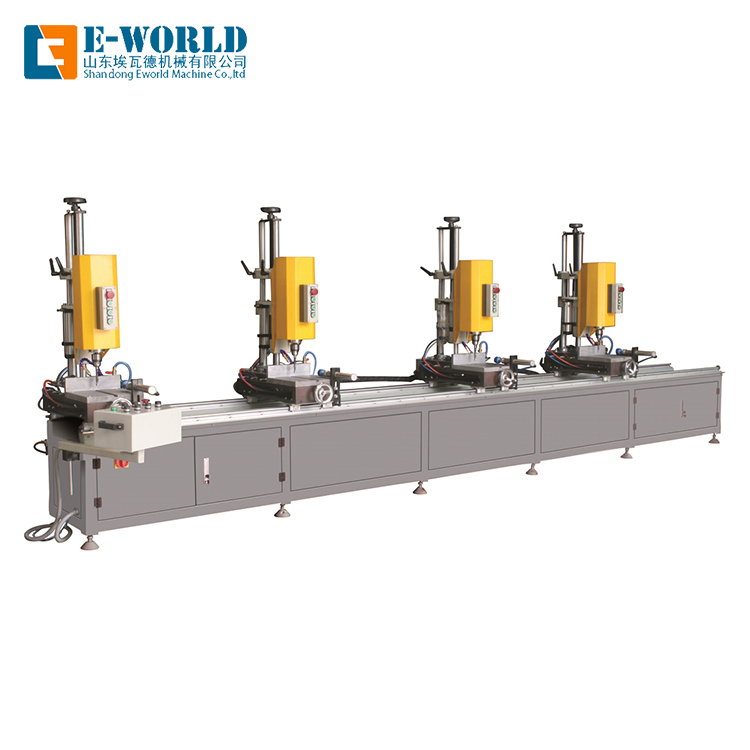

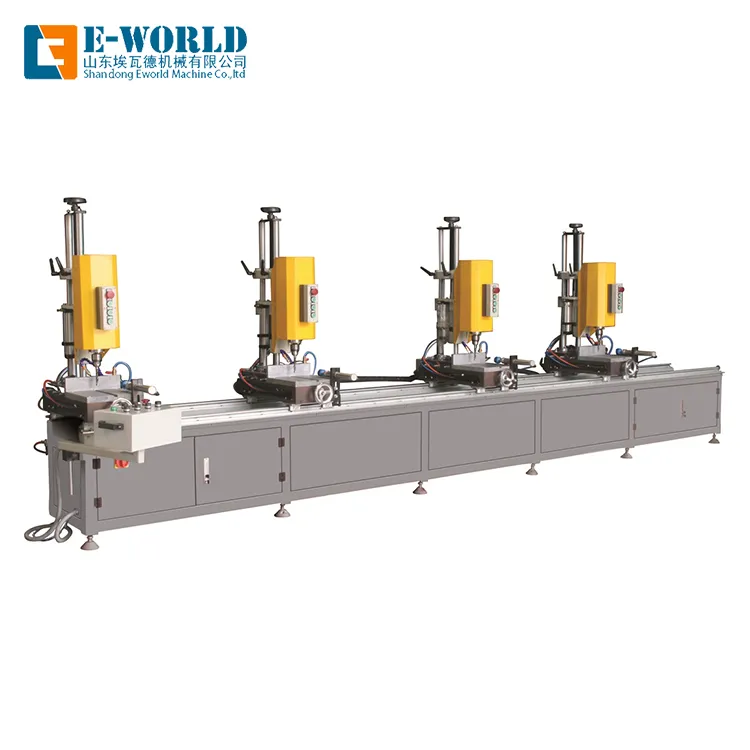

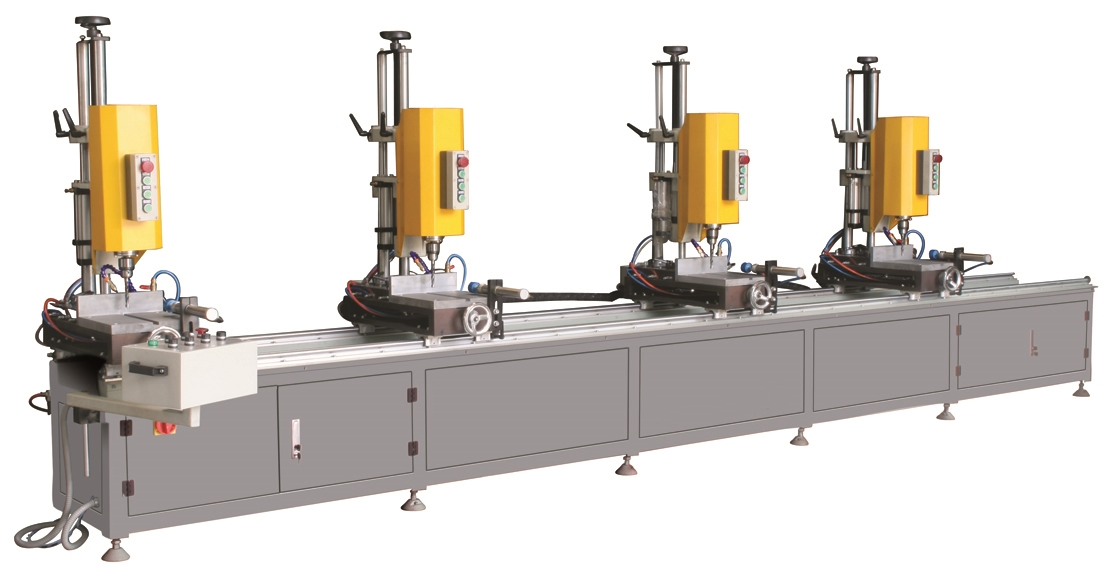

Four-Head Combination Drilling Machine
Four-head Combination Drilling MachineProduct DescriptionSpecial for drilling of Aluminum window,curtain wall profile,suitable for long profile processing and mass production. Suitable for the profile less than 250*250mm,Max processing length 5000mm, pneumatic-hydraulic damp feeding system.Detailed ......
Send Inquiry
Product Description
Four-head Combination Drilling Machine
Special for drilling of Aluminum window,curtain wall profile,suitable for long profile processing and mass production. Suitable for the profile less than 250*250mm,Max processing length 5000mm, pneumatic-hydraulic damp feeding system.
| model | LJZX-04 |
| Main motor power | 4X0.75KW |
| Working voltage | 380V 50HZ |
| Overall dimension(L*W*H) | 5500*1100*1800mm |
| weight | 880KG |
| Operation air pressure | 0.5-0.8MPa |
| Max/Min distance between each group holes | 500-300mm |
| Max processing profile section size | 250*250mm |
| Max drilling hole diameter | 13 |
| Drilling head feeding travel | 125mm |
| Worktable size(L*W) | 300*220mm |
| Tolerance of drilling position | ≤0.3mm |
| Our Corporation: | |
Packing terms: suitable for shipment by sea
Terms of payment: 30% T/T deposit,the balance should be made before shipment
Delivery time: within 20-25 days after receipt of the buyer's 30% deposit.
