    High Configuration UPVC/PVC Window Door Making Machinery Four Head Seamless Welding Machine

    KSH-4-5000 Four Head Seamless Welding MachineFeatures: Variable angle welding between 30 to 180 degree on last head.Specialized for V-welding, cross welding easily, avoid complicated adjustment.Turrets realize auto change V-welding position for different mullions. Imported square bearing system guar......

    Send Inquiry

    Product Description

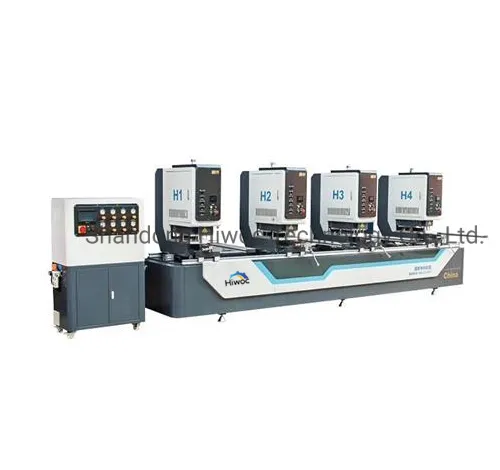

    KSH-4-5000 Four Head Seamless Welding Machine

    High Configuration UPVC/PVC Window Door Making Machinery Four Head Seamless Welding Machine

    Features:
    1. Variable angle welding between 30 to 180 degree on last head.
    2. Specialized for V-welding, cross welding easily, avoid complicated adjustment.
    3. Turrets realize auto change V-welding position for different mullions.
    4. Imported square bearing system guarantee clamping, heating plate, locating plate moving precision& reliable performance.
    5. The upper and down movement of the heating plate adopts the linear slide movement machinery. The welding heating is the upper and lower double heating plate device. The upper and lower movement welding method ensures the smooth movement precision of the welding plate up and down.
    6. The operation of the local pressure clamp use high-precision imported square rail to ensure the linearity and smoothness of welding

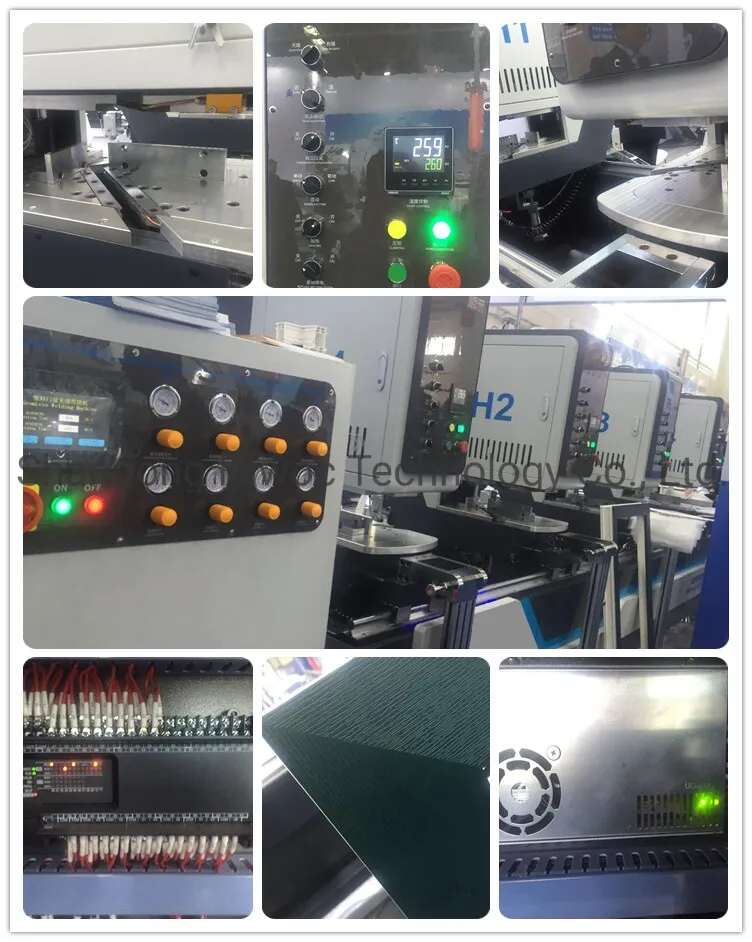

    7. The machine is equipped with color touch screen and equipped with a unique head locking mechanism, tight locking effect,Long-time use is not be damaged.
    8. One head with welding any angle of the function, to meet the user's welding arc window and other special-shaped doors and windows requirements
    9. Can adjust the PLC parameters, according to different profiles easy to adjust the data.
    10. Used for colorful profiles
    11. Two hand safety operation
    12. Pneumatic brake device
    13. Has two modes: can choose seamless mode or with seam mode, very convenient
    14. Welding height:180mm
    15.  Each head has two mode: seam mode and seamlee mode for choice
    16.  Imported parts brands

    Technical Data
    ModelKSH-4-5000
    Input voltage220V 50Hz or customer specification
    Input power7kw
    Air pressure0.5-0.8MPa
    Air consumption260L /min
    Welding range370-4500mm
    Welding height≤180mm
    Welding width≤120mm
    Welding mullion width≤110mm
    Overall dimension5850x1300x1785(mm)
    Weight2600kg
    Humidity<80% (no dew)
    Temperature-5~+40
    Welding methodsWeld window frame
    Weld window-support
    Weld from free angle
    Weld from 180 angle
    Weld profile materials of different heights

    Main accessory:
    • PLCOmron
    • CylinderJPC(FESTO Joint Venture Brand)
    • Air Filter DeviceSTNC
    • Electrical Button and SwitcherSchneider
    • AC Contactor and Circuit BreakerSchneider
    • Approach SwitcherSwiss CONTRINEX or Japan Omron
    • Linear bearing systemLinear (South Korean brand)
    • Square bearing systemLinear (South Korean brand)
    • Temperature ControllerJapan Omron

    Standard accessory:
    • Heating Plate4pcs
    • Teflon Clothseveral
    • Complete tooling1set
    • Certificate1pc
     • Operation Manual1pc
