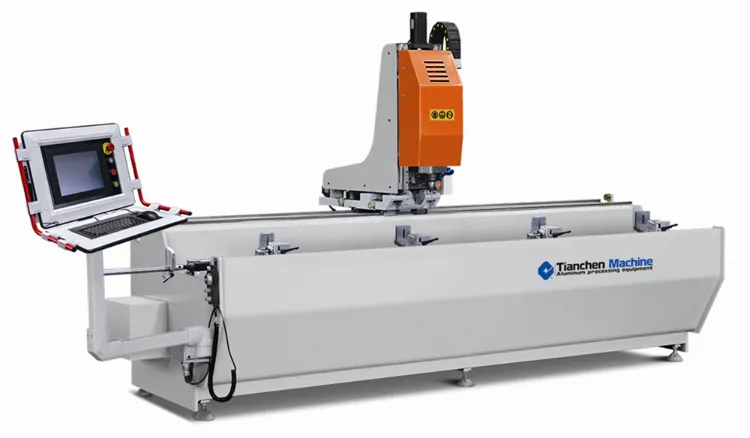

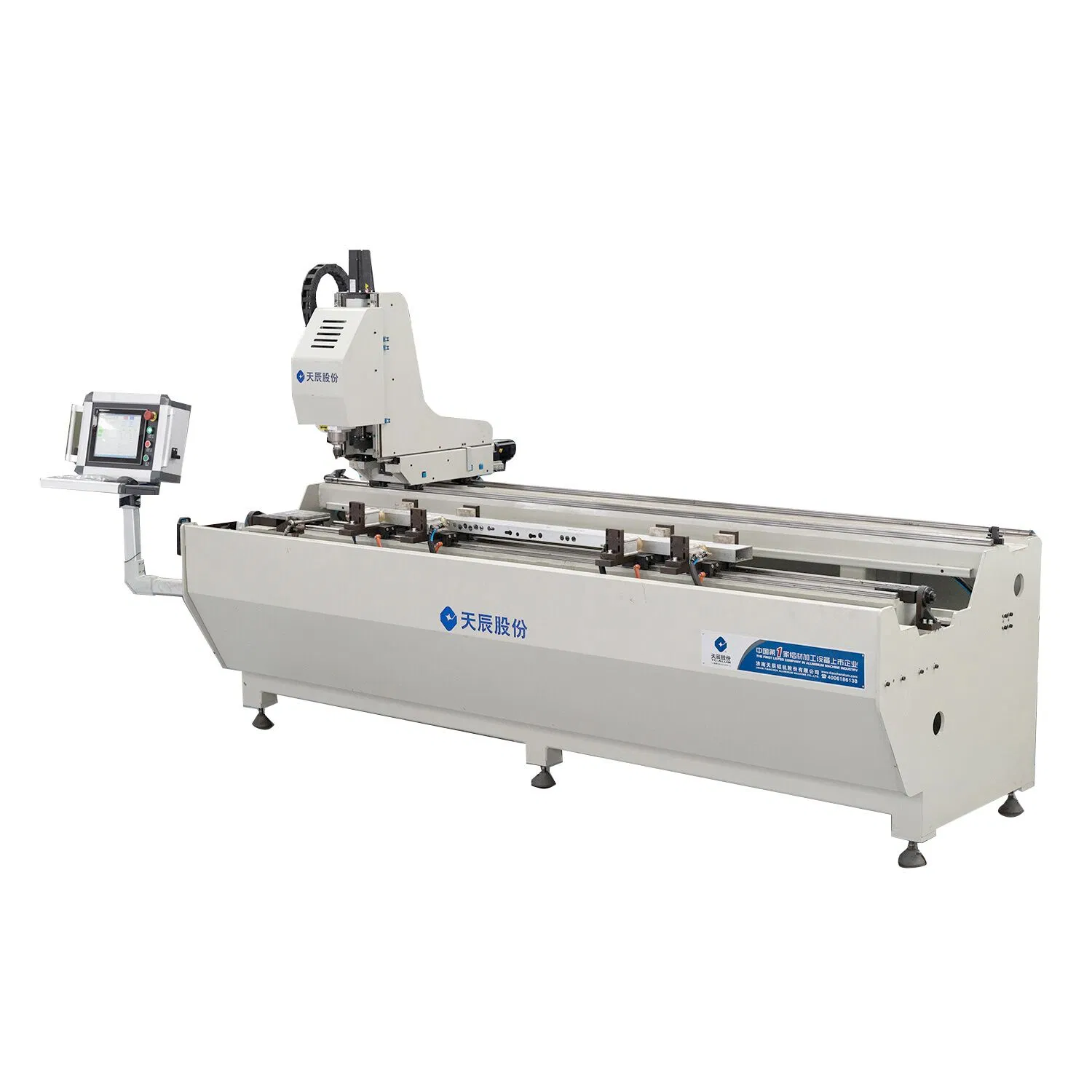

Multi Spindle Copy Router for Aluminum Window and Door with 3+1 Axis

Product Description

Multi Spindle Copy Router for Aluminum Window and Door with 3+1 Axis
LXF3A-CNC-2500/LXF3A-CNC-1200

Machine Features

1. Imported high speed electric spindle, noiselee and stable in performance.
2. It adopts imported high speed main axis motor, stable rotation, low noise, and strong milling ability.
3. Used to milling different size holes and grooves of aluminum profile, especially suitable for the processing door lock.

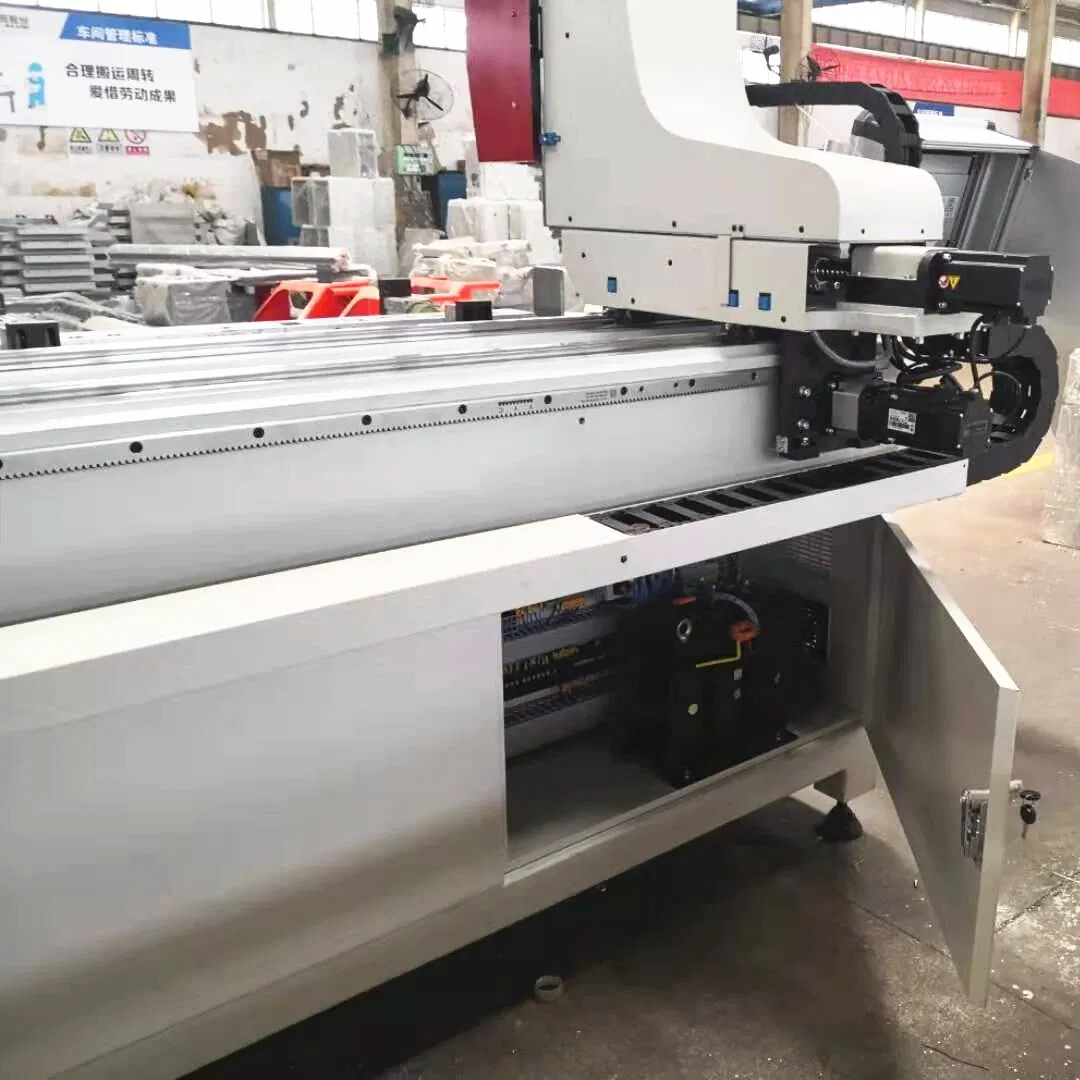

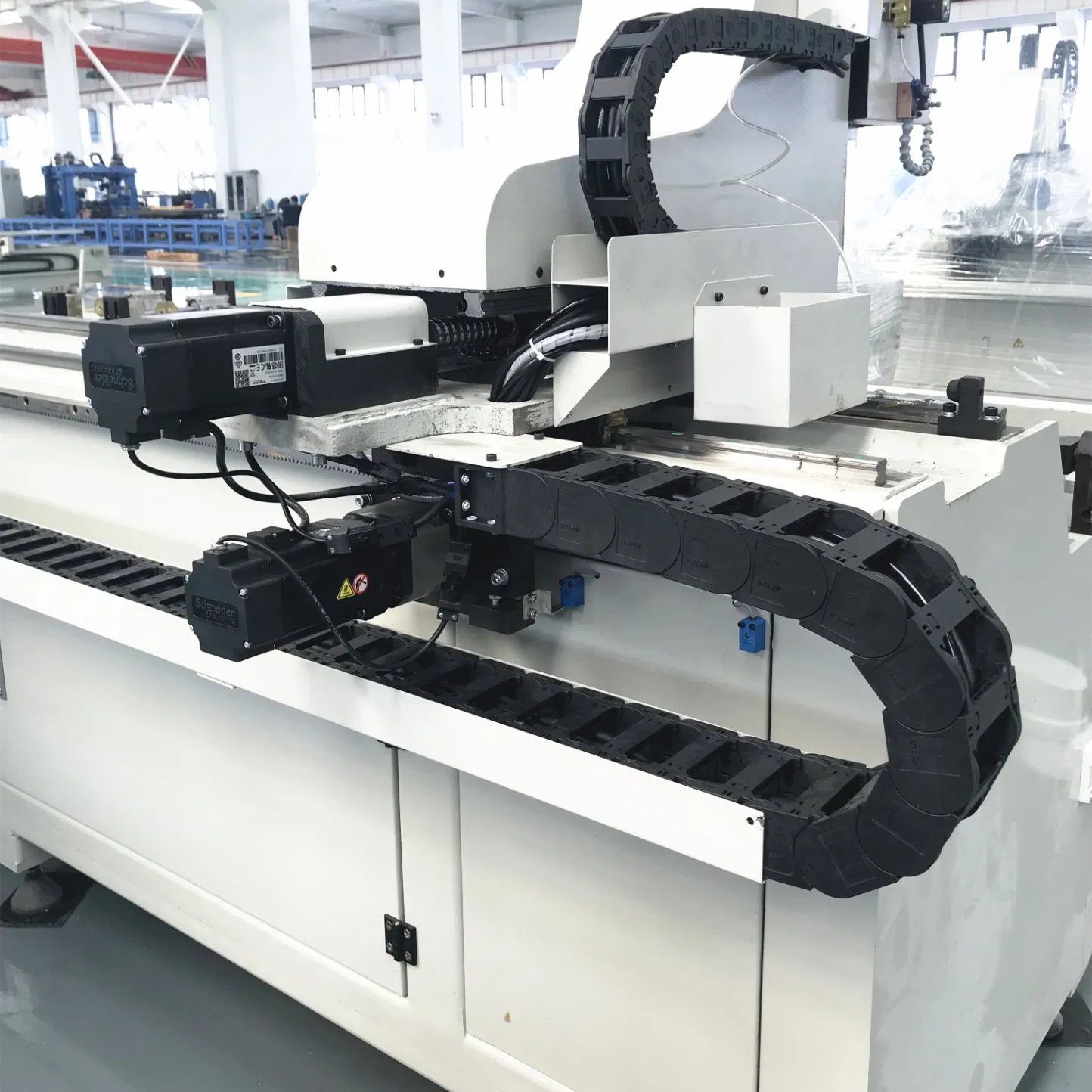

4. It adopts ball bearing movement device, high precisiom guide liner, rack and pinion and servo motor; insure the sutable

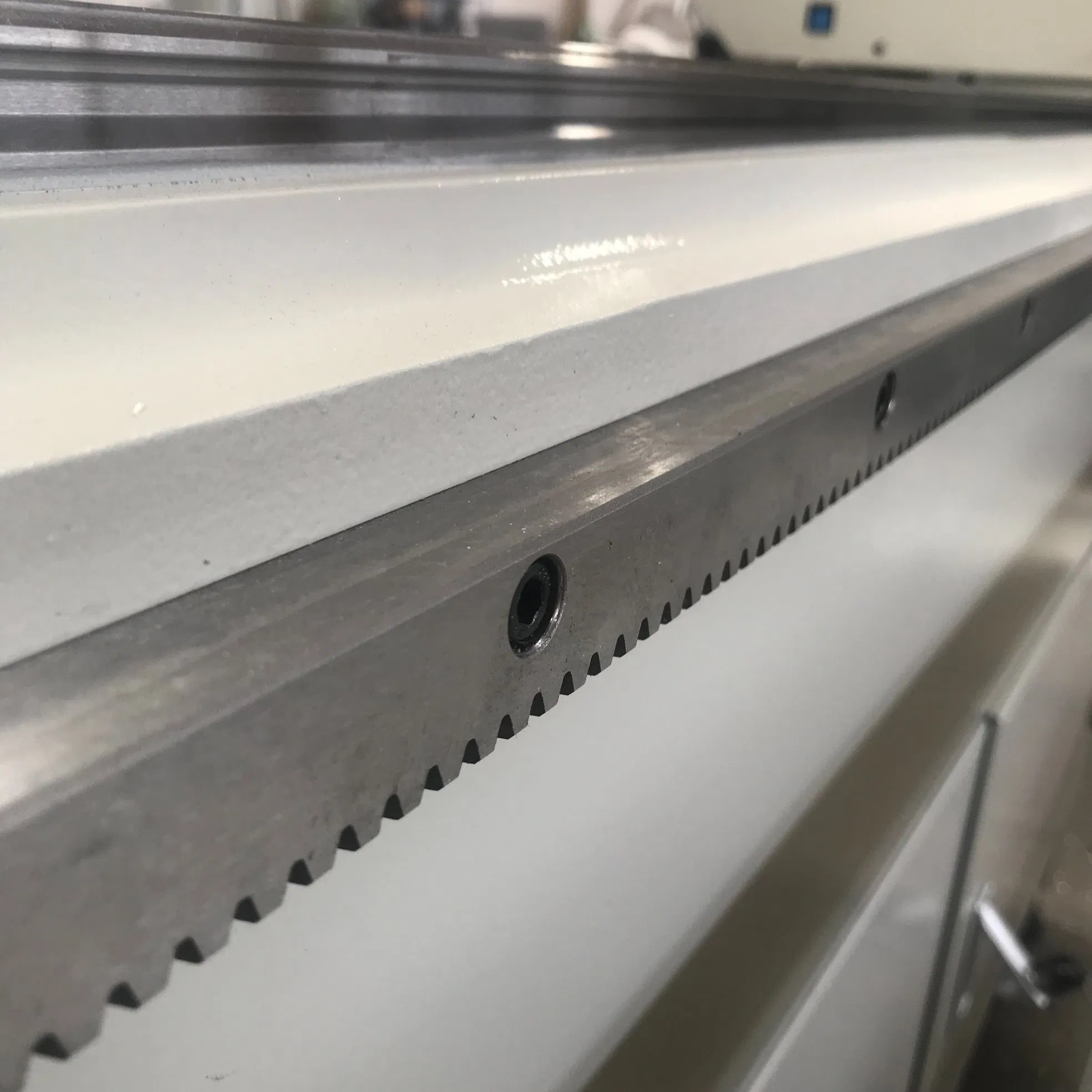

movement with high precision position and operation. X-axis is freven by rack and pinion, Y & Z axis are by guide screw.
5. Worktable can be turned from -90°,0° and +90°to realize one time clamping three surface milling.
6. It adopts PLC, Intelligent Integrated Numerical Control System, concision and vivid human and machine interface to
have easy operation.
Technical Parameters

Item	Specification
Total power	4*2.2kW
Motor rev	2800r/min
Diameter of milling cutter	250mm
Diameter of blade	355mm
Worktable journey	0~1560mm
Worktable dimension	530*320mm
Max processing height size	0~68mm
Max processing tenoning size	0~45mm
Contour dimension	324015101655mm
Weight	1200kg
