5% Discount Self Loading Concrete Mixer Truck 4cbm Jbc40r
New Small JBC40R 4cbm Self Propelled Concrete Mixer Truck Features:Leading design,Auto loading concrete mixing.Simple and convenient operation .High efficiency,saving time&worker,cost saving.perfect combination mixer truck&loader.12month warranty,perfect after sales service.270 degrees disch......
Send Inquiry
Product Description

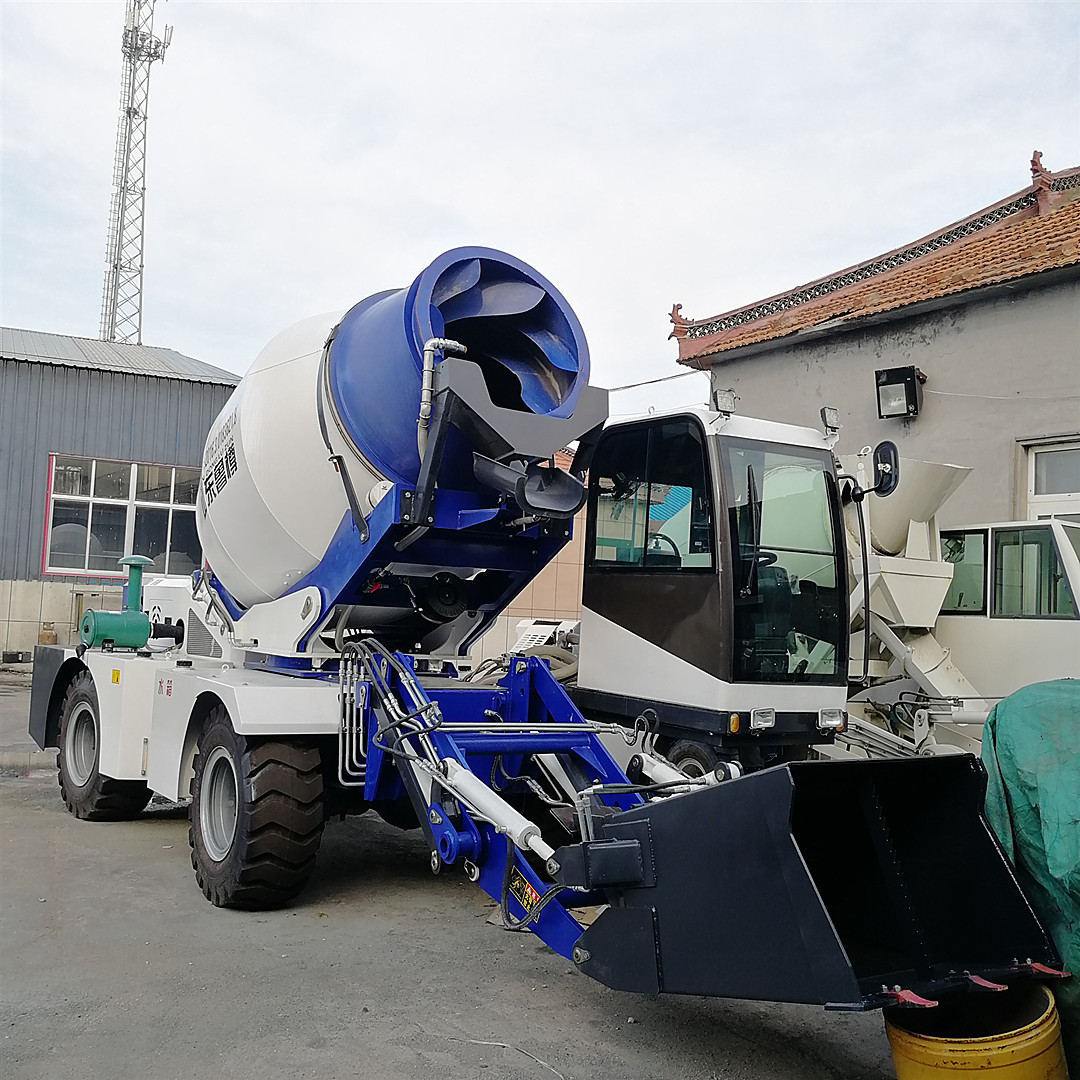

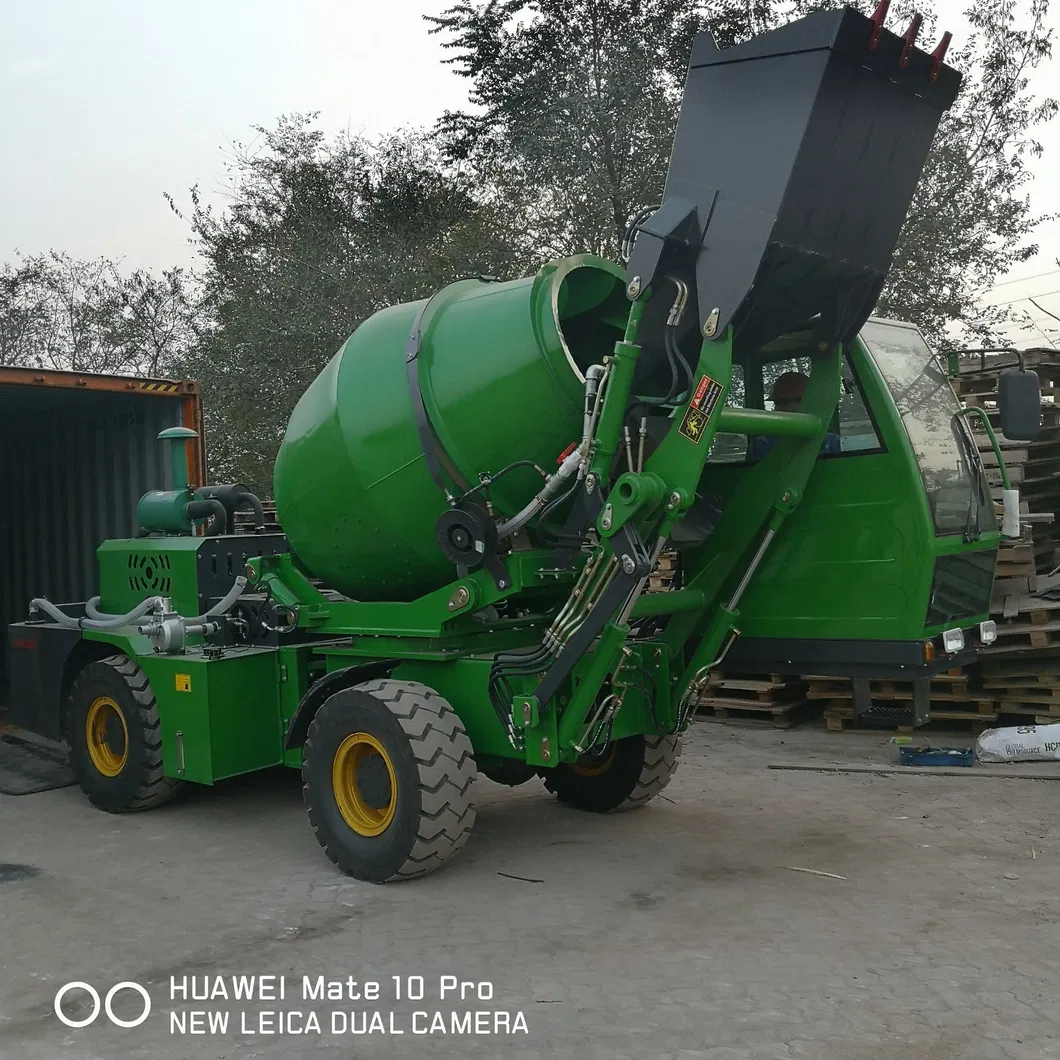

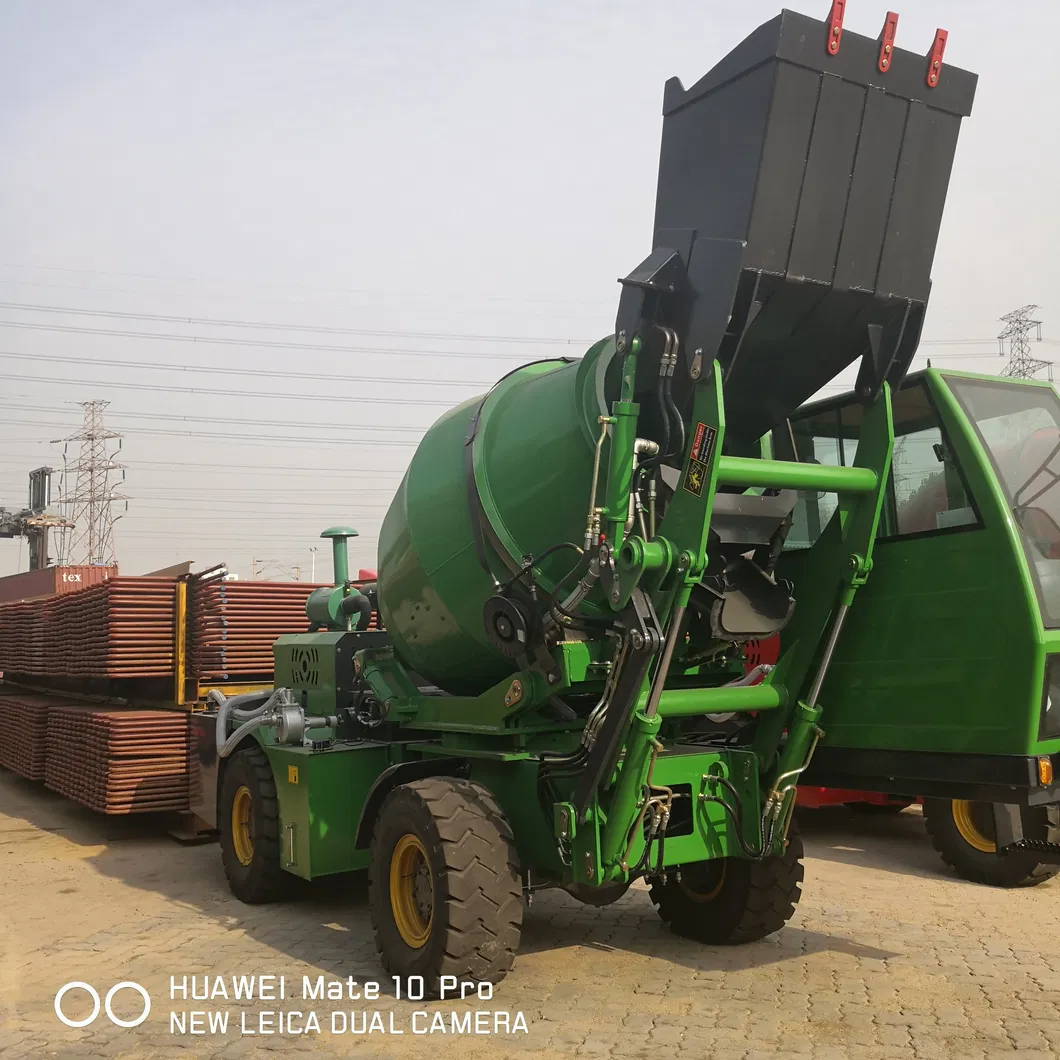

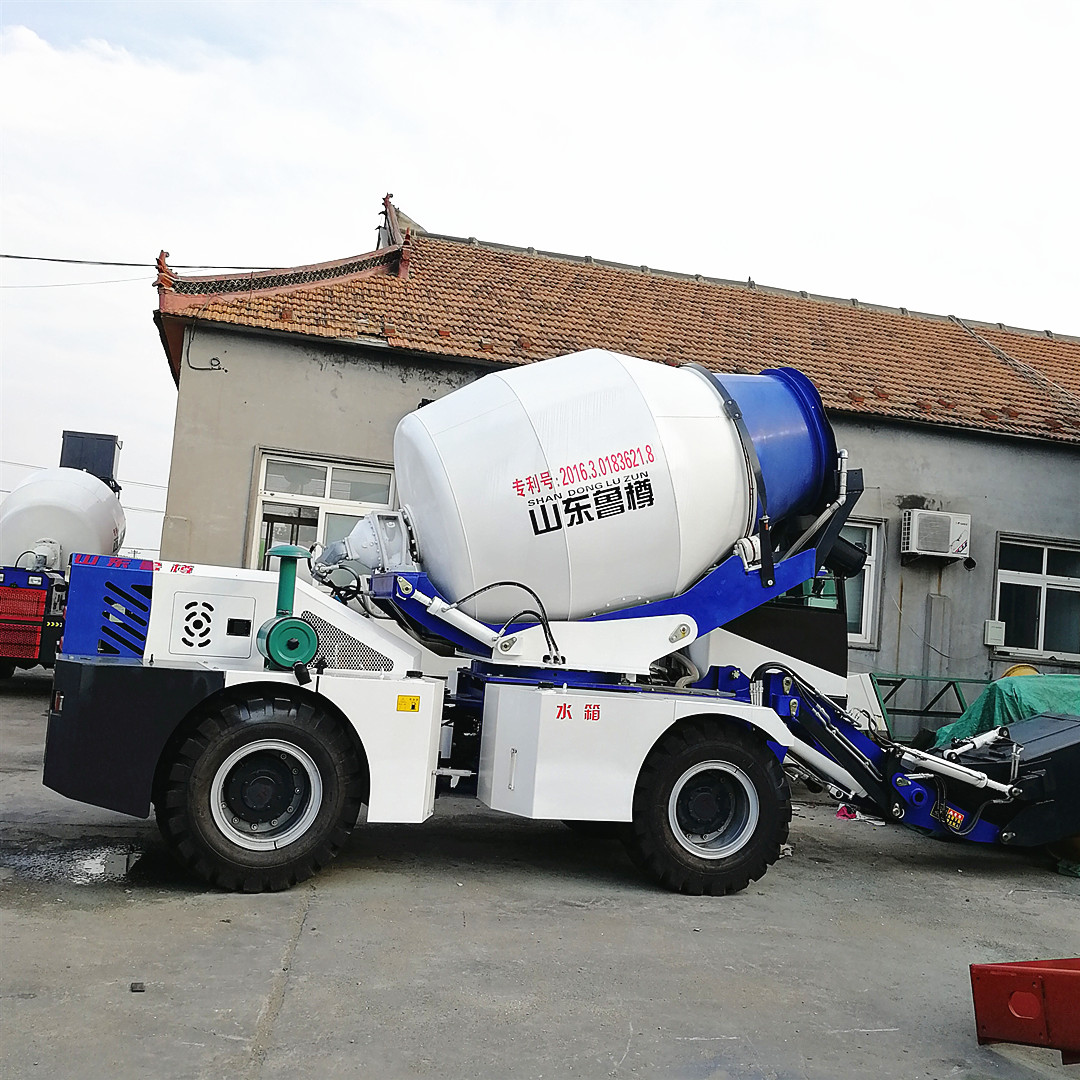

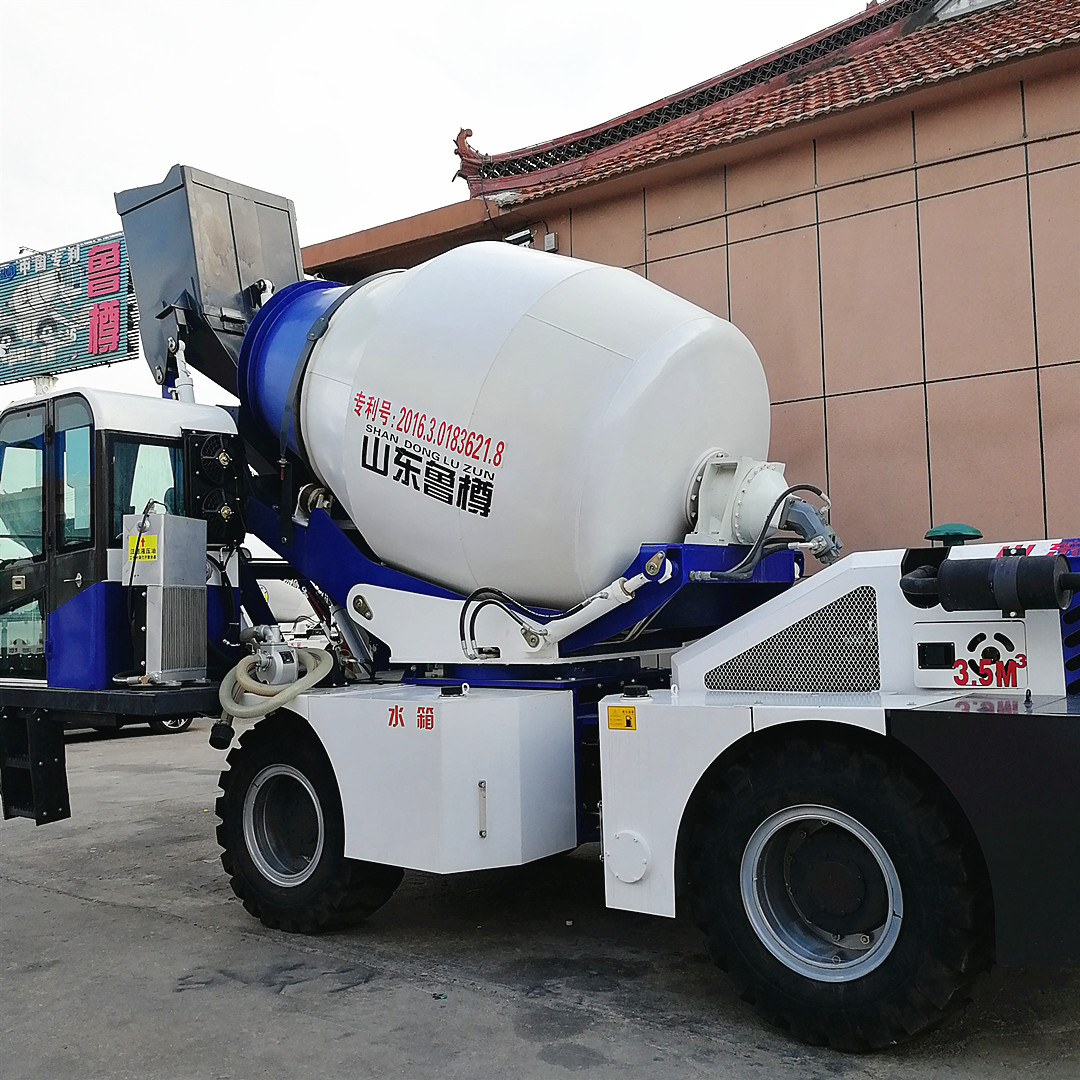

New Small JBC40R 4cbm Self Propelled Concrete Mixer Truck
Features:
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0 - 7.0 Km/h 0 - 7.0 Km/h
IInd 7-20 Km/h 7 - 20 Km/h
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5150kg , 450kPa
Negative type parking brake, with internal wheel hub discs on the front axle.
Max. capacity: ............................90 liters/min.
Two tank with a total capacity of ......................2×260 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
Geometrical drum volume: ............. 4650 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........3.5m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 180° /270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
Unloading chute with mechanical tilting by means of one handle controlled and 180° rotation, independent from the mixing drum inclination.
Removable chute if unloading from hopper.
2 unloading chute extensions provided as standard equipment.
Max. flow rate: ............................. 63/50 liters/min.
Maximum pressure: ........................16MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.
Volumetric capacity: ...........................500 liters
Number of loading times: .......... around 5
Anatomic seat with flexible suspension and height adjustment,
Total hydraulic system capacity: ........ 200 liters
Engine oil: .............................................16 liters
Max gross weight:..............................13340 kg
load-carrying capacity: ...................... 6240 kg
Features:
- Leading design,Auto loading concrete mixing.
- Simple and convenient operation .
- High efficiency,saving time&worker,cost saving.
- perfect combination mixer truck&loader.
- 12month warranty,perfect after sales service.
- 270 degrees discharge angle.
- Operation room with hot/cooling system,tilted front window
DIESEL ENGINE
Model: YCD4J22GTotal displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
STEERING
Articulated Steering by two cylinders move alternately.Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0 - 7.0 Km/h 0 - 7.0 Km/h
IInd 7-20 Km/h 7 - 20 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5150kg , 450kPa
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.Negative type parking brake, with internal wheel hub discs on the front axle.
WATER SYSTEM
24V "Self-priming" volumetric water pump with quick-suction.Max. capacity: ............................90 liters/min.
Two tank with a total capacity of ......................2×260 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pressure water pump.
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom.Geometrical drum volume: ............. 4650 liters
Drum rotation speed: .........................16 rpm.
Concrete produced as : ........3.5m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 180° /270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
Unloading chute with mechanical tilting by means of one handle controlled and 180° rotation, independent from the mixing drum inclination.
Removable chute if unloading from hopper.
2 unloading chute extensions provided as standard equipment.
EQUIPMENT HYDRAULIC SYSTEM
Gear pump: (brand) PERMCOMax. flow rate: ............................. 63/50 liters/min.
Maximum pressure: ........................16MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.
LOADER
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.Volumetric capacity: ...........................500 liters
Number of loading times: .......... around 5
CAB
Closed cab with heating system, Tilting front window,Anatomic seat with flexible suspension and height adjustment,
SERVICE REFILL CAPACITIES
Fuel tank: .............................................200 litersTotal hydraulic system capacity: ........ 200 liters
Engine oil: .............................................16 liters
WEIGHTS
Operating weight ................................7100 kgMax gross weight:..............................13340 kg
load-carrying capacity: ...................... 6240 kg
DIMENSIONS
Length × Width × Height .........................6830 × 2800 × 3200 mmRelated Category
