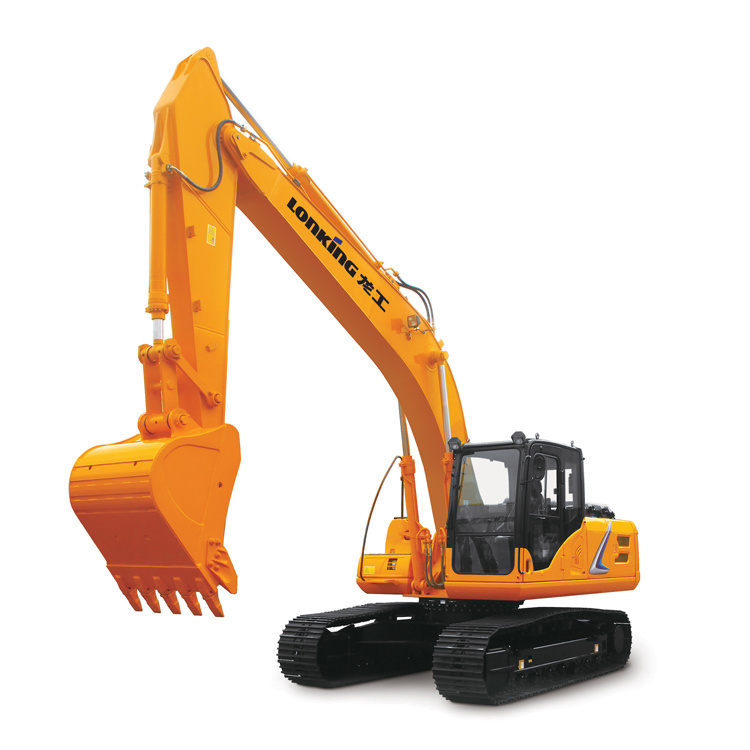

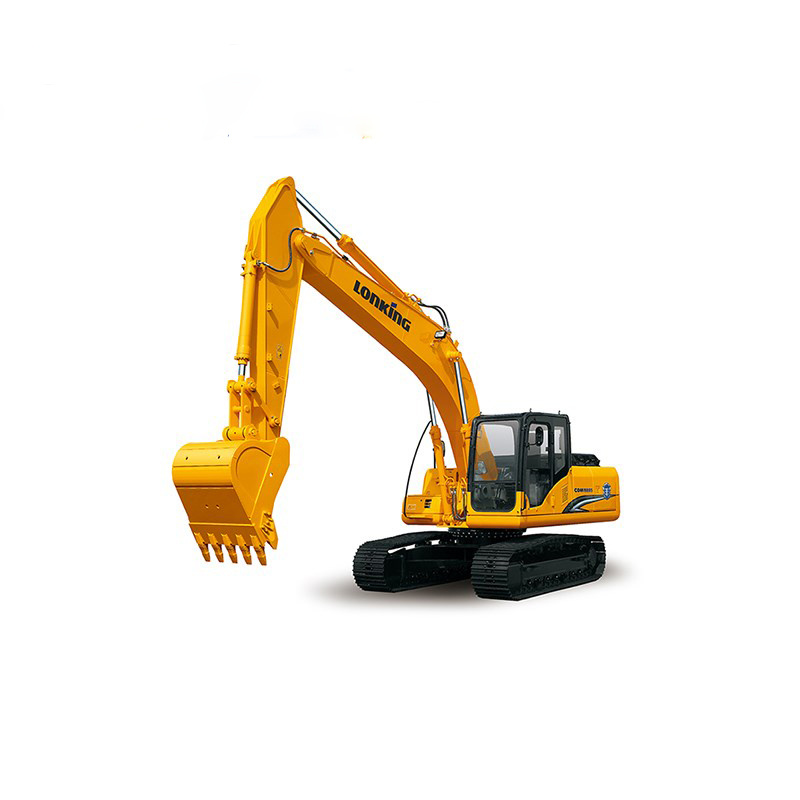

(LG6220d) Lonking 22 Ton Excavator

Product Description

(LG6220d) Lonking 22 Ton Excavator

Feasures
LG6220D with strong, powerful and high quality engine and advanced negative flow control hydraulic system to achieve the best power matching and minimum costand guarantee the optimum working efficiency.
Filtering System
The high efficiency dual element air filter ensures the quality of engine air intake. In addition, the air pre-filter can carry out the rough filtration over the air intake to enable the operation under the poor air quality working conditions and prolong the maintenance interval of the air filter. The oil-water separator and two-stage fuel filter will filtrate the fuel many times to ensure the quality of fuel fed to the engine.
Cooling System
The parallel radiator cooling makes cooling effect better and service easier.
Maintenance and Service
The easy maintenance of direct injection engine reduces the cost of maintenance. The global after service of engine enables the sharing of global resources. This will enhance the service efficiency, relieve the customers of worry about the service and ensure the attendance rate of excavator.
Functions
This machine allows the functions of straight travel, boom/armconfluence, boom/arm holding, swing priority, swinganti-reversing and regeneration ofarm cylinder. Each circuit without interference during composite action.Digging of arm and bucket as well as the lifting and swing of boom at the same time during operating, the operations of left and right motors are independent during traveling.
Auxiliary Hydraulic Valve

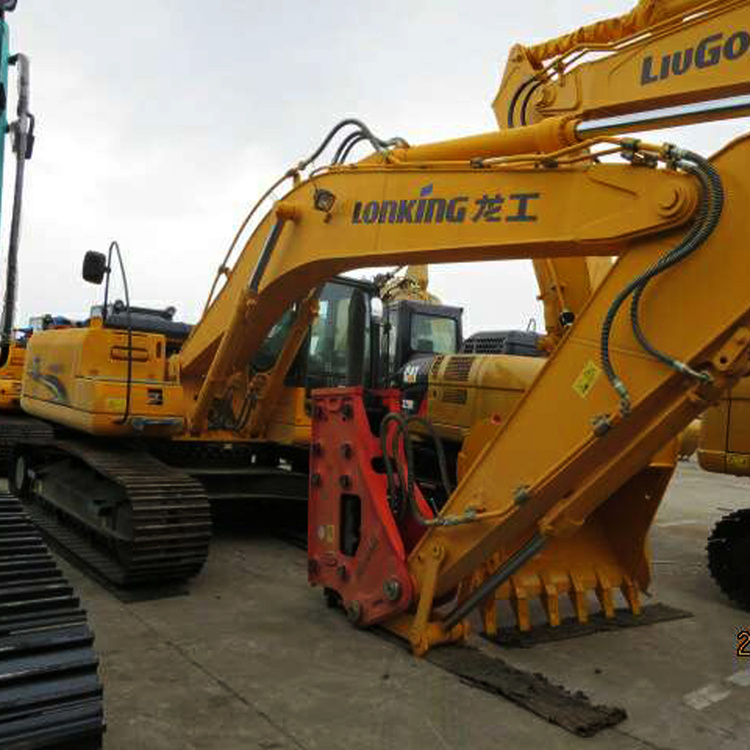

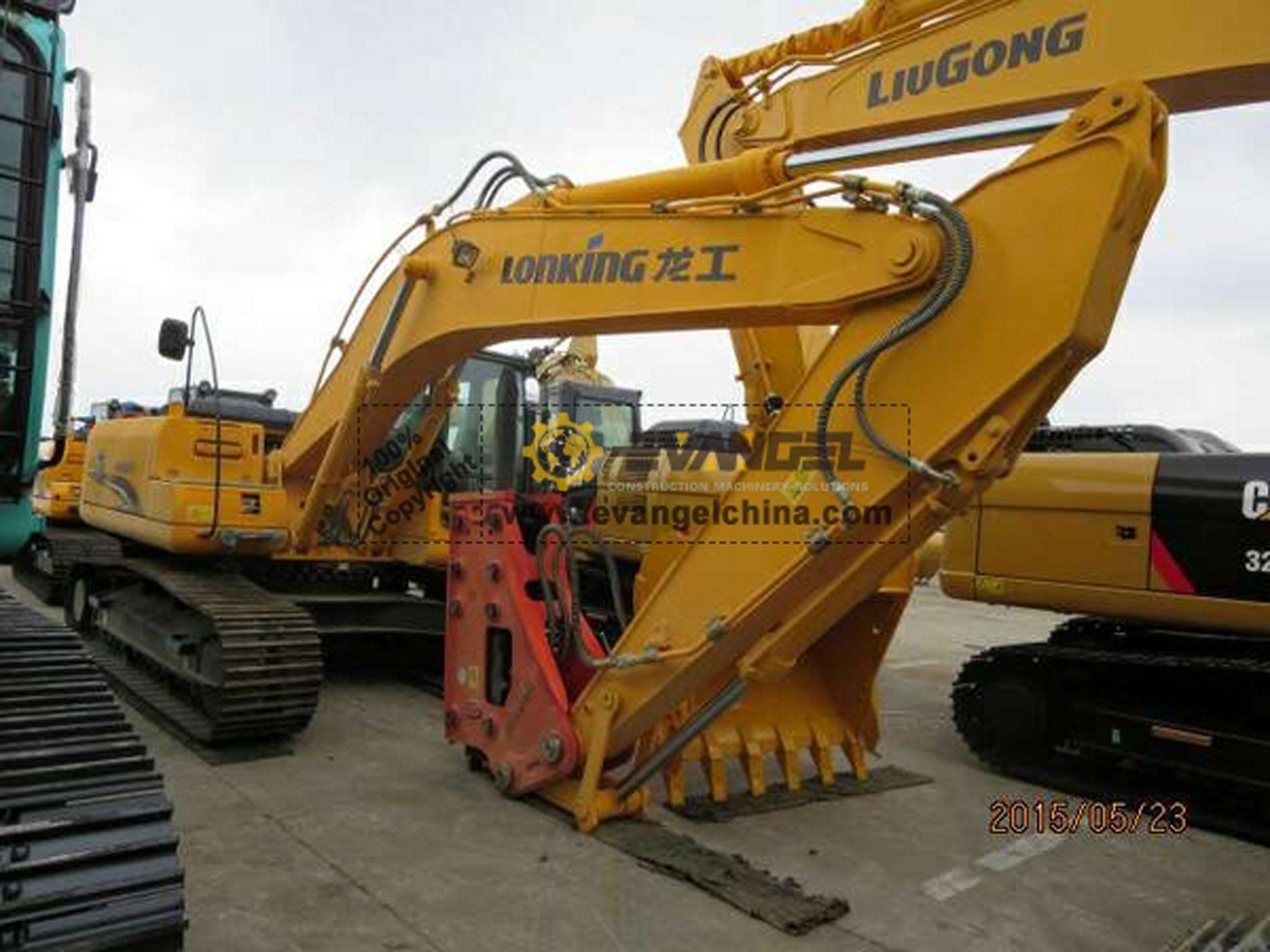

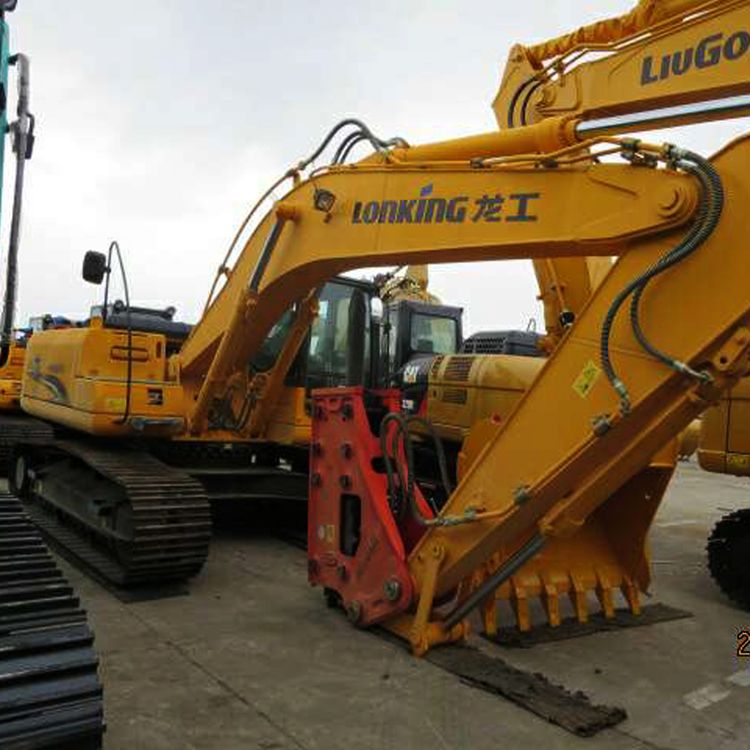

The main valve is provided with a set of standby valves to facilitate the installation of other accessories such as the breaking hammer.

Parameters

Specifications			LG6220D
Engine		Model	Cummins6BTAA5.9-C
		Rated power	112kW (150hp) /1950 rpm
		Max. torque	614 N.m/1500 rpm
		Bore× Stroke	102mm×120mm
		Displacement	5.9
		Comment	Maintain the rated power at 2300m elevation.
Operating weight		Summary	Operating weight:21800kg The operating weight includes the weight of 5675 mm standard boom,2920 mm standard arm, 1.0m3 standard bucket,600 mm track shoes,lubricating oil, coolant,the full diesel oil tank and the rest standard configuration units.
		Ground pressure	51 kPa
Fluid capacity		Fuel tank	380 L
		Cooling system	23 L
		Engine oil	18 L
		Swing drive unit	3.8 L
		Traveling gear	2×3.3 L
		Hydraulic oil tank	280 L
Swing mechanism			High torque plunger motor and 2-stage planetary reducer drive. Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position.
			Swing speed :11.6 rpm
Travel drive	Summary		The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface, The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking.
	Taveling speed		3.0 -5.2 km/h
	Gradeability		35°(70%)
	MaximumTraction		222 kN
Traveling mechanism	Standard track shoe width		600 mm
	No. of track shoe		47 (each side)
	No. of carrierrollers		2 (each side)
	No. of track rollers		8 (each side)
Hydraulic system	Main pump		Duplex axial variable plunger pump
	Pilot pump		gear pump (integrated in main pump)
	Max. flow of system		2×208 L/min
	Max. pressure of equipment		34.3 MPa
	Max. pilot pressure		3.9 MPa
Operating equipment			Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control.
Electrical system			System voltage:24 V Battery:12 V,120 A×2
