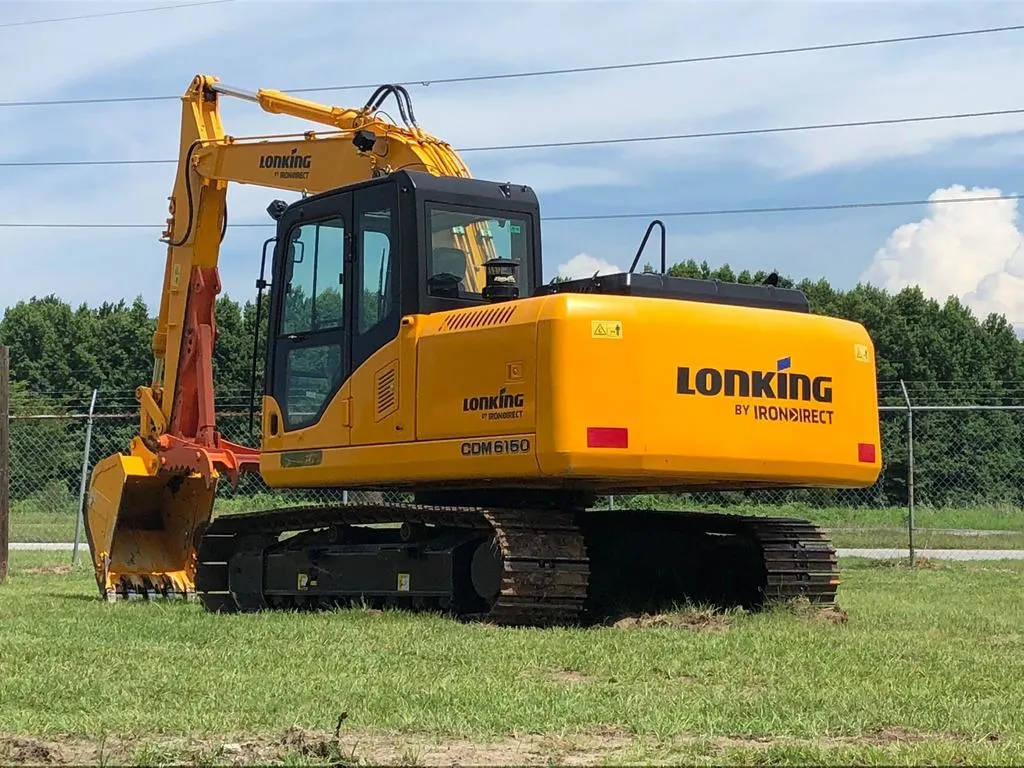

14 Ton Lonking LG6150 Mini Digger Hydraulic Crawler Excavatorcdm6150e
14 Ton Lonking LG6150 Mini Digger Hydraulic Crawler ExcavatorCDM6150E Product DescriptionCumins TDCI 4-cylinder engineThree-stage air and fuel filtering systemAir-air inter cooling system with parallel radiatorDual-pump double-circuit constant power control hydraulic systemMulti-purpose true color m......
Send Inquiry
Product Description
Product Description
Cumins TDCI 4-cylinder engine
Three-stage air and fuel filtering system
Air-air inter cooling system with parallel radiator
Dual-pump double-circuit constant power control hydraulic system
Multi-purpose true color monitor with large screen
No frame cab glasses to enlarge the visual field
High performance and healthy A/C allows the air circulate
Comfortable suspension seat with hydraulic damper
Safe and comfortable cabin with 2.7m³ inner space
Free maintenance track with non- lubricated pins
Heavy-duty boom and arm with high strength low alloy structural steels
Heavy-duty bucket with high strength and wear-resistant steels
Parameters
| Model | CDM6150E | ||
|---|---|---|---|
| General | Operating weight( kg) | 14000 | |
| Standard bucket(m³) | 0.56 | ||
| Bucket range(m³) | 0.25-0.75 | ||
| Ground pressure(kPa) | 45 | ||
| Travel speed(km/h) | 3.34/5.5 | ||
| Swing speed (rpm) | 11.9 | ||
| Gradeability | 35° (70%) | ||
| Engine | Model | Cumins QSF3.8 | Cumins QSB4.5 |
| Rated power(Kw(hp)/rpm) | 86 (117) / 2200 | 90(122)/ 2000 | |
| Displacement (L) | 3.8 | 4.5 | |
| Fuel tank(L) | 270 | ||
| Hydraulic System | Max.pressure of Implements(MPa) | 34.3 | |
| Max. flow of system( L/min) | 120×2 | ||
| Hydraulic oil tank(L) | 159 | ||
| Working Device | Boom length(mm) | 4600 | |
| Arm length(mm) | 2500 | ||
| Bucket radius(mm) | 1270 | ||
| Digging Force | Max. arm digging force (SAE/ISO)(kN) | 75/85.6 | |
| Max. bucket digging force (SAE/ISO)(kN) | 116/132.4 | ||
