1t Small Excavator Crawler Mini Digger
1T Small Excavator Crawler Mini DiggerTE13 mini crawler excavator is a collection of beautiful design, high configuration, good performance, low fuel consumption with wide operating ranges. It is suitable for loosing soil of vegetable greenhouse, municipal departments' landscape engineering, dig......
Send Inquiry
Product Description

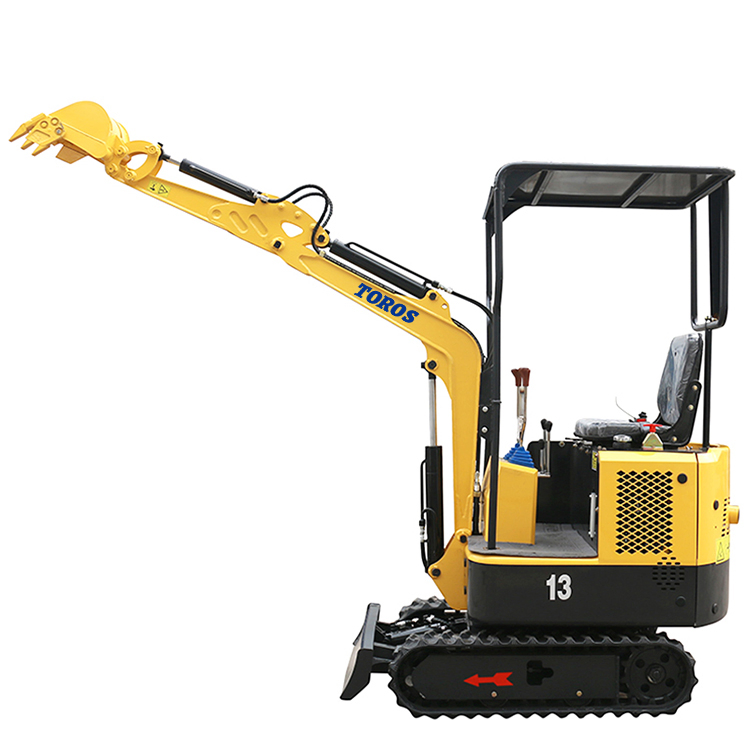

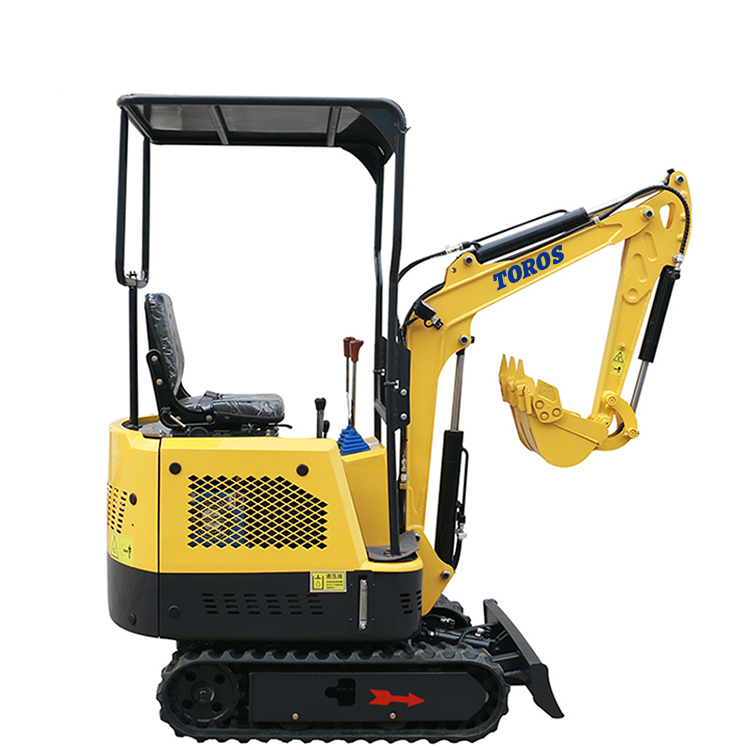

1T Small Excavator Crawler Mini Digger

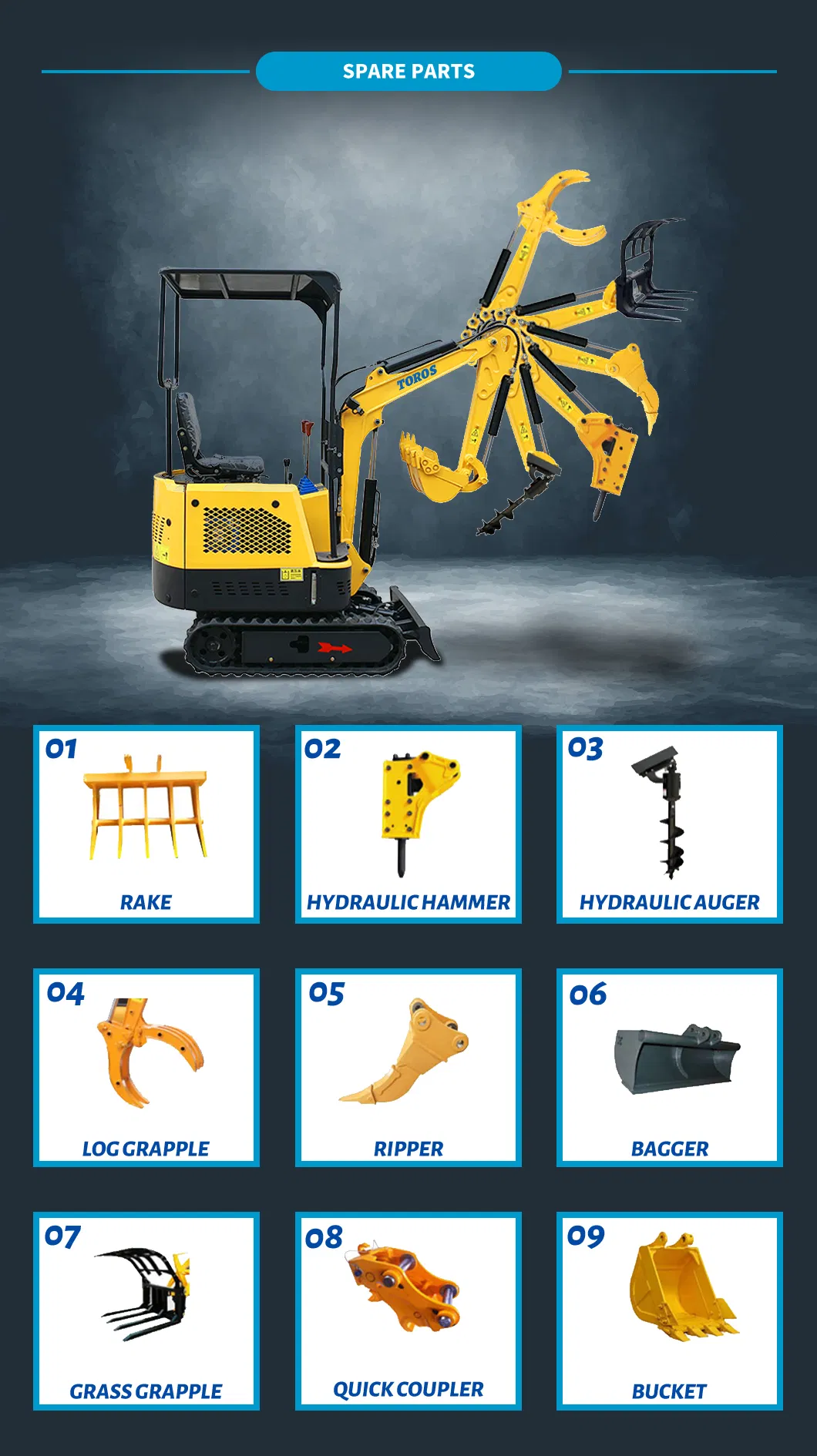

TE13 mini crawler excavator is a collection of beautiful design, high configuration, good performance, low fuel consumption with wide operating ranges. It is suitable for loosing soil of vegetable greenhouse, municipal departments' landscape engineering, digging holes for tree planting in orchard, crushing concrete surface and sand-gravel mixing material, small space working sites etc. Adopting quick hitch that make you change working attachment easy and fast, and also can reduce maintenance and operating cost.
| TE13 Excavator | |||
Bucket Capacity | 0.025m³ | Engine | CHANGCHAI / YANMAR |
Chassis Width | 940mm | Engine Power | 12KW/3000rpm 10kw/2200rpm |
Track Length | 1200mm | Turning Radius | 1400mm |
Chassis Ground Clearance | 380mm | Max. Digging Height | 2580mm |
Seat Ground Clearance | 1180mm | Max. Dumping Height | 1880mm |
Track Width | 180mm | Max. Digging Depth | 1400mm |
Track Height | 320mm | Max. Digging Radius | 2850mm |
Transport Length | 2800mm | Max. Vertical Digging Depth | 1320mm |
Excavator Height | 2150mm 1550mm | Max. Lift Height of Dozer Blade | 130mm |
Overall Dimension ( LxWxH) | with cab 2800*940*2150mm without cab 2800*940*1550mm | Weight | 950kg |
