SPECIFICATIONSRANGE OF OPERATIONBoom length1735mmArm length815mmMaximum Digging Reach3800mmMaximum Digging Depth1900mmMaximum Digging Height3335mmMaximum Dumping Height2165mmMin radius of gyration940mmBack-end radius of gyration940mmMaximum digging reach3700mmDIMENSION(Length*width*height) travel po......



| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 1735mm | ||||||||
| Arm length | 815mm | |||||||||
| Maximum Digging Reach | 3800mm | |||||||||
| Maximum Digging Depth | 1900mm | |||||||||
| Maximum Digging Height | 3335mm | |||||||||
| Maximum Dumping Height | 2165mm | |||||||||
| Min radius of gyration | 940mm | |||||||||
| Back-end radius of gyration | 940mm | |||||||||
| Maximum digging reach | 3700mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 3630*1000*2150mm | ||||||||
| Wheel base | 750mm | |||||||||
| Min ground clearance | 115mm | |||||||||
| TECHNICAL PARAMETERS | Machine weight | 1600kg | ||||||||
| Rated Power | 13.6KW/19KW | |||||||||
| Volume Of Bucket | 0.04m3 | |||||||||
| Hydraulic system working pressure | 16Mpa | |||||||||
| Swing speed | 15rpm | |||||||||
| (High speed/low speed) | 0~2km/h | |||||||||
| Max digging force of bucket | 9.6KN | |||||||||
| Max digging force of arm | 8.5KN | |||||||||
| Ground pressure | 2.5Kpa | |||||||||
| Grade Climbing ability | <30° | |||||||||

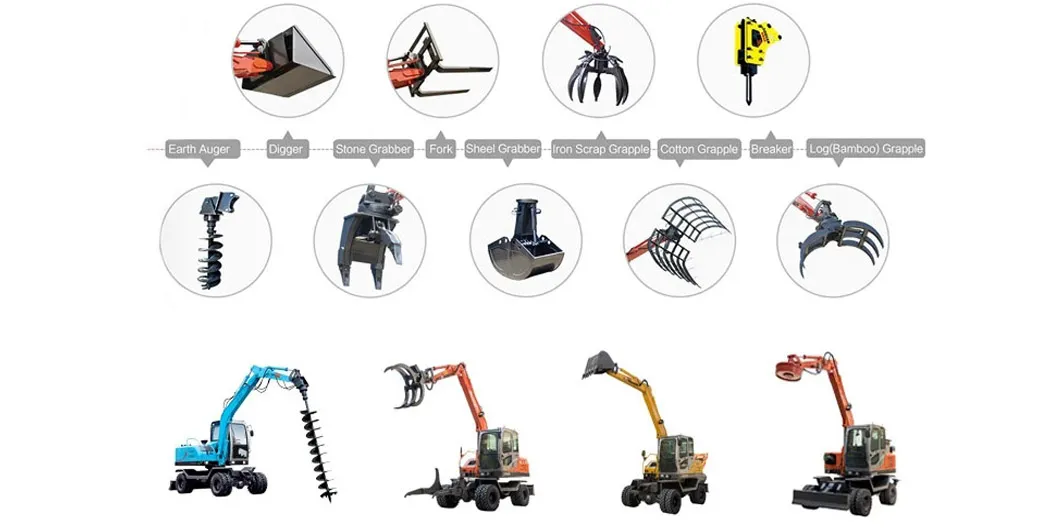

We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.

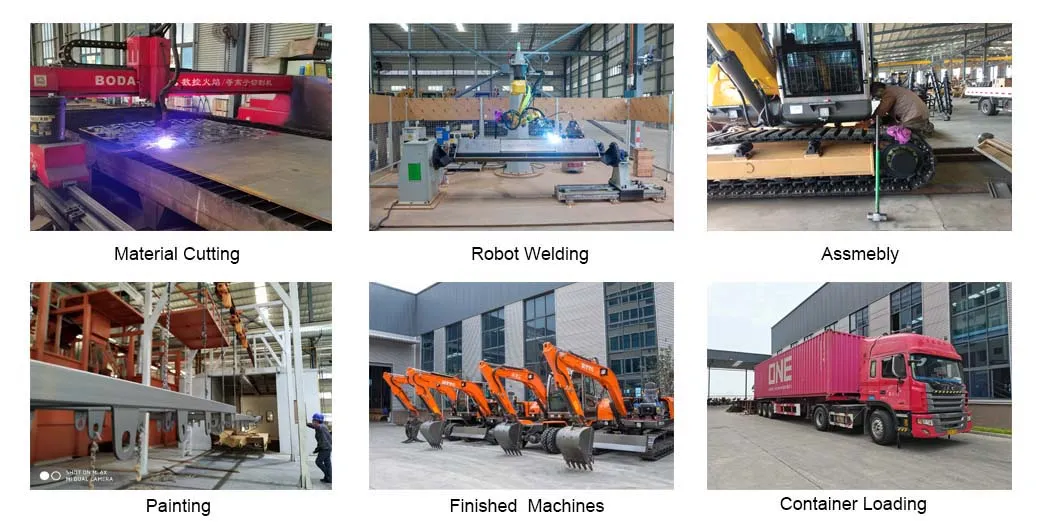

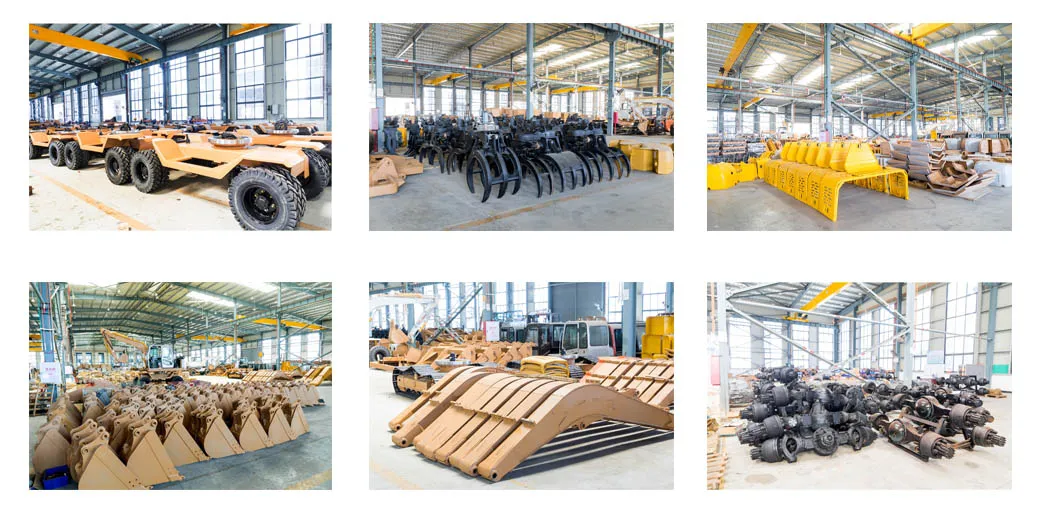

Process
Exhibition Show
Certificates
