Product Description

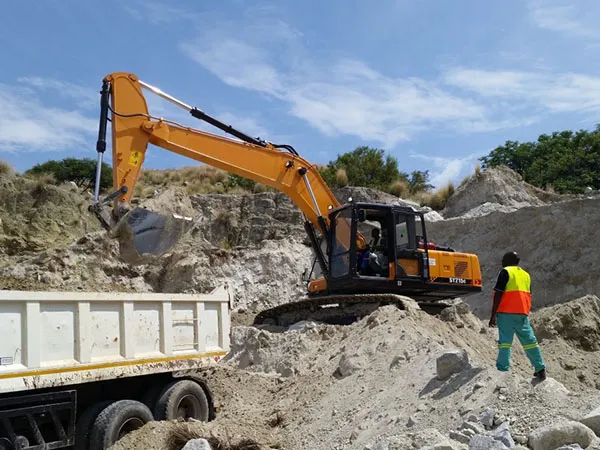

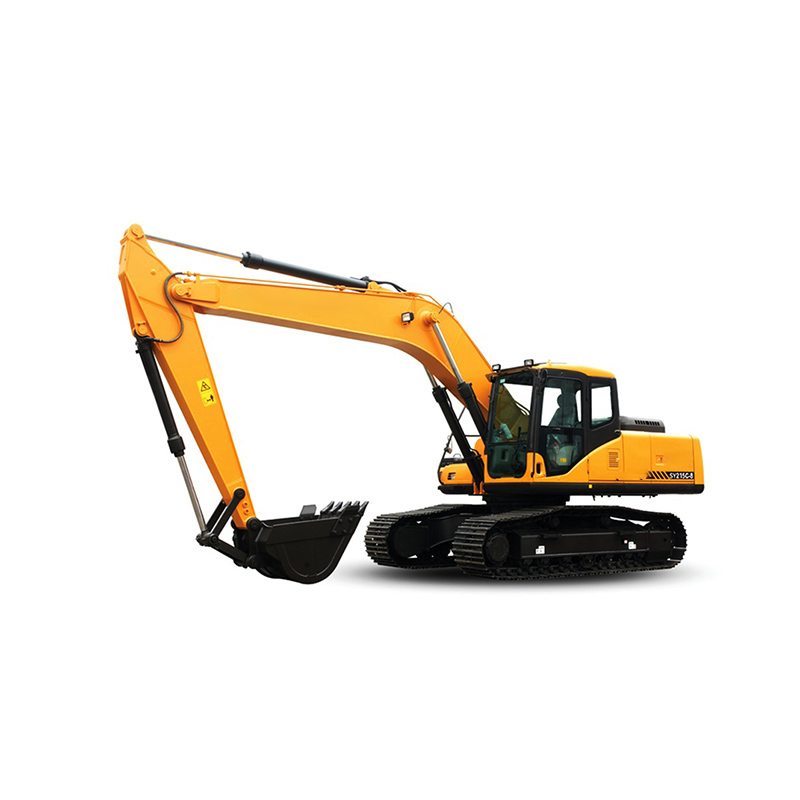

NEW 21.5 ton hydraulic crawler excavator SY215C hot for sale
Product DescriptionParamerer: 21ton excavator for sale
| Main specification | Unit | SY215C |
| Operating weight | kg | 20975 |
| Standard bucket capacity | m³ | 0.93 |
| Rated power | kw/rpm | 114/2050 |
| Length | mm | 9395 |
| Width | mm | 2980 |
| Height | mm | 2955 |
| Headpiece width | mm | 2710 |
| Mouldboard height | mm | 2990 |
| Standard mouldboard width | mm | 600 |
| Gauge | mm | 2380 |
| Minimum ground clearance | mm | 440 |
| Tail gyroradius | mm | 2750 |
| Tread | mm | 3445 |
| Track length | mm | 4250 |
| Maximum digging height | mm | 9305 |
| Discharge height | mm | 6475 |
| Max digging depth | mm | 6630 |
| Max vertical arm digging depth | mm | 5980 |
| Maximum digging distance | mm | 9885 |
| Least radius gyration | mm | 3630 |
| Least radius gyration height | mm | 7570 |
| Speed of travel(high/low) | km/h | 5.5/3.2 |
| Rotating speed | rpm | 11 |
| Gradeability | %/° | 70/35 |
| Ground clearance | kpa | 45 |
| Bucket digging ability | kN | 138 |
| Pole digging capacity | kN | 100 |
