Product Description

XE215CLL Long Boom 21t Popular Model Excavator

Main parameters:

Bucket capacity 0.93CBM (standard)

Operating weight:21450kgs

Max digging height:9640mm

Max digging reach: 9925mm

Main configuration

ISUZU BB-6BG1TRP engine ,106.5/1950 kw/rpm,

Hydraulic system

XE215CLL is the most popular model of China 21t excavator,Now XE215CLL is upgrading to new model XE215D equipped with EURO III engine with electric injector, new model will have high performance.

OUR SERVICE

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.

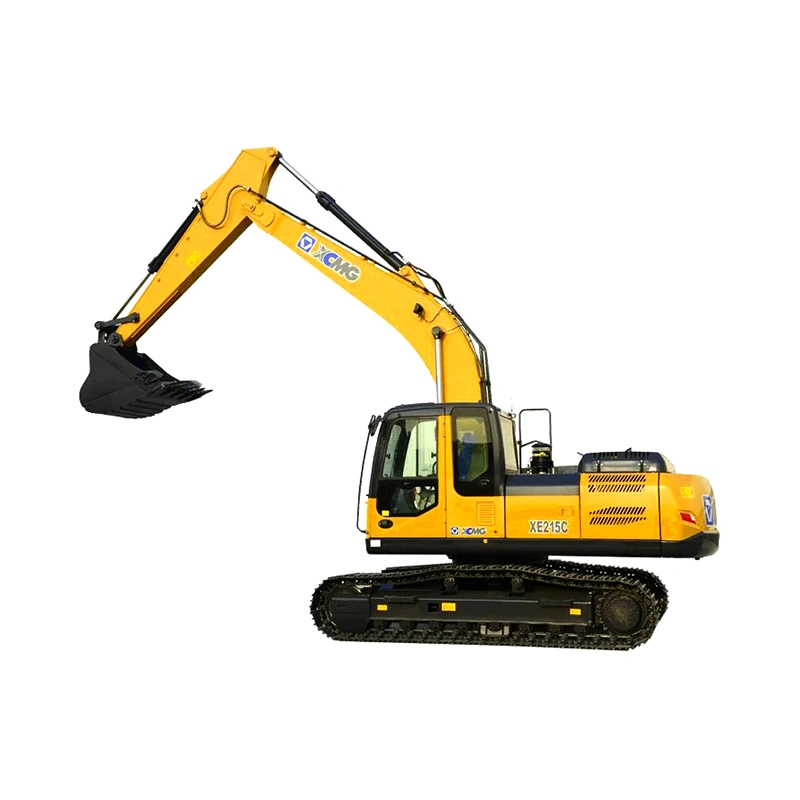

Model		Unit	XE215C	XE215CLL
Operating weight		kg	21450	22350
Standard bucket capacity		m³	0.93	0.5
Engine	Engine Model	/	ISUZU BB-6BG1TRP	ISUZU BB-6BG1TRP
	Direct injection	/	√	√
	Four strokes	/	√	√
	Water cooling	/	√	√
	Turbo charged	/	√	√
	Air to air intercooler	/	×	×
	No. of cylinders	/	6	6
	Rated power/speed	kw/rpm	106.5/1950	106.5/1950
	Max. torque/speed	N.m	551/1600	551/1600
	Displacement	L	6.494	6.494
Working range	A Max. digging height	mm	9640	13250
	B Max. dumping height	mm	6800	10942
	C Max. digging depth	mm	6655	11690
	D 8inch horizonal digging depth	mm	6470	---
	E Max. vertical wall digging depth	mm	5695	11200
	F Max. digging reach	mm	9925	15394
	G Min. swing radius	mm	3530	4835
	Angle of arm deflection	Degree
