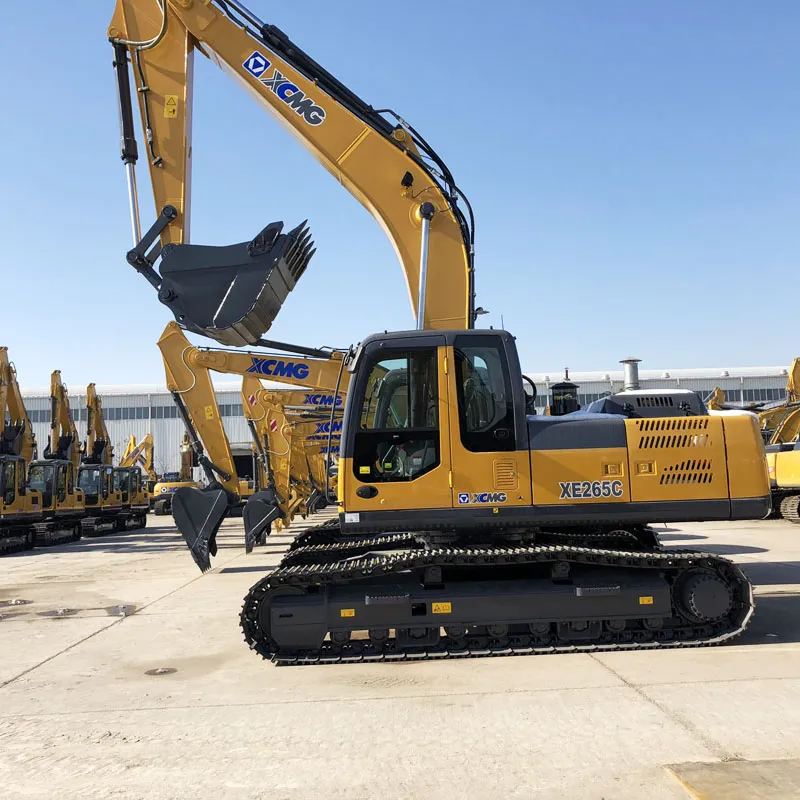

25-30ton Crawler Excavator Xe265c with Hydraulic Hammer
XE265C 26Ton excavator 1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.2. The domestic leading hydraulic system distribution technology features high e......
Send Inquiry
Product Description

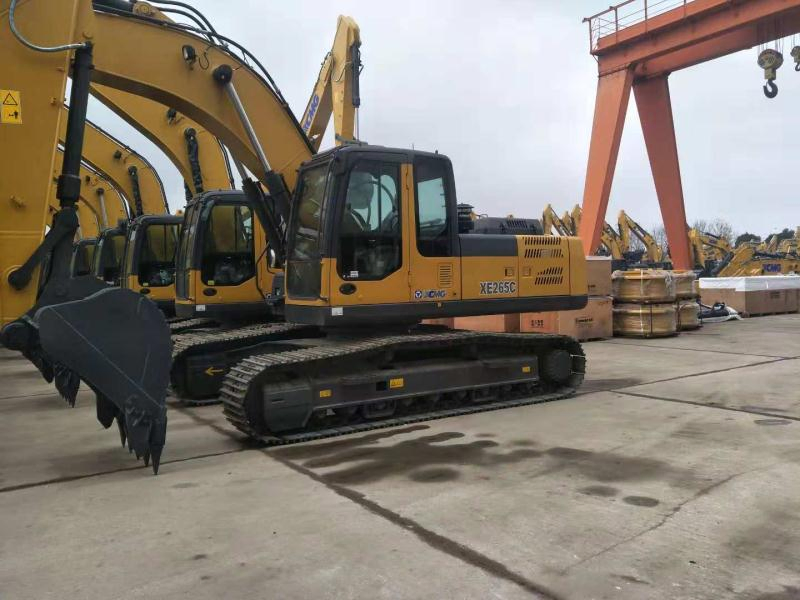

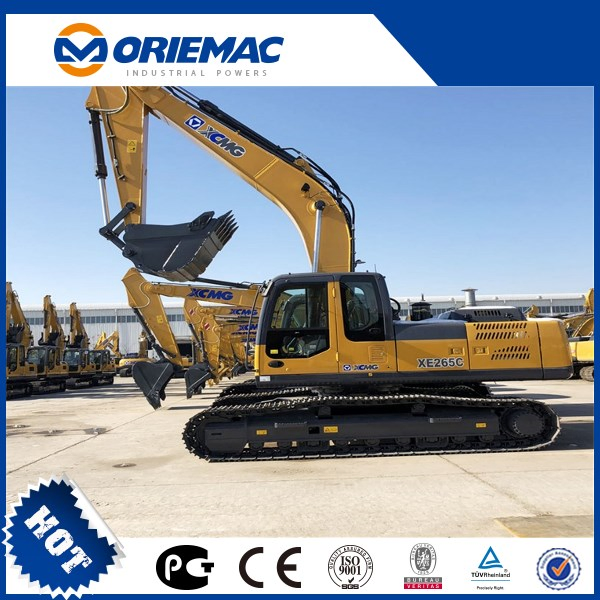

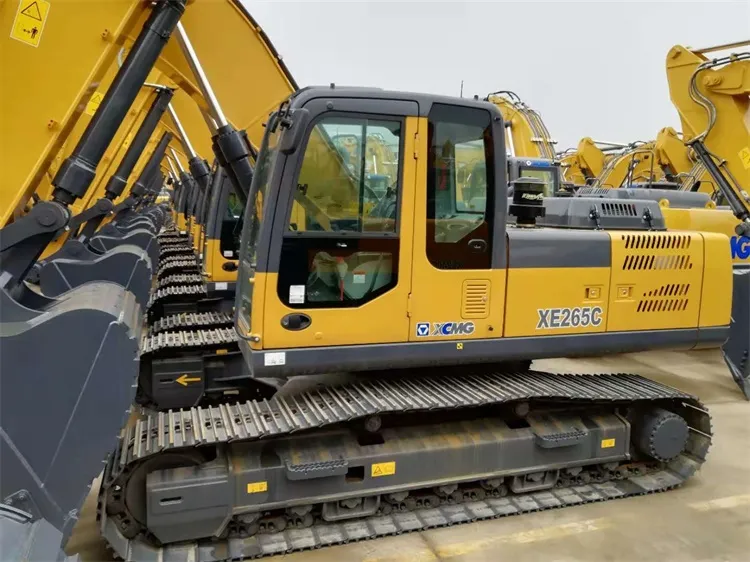

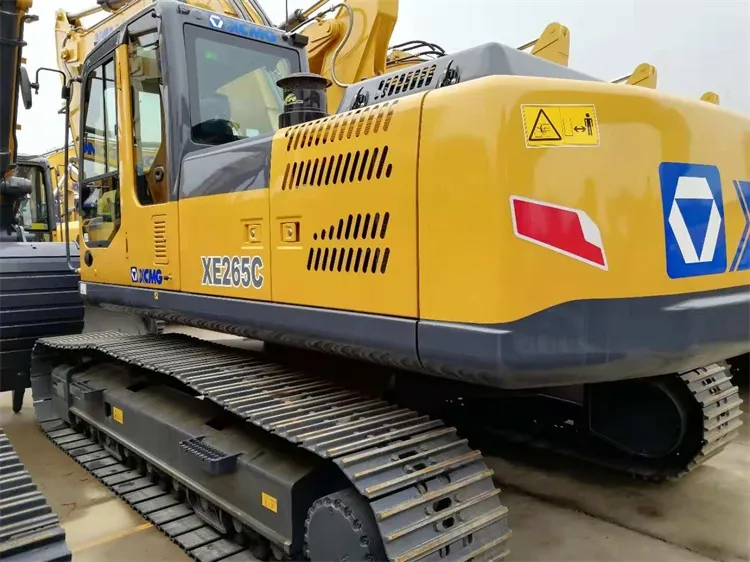

XE265C 26Ton excavator
1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4.The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
| Description | Unit | Parameter value | |||
| Operating weight | kg | 25500 | |||
| Bucket capacity | m³ | 1.05~1.25 | |||
| Engine | Model | Engine | ISUSU | ||
| CC-6BG1TRP-05 | |||||
| Style | Direct injection | --- | √ | ||
| Four strokes | --- | √ | |||
| Water cooling | --- | √ | |||
| Turbo-charging | --- | √ | |||
| Air to air intercooler | --- | √ | |||
| No. of cylinders | --- | 6 | |||
| Output power | kW/ r/min | 135.5/2150 | |||
| torque/speed | N.m | 637/1800 | |||
| Displacement | L | 6.494 | |||
| Travel speed(H/L) | km/h | 5.9/4.0 | |||
| Main performance | Rotating speed | r/min | 11.3 | ||
| Gradeability | ° | ≤35 | |||
| Ground pressure | kPa | 50.1 | |||
| Bucket digging force | kN | 179 | |||
| Arm digging force | kN | 125 | |||
| Maximum traction | kN | 194 | |||
| Hydraulic system | Main pump | -- | 2 | ||
| Rated flow of main pump | L/min | 2×256 | |||
| Pressure of prime valve | MPa | 34.3/37 | |||
| Pressure of travel system | MPa | 34.3 | |||
| Pressure of swing system | MPa | 28 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Oil Capacity | Fuel tank capacity | L | 400 | ||
| Hydraulic tank capacity | L | 240 | |||
| Engine oil capacity | L | 25 | |||
