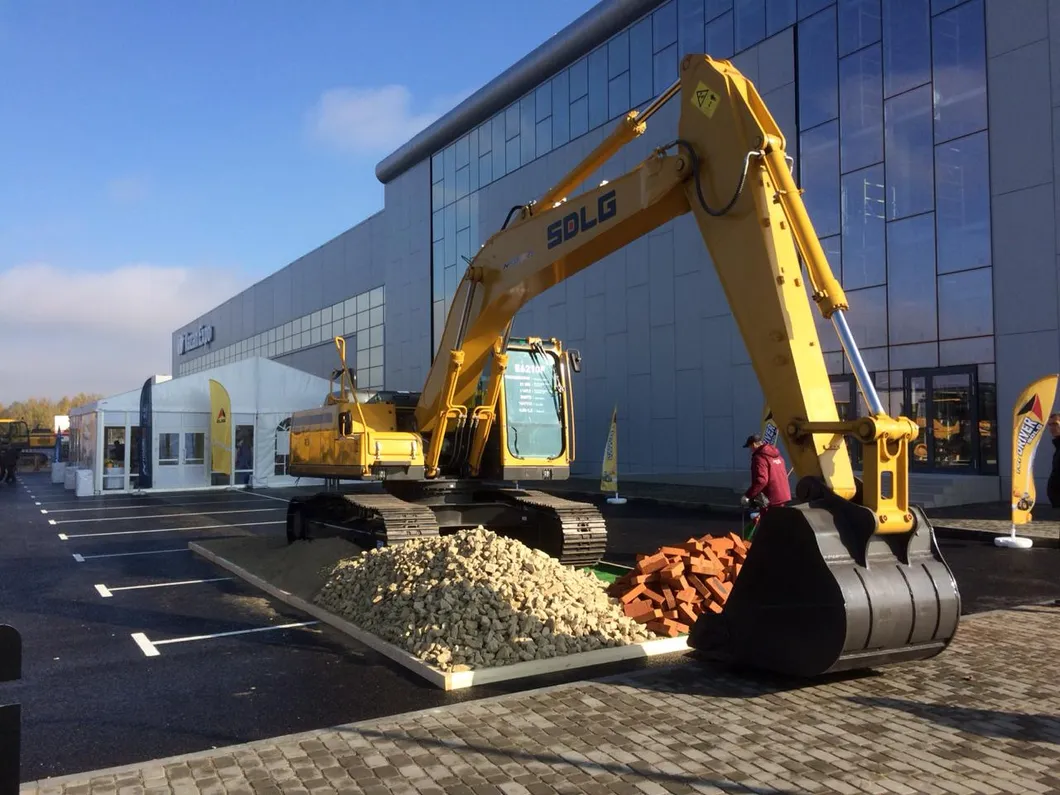

25T short boom hydraulic crawler excavator SDLG E6250F with strong power
Product features 1. Equipped with imported VOLVO SD70B engine which are designed for SDLG with low speed and large torque, adopts well set-up "EMS" engine management system which can reach the well balance between the fuel consumption and working efficiency. The whole engine features str......
Send Inquiry
Product Description
Product features
1. Equipped with imported VOLVO SD70B engine which are designed for SDLG with low speed and large torque, adopts well set-up "EMS" engine management system which can reach the well balance between the fuel consumption and working efficiency. The whole engine features strong power, high reliability, fuel-saving and environmental-friendly.
2. SDLG proprietary technology of EECU, VECU, IECU and KEYpad control system features high-efficiency, coordination and energy saving. Equipped with LED display which has self-checking, monitor, emergency alarm, and remote monitor functions etc, it makes machine has great operator-machine interaction and convenient operation and maintenance. "Tech Tool" damage checking interface can easy the machine check and maintenance.
3. Spacious, great sealed cab has great anti-noise feature which also are equipped with 3-sides sun visor. The Silice oil shock absorber can reduce the vibration and shock dramatically. Equipped with high-end anti-vibration seat and automotive A/C. all these provide operator great operation environment.
4.Length tracks with width enhanced under chassis make machine has great crossing ability and stability when working.
5. Dual-pump constant power positive hydraulic system can be controlled under the automatic sensing which has energy regeneration and priority functions featuring flexible response, fast working efficiency, powerful digging capacity, accurate operation and fuel saving.
6. As a multifunction equipment, E6250F can link diverse working tools like hydraulic breaker, rotating grasper and different buckets etc to reach different requirement of jobs. Standard equipped with heavy duty boom and arm to fit harsh working conditions, that make them have long service life.
Main Specifications
Main configurations
Overall dimension

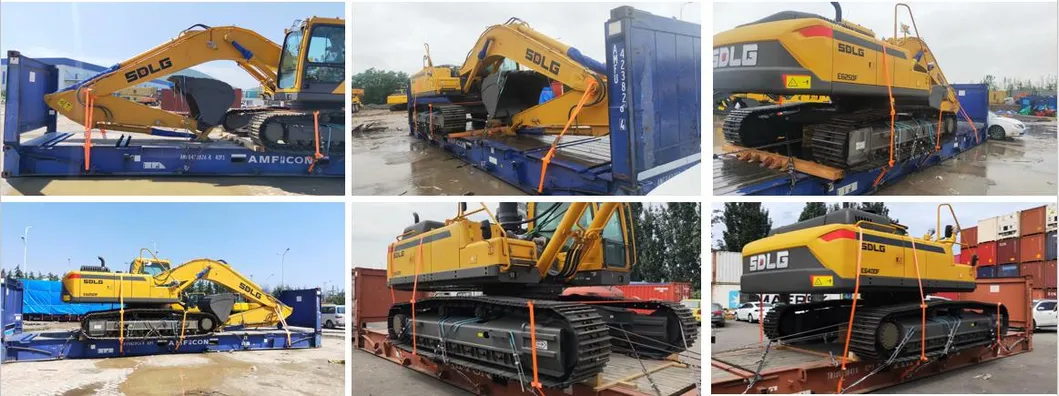

Shipment
FAQ
1. What payment term is available for your company?
Normally we only work on T/T or L/C terms, open account is also available for long-cooperation customers with Sinosure support.
(1). T/T: 30% down payment should be paid when place order, the balance should be paid before shipment or against the copy of B/L for long cooperating customers.
(2) 100% irrevocable L/C at sight is preferable without " soft clause" in it. USANCE L/C can't more than 6 months and the buyer should bear the interests
2. Which intercoms is available for your company?
FOB, CFR, CIF and DAP are preferable for us.
3. What is the delivery period?
Normally, we will deliver the machines in 30 days since receive the down payment or L/C for standard products. For some special orders, we need to check with factory and inform you ASAP
4. What is the warranty period of your machine?
The warranty period of our bulldozer is 1 year or 2,000 working hours, which coming first, customer should provide necessary information to prove the failure of machine.
1. Equipped with imported VOLVO SD70B engine which are designed for SDLG with low speed and large torque, adopts well set-up "EMS" engine management system which can reach the well balance between the fuel consumption and working efficiency. The whole engine features strong power, high reliability, fuel-saving and environmental-friendly.
2. SDLG proprietary technology of EECU, VECU, IECU and KEYpad control system features high-efficiency, coordination and energy saving. Equipped with LED display which has self-checking, monitor, emergency alarm, and remote monitor functions etc, it makes machine has great operator-machine interaction and convenient operation and maintenance. "Tech Tool" damage checking interface can easy the machine check and maintenance.
3. Spacious, great sealed cab has great anti-noise feature which also are equipped with 3-sides sun visor. The Silice oil shock absorber can reduce the vibration and shock dramatically. Equipped with high-end anti-vibration seat and automotive A/C. all these provide operator great operation environment.
4.Length tracks with width enhanced under chassis make machine has great crossing ability and stability when working.
5. Dual-pump constant power positive hydraulic system can be controlled under the automatic sensing which has energy regeneration and priority functions featuring flexible response, fast working efficiency, powerful digging capacity, accurate operation and fuel saving.
6. As a multifunction equipment, E6250F can link diverse working tools like hydraulic breaker, rotating grasper and different buckets etc to reach different requirement of jobs. Standard equipped with heavy duty boom and arm to fit harsh working conditions, that make them have long service life.
Main Specifications | Bucket capacity | 1.2m3 |
| Operating weight | 24400kg |
| Max. digging force | 176kN |
| Swing speed | 11.3r/min |
| Traveling speed (low/high) | 3.3/5.3km/h |
| Average ground pressure | 48.5kPa |
| Max. digging radius | 10260mm |
| Max. digging depth | 6980mm |
| Max. digging height | 9690mm |
| Max. dumping height | 6800mm |
| Min. front swing radius | 3890mm |
Main configurations | Engine | |
| Model | SD70B |
| Type | Four-stroke, supercharged, inter-cooled |
| Rated Power | 138kW |
| Displacement | 7146mL |
| Cylinder bore × stroke | 108×130mm |
| Rated fuel consumption | 227g/kW.h |
| Max. torque | 870N.m |
| Traveling/swing system | |
| Qty. of carrier rollers (single side) | 2 |
| Qty. of track rollers (single side) | 9 |
| Traveling brake type | Wet and disc type (hydraulic oil released and spring-loaded) |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet and disc type (hydraulic oil released and spring-loaded) |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | Dual-pump constant power positive flow control |
| Max. flow | 2×240+18L/min |
| Main pump model | K4V140DT |
| Working pressure | 330/350kgf/cm² |
| Main valve model | KB28 |
| Arm cylinder - cylinder bore × diameter of piston rod × stroke | 1-140×100×1665mm |
| Boom cylinder - cylinder bor × diameter of piston rod × stroke | 2-135×90×1345mm |
| Bucket cylinder - cylinder bore × diameter of piston rod × stroke | 1-130×90×1150mm |
| Fill capacity | |
| Fuel | 380L |
| Engine oil | 32L |
| Hydraulic oil | 330L |
| Traveling reducer | 2×5.2L |
| Swing reducer | 5.9L |

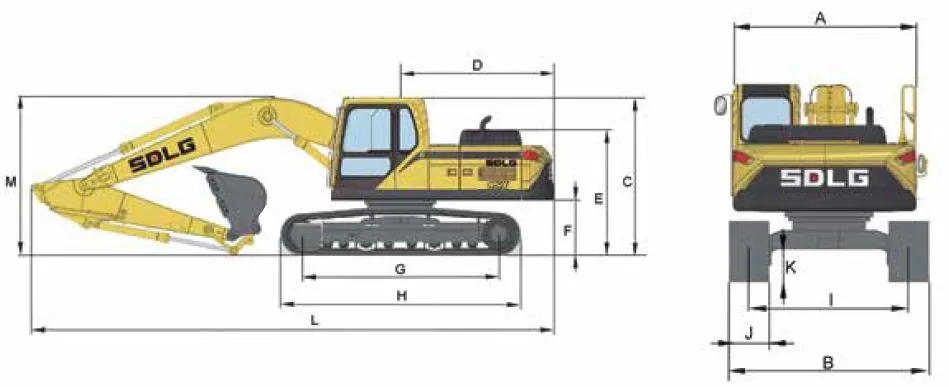

| LxWxH (LxBxM) | 10250x3190x3040mm |
| Overall width of upper assembly (A) | 2890mm |
| Tail swing radius (D) | 2490 mm |
| Overall engine hood height (E) | 2390mm |
| Counterweight ground clearance (F) | 1080mm |
| Wheel base (G) | 3850 mm |
| Track length (H) | 4650mm |
| Track gauge (I) | 2590mm |
| Crawler pad width (J) | 600mm |
| Min. ground clearance (K) | 470 mm |
| Overall height of boom (M) | 3040mm |
