880kg Xn08 Crawler Excavator From Factory Mini Excavator 1.6ton
XN08 Mini Crawler Excavator :This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain. Main Specification:ManufacturerSHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,L......
Send Inquiry
Product Description
Main Specification:
| Manufacturer | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
| Brand | RHINOCEROS |
| Operating Weight | 800kg |
| Digging bucket capacity | 0.025cbm |
| Bucket width | 380mm |
| Engine | CHANGCHAI |
| Rated power | 8.6 kw/3600r/min |
| Displacement | 0.211 L |
| Bore stroke | 70x55 |
| Main pump | ZANEDA |
| Displacement | 6.8ml/r |
| Hydraulic system pressure | 16 Mpa |
| Swing motor | SJ-TECH (MP-1-160) |
| Traveling motor | KERSEN (OMS-2450) |
| Travel speed | 1.5km/h |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2770x896x1490 mm |
| Total length of track | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Diesel tank capacity | 10 L |
| Hydraulic oil tank capacity | 16L |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
| Bucket digging force | 9.2kN |
| Bucket arm digging force | 4.8kN |

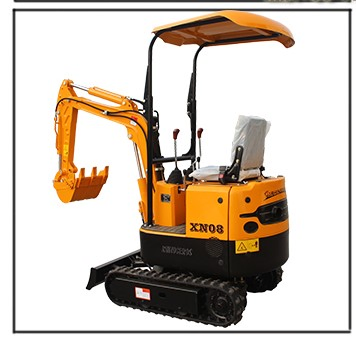

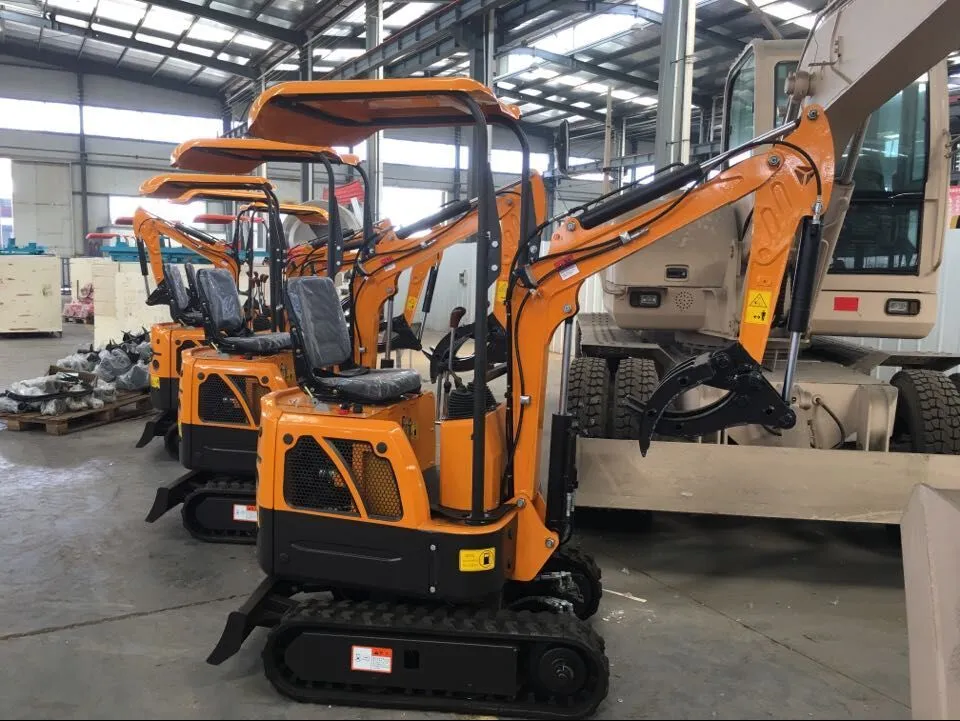

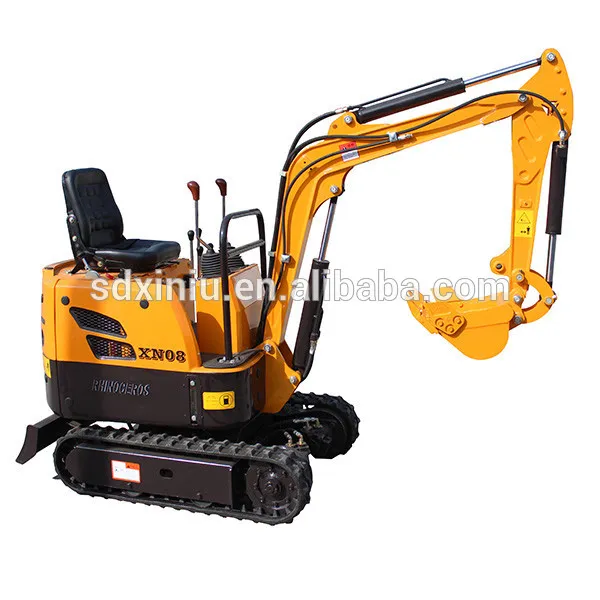

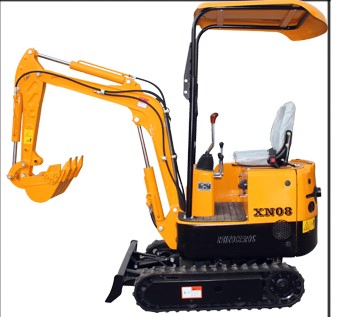

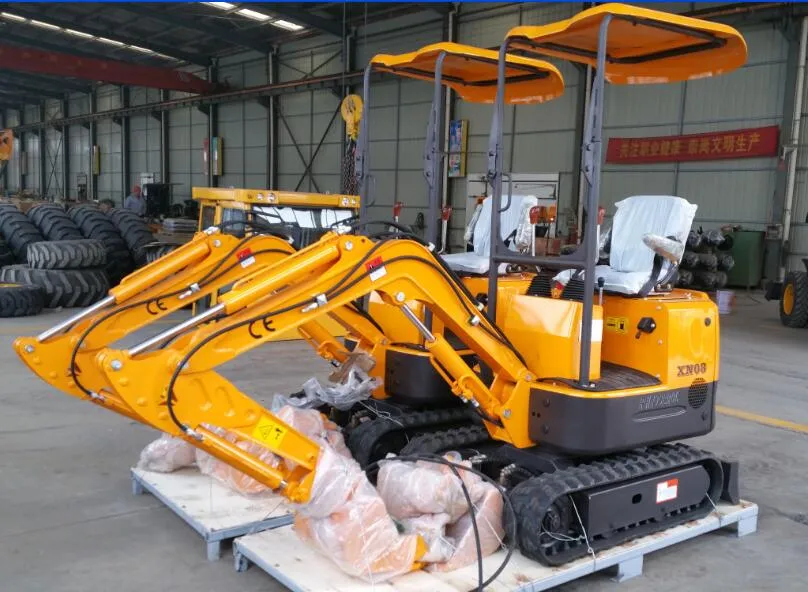

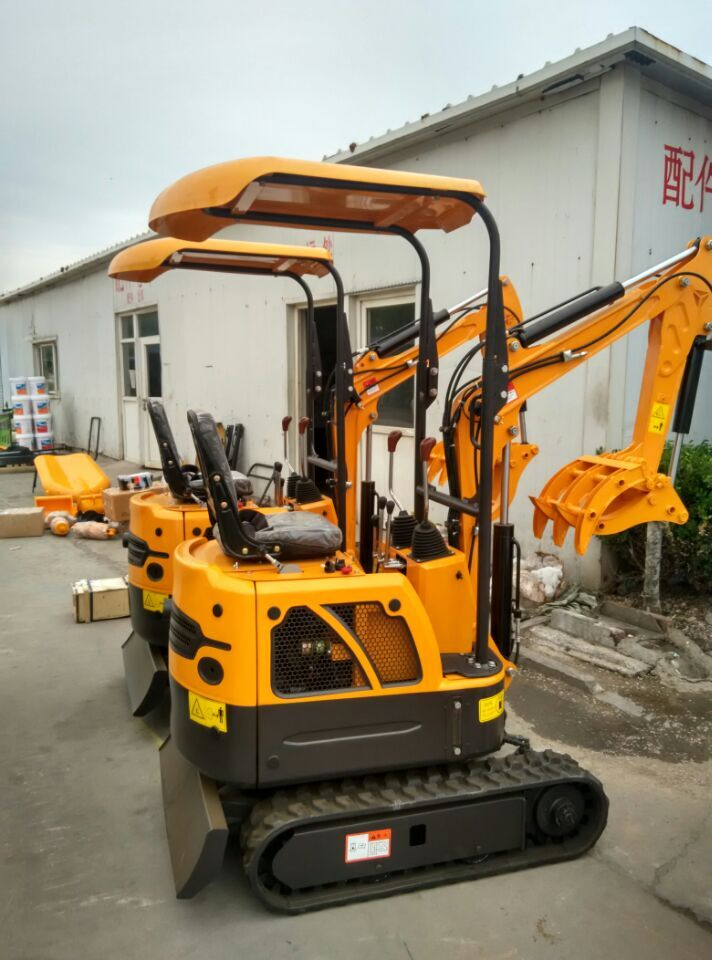

Display:
n
XN08 FAQWhat is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 8 units can be loaded in a 20 GP, 16 units in a 40GP.
Spare parts supply
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year. There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
