Agricultural Machinery Hydraulic Small Digger Rubber Track Excavator

Product Description

Agricultural Machinery Hydraulic Small Digger Rubber Track Excavator

TE35S MINI CRAWLER EXCAVATOR WITH ATTACHMENT ENGINEERING MACHINERY ALL-ROUND SOLUTION EXPERET

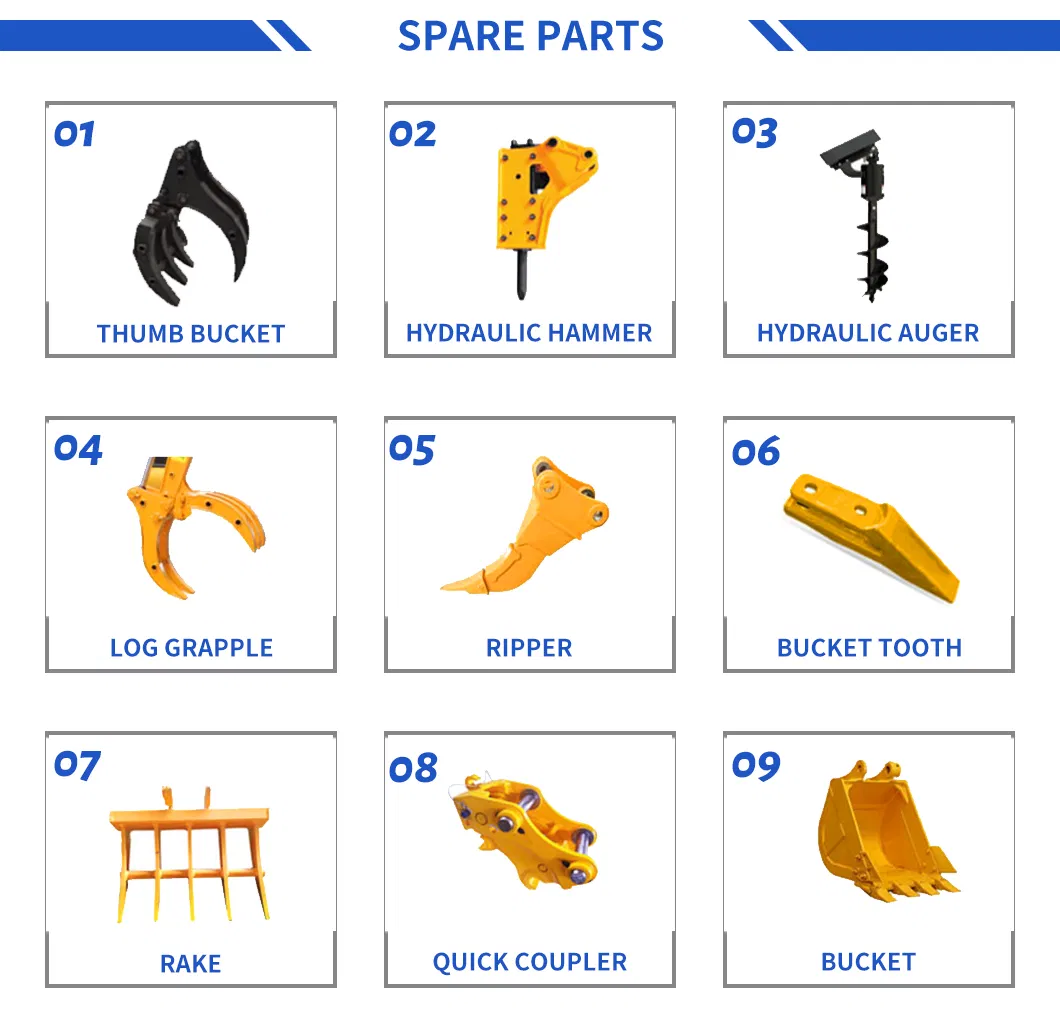

The configuration of our excavators is luxury, with side boom and the boom can be deflected left and right, the unique zero tail swing and retractable tracks characteristics, the machine is more stable and can work in narrow places. The machine not only has high configuration but also good matching performance, so it has high efficiency and very low fuel consumption. With Multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water suply, power supply, gas supply, telecommunication network, farmland and garden works etc.

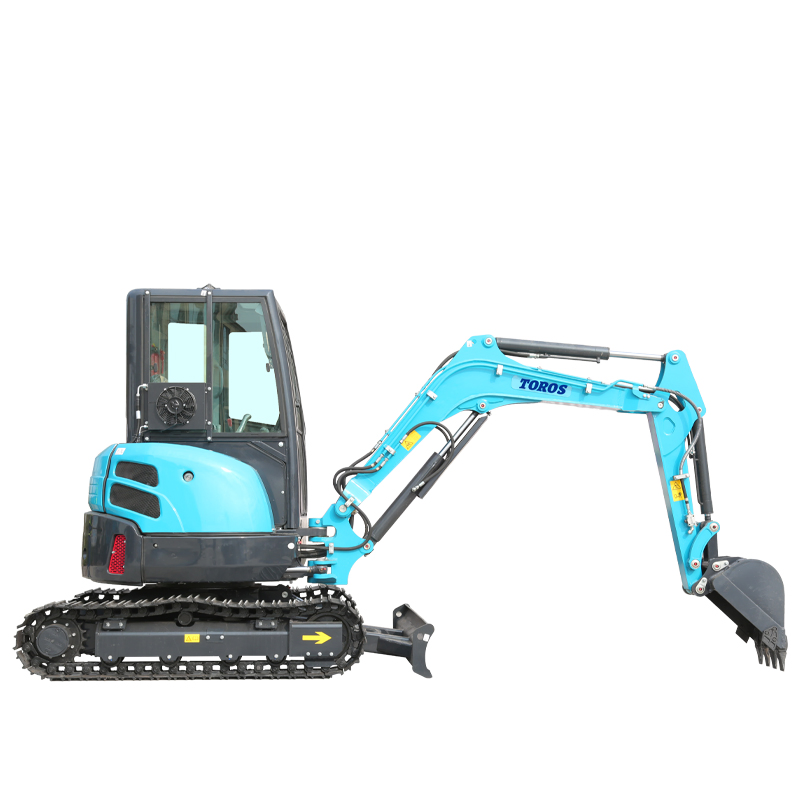

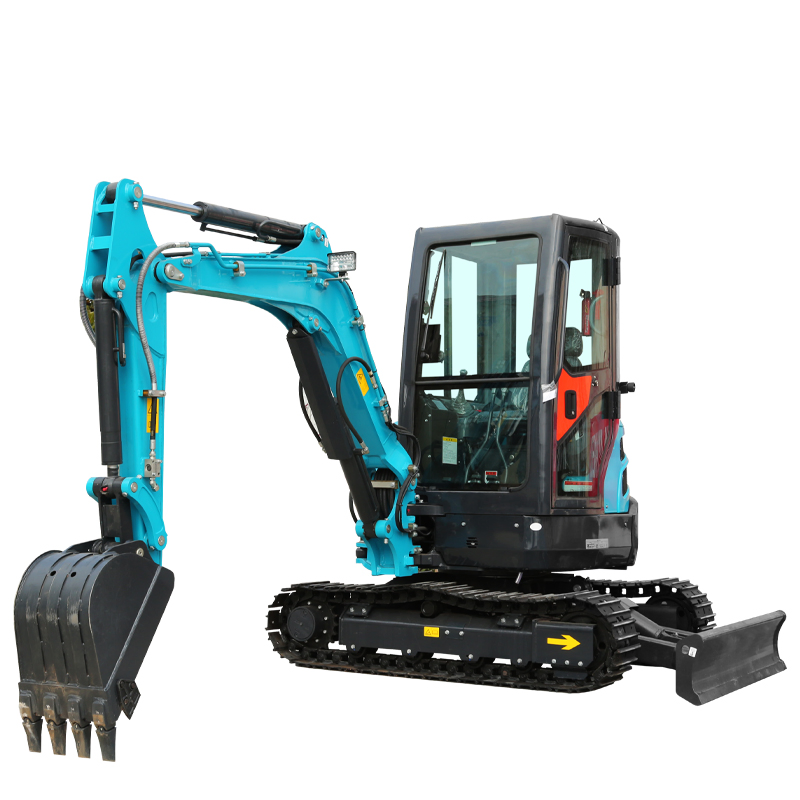

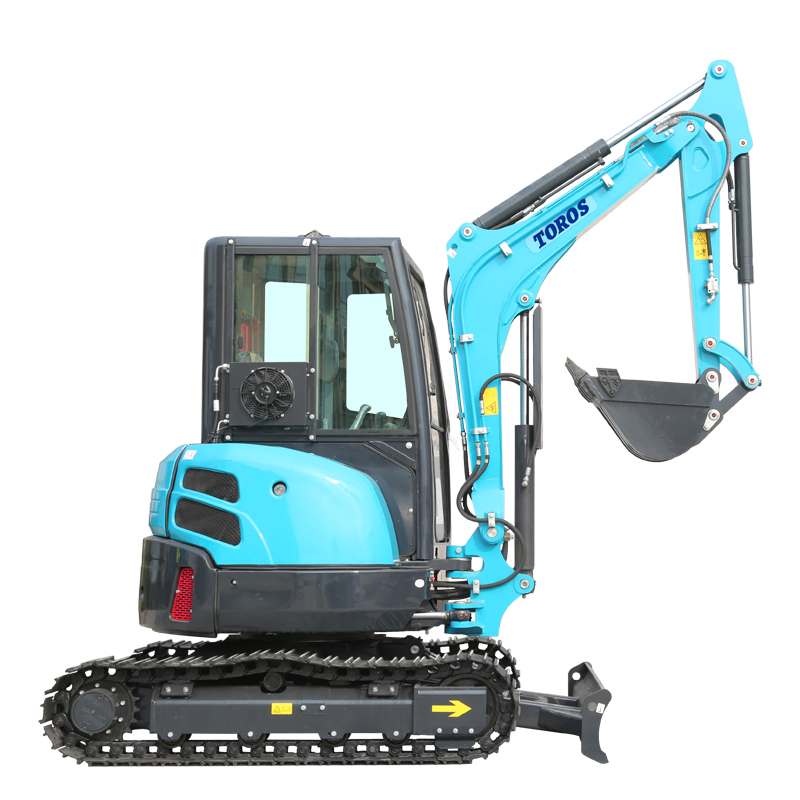

TE35S Excavator with cab
Bucket Capacity	0.09m³	Engine	YANMAR 3TNV88

Excavator Width	1500mm	Engine Power	19.6kw/2400rpm

Track Length	2100mm	Turning Radius	2035mm

Chassis Ground Clearance	290mm	Max.Digging Height	4600mm

Crawler Material	Rubber / steel track	Max.Dumping Height	3175mmmm

Track Width	300mm	Max.Digging Depth	2880mm

MAX.Digging Force	26.5 KN	Max.Digging Radius	4845mm

Gradeability	≤35°	Max.Vertical Digging Depth	2305mm


Excavator Height	2440mm	Fuel Tank Capacity	40L

Overall Dimension ( LxWxH)	448515502440mm	Operating Weight	3515kg


Taifeng Multi-way Valve	Two-speed Traveling Motor	EATON Swing Motor	Taifeng Plunger Hydraulic Pump
