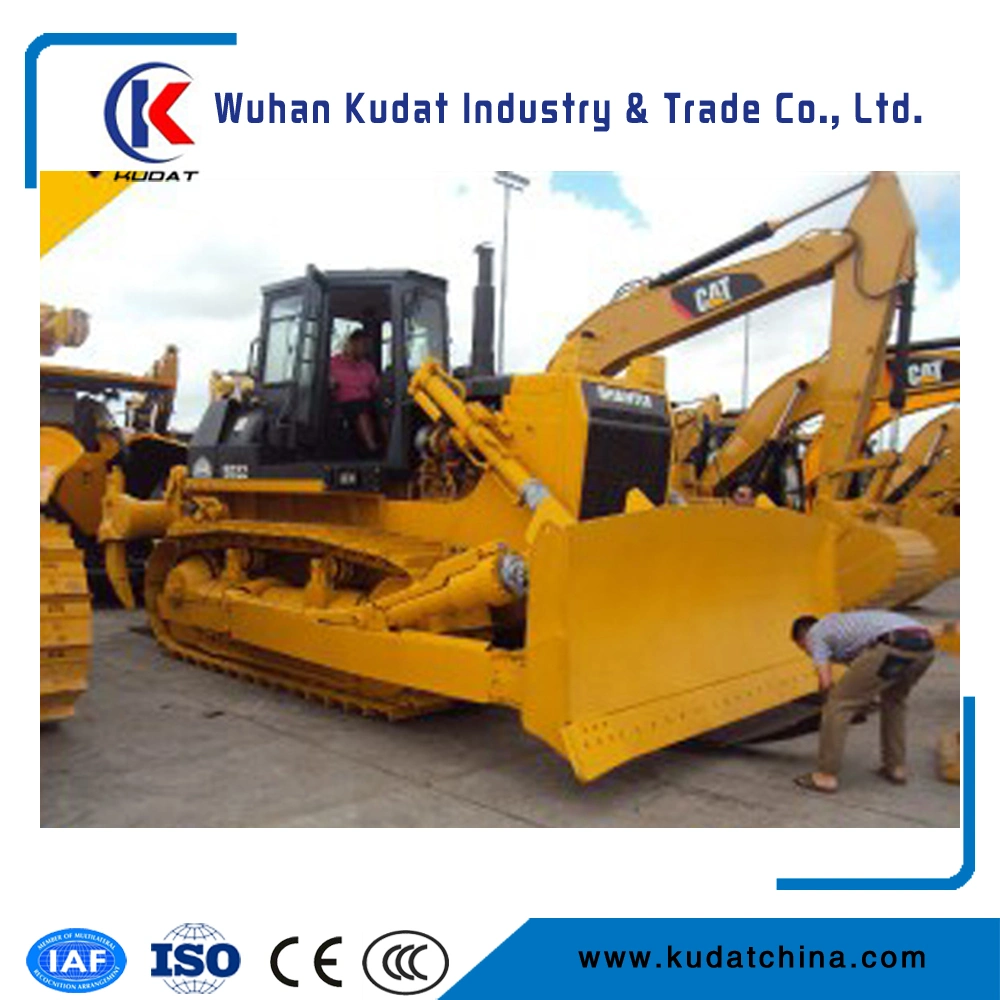

China Big Crawler Bulldozer Equipped with S-Blade and Single Shank Ripper

Product Description

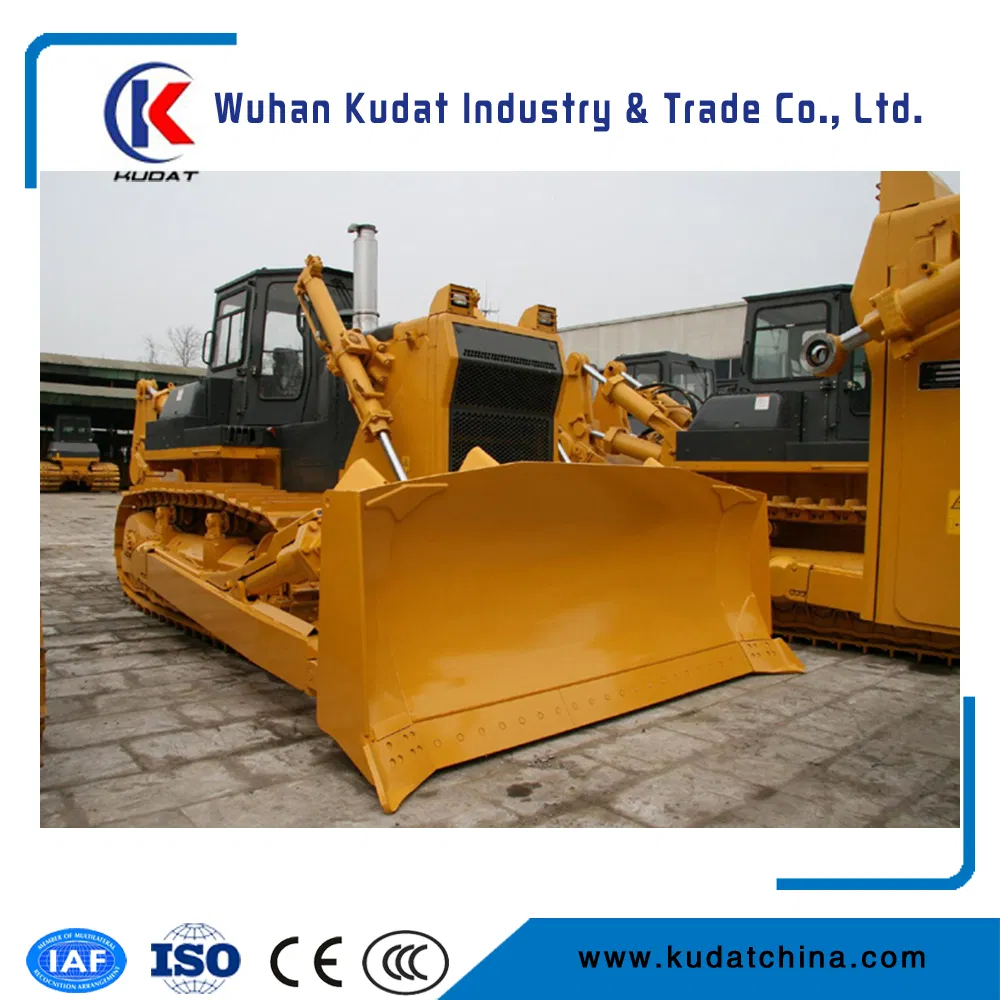

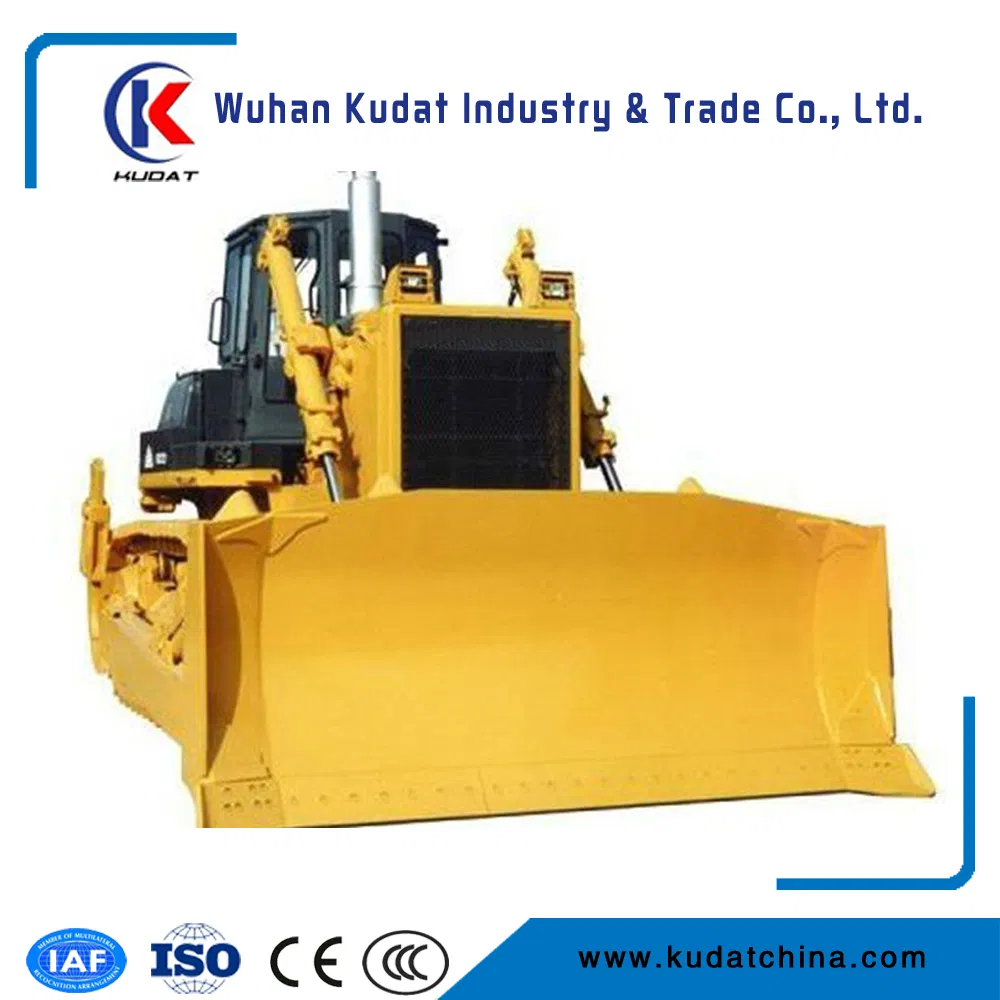

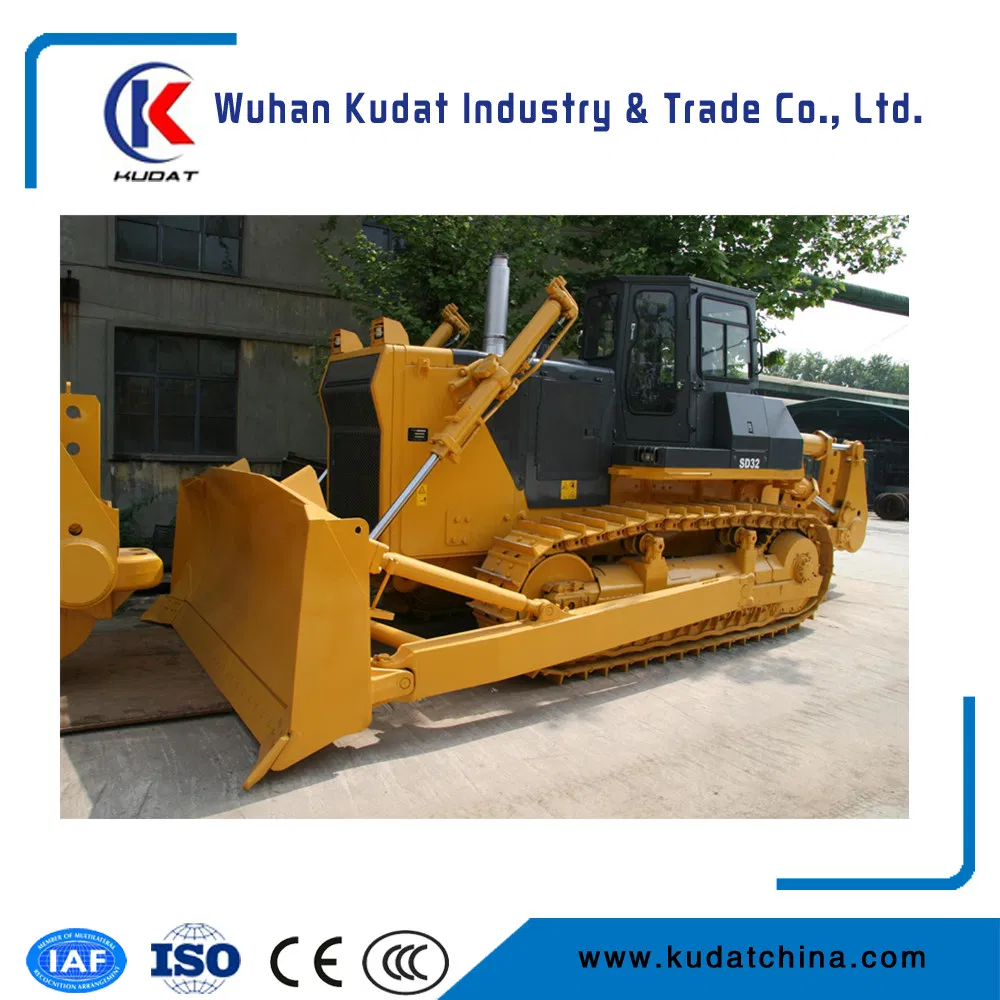

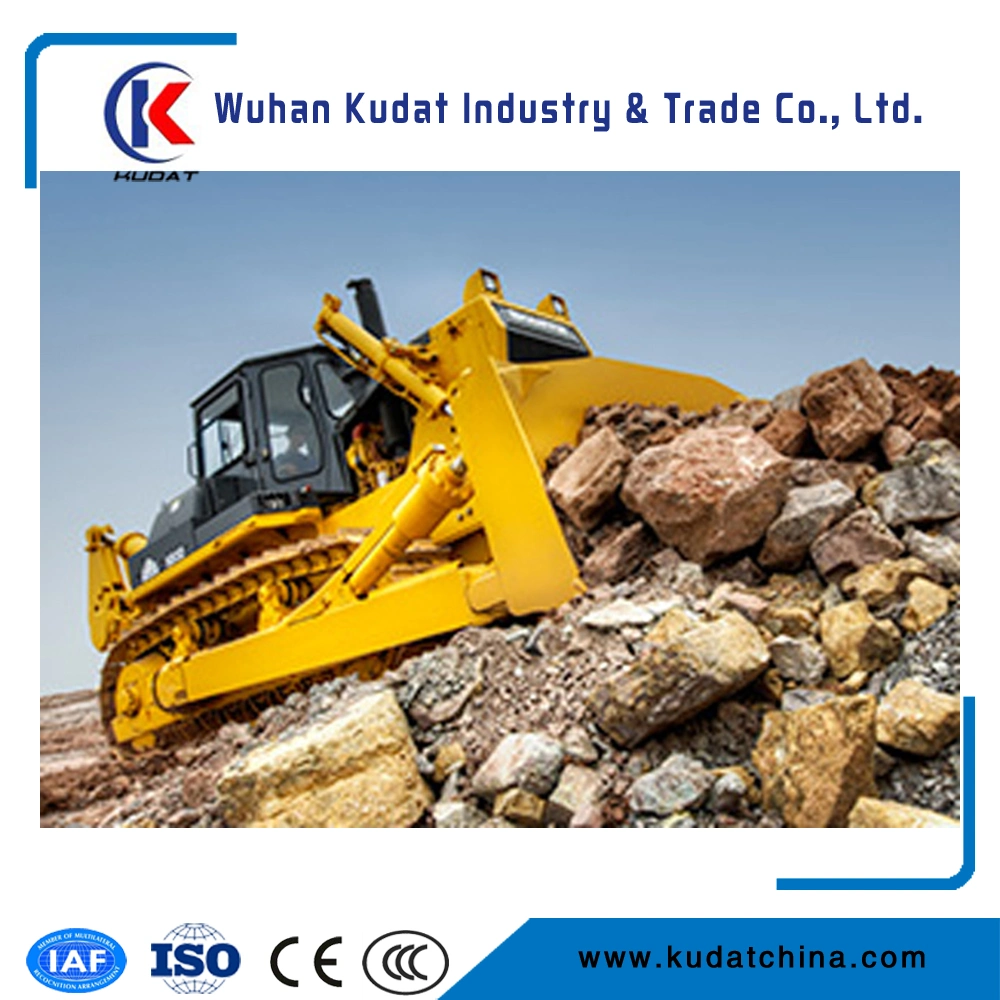

SD32 is elevated sprocket, track-type bulldozer. Its undercarriage system is elastic suspended, elevated sprocket, hydraulic direct drive, and hydraulic controls. SD32 dozer can be equipped with S-blade, single shank ripper. Main structure uses high strength plate and is suitable for working in stony, worse earth condition. The cab is installed Rops device and comfortable seat.

Specification
Dozer		Tilt
Operation weight	kg	36800	with ridge buster
Ground pressure	kpa	93
Track gauge	mm	2083
Min. Ground clearance	mm	556
Gradient	º	30/25
Dozing capacity	m3	11.24
Blade width	mm	3940
Max.digging depth	mm	582
Overall dimensions	mm	7751X3940X3549

Engine
Type		CUMMINS NTA855-C360S10
Rated revolution	rpm	2100
Reted power	KW	235
Torque storage coefficient	N.m/rpm	20%

Undercarriage system
Type		The track is triangle shape. The sprocket is elevated.
Number of track rollers (each side)		8
Pitch	mm	216
Width of shoe	mm	560

Gear		1st	2nd	3rd
Forward	km/h	0-3.5	0-6.2	0-10.8
Back ward	km/h	0-4.7	0-8.1	0-13.9

Implement hydraulic system
Max. system pressure	Mpa	20
Pump type		high pressure gears pump
System output	L/min	220

Driving system
Toque converter	Torque converter is power separating hydraulic-mechanic type.
Transmission	Planetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.
Steering clutch	The steering clutch is hydraulic pressed, non-constant engaged clutch.
Steering brake	The braking clutch is hydraulic pressed by spring, separated hydraulic, constant meshed type.
Final drive	The final drive is two-stage planetary reduction gear mechanism, splash lubrication.

Big Crawler Bulldozer Equipped with S-Blade and Single Shank Ripper

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
