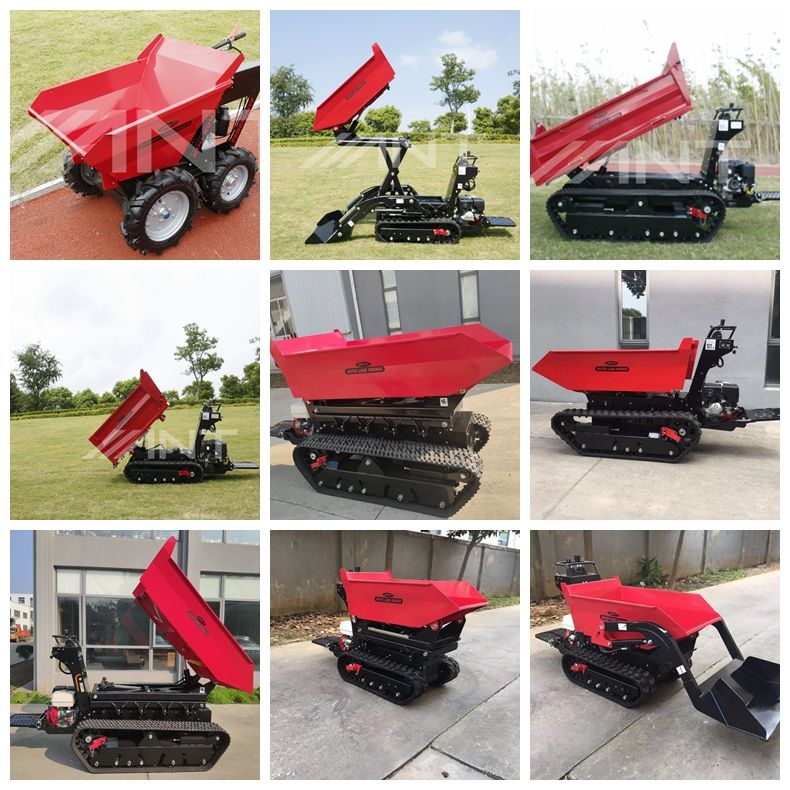

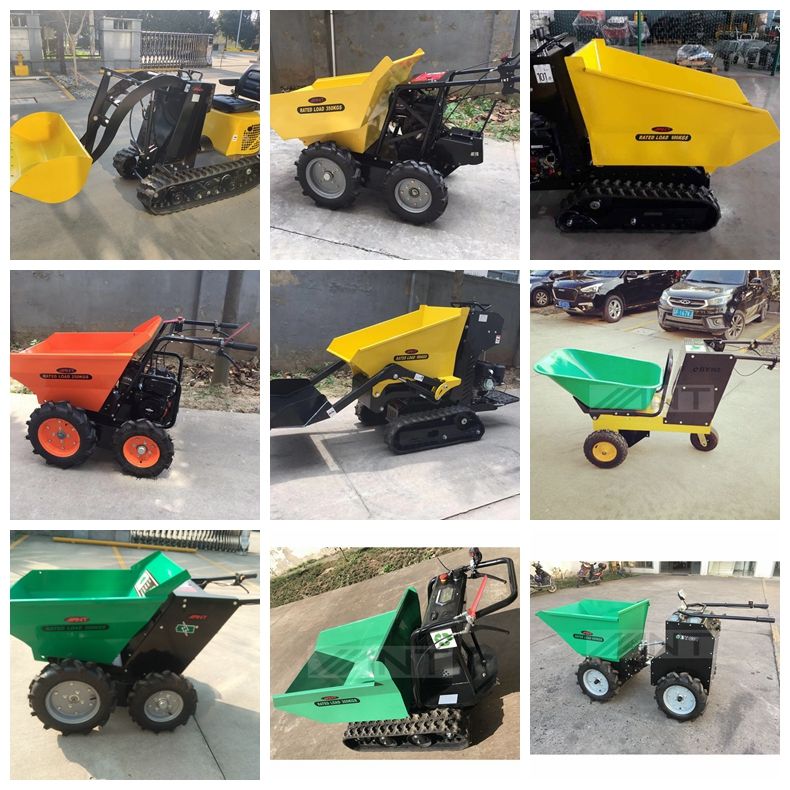

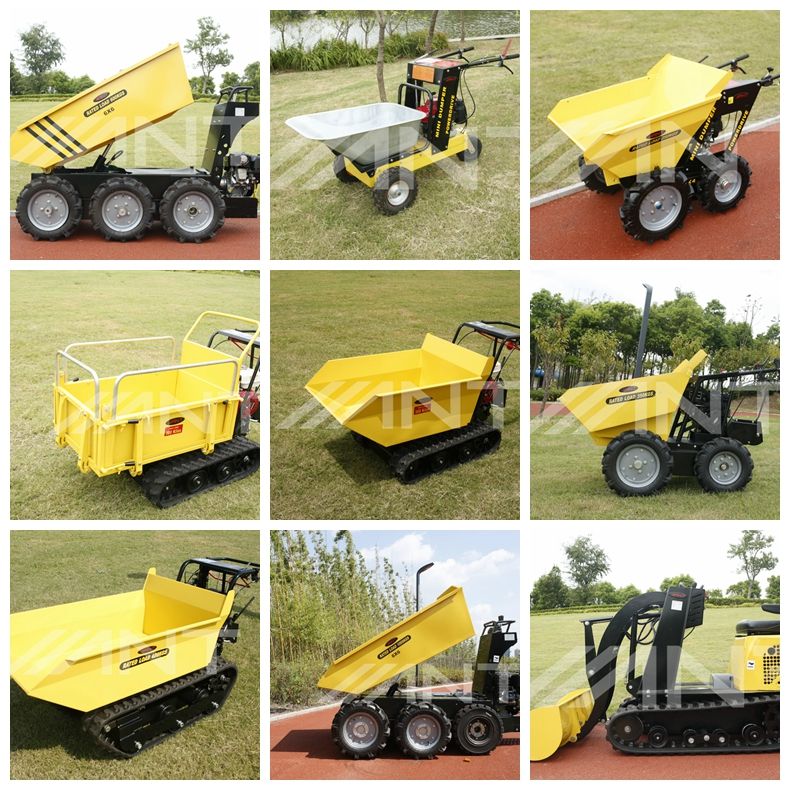

By800 Farming Tractor Agricultural Machine Mini Crawler Tractor

BY800 farming tractor agricultural machine mini crawler tractor 4wd mini tractor

Specifications

*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.

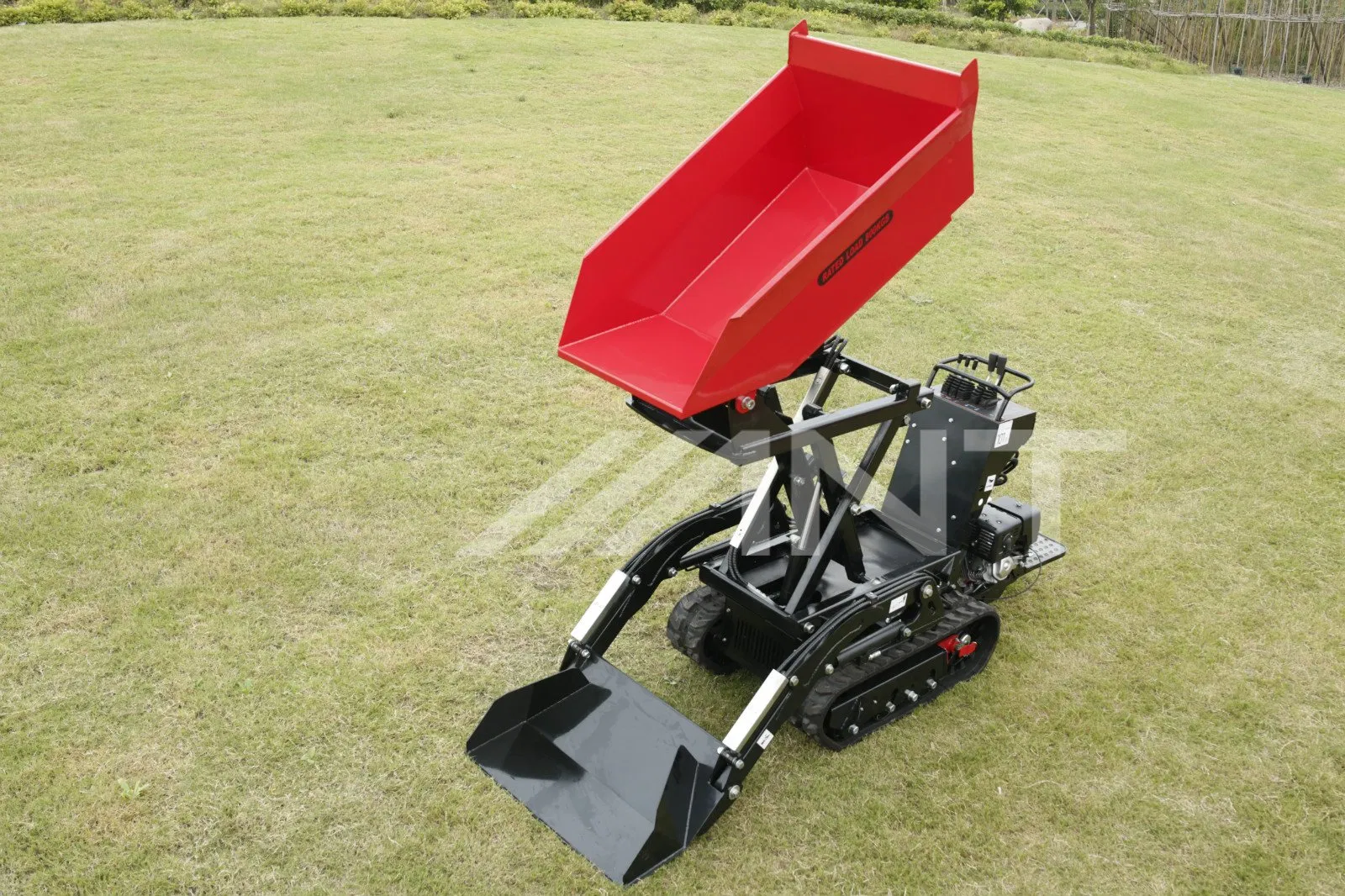

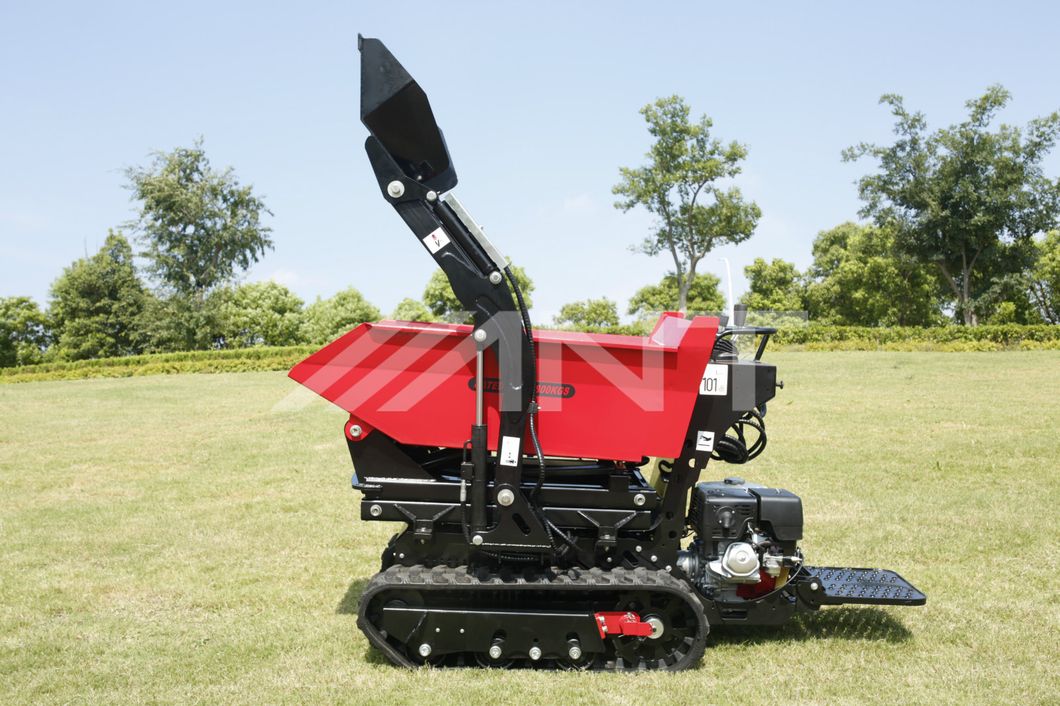

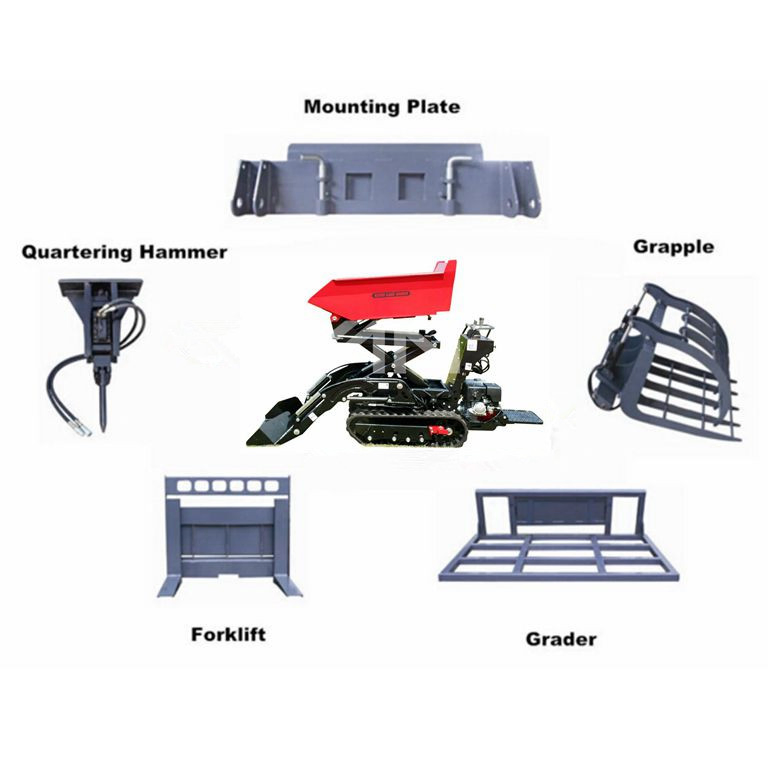

*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

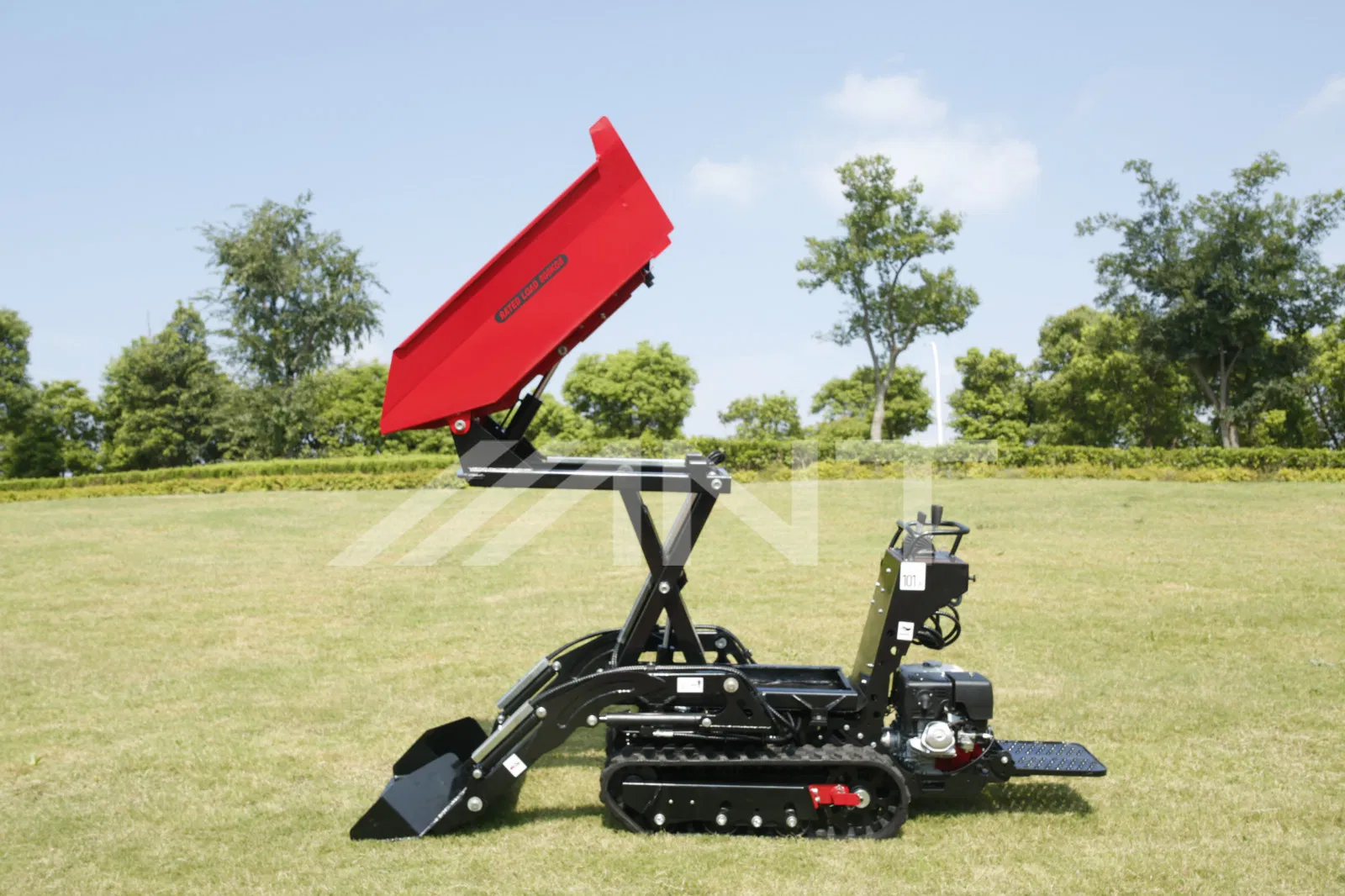

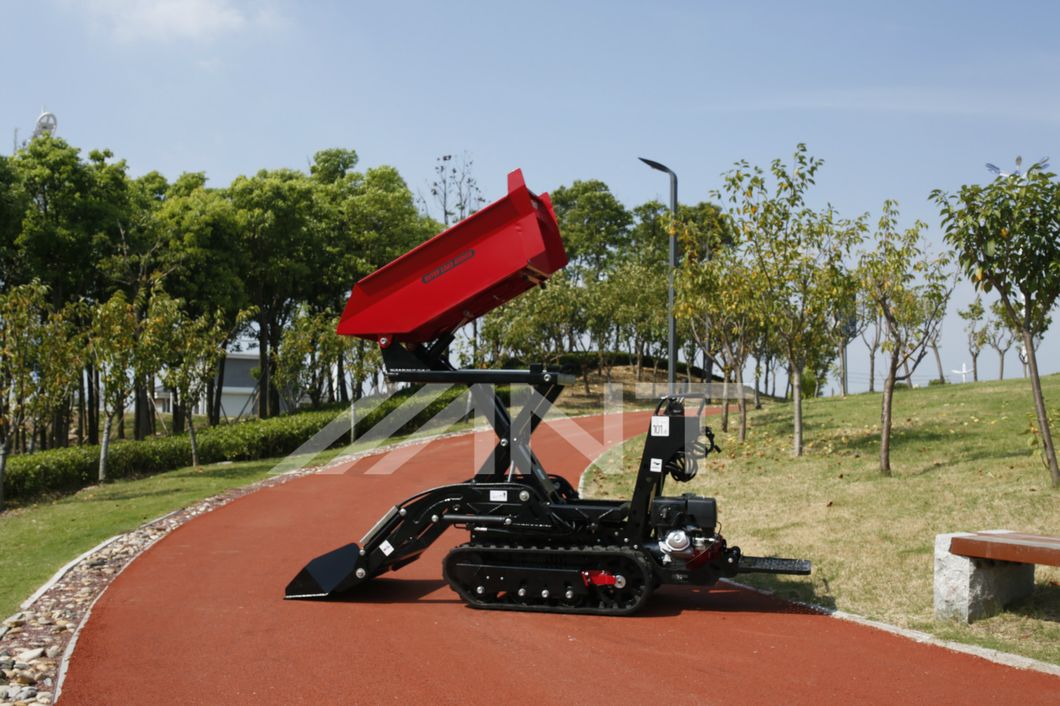

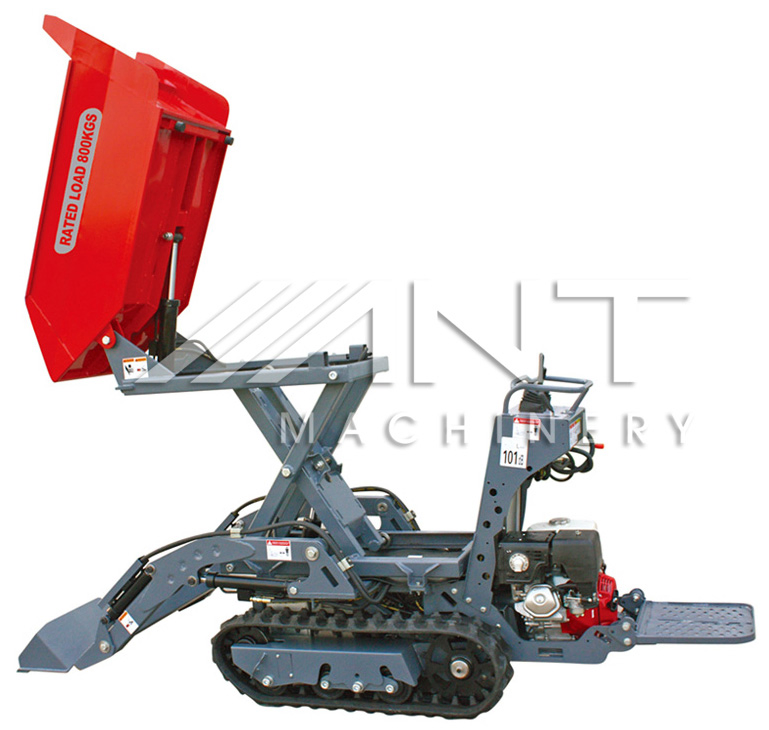

*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning, mini slipping.

Model
BY800
Engine
Honda GX390 13HP gasoline/B&S/Kama Diesel
Type
Hydra-static
Operative weight kgs(lbs)
800 (1762)
Max travel speed km/h(mph)
0-4.8(0-3.0)
Transmission

Hydraulic pump
2 x variable displ.
Flow Vmin(gpm)
2 x 32.4 (2 x 8.5)
Hydraulic motors
2 x orbital
Brake parking
Mechanical
Hydraulic system

Hydraulic pump
Gear pump
Flow Vmin(gpm)
1 x 13.5 (1 x 3.5)
Hi-flow Vmin(gpm)
1 x 22 (1 x 3.5)
Max pressure bar(psi)
150 (2180)
Main valve
2-3 way
Cooled system
Air-cooled
Skip tipping system
Hydraulic
Tracks

Standard track width mm(in)
180 (7.1)
Track roller
3
Rocking rollers
Yes
Track tensioning
Yes
