Cash Coupon Sale! Chinese Luqing 1 Ton Crawler Small Digger Mini Excavator Price
Technical Specification Engine Travel SystemModelKOOP( KD192F-1)Travel motorsBMT-310TypeDirect injection, air cooled, natural intakeSupport roller quantities2×2Carrier roller quantities0No.engine cylinder1 Travel speed 2(km/h)Bore and stroke92x75Drawbar pulling force8.3KNDispla......
Send Inquiry
Product Description
Technical Specification
Packing details:
| Engine | Travel System | |||||||||
| Model | KOOP( KD192F-1) | Travel motors | BMT-310 | |||||||
| Type | Direct injection, air cooled, natural intake | Support roller quantities | 2×2 | |||||||
| Carrier roller quantities | 0 | |||||||||
| No.engine cylinder | 1 | Travel speed | 2(km/h) | |||||||
| Bore and stroke | 92x75 | Drawbar pulling force | 8.3KN | |||||||
| Displacement | 0.499 | Gradeability | 58%(300) | |||||||
| Power output | 7kw/3000rpm | Rubber track width | 180mm | |||||||
| Max. torque | 27N.m/2200rpm | Rubber track Thickness | 40mm | |||||||
| Hydraulic System | ||||||||||
| Pump | CBT-F306R6H1R | |||||||||
| Type | Gear pump | |||||||||
| Max. discharge flow | 18 (L/min) | |||||||||
| Main control valves | DL80 | |||||||||
| Oil cooler | Air cooled type | |||||||||
| Swing System | Refilling Capacity & lubrication | |||||||||
| Swing motor | BMR200 | Fuel tank | 7L | |||||||
| Swing motor type | Gerotor motor | Engine oil | 1.2L | |||||||
| Swing speed | 13 r/min | Hydraulic oil tank | 14.5L Oil Tank Level | |||||||
| 21.5L Hydraulic System | ||||||||||
| Bucket | ||||||||||
| Bucket capacity | 0.023m3 | |||||||||
| Bucket width | 400 mm | |||||||||

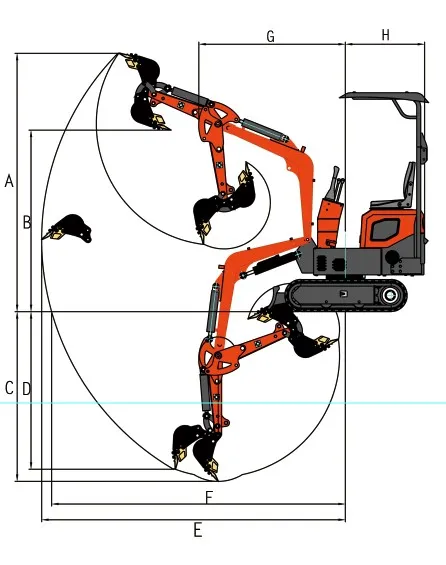

| Working ranges |  | |||||||||
| Boom length | 1500m | |||||||||
| A | Max. digging height | 2600mm | ||||||||
| B | Max. dumping height | 1830mm | ||||||||
| C | Max. digging depth | 1715mm | ||||||||
| D | Max. vertical digging depth | 1590mm | ||||||||
| E | Max. digging radius | 3065mm | ||||||||
| F | Max. digging radius at ground level | 2960mm | ||||||||
| G | Min swing radius of work equipment | 1480mm | ||||||||
| H | Swing radius at tail | 800mm | ||||||||
| Digging Force | ||||||||||
| Arm length | 820mm | |||||||||
| A | Bucket digging force | 7.2 KN | ||||||||
| B | Arm digging force | 4.6 KN | ||||||||

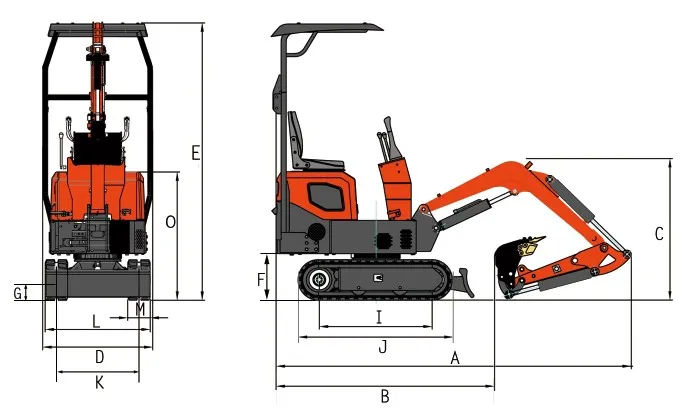

| Overall Dimensions | ||||||||||
 | ||||||||||
| A | Overall length | 2840mm | I | Track grounding length | 900mm | |||||
| B | Ground contact length(Transportation) | 2611mm | J | Track length | 1233mm | |||||
| C | Overall height(to top of boom) | 1130mm | K | Track gauge | 660mm | |||||
| D | Overall width | 880mm | L | Track width | 840mm | |||||
| E | Overall height(to top of cab) | 2220mm | M | Track Shoe width | 180mm | |||||
| F | Counterweight ground clearance | 385mm | O | Counterweight height | 1025mm | |||||
| G | Min. Ground clearance | 132mm | ||||||||
| Operating Weight and Ground Pressure and system pressure | ||||||||||
| Operating weight includes basic machine | ||||||||||
| Operating weight | 940kg | |||||||||
| Ground pressure | 20 KPa | |||||||||
| Hydraulic system pressure | 16Mpa | |||||||||
- 6 pcs in 20GP container.
- 13 pcs in 40GP container.
