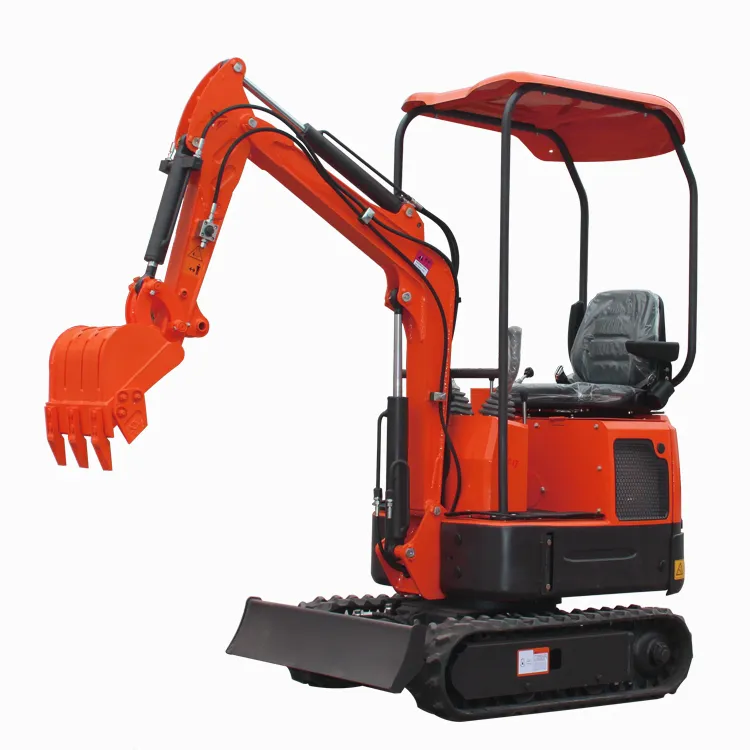

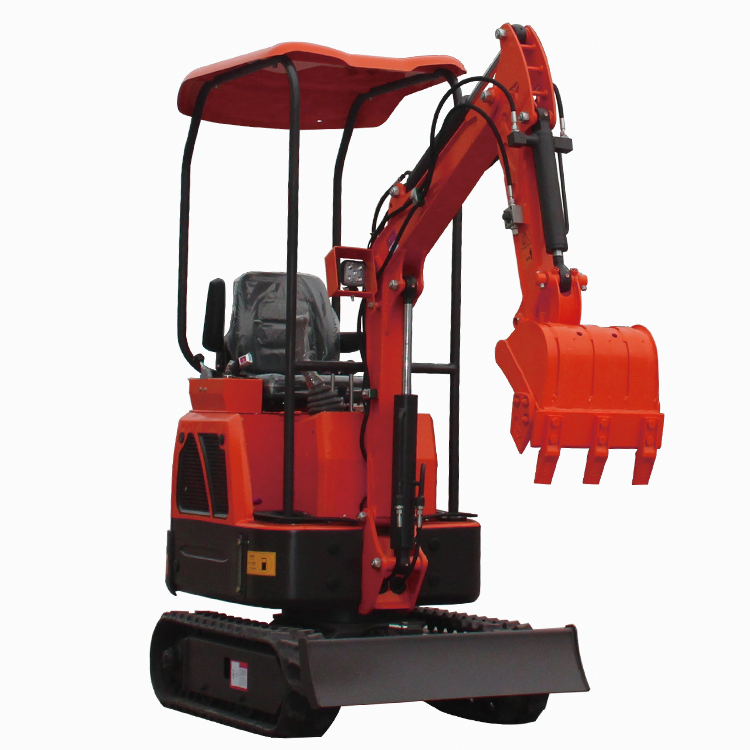

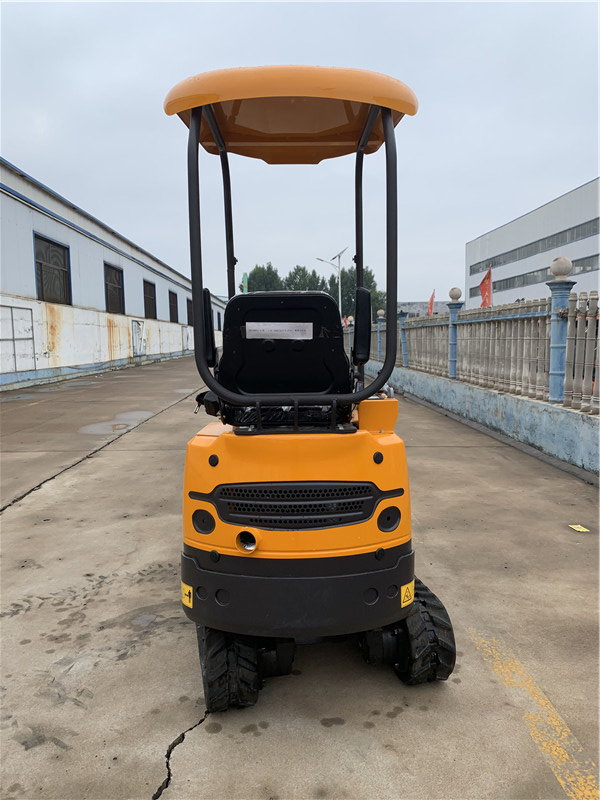

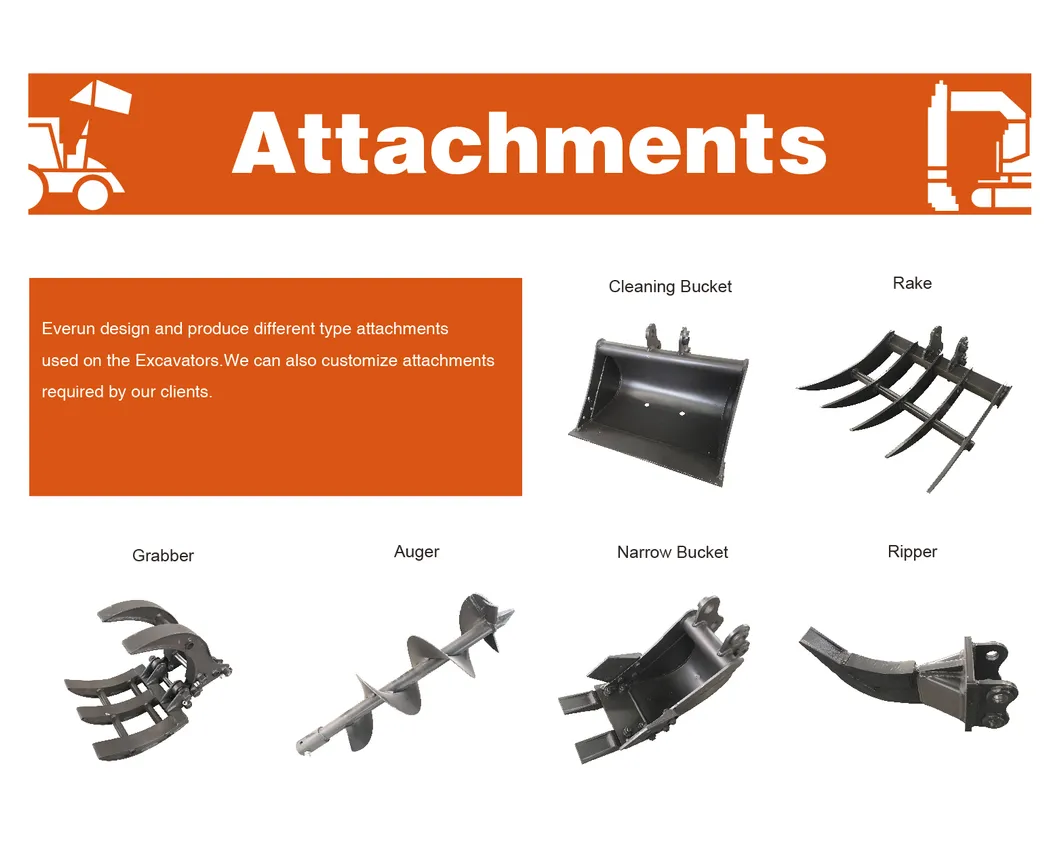

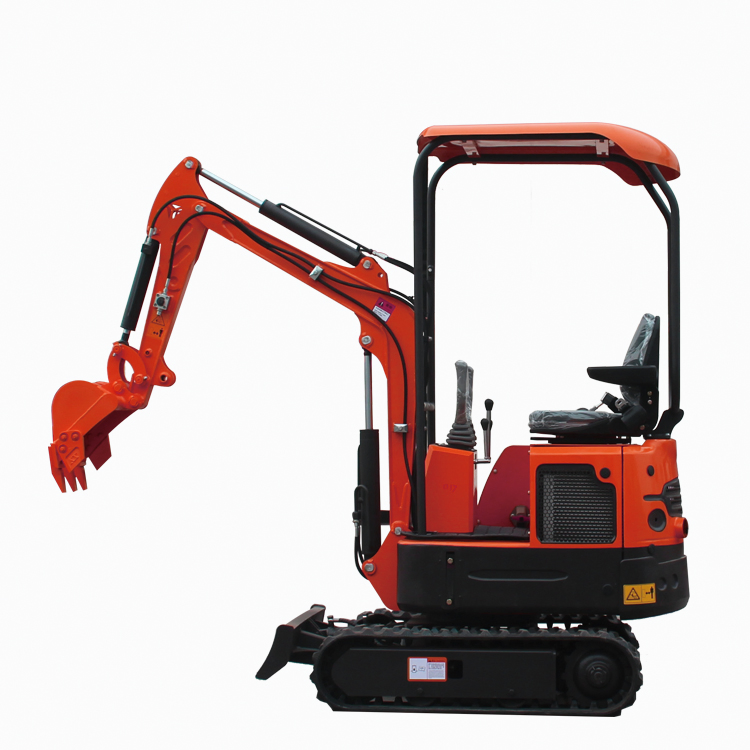

Ce Approved Mini Small 1.2ton Crawler Hydraulic Campact Excavators with Multifunctional Attachments
SpecificationOperating weight 1040kgBucket capacity (m3)0.025M3/ 120kgEngineYanmar 3TNV70Rated power (kw/r/min)10/2200Pump BrandSAISIDA Pump Flow16L/minTotal Length of Track on Land1230mmPlatform Ground Clearance380mmPlatform back turning radius784mmChassis Width896mmTrack width180mmChassis Ground C......
Send Inquiry
Product Description
Specification
Operating weight | 1040kg |
Bucket capacity (m3) | 0.025M3/ 120kg |
Engine | Yanmar 3TNV70 |
Rated power (kw/r/min) | 10/2200 |
Pump Brand | SAISIDA |
Pump Flow | 16L/min |
Total Length of Track on Land | 1230mm |
Platform Ground Clearance | 380mm |
Platform back turning radius | 784mm |
Chassis Width | 896mm |
Track width | 180mm |
Chassis Ground Clearance | 132mm |
Track Height | 320mm |
Max. digging depth | 1650mm |
Max. dumping height | 1850mm |
Max. digging height | 2610mm |
Bucket digging force | 9.5kn |
Arm digging force | 5kn |
