Product Description

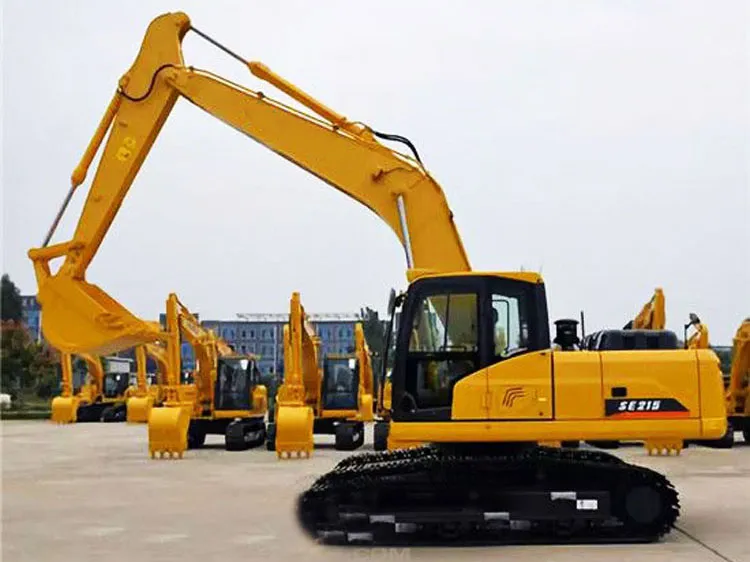

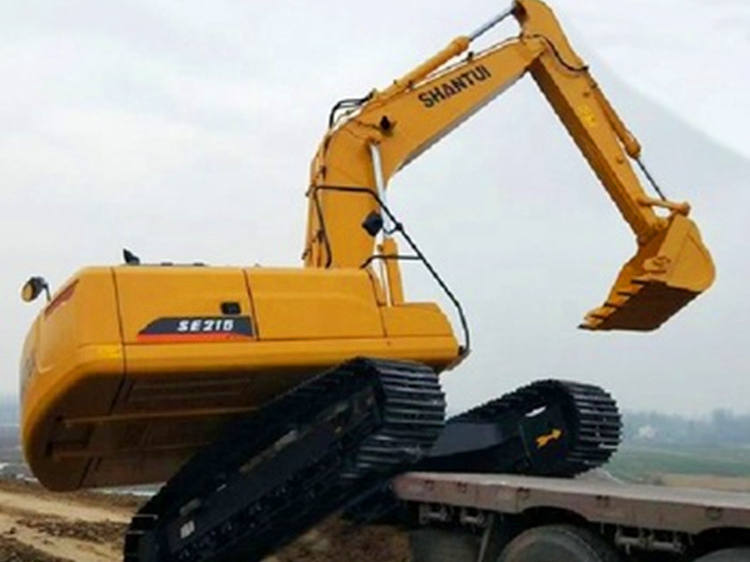

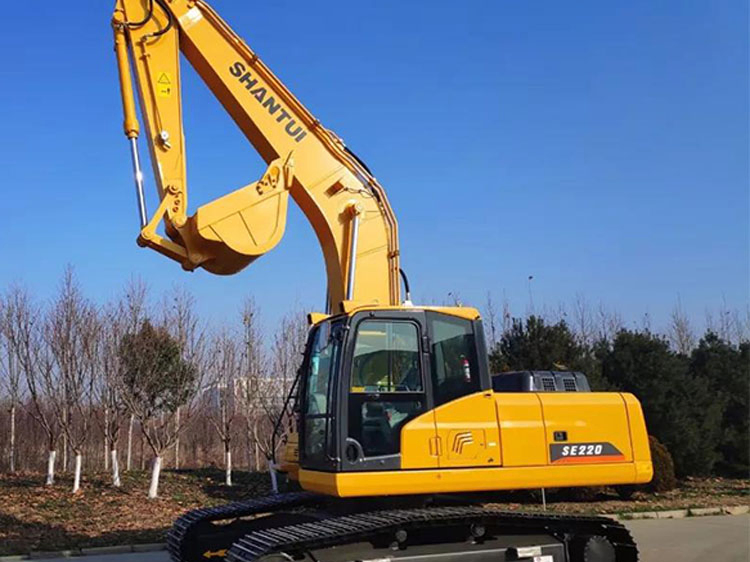

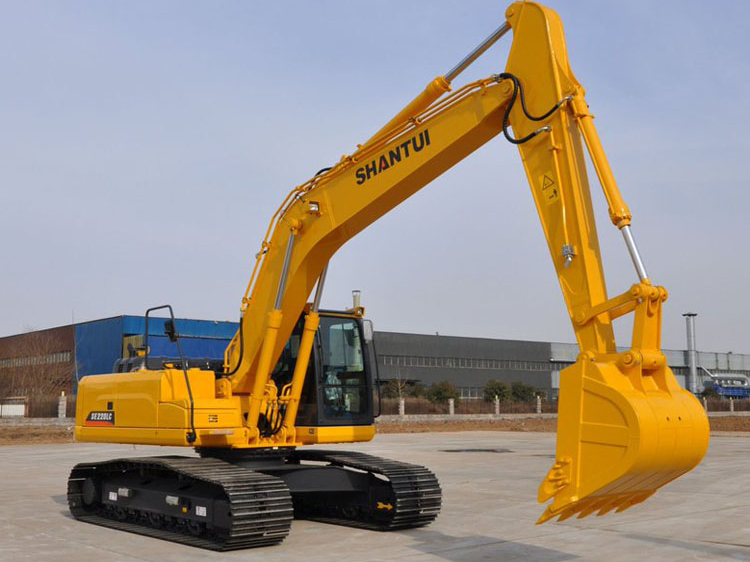

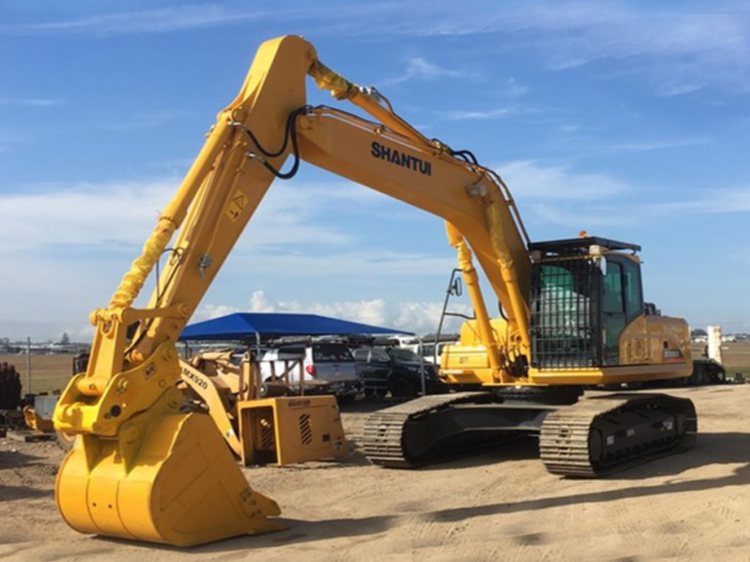

Cheap Price Shantui 21.5 Ton Crawler Excavator (SE215)
| Comparative item | SE215 (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 9625 |
| Ground length (During transport) (mm) | 4915 |
| Overall height (To the top of boom) (mm) | 3075 |
| Overall width (mm) | 2800 |
| Overall height (To top of cab) (mm) | 3055 |
| Ground clearance of counterweight (mm) | 1075 |
| Minimum ground clearance (mm) | 470 |
| Tail turning radius (mm) | 2925 |
| Track length (mm) | 4140 |
| Track gauge (mm) | 2200 |
| Track width (mm) | 2800 |
| Standard track shoe width (mm) | 600 |
| Turntable width (mm) | 2725 |
| Distance from slewing center to tail (mm) | 2920 |
| Working range | |
| Maximum digging height (mm) | 10095 |
| Maximum dumping height (mm) | 7190 |
| Maximum digging depth (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5915 |
| Maximum digging distance (mm) | 9860 |
| Maximum digging distance at ground level (mm) | 9675 |
| Working device minimum turning radius (mm) | 2970 |
| Maximum lifting height of bulldozer blade (mm) | - |
| Maximum digging depth of bulldozer blade (mm) | - |
| Engine | |
| Model | Cummins QSB7 (China-III) |
| Type | 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 6.7 |
| Rated power (kW/rpm) | 124/2050 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x213 |
| Bucket | |
| Bucket capacity (m³) | 0.9 |
| Swing system | |
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 135/146 |
| Bucket digging force (KN) | 99/107 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 20800 |
| Ground pressure (kPa) | 47.5 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.15/5.15 |
| Traction force (KN) | 214 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 330 |
| Cooling system (L) | 28 |
| Engine oil capacity (L) | 22 |
| Hydraulic oil tank/system capacity (L) | 270/400 |
