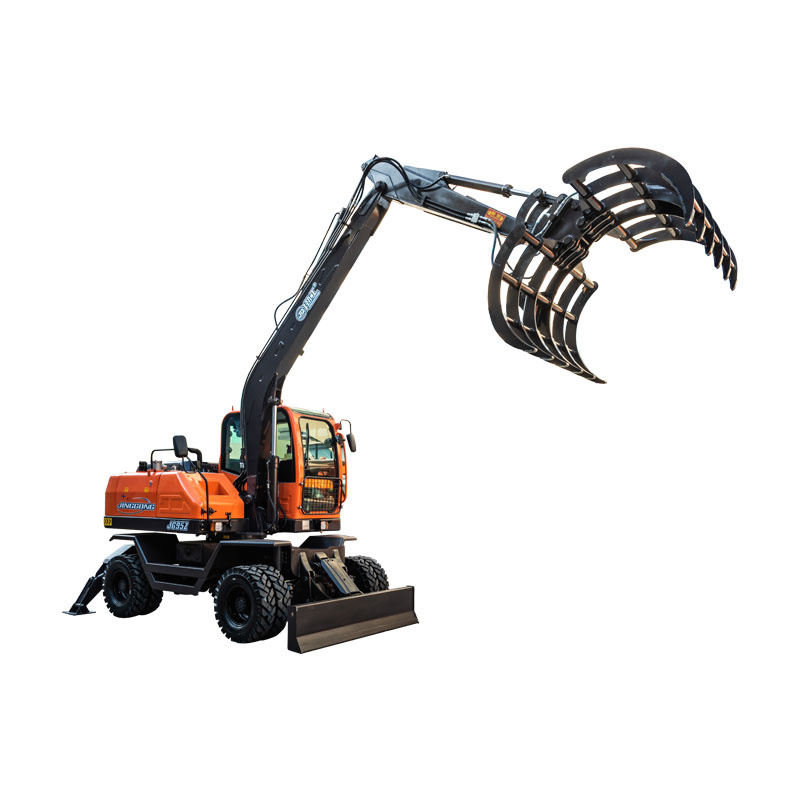

Customized Single Round Bale Mover for Sale
SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR RANGE OF OPERATIONBoom length3680mmArm length1850mmMax radius of capture7000mmMax. Opening Width of Grab1250mmMin. Opening Width of Grab80mmMax. Radius Grabing Weight800kgGrapple rotation angle360°Steel Wire Rope Tension25KN-35KNRope Diameter&osl......
Send Inquiry
Product Description
| SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom length | 3680mm | ||||||||
| Arm length | 1850mm | |||||||||
| Max radius of capture | 7000mm | |||||||||
| Max. Opening Width of Grab | 1250mm | |||||||||
| Min. Opening Width of Grab | 80mm | |||||||||
| Max. Radius Grabing Weight | 800kg | |||||||||
| Grapple rotation angle | 360° | |||||||||
| Steel Wire Rope Tension | 25KN-35KN | |||||||||
| Rope Diameter | ø8mm~ø10mm | |||||||||
| Rope capacity | 50m~100m | |||||||||
| Max dumping height | 4650mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 6450*2330*2930mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Drive axle | Reinforced integral 10Ton Axle | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YUNNEI | |||||||||
| Rated Power | 65kw | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Max Hauling force | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

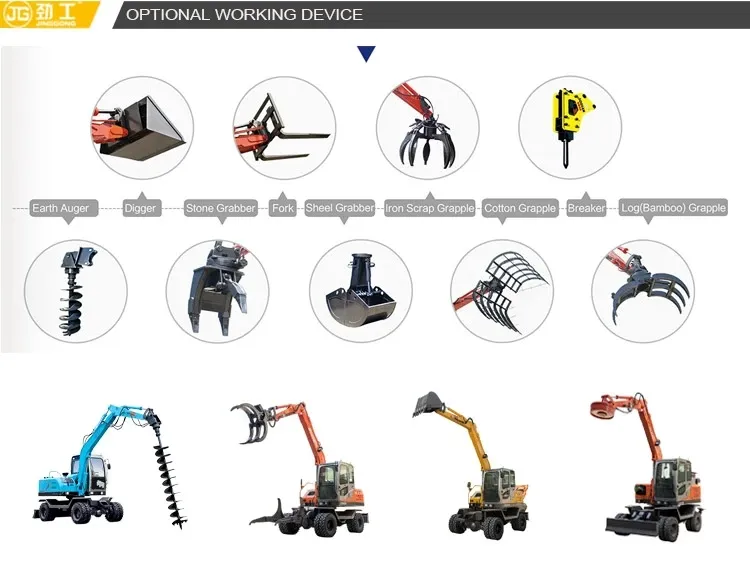

We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
