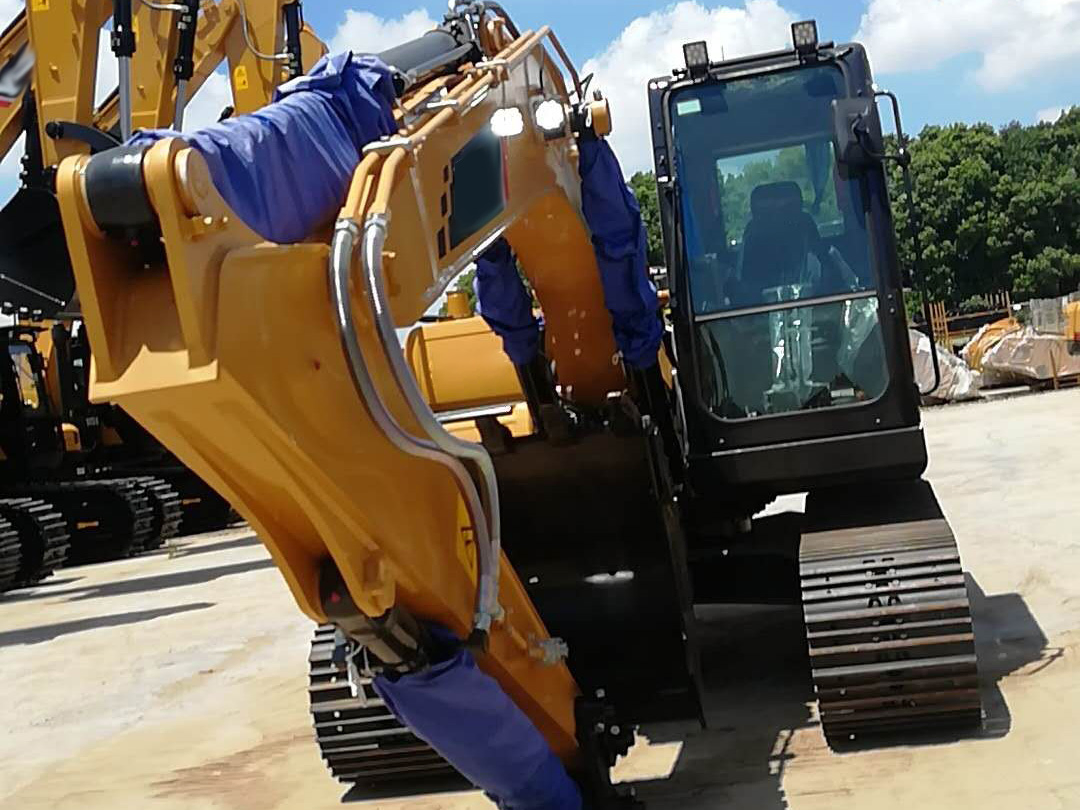

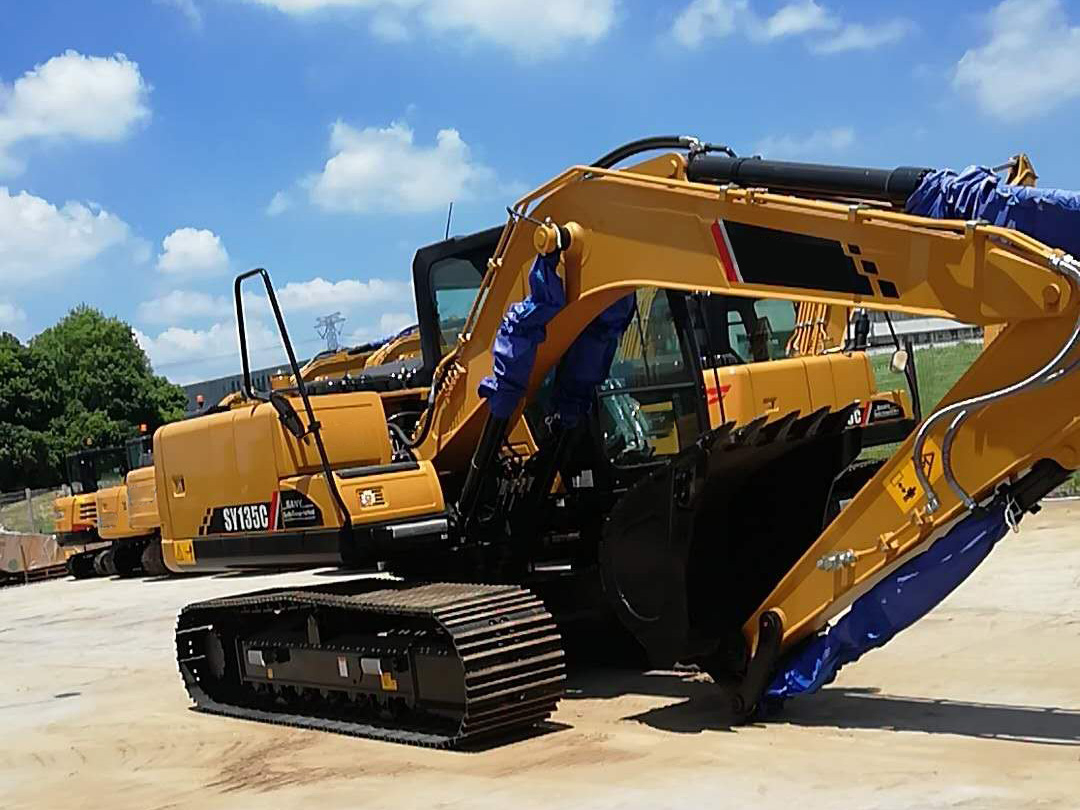

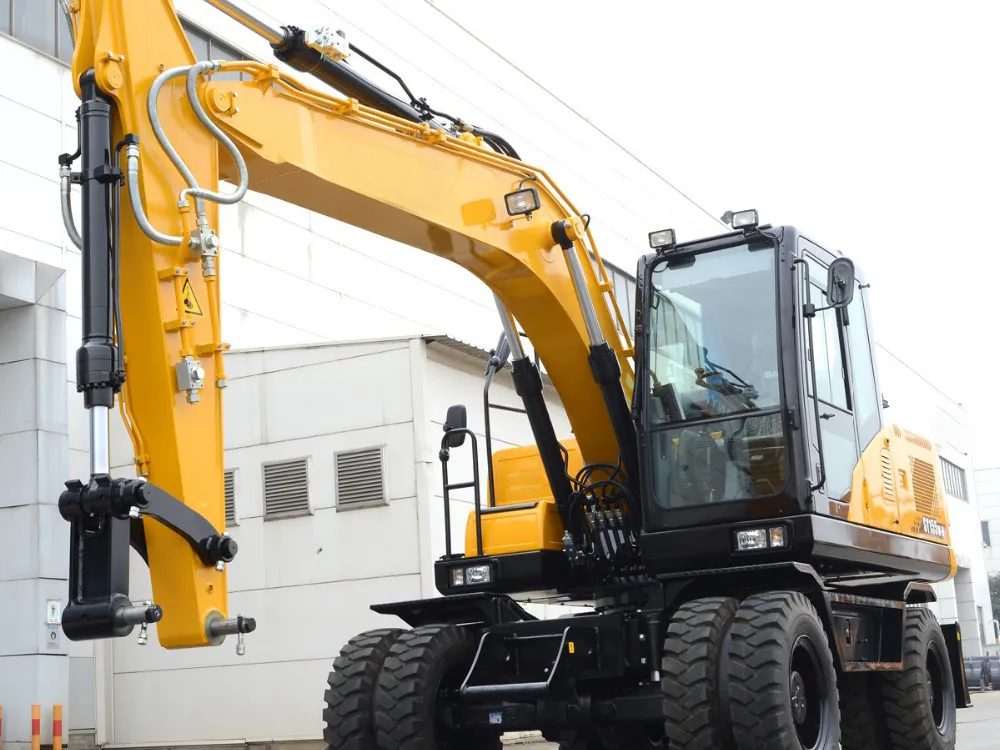

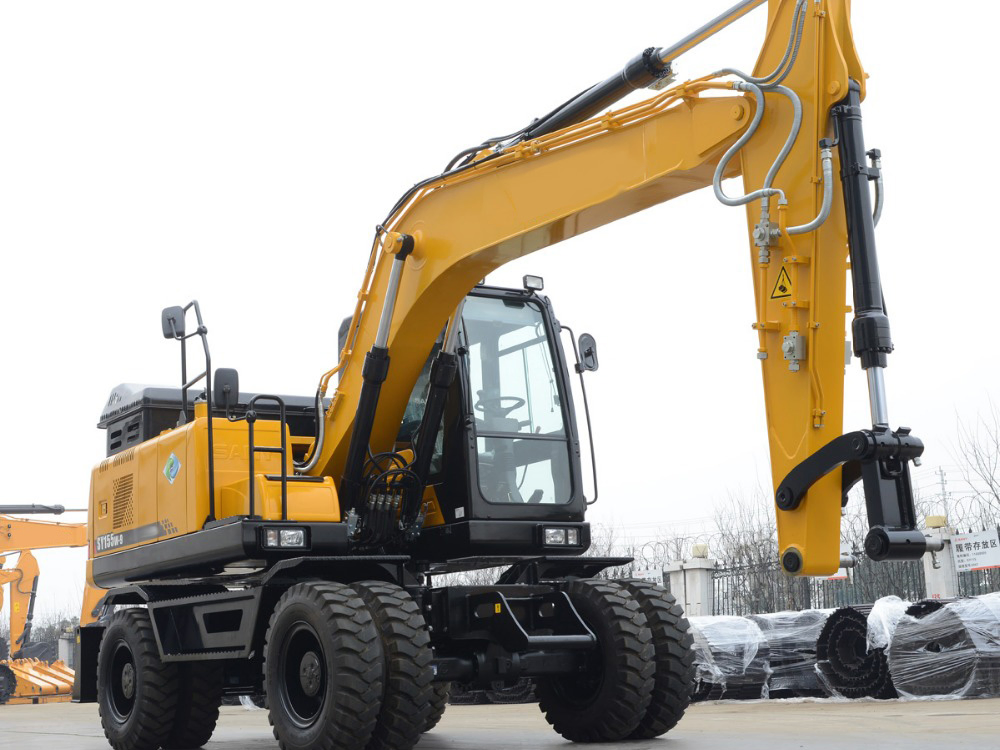

Earthmoving Machinery 0.58m3 Crawler Excavator Sy155W for Construction
Hot ProductsProduct Description1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.2,The domestic leading hydraulic system distribution technology features ......
Send Inquiry
Product Description
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Overall size |
|
Total length (during transportation) | 7690mm |
Total width | 2610mm |
Total height (during transportation) | 3610mm |
Total height (top of cab) | 3200mm |
Wheelbase | 1944mm |
Wheelbase | 2800mm |
Minimum ground clearance | 360mm |
Radius of tail gyration | 2310mm |
Counterweight ground clearance | 1230mm |
Dozer blade width | 2490mm |
Performance parameter |
|
Total Weight | 13500kg |
Dou Rong | 0.22-0.7(0.58)m³ |
rated power | 120/2000kW/rpm |
Walking speed (high/low) | 37/10km/h |
Swing speed | 12.3rpm |
Gradeability | 70%/35° |
Bucket digging force | 102.3kN |
Stick digging force | 75.2kN |
Scope of work |
|
Maximum digging height | 8600mm |
Maximum unloading height | 6200mm |
Maximum digging depth | 4800mm |
Maximum digging radius | 7960mm |
Maximum ground excavation radius | 7750mm |
Maximum height at minimum radius of gyration | 6800mm |
Maximum vertical digging depth | 4390mm |
