Product Description
ERE10 Pro 1010kg Mini Crawler Excavator Everun with Euro5 Engine
Product Description
DESCRIPTION
This excavator is designed for small project,garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy tomaintain.

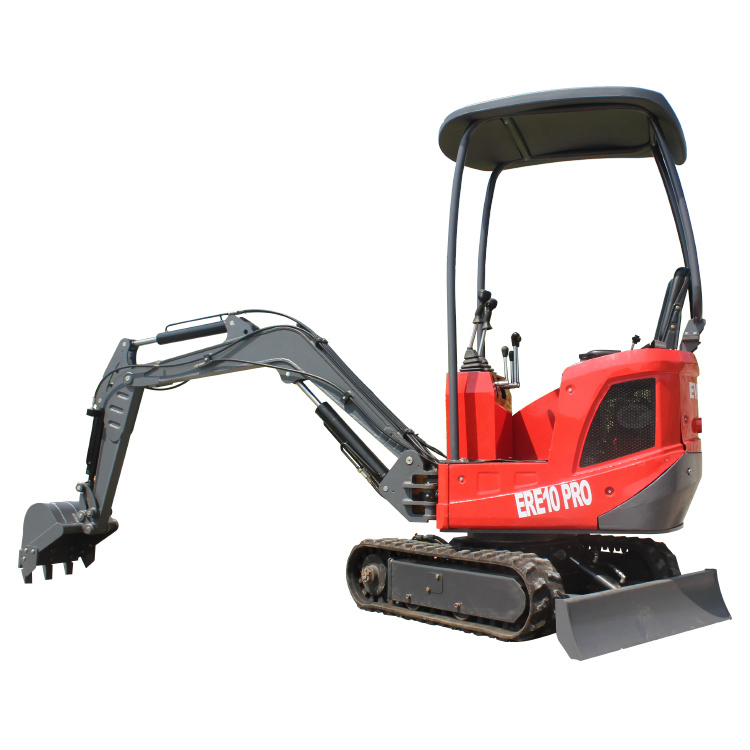

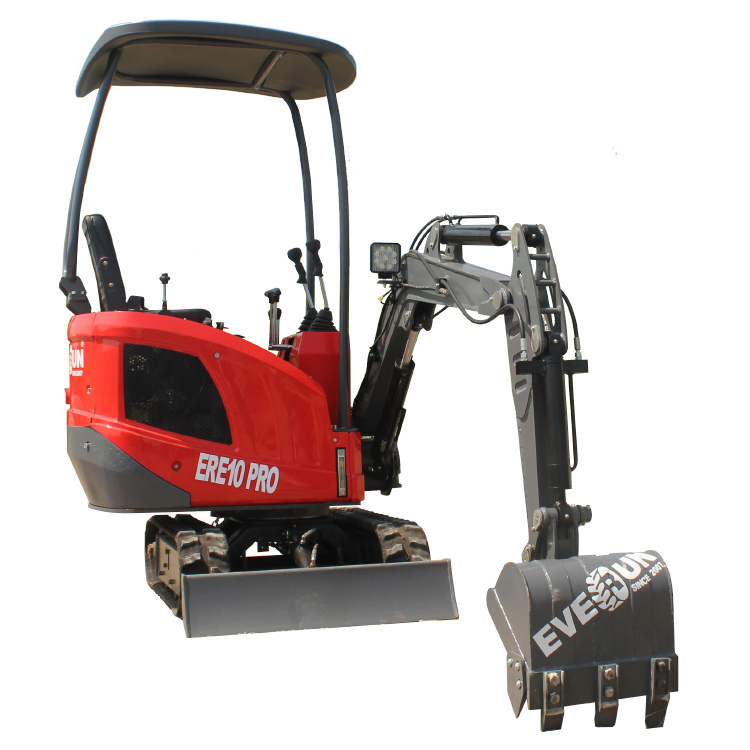

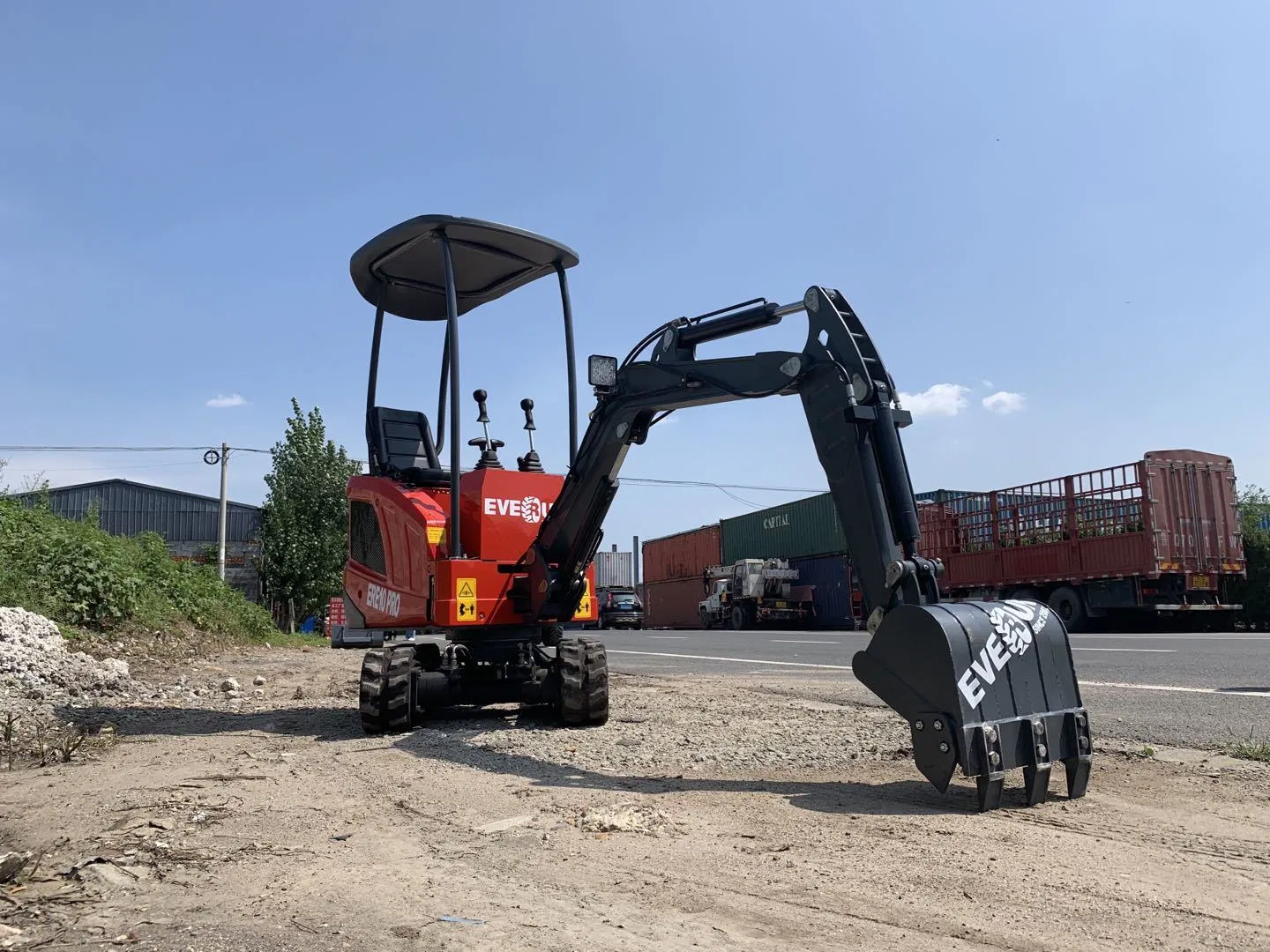

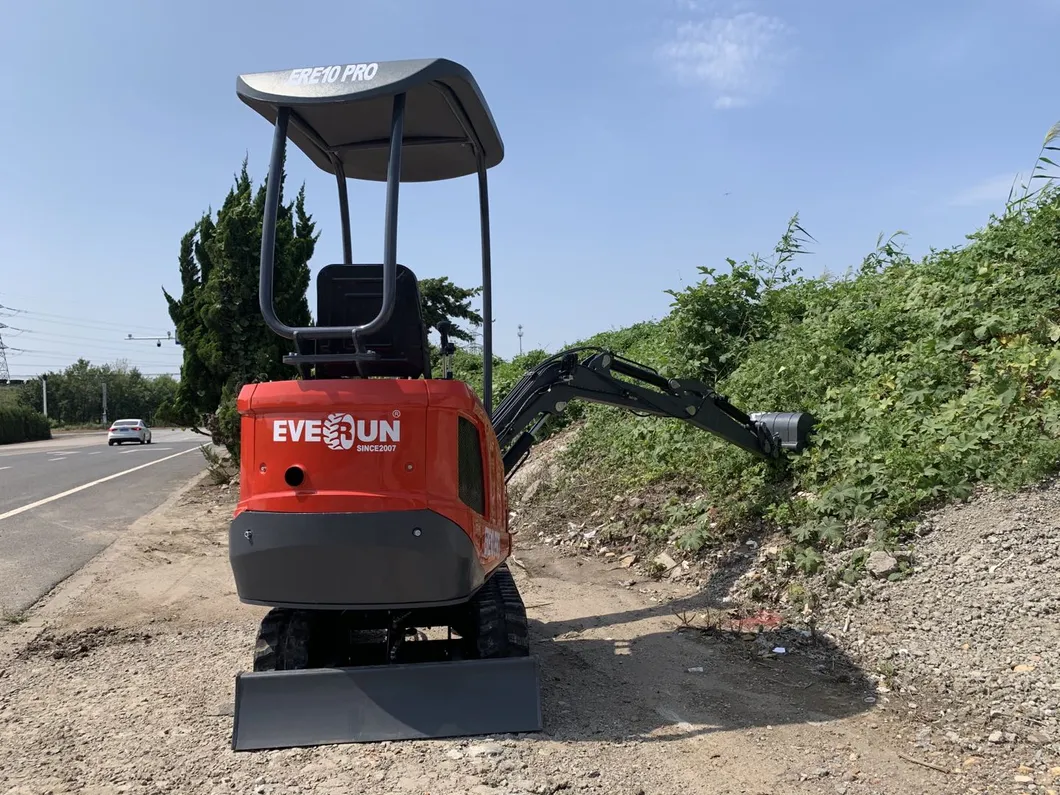

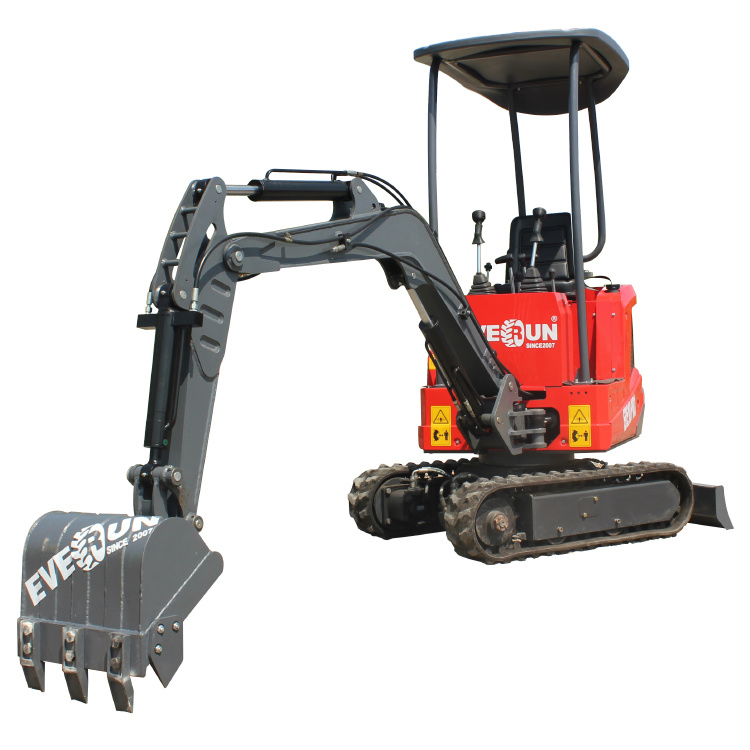

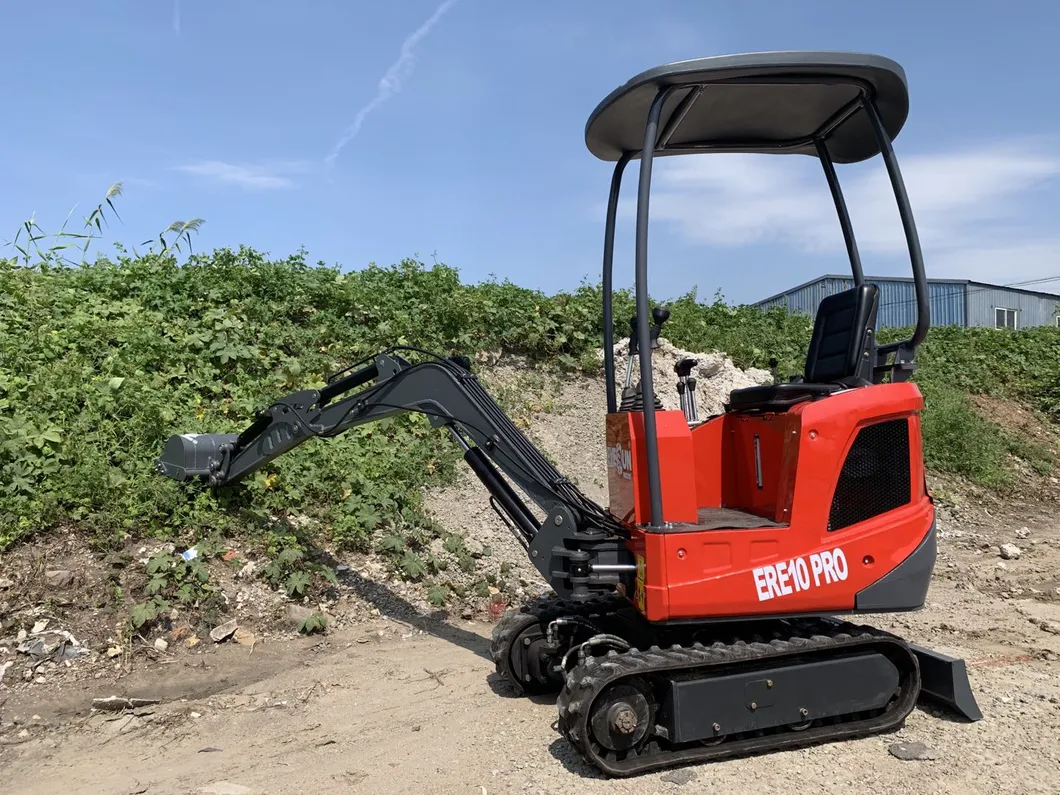

ERE10 Pro crawler excavator with 1000kg operating weight, 350mm bucket, canopy, changchai engine, Zaneda pump, Beifang valve,
Hydro Man swing motor, head lights.
Hydro Man swing motor, head lights.
SPECIFICATIONS
| 1.0 MODEL | |||
| (1) Operating Weight | 1000kg | ||
| (2) Digging Bucket Capacity | 0.023cbm/120kg | ||

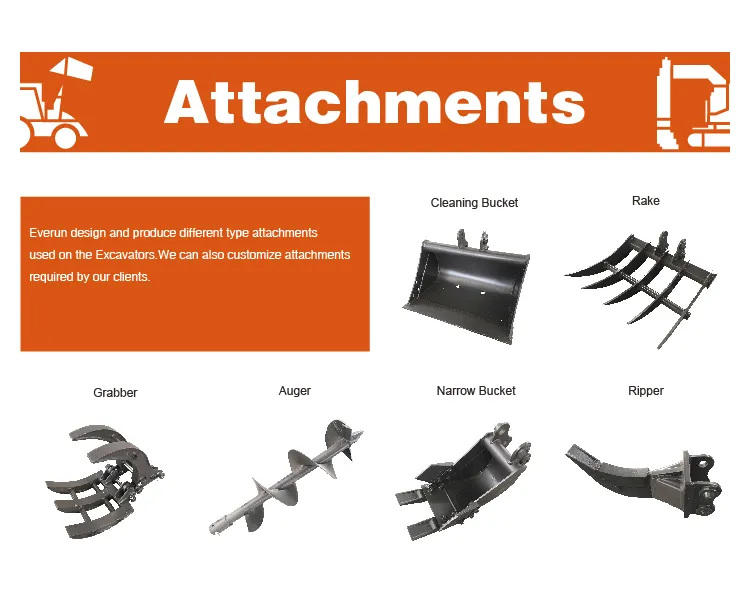

| (3) Digging Bucket Width | 350mm, can add narrow bucket is 200mm | ||
| (4) Engine | CHANGCHAI KF192FAW | ||
| (5) Rated Power | 7.5kw | ||
| (6) Displacement | 6 ml/r | ||
| (7) Bore Stroke | single cylinder, fan cool | ||
| (8) Main Pump | ZANEDA | ||
| (9) Vavle | BEIFANG | ||
| (10) Pump flow | 18L/min | ||
| (11) Swing Motor | Hydro Man(ZMP-1-200) | ||
| (12) Traveling Motor | EATON 612-4173-1 | ||
| 2.0 MAIN DEMENSIONS | |||
| (1) Overall Dimension( L x W x H) | 3127x950x2195mm | ||
| (2) Wheelbase | 920mm | ||
| (3) Total Length of Track | 1220mm | ||
| (4) Platform Ground Clearance | 320mm | ||
| (5) Platform Back Turning Radius | 810mm | ||
| (6) Chassis Width | 870mm | ||
| (7) Track Width | 180mm | ||
| (8) Chassis Ground Clearance | 94.5mm | ||
| (9) Track Height | 310mm | ||
| 3.0 OPERATING RANGE | |||
| (1) Max. Digging Depth | 1735mm | ||
| (2) Max. Vertical Digging Depth | 1581mm | ||
| (3) Max. Digging Height | 3006mm | ||
| (4) Max. Dumping Height | 2248mm | ||
| (5) Max. Digging Radius on Ground | 3224mm | ||
| (6) Min. Rotation Radius | 1430mm | ||
| (7) Max. Upgrade Height of Bulldozer Blade | 200mm | ||
| (8) Max. Digging Depth of Bulldozer Blade | 200mm | ||
| (9) Boom deflection angle (Left) | 30° | ||
| (10) Boom deflection angel (Right) | 90° | ||
