Product Description

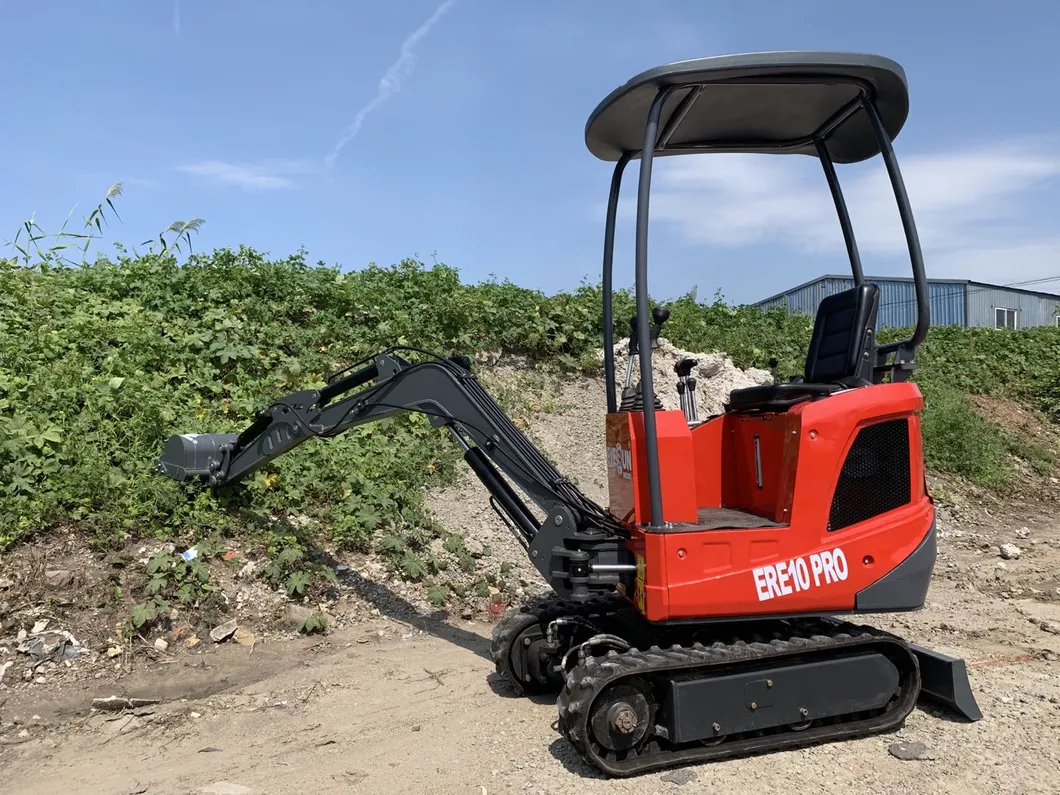

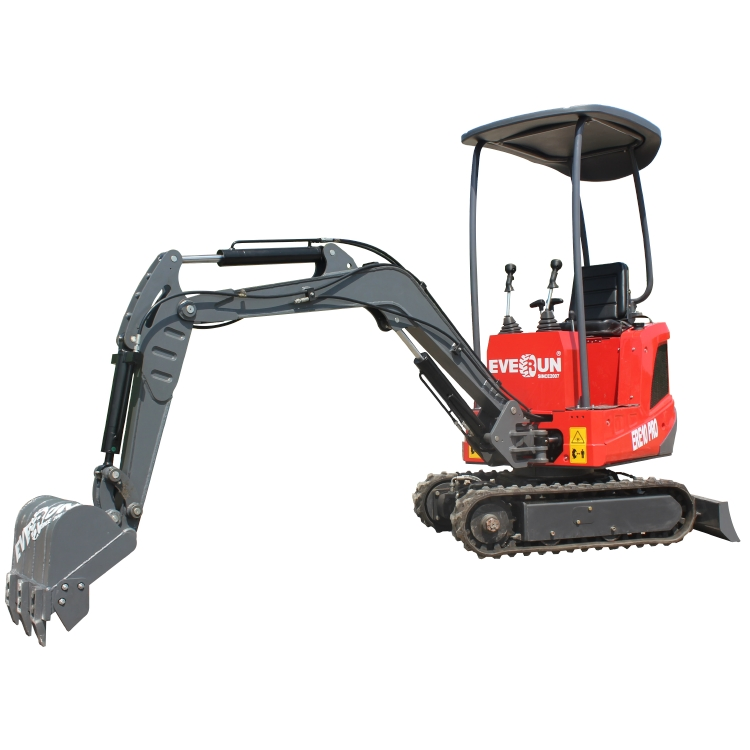

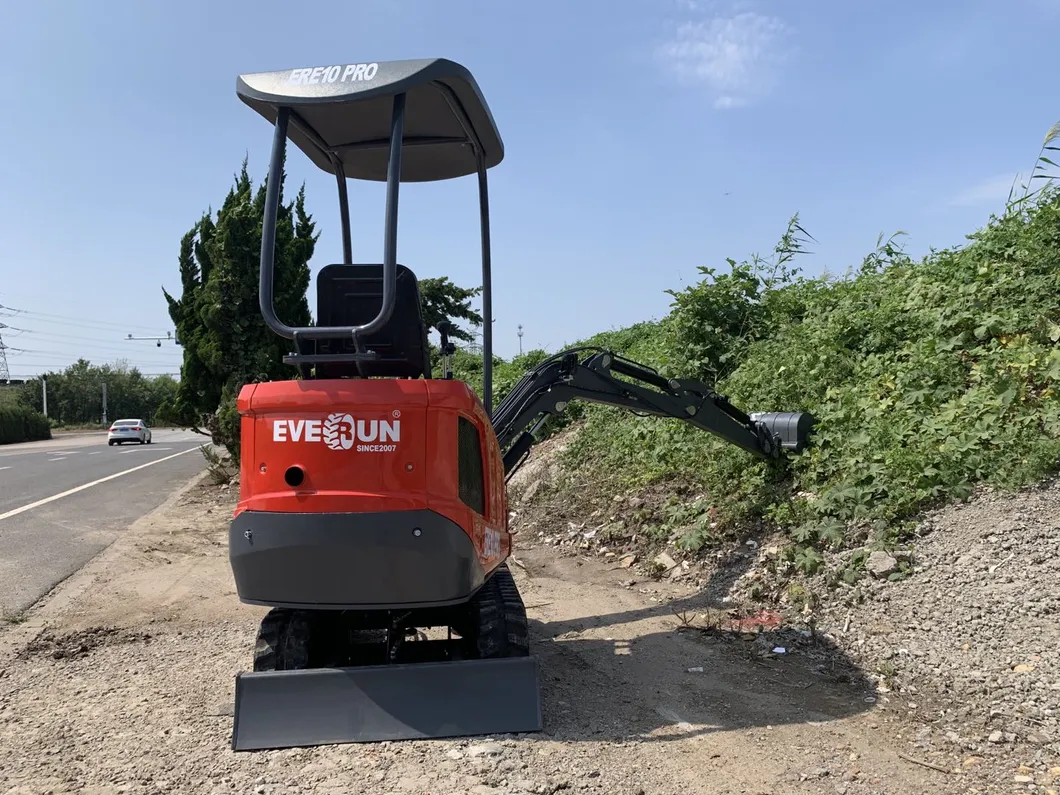

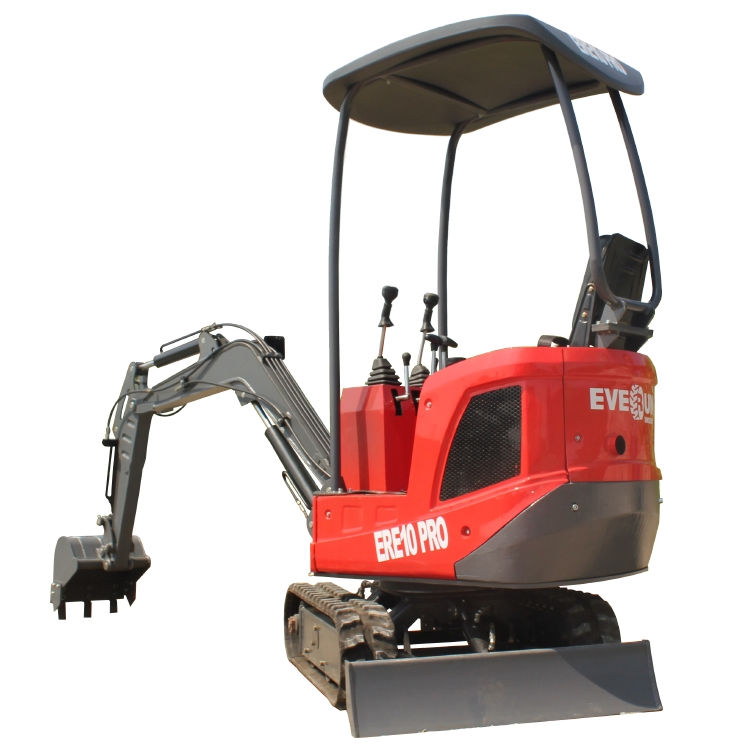

Everun New CE Approved 1Ton Mini Crawler Excavator ERE10 Pro Mini Digger With Euro5 Engine and Swing Arm
Product Description

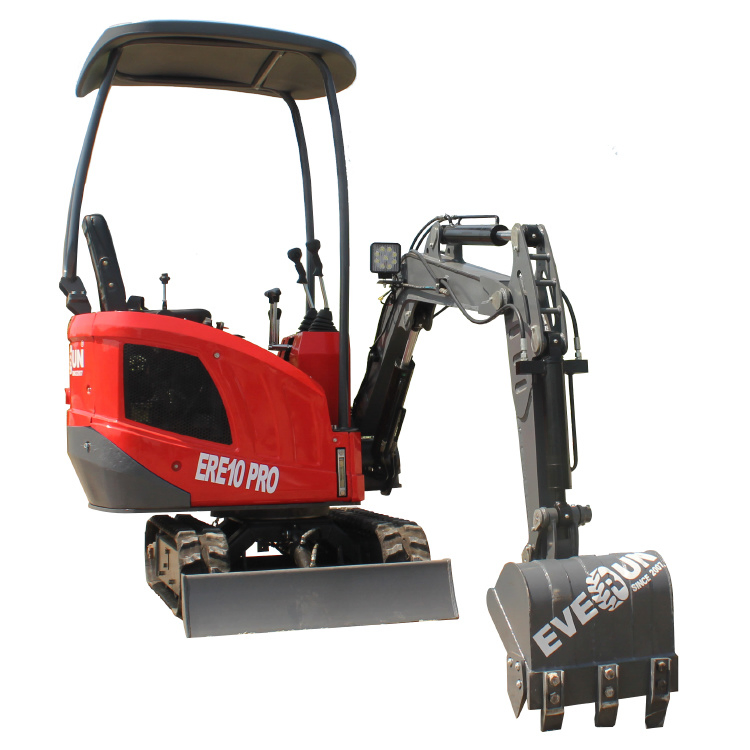

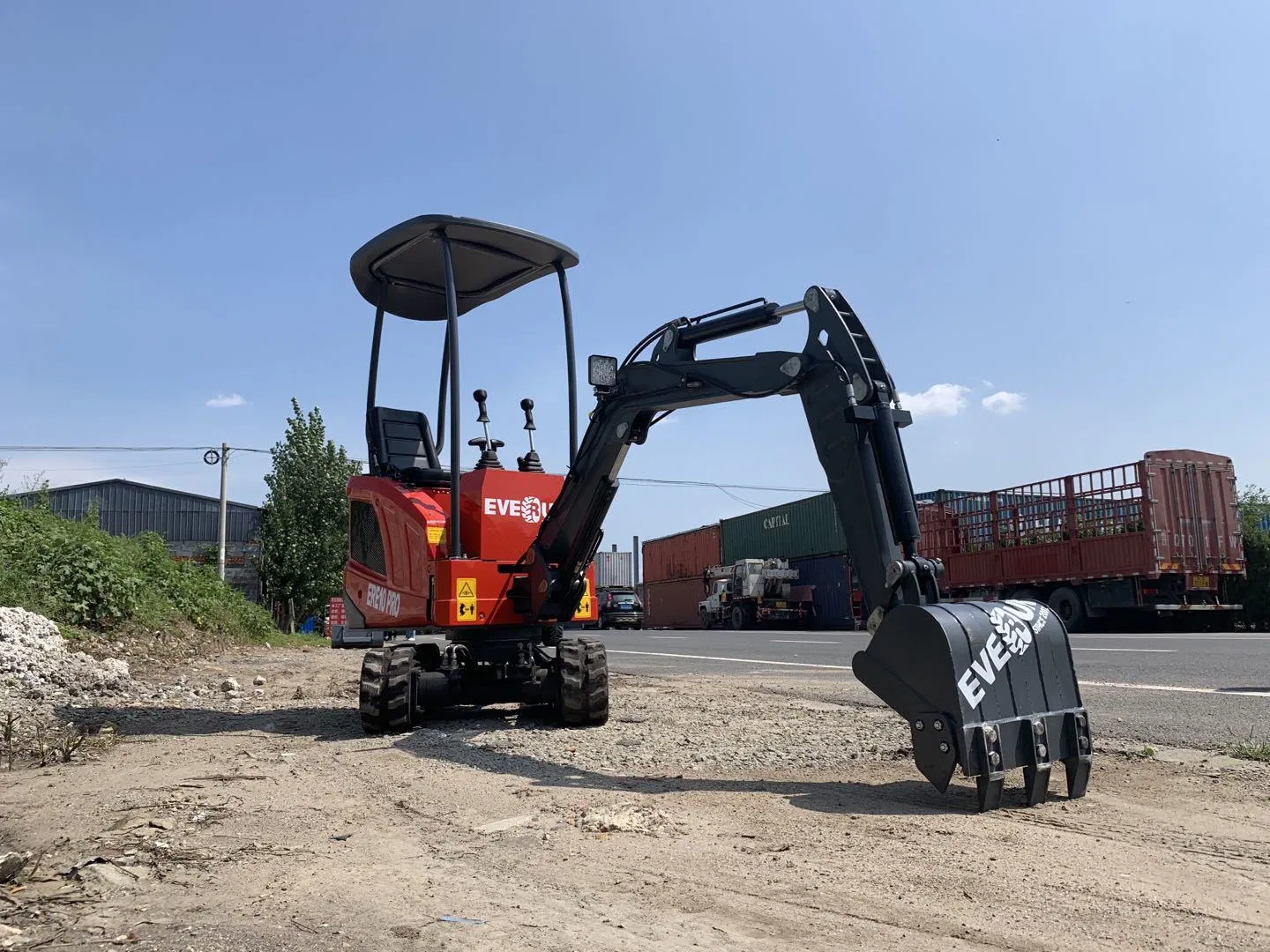

EVERUN CE Approved Multi-Attachments 1000kg ERE10 Pro Mini Crawl Excavator
This excavator is designed for small project,garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy tomaintain.
ERE10 Pro crawler excavator with 1000kg operating weight, 350mm bucket, canopy, changchai engine, Zaneda pump, Beifang valve,
Hydro Man swing motor, head lights.
Hydro Man swing motor, head lights.
SPECIFICATIONS
| Model | ERE10 Pro |
| Operating Weight | 1000kg |
| Digging bucket capacity | 0.023cbm/120kg |
| Digging bucket width | 410mm |
| Engine | CHANGCHAI-192FAM |
| Rated power | 7.5kw |
| Displacement | 6ml/r |
| Bore stroke | single cylinder, fan cool |
| Main pump | ZANEDA |
| Pump flow | 18L/min |
| Valve | BEIFANG |
| Swing motor | Hydro Man(ZMP-1-200) |
| Traveling motor | EATON 612-4173-1 |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 3127x950x2195mm |
| Wheelbase | 920 mm |
| Total length of track | 1220mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 810mm |
| Chassis width | 870mm |
| Track width | 180mm |
| Chassis ground clearance | 94.5mm |
| Bucket digging force | 9.7kn |
| Arm digging force | 8.6kn |
| Rubber track height | 310mm |
| OPERATING RANGE | |
| Max. Digging depth | 1735mm |
| Max. Vertical digging depth | 1581mm |
| Max. Digging height | 3006mm |
| Max. Dumping height | 2248mm |
| Max. Digging radius on ground | 3224mm |
| Min. Rotation radius | 1430mm |
| Max. Upgrade height of bulldozer blade | 200mm |
| Max. Digging depth of bulldozer blade | 200mm |
| Boom deflection angle (left) | 30° |
| Boom deflection angle (right) | 90° |
