Product Description

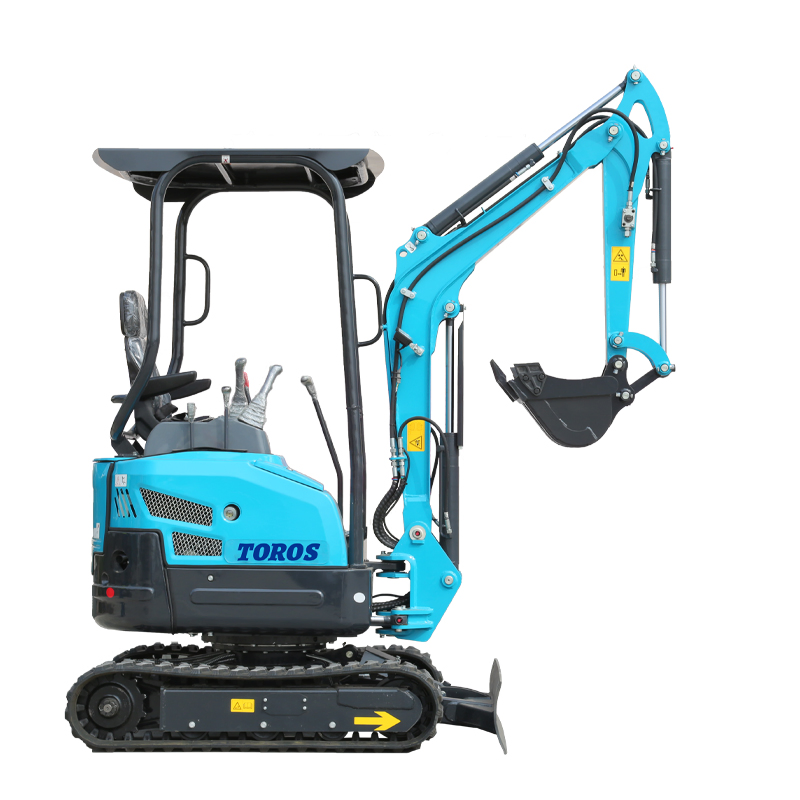

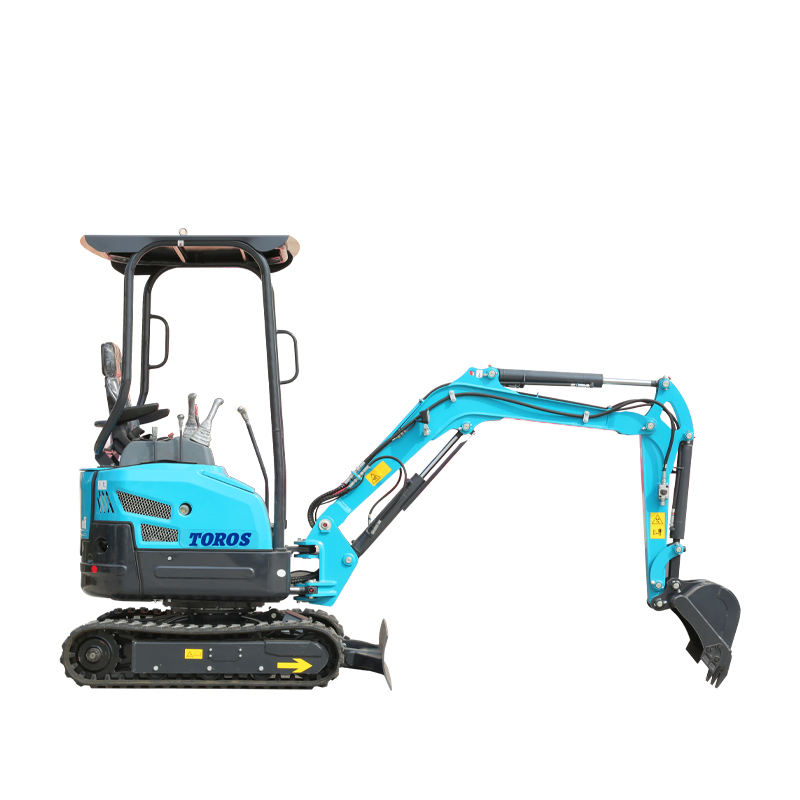

Factory Direct Cheap 1.5t Digging Machine Mini Towable Excavator

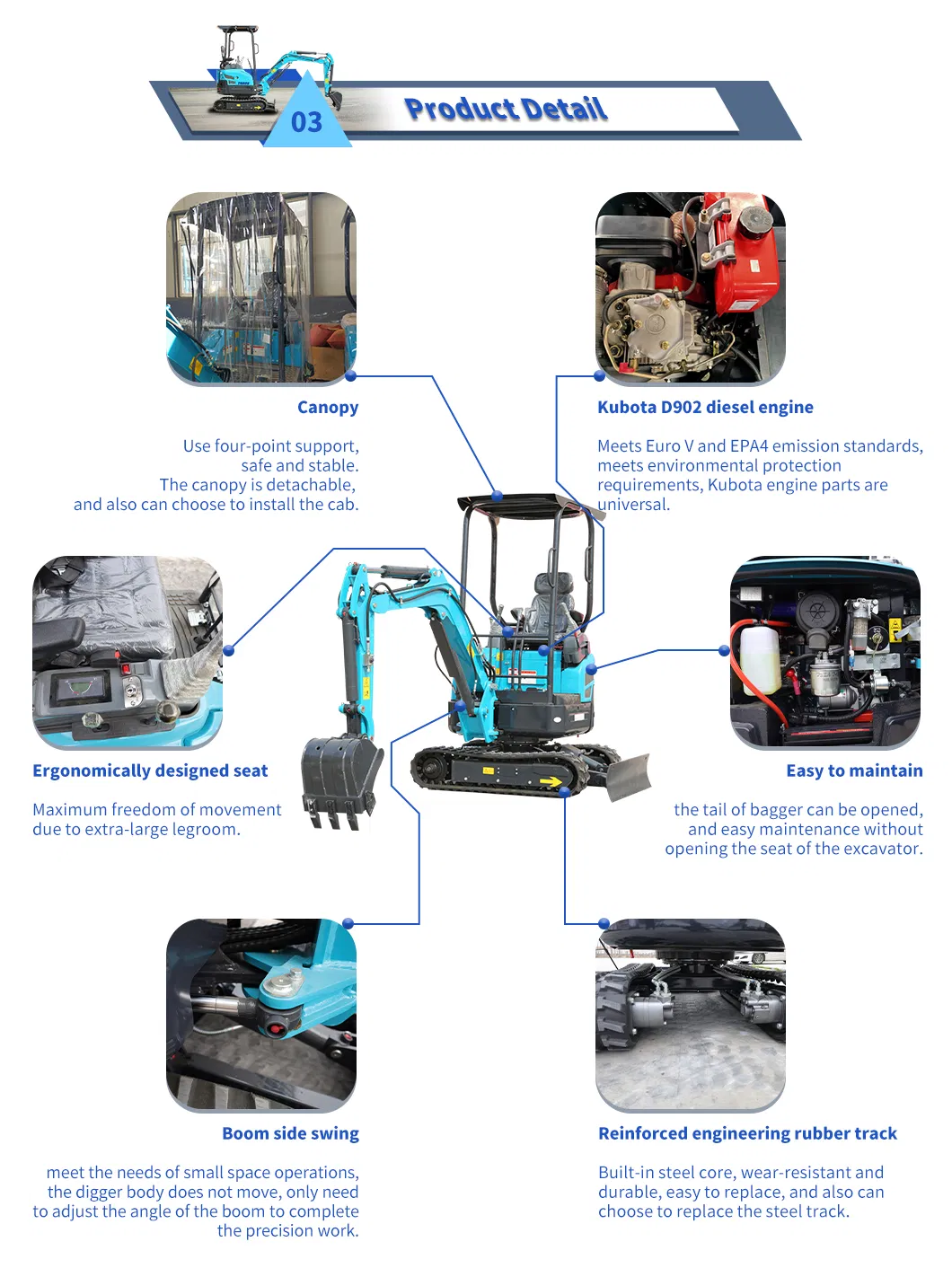

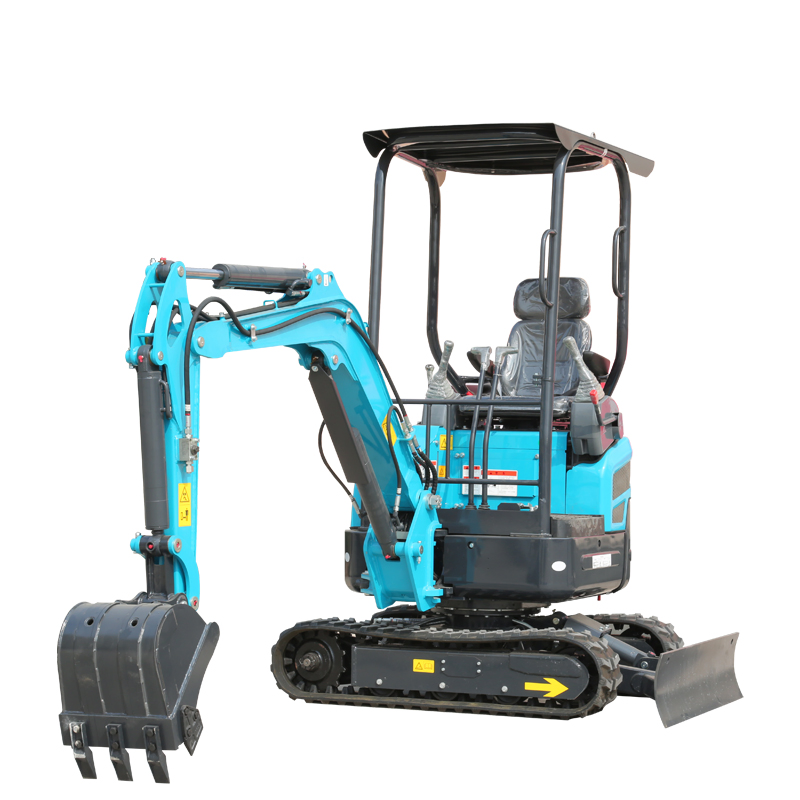

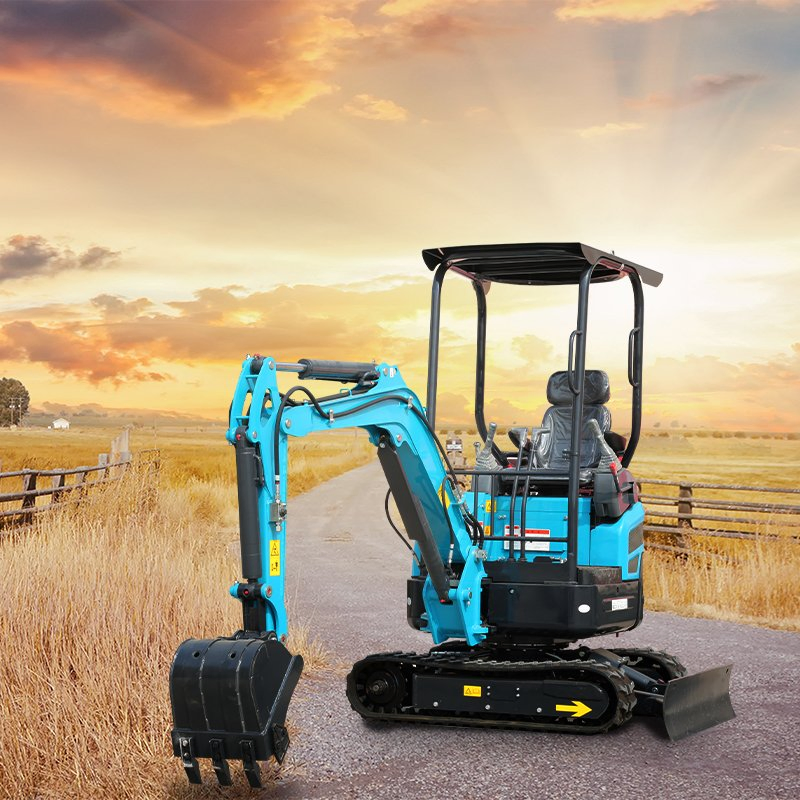

TE 18S Mini Excavator Low noise, low fuel consumption, high efficiency.The TE18S model digger is a Tailless model mini excavator, Zero tail excavator low fuel consumption, flexible and convenient operation, The TE18S model bagger adopts Kubota D902 diesel engine, meets Euro V and EPA4 emission standards, meets environmental protection requirements, Low noise, Kubota engine parts are universal.The standard configuration is a canopy, which uses four-point support, which is safe and stable. The canopy is detachable, and also can choose to install the cab.

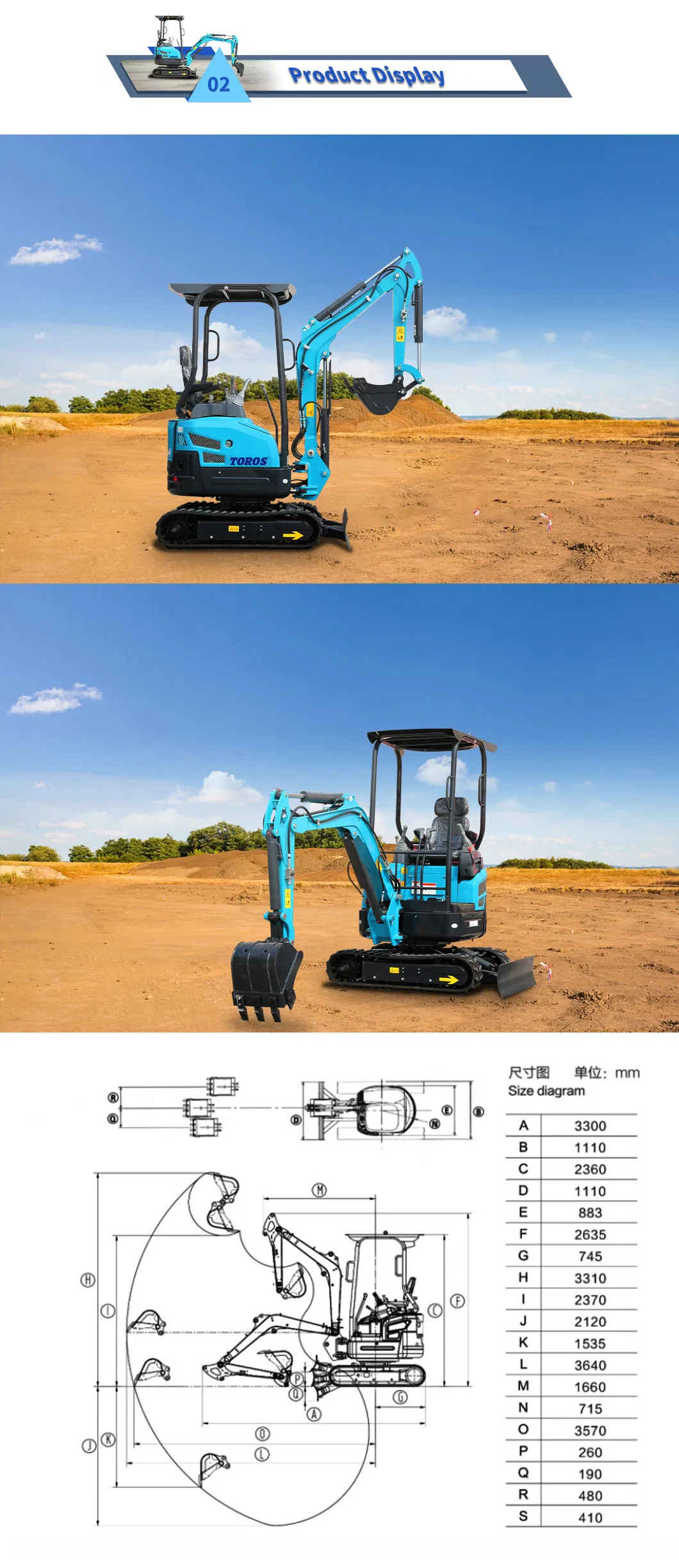

| TE18s Mini crawler excavator | |||
| METRIC | IMPERIAL | ||
| Bucket Capacity | 0.04m³ | Bucket Capacity | 1.41ft³ |
| Excavator Width | 1110mm | Excavator Width | 43.70in |
| Track Length | 1450mm | Track Length | 57.09in |
| Track Width | 230mm | Chassis Ground Clearance | 9.06in |
| Crawler Material | Rubber/steel tracks | Track Width | Rubber/steel tracks |
| Transport Length | 3300mm | Transport Length | 129.92in |
| MAX.Digging Force | 13.8kN | MAX.Digging Force | 13.8kN |
| Gradeability | 58(30)° | Gradeability | 136.4(86)ºF |
| Excavator Height | 2360mm | Excavator Height | 92.91in |
| Overall Dimension( LxWxH) | 3300*1110*2360mm | Overall Dimension( LxWxH) | 129.92*43.70*92.91in |
| Multi-way Valve | Traveling Motor | Multi-way Valve | Traveling Motor |
| Engine | Kubota D902 | Engine | Kubota D902 |
| Engine Power | 11.8kw/2200rpm | Engine Power | 15.82hp/2200rpm |
| Turning Radius | 1660mm | Turning Radius | 65.35in |
| Max.Digging Height | 3310mm | Max.Digging Height | 130.31in |
| Max.Dumping Height | 2370mm | Max.Dumping Height | 93.31in |
| Max.Digging Depth | 2120mm | Max.Digging Depth | 83.46in |
| Max.Digging Radius | 3570mm | Max.Digging Radius | 140.55in |
| Max.Vertical Digging Depth | 1535mm | Max.Vertical Digging Depth | 60.43in |
| Fuel Tank Capacity | 18 L | Fuel Tank Capacity | 3.96UK gal |
| Weight | 1550kg | Weight | 3417lb 2.65oz |
| Swing Motor | Hydraulic Pump | Swing Motor | Hydraulic Pump |
