Factory Sale 2000kg Small Digger/Excavadora/Excavator

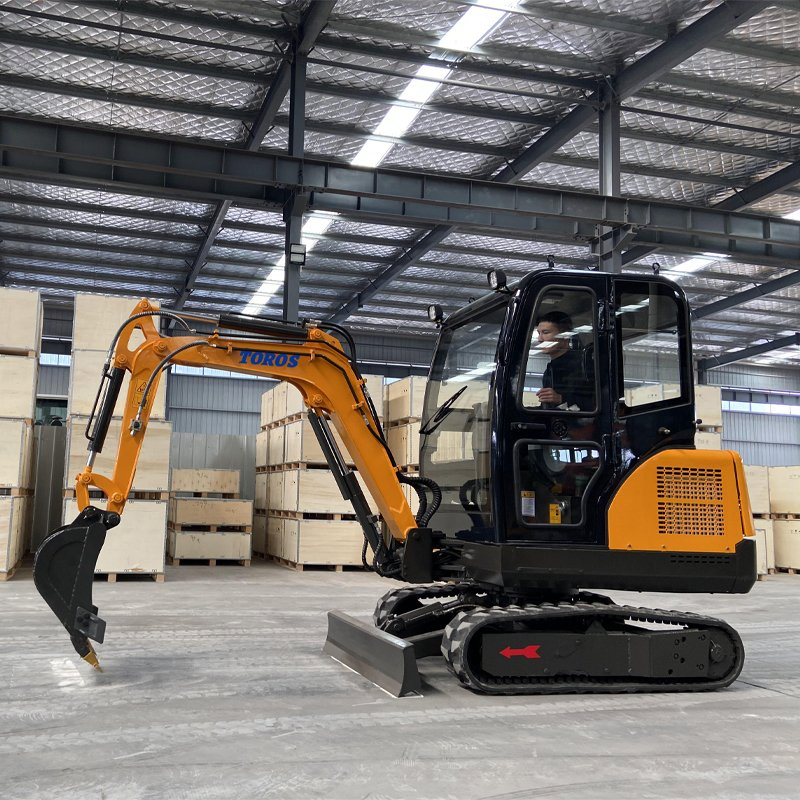

TE20 mini excavator first-class configuration Fully functional.
TE20 mini excavator using three-cylinder water-cooled engine and fully upgraded hydraulic system, lower fuel consumption, higher productivity; Hydraulic pilot, bringing more comfortable and smoother operating experience; Tail-shaped design, adapt to a harsh working environment, has a more stable body, ensuring construction Safety; More stringent material selection, using better three filters and hydraulic pumps, which extend the service life and reduce repair and maintenance costs. This excavator can split the mountain, it also can digging the canal, real realize versatility for amphibious use. One set machine can be customized, regardless of configuration, auxiliary equipment, or color, we will 100% meet your needs.

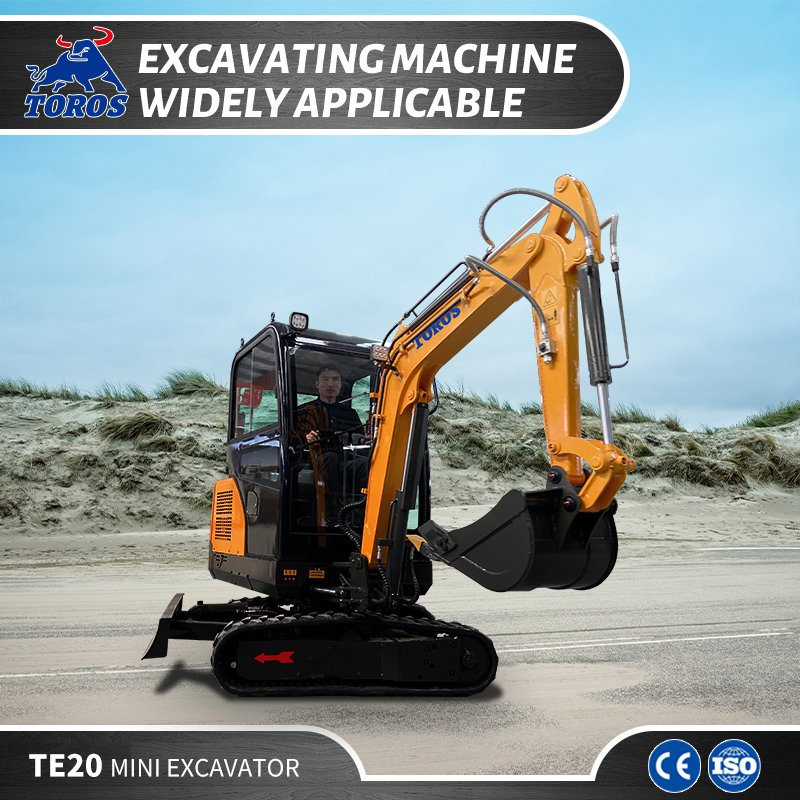

TE20 Mini Crawler excavator
METRIC		IMPERIAL
Bucket Capacity	0.06m³	Bucket Capacity	2.12ft³
Excavator Width	1060mm	Excavator Width	41.73in
Track Length	1900mm	Track Length	74.8in
Chassis Ground Clearance	230mm	Chassis Ground Clearance	9.06in
Track Width	230mm	Track Width	9.06in
Volume of fuel tank	26L	Volume of fuel tank	5.72UK gal
Gradeability	30°	Gradeability	86ºF
Transport Length	3600mm	Transport Length	141.73in
Excavator Height	2200mm	Excavator Height	86.61in
Overall Dimension ( LxWxH)	360010602200mm	Overall Dimension ( LxWxH)	141.7341.7386.61in
Multi-way Valve	Traveling Motor	Multi-way Valve	Traveling Motor
Engine	LAIDONG / YANMAR	Engine	LAIDONG / YANMAR
Engine Power	18.1kw/2200rpm 19.6KW/2300	Engine Power	24.27hp/2200rpm 26.28hp/2300rpm
Turning Radius	1150mm	Turning Radius	45.28in
Max.Digging Height	3400mm	Max.Digging Height	133.86in
Max.Dumping Height	2200mm	Max.Dumping Height	86.61in
Max.Digging Depth	2100mm	Max.Digging Depth	82.68in
Max.Digging Radius	3300mm	Max.Digging Radius	129.92in
Max.Vertical Digging Depth	2000mm	Max.Vertical Digging Depth	78.74in
MAX.Digging Force	14KN	MAX.Digging Force	14KN
Weight	1900kg	Weight	4188lb 12.5oz
EATON Swing Motor	Tianji Hydraulic Pump	EATON Swing Motor	Tianji Hydraulic Pump
