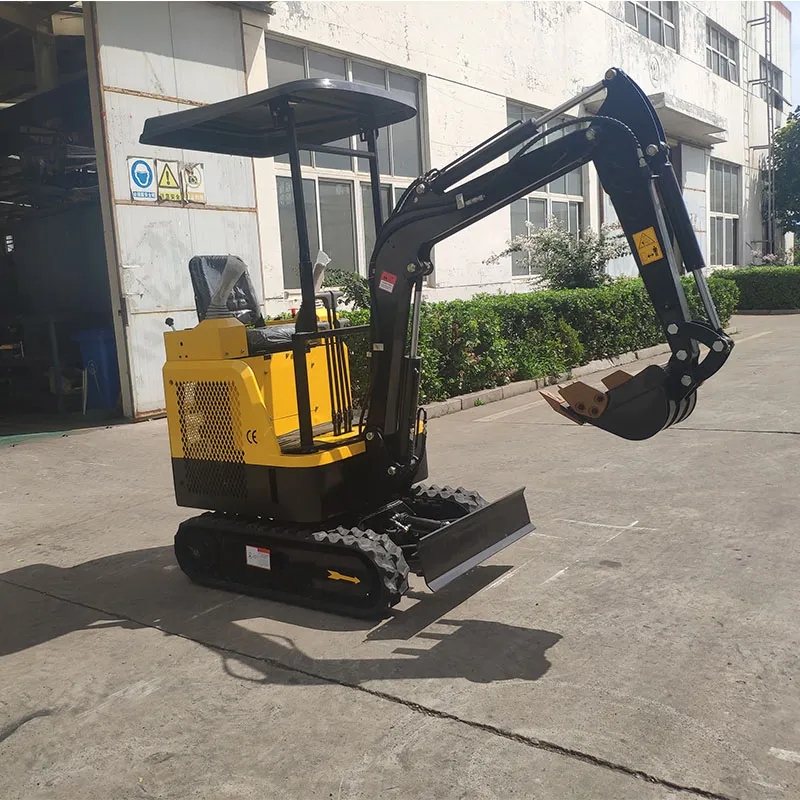

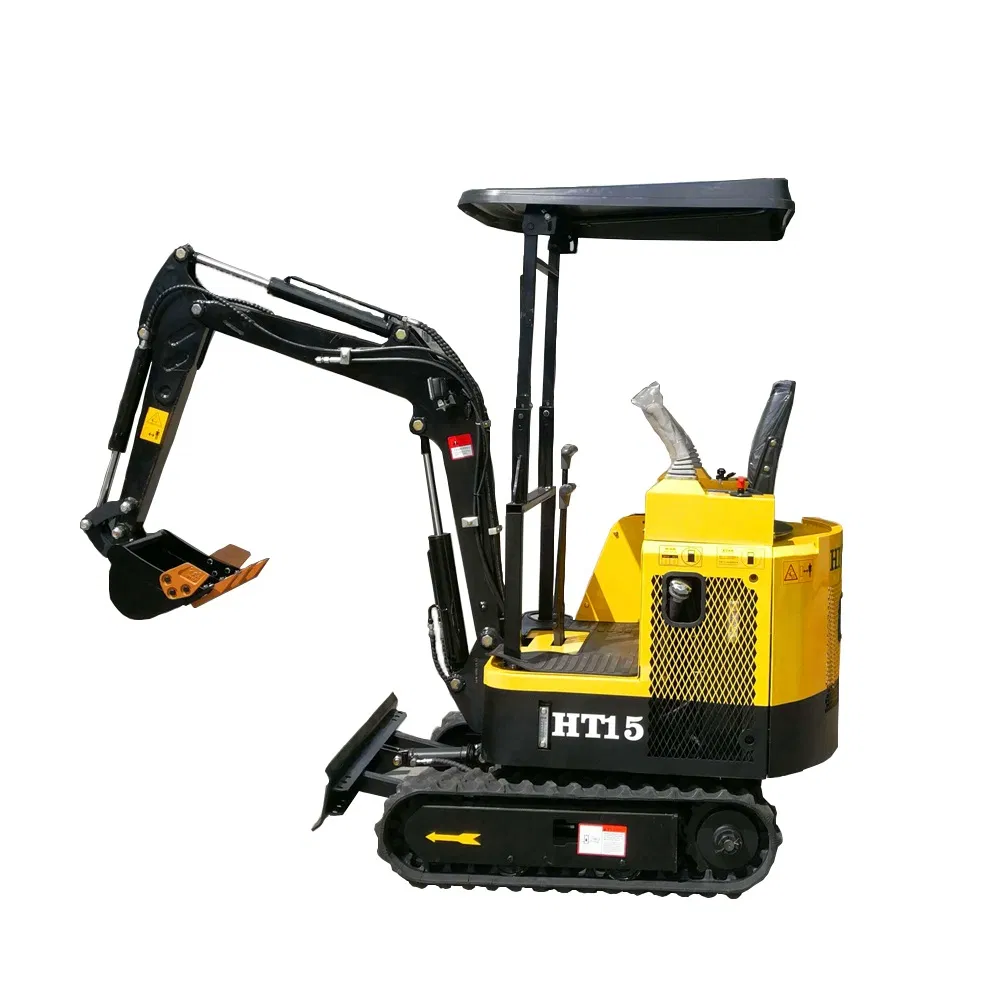

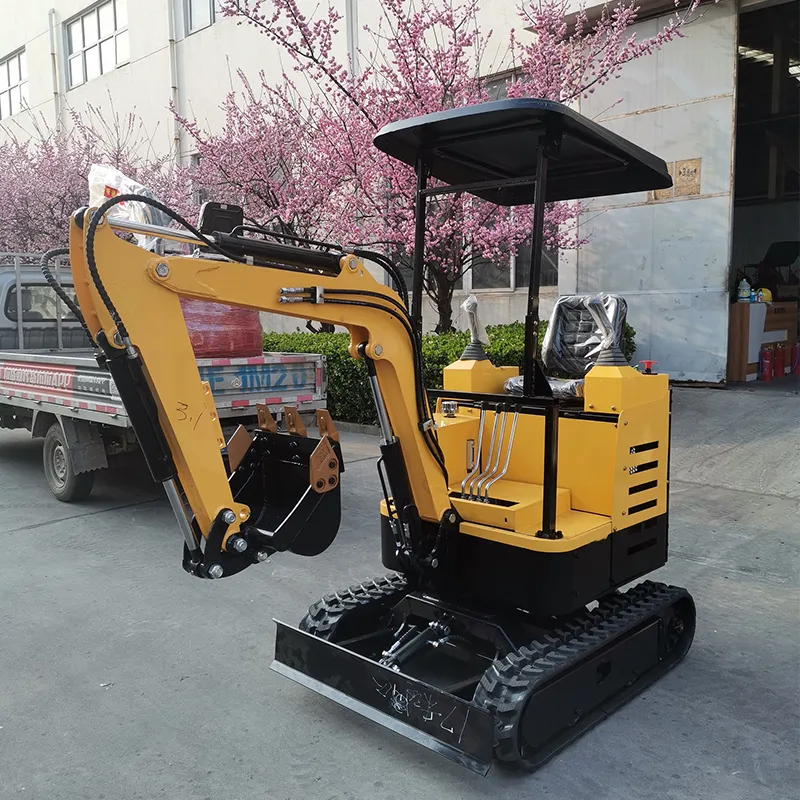

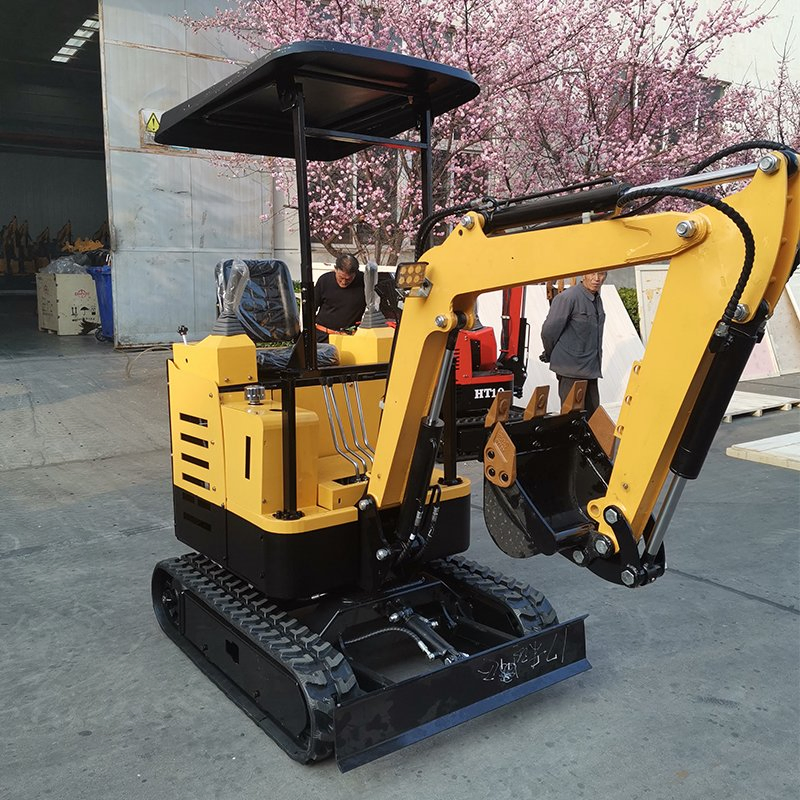

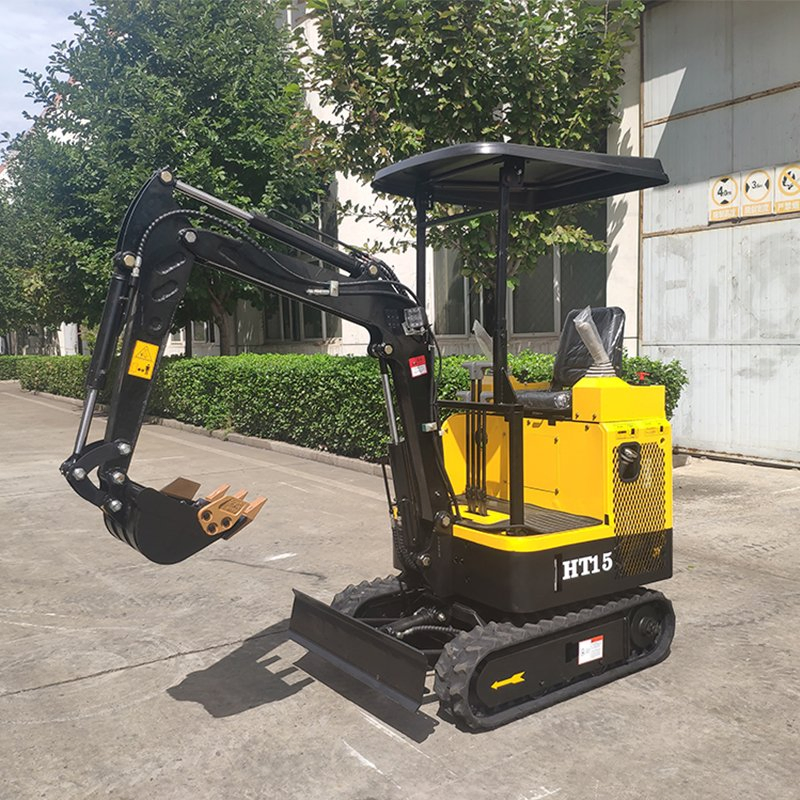

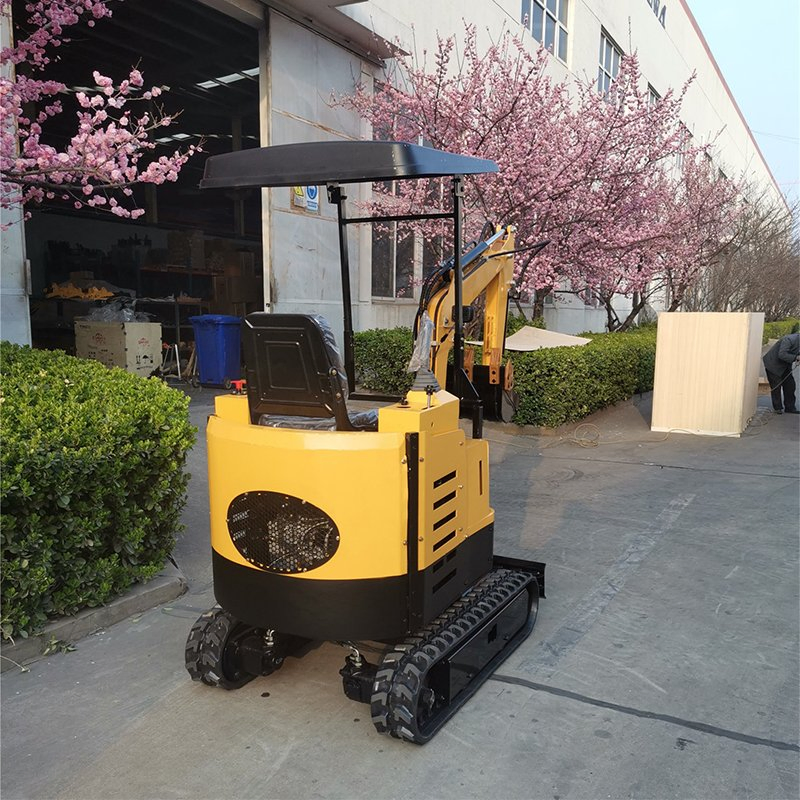

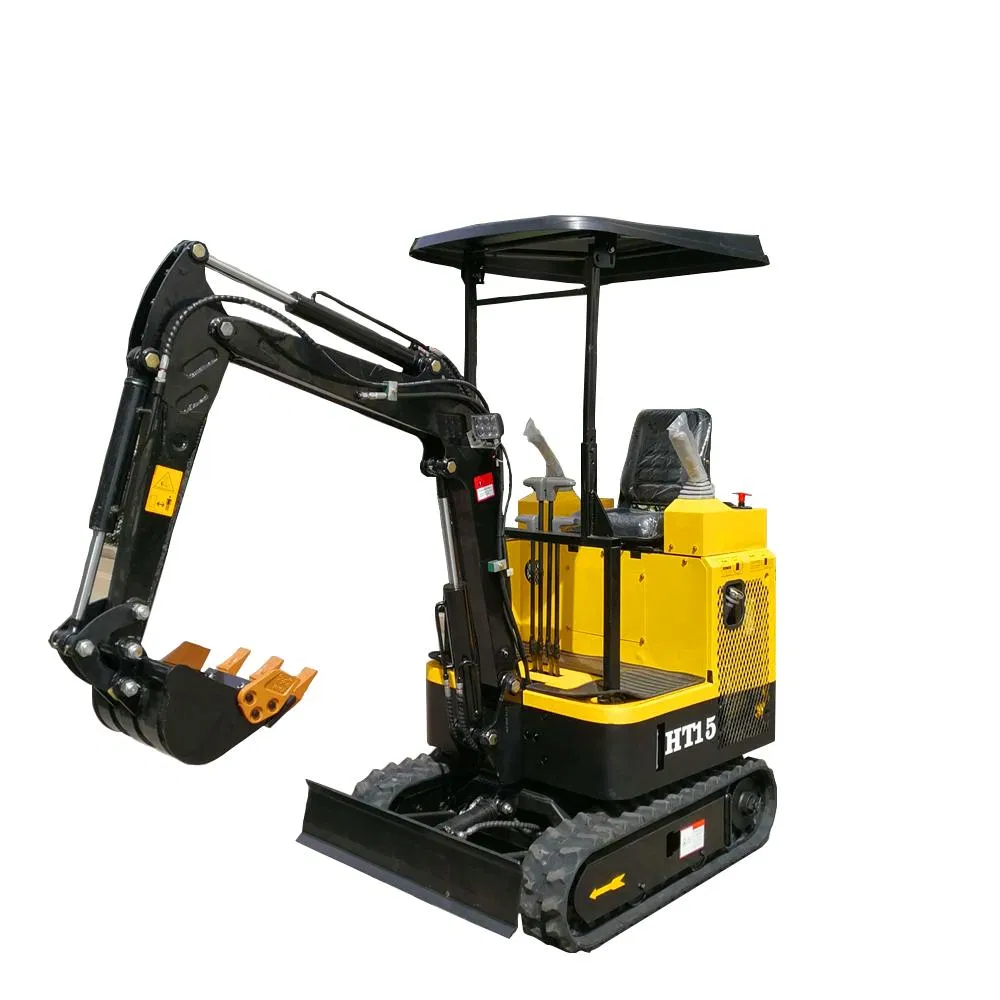

Hot Sale 1.5 Ton Micro Excavator for Sale Mini Crawler Excavator with Bucket Mini Excavator
China 1.5 ton hydraulic crawler mini excavator 1500kg hydraulic mini excavator with competitive prices --CE , ISO EPA , Euro 51) Simple structure and compact design ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operati......
Send Inquiry
Product Description
China 1.5 ton hydraulic crawler mini excavator
1500kg hydraulic mini excavator with competitive prices --CE , ISO EPA , Euro 5
1) Simple structure and compact design ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5) Small invest, quick return.
| DETIALS | |
Operating Weight | 1500kg |
Digging bucket capacity | 0.025cbm/120kg |
Bucket width | 380mm |
Engine | CHANGCHAI OR KOOP |
Bore stroke | Double cylinder |
Rated power | 14 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN(OMS-2450) |
Travel speed | 1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2800x950x1490 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |
