Product Description
Hot Sale China 3.3 Ton 3.3t Cheap Kubota/YanMar Engine Mini Cabin Excavator Digger with Closed Cabin/Hydraulic/Crawler/CE/Construction

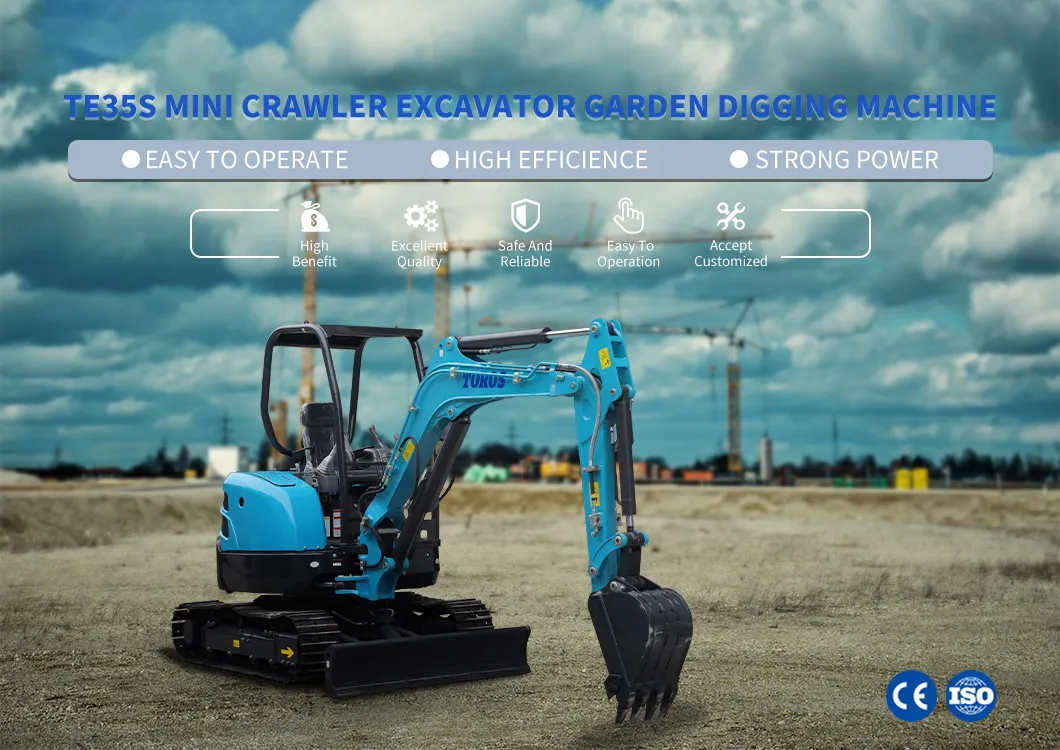

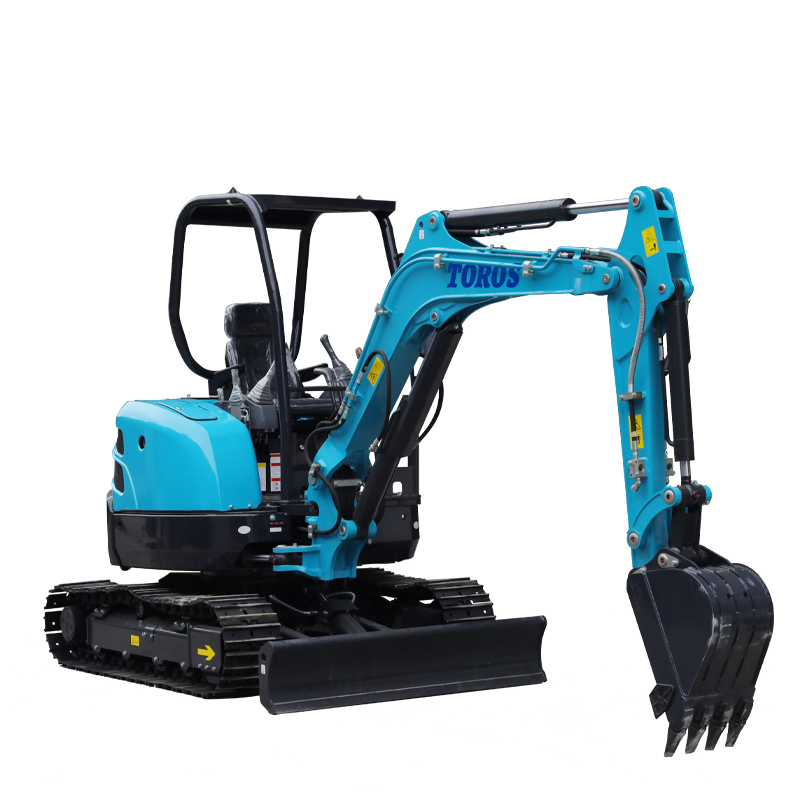

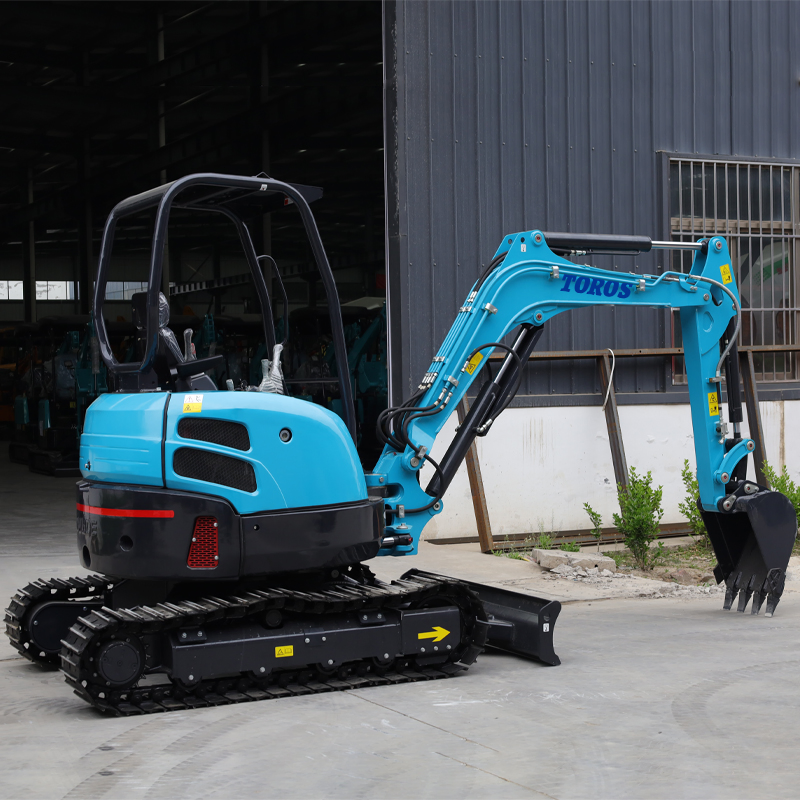

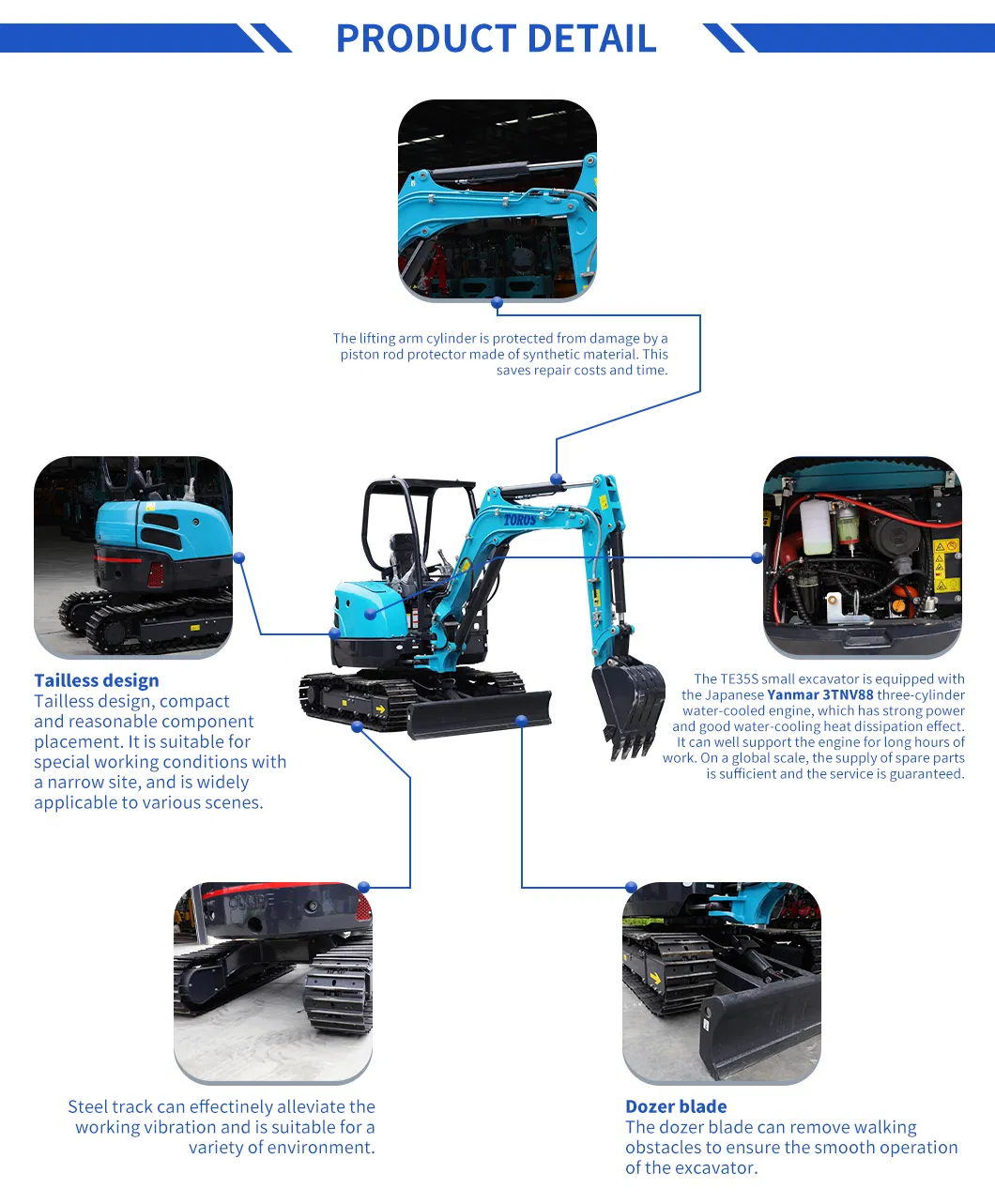

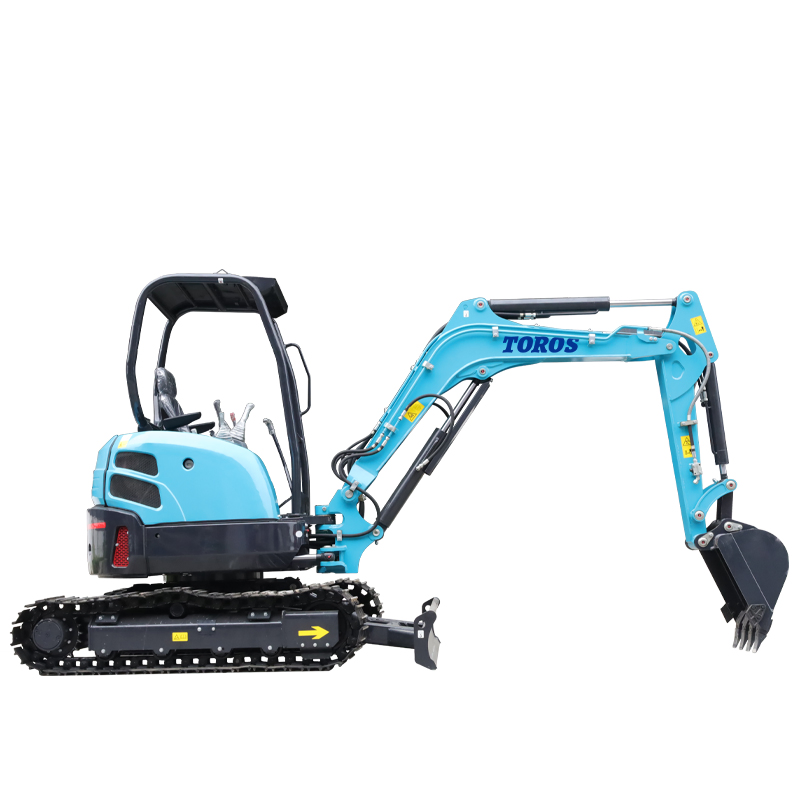

TE35S MINI CRAWLER EXCAVATOR GARDEN DIGGING MACHINETE35S small excavator is equipped with the Japanese Yanmar 3TNV88 three-cylinder water-cooled engine, which has strong power and good water-cooling heat dissipation effect. It can well support the engine for long hours of work. On a global scale, the supply of spare parts is sufficient and the service is guaranteed.

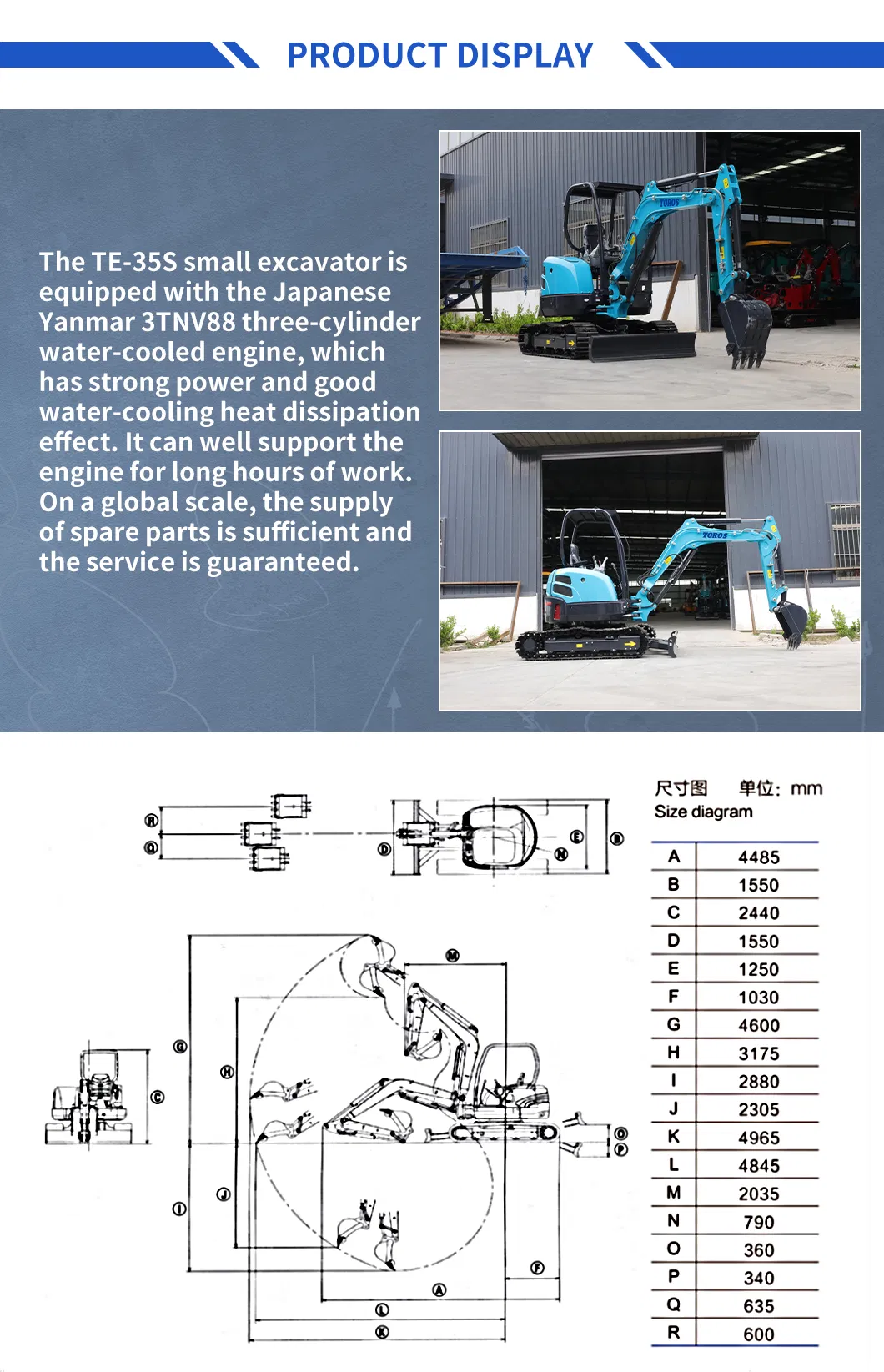

| TE35S Mini Crawler excavator | |||
| METRIC | IMPERIAL | ||
| Bucket Capacity | 0.09m³ | Bucket Capacity | 3.18ft³ |
| Excavator Width | 1550mm | Excavator Width | 61.02in |
| Track Length | 2100mm | Track Length | 82.68in |
| Chassis Ground Clearance | 290mm | Chassis Ground Clearance | 11.42in |
| Crawler Material | Rubber/steel tracks | Crawler Material | Rubber/steel tracks |
| Track Width | 300mm | Track Width | 11.81in |
| MAX.digging Force | 26.5 KN | MAX.digging Force | 26.5 KN |
| Gradeability | 30° | Gradeability | 86ºF |
| Excavator Height | 2440mm | Excavator Height | 96.06in |
| Overall Dimension( LxWxH) | 4485*1550*2440mm | Overall Dimension( LxWxH) | 176.57*61.02* 96.06in |
| Taifeng Multi-way Valve | Two-speed Traveling Motor | Taifeng Multi-way Valve | Two-speed Traveling Motor |
| Engine | YANMAR 3TNV88 | Engine | YANMAR 3TNV88 |
| Engine Power | 19.6kw/2400rpm | Engine Power | 26.28hp/2400rpm |
| Turning Radius | 2035mm | Turning Radius | 80.12in |
| Max.Digging Height | 4600mm | Max.Digging Height | 181.10in |
| Max.Dumping Height | 3175mm | Max.Dumping Height | 125in |
| Max.Digging Depth | 2880mm | Max.Digging Depth | 113.39in |
| Max.Digging Radius | 4845mm | Max.Digging Radius | 190.75in |
| Max.Vertical Digging Depth | 2305mm | Max.Vertical Digging Depth | 90.75in |
| Fuel Tank Capacity | 40L | Fuel Tank Capacity | 8.80UK gal |
| Weight | 3375kg | Weight | 7440lb 9.63oz |
| Swing Motor | Taifeng Plunger Hydraulic Pump | Swing Motor | Taifeng Plunger Hydraulic Pump |
