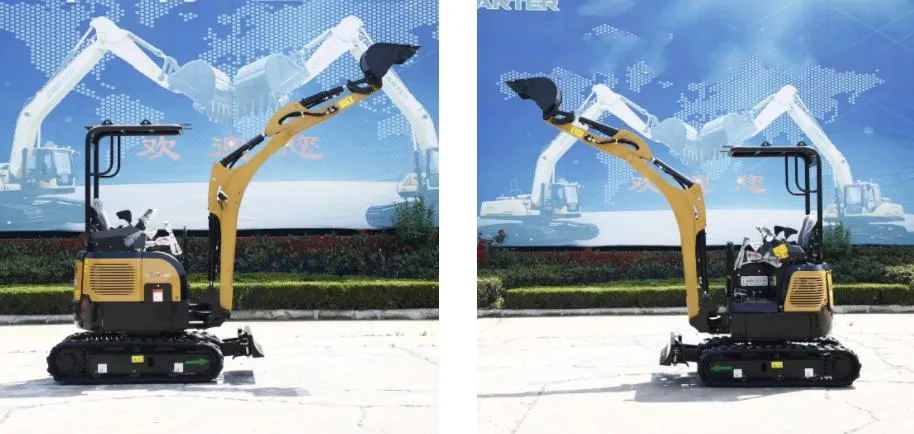

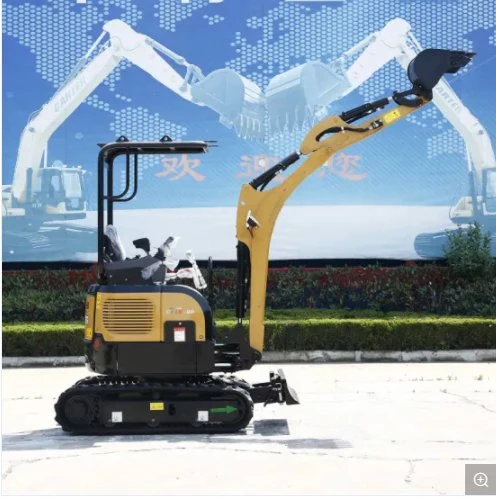

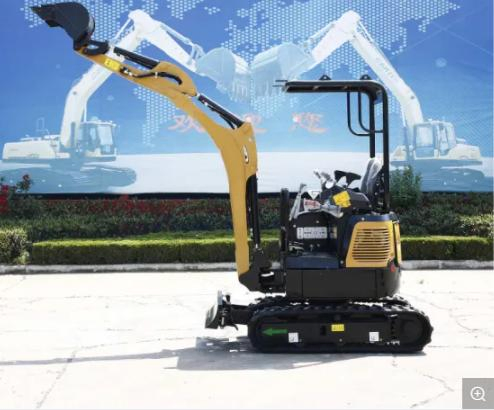

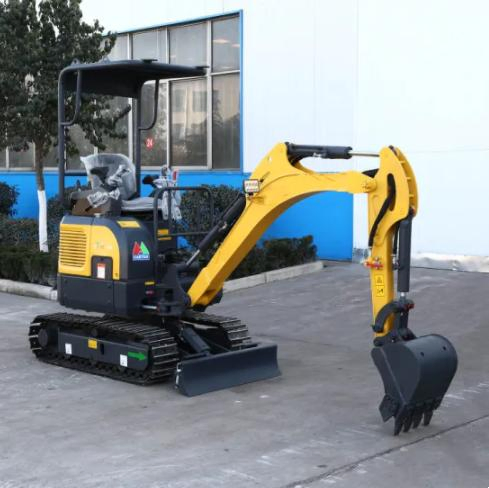

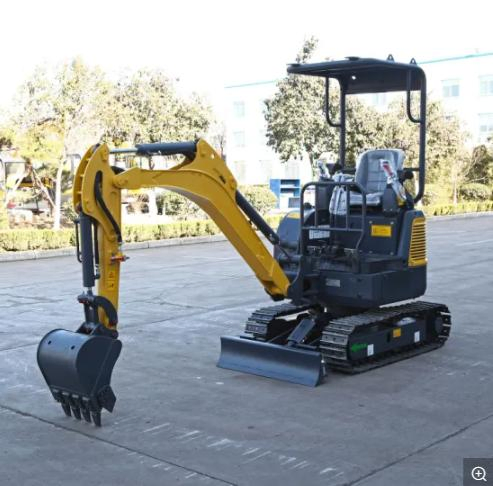

Hq16-9be Euro5 EPA4 Mini Excavator (1.7ton) with Extension Track
1.Model Model NO.HQ16-9BESizeMiniCertificationCE, ISO9001: 2000ConditionNewTrademarkHQOriginChinaModelHQ16-9BHQ16-9BE(Euro5 & EPA4)Operating weight1.71.7Bucket capacity0.040.04Engine modelYANMARYANMARRated power (kw/r/min)10/220011.2/2400Hydraulic pump modelNACHI, JapanChina BrandMax.flow (L/min......
Send Inquiry
Product Description
1.Model
Model NO.
HQ16-9BE
Size
Mini
Certification
CE, ISO9001: 2000
Condition
New
Trademark
HQ
Origin
China
| Model | HQ16-9B | HQ16-9BE (Euro5 & EPA4) |
| Operating weight | 1.7 | 1.7 |
| Bucket capacity | 0.04 | 0.04 |
| Engine model | YANMAR | YANMAR |
| Rated power (kw/r/min) | 10/2200 | 11.2/2400 |
| Hydraulic pump model | NACHI, Japan | China Brand |
| Max.flow (L/min) | 49.5 | 43.2 |
| Working pressure (Mpa) | 20.6 | 21 |
| Control valve model | Hydro Control, Italy | China Brand |
| Swing motor model | EATON | EATON |
| Travel motor model | EATON or LKC | EATON or LKC |
| Fuel tank capacity (L) | 22 | 22 |
| Hydraulic oil tank capacity (L) | 21 | 21 |
| Travel speed (km/h) | 2.1/4.2 | 2.1/4.5 |
| Swing speed (r/min) | 8.5 | 10.5 |
| Max. climbing degree (%) | 58 | 58 |
| Arm digging force | 8.6 | 9.5 |
| Bucket digging force (KN) | 13.5 | 14.5 |
| Average grounding pressure (Kpa) | 28 | 28 |
| A-Overall length (mm) | 3707 | 3707 |
| B-Overall width (mm) | 1000 | 1000 |
| C-Overall height (to top of boom)(mm) | 1185 | 1185 |
| D-Overall height (to top of cab)(mm) | 2424 | 2424 |
| E-Counterweight ground clearance(mm) | 484 | 484 |
| F-Min. ground clearance (mm) | 175 | 175 |
| G-Tail swing radius (mm) | 665 | 665 |
| J-Track length (mm) | 1210 | 1210 |
| J-Track length (mm) | 1588 | 1588 |
| K-Track gauge (mm) | 760 (1090 after extension) | |
| L-Track width (mm) | 990 (1320 after extension) | |
| M-Track shoe width (mm) | 230 | 230 |
| N-Turntable width (mm) | 1000 | 1000 |
| O-Max. digging height (mm) | 3327 | 3327 |
| P-Max. dumping height (mm) | 2361 | 2361 |
| Q-Max. digging depth (mm) | 2110 | 2110 |
| R-Max. vertical wall digging depth (mm) | 1600 | 1600 |
| T-Max. digging reach (mm) | 3947 | 3947 |
| U-Max. digging reach at ground level (mm) | 3889 | 3889 |
| V-Min. swing radius (mm) | 1625 | 1625 |
| X-Distance between center of rotation and tail length (mm) | 665 | 665 |
| Y-Track shoe thickness (mm) | 5 | 5 |
| Z-Height of counterweight (mm) | 794 | 794 |
| A1-Ground length (in transportion)(mm) | 2611 | 2611 |
| Arm length (mm) | 950 | 950 |
| Boom length (mm) | 1830 | 1830 |
3.Certificate of Haiqin Machinery

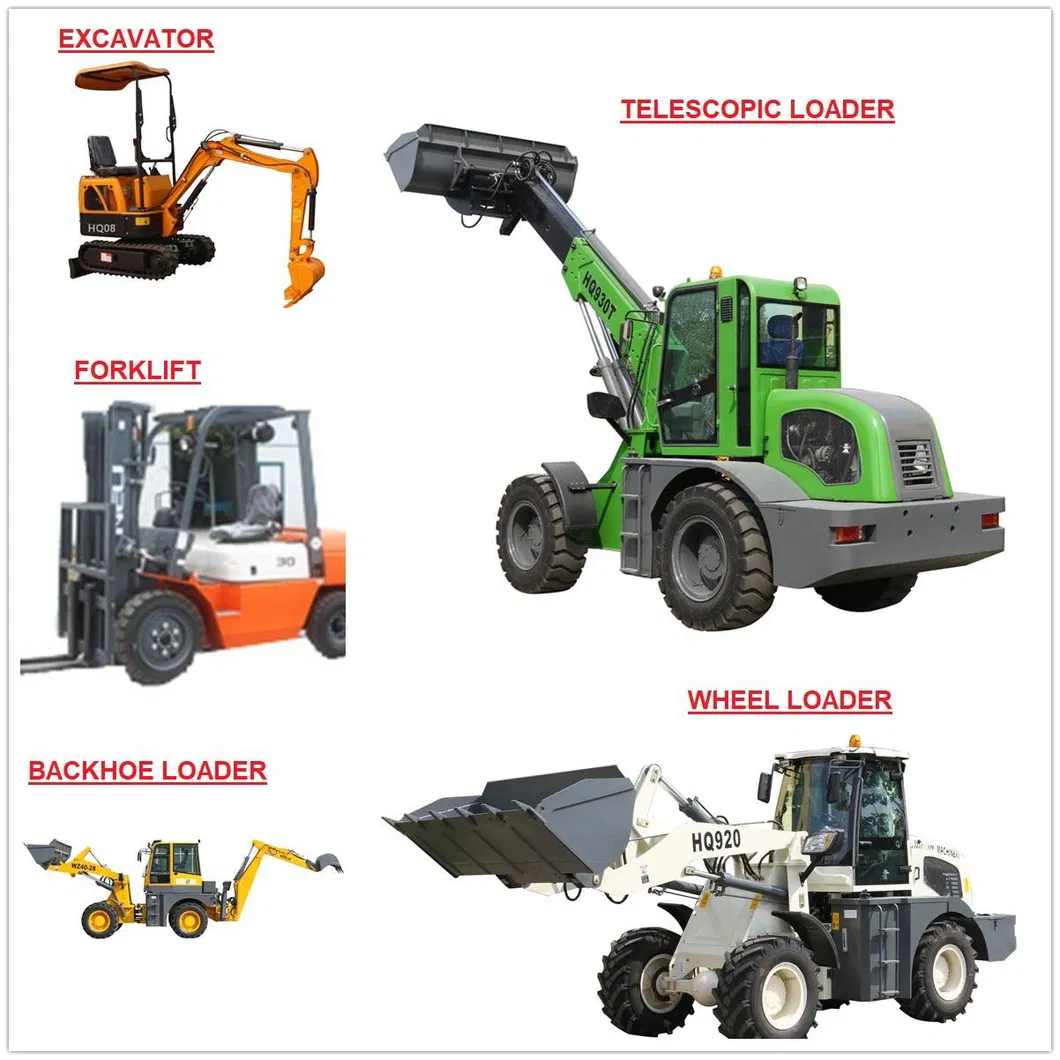

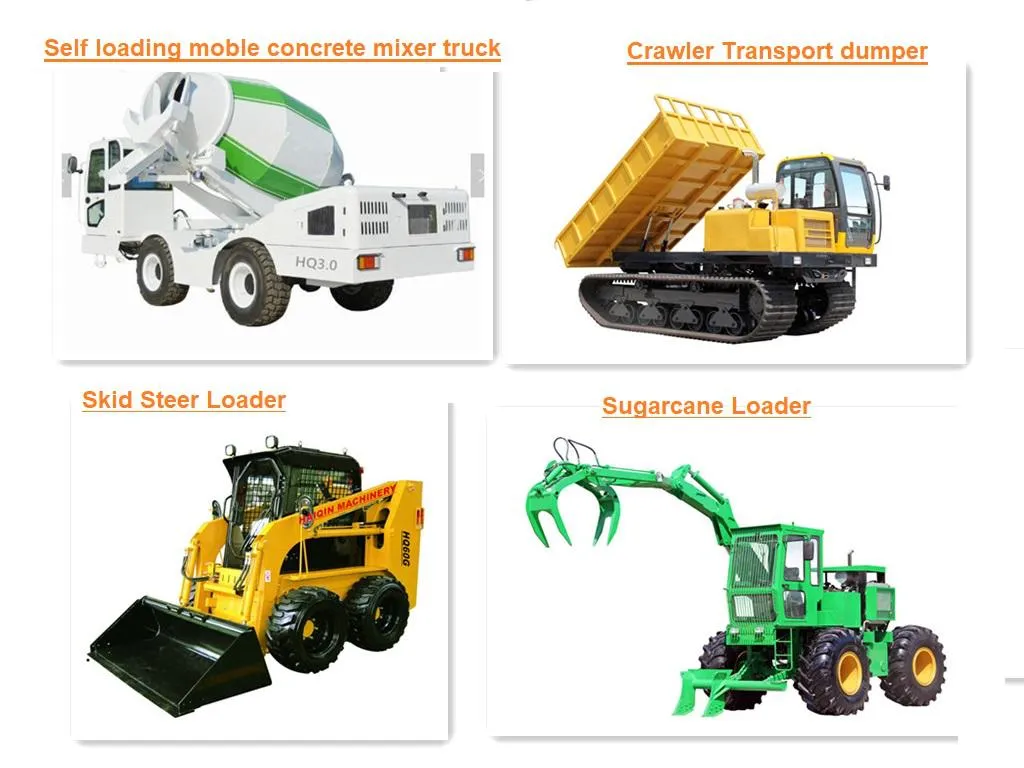

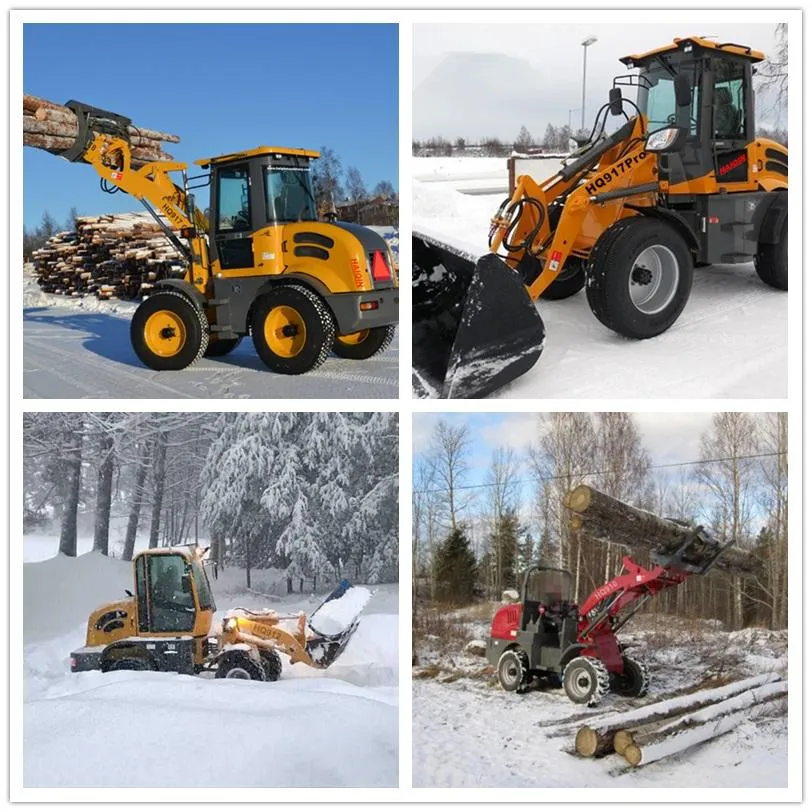

4.MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
5.Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
