Hydraulic Crawler Cabin 2 Ton Mini Digger for Garden
CE 1.8Ton 1.9Ton Hydraulic Cabin Mini Crawler Excavator for Construction Product DescriptionJT18 mini excavator with cab is a compact, lightweight, economic and multi-purpose excavator. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are wi......
Send Inquiry
Product Description
CE 1.8Ton 1.9Ton Hydraulic Cabin Mini Crawler Excavator for Construction
Product Description

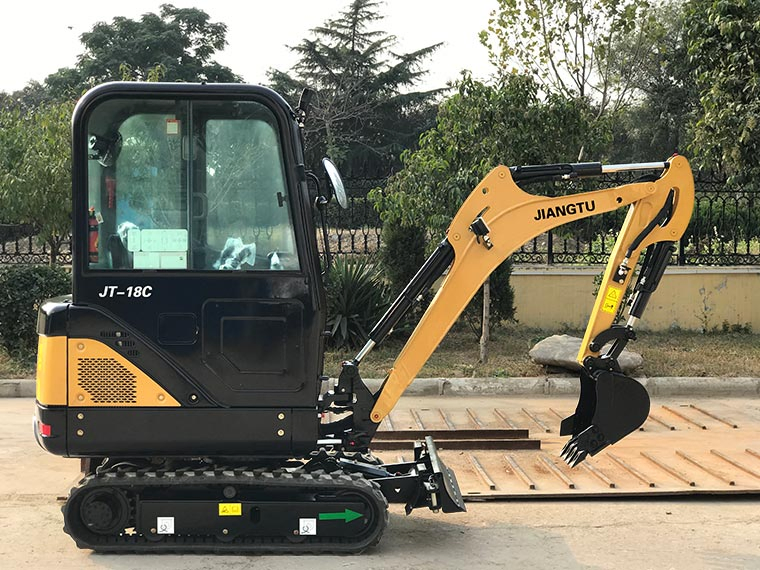

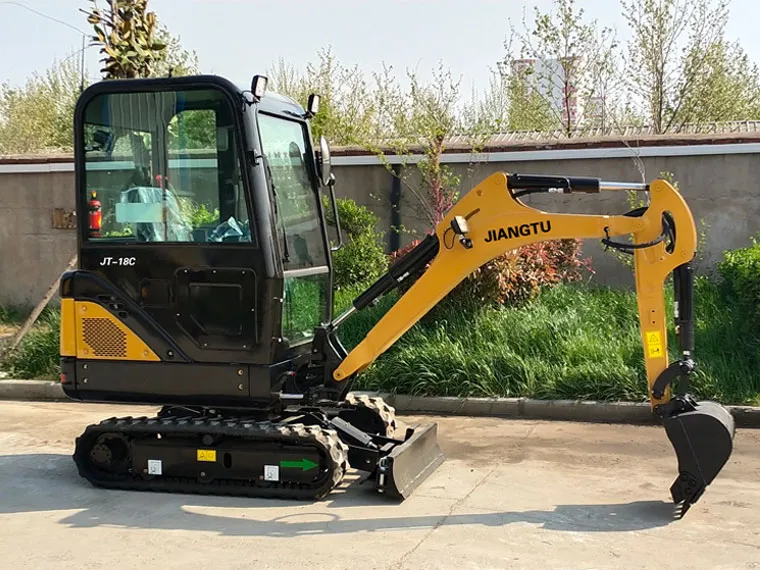

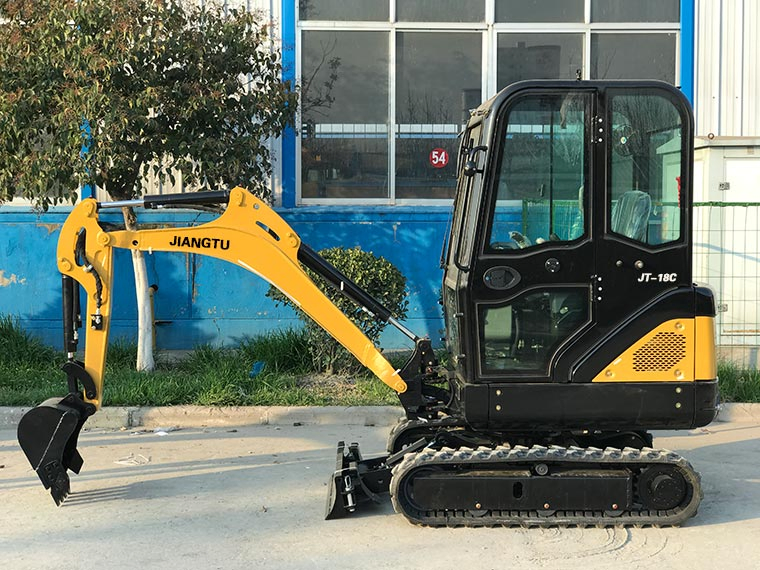

JT18 mini excavator with cab is a compact, lightweight, economic and multi-purpose excavator. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, home garden use and so on.
Parameters

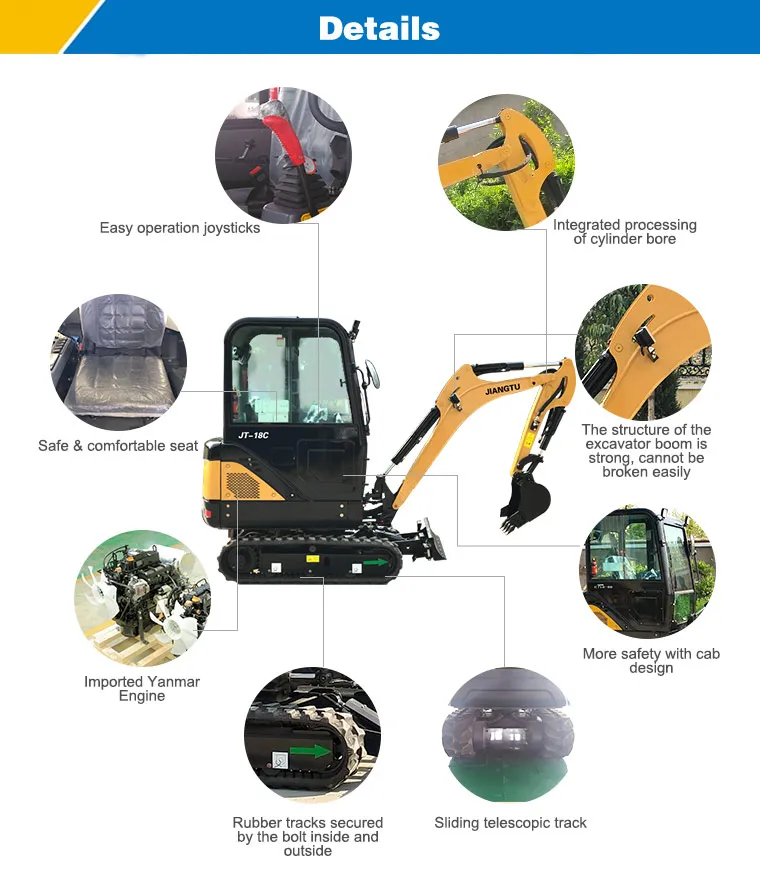

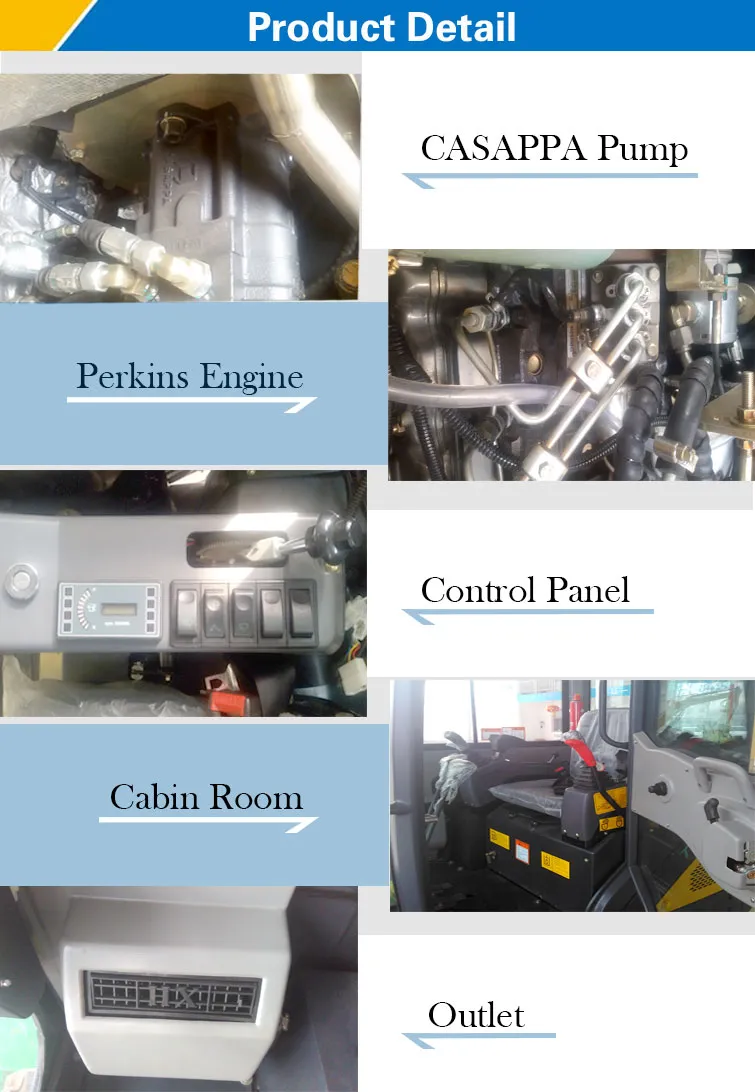

Main Features

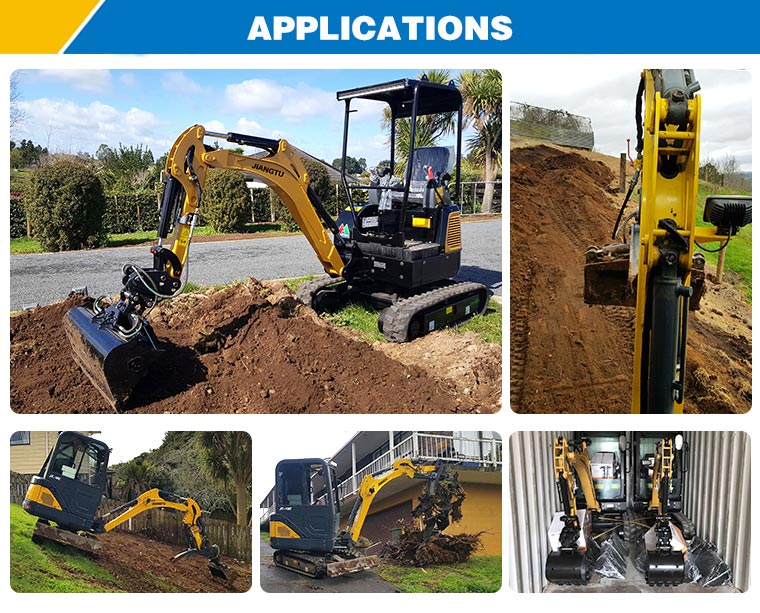

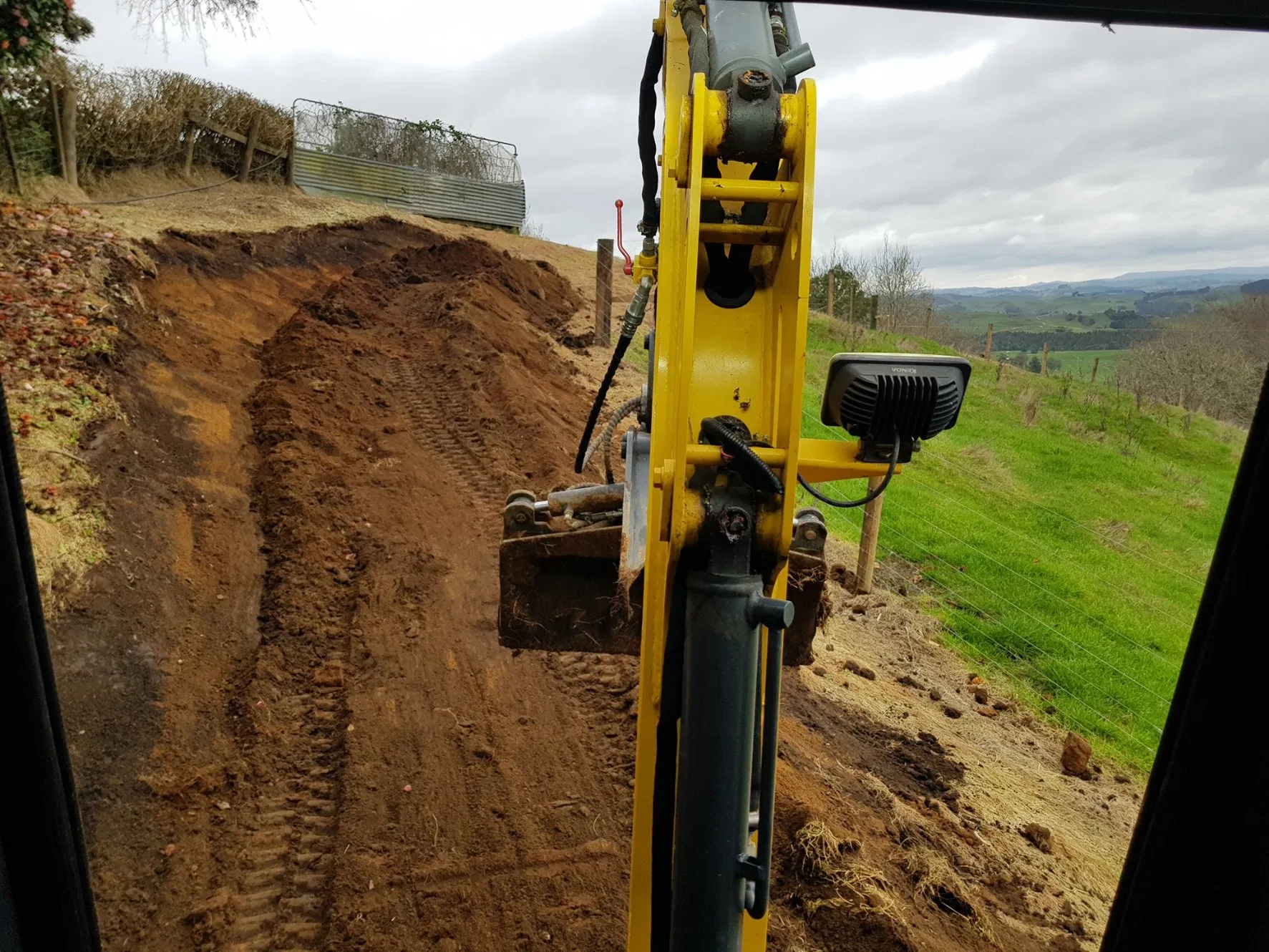

Applications

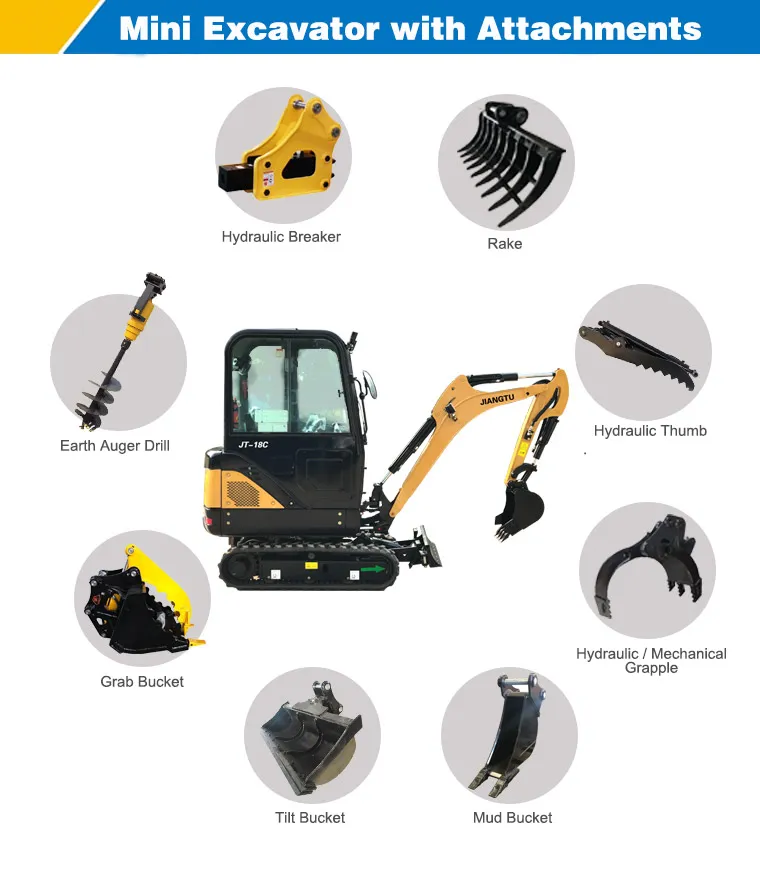

Attachments for Mini Excavator

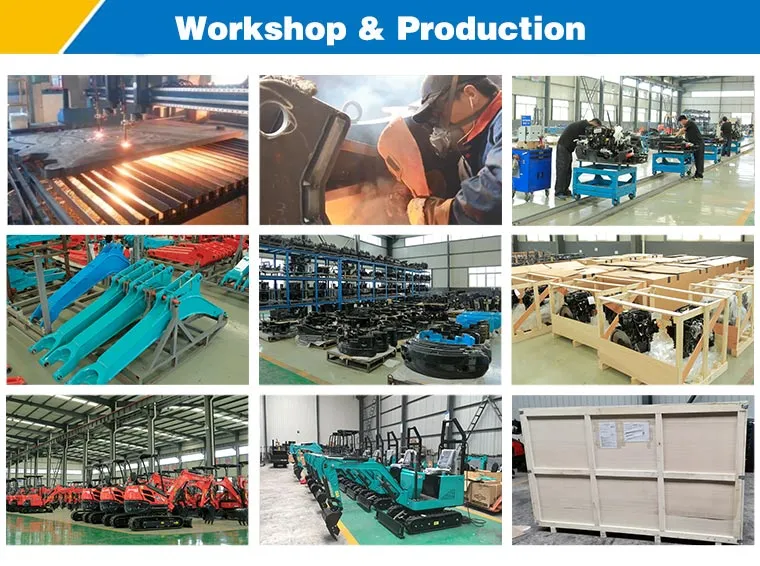

Production Process

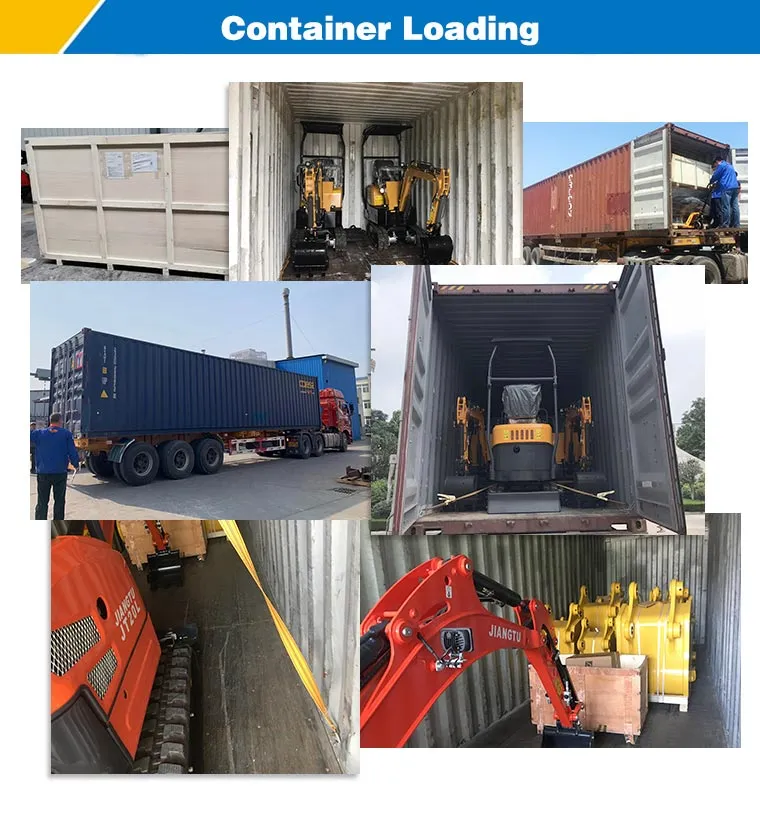

Packing & Delivery

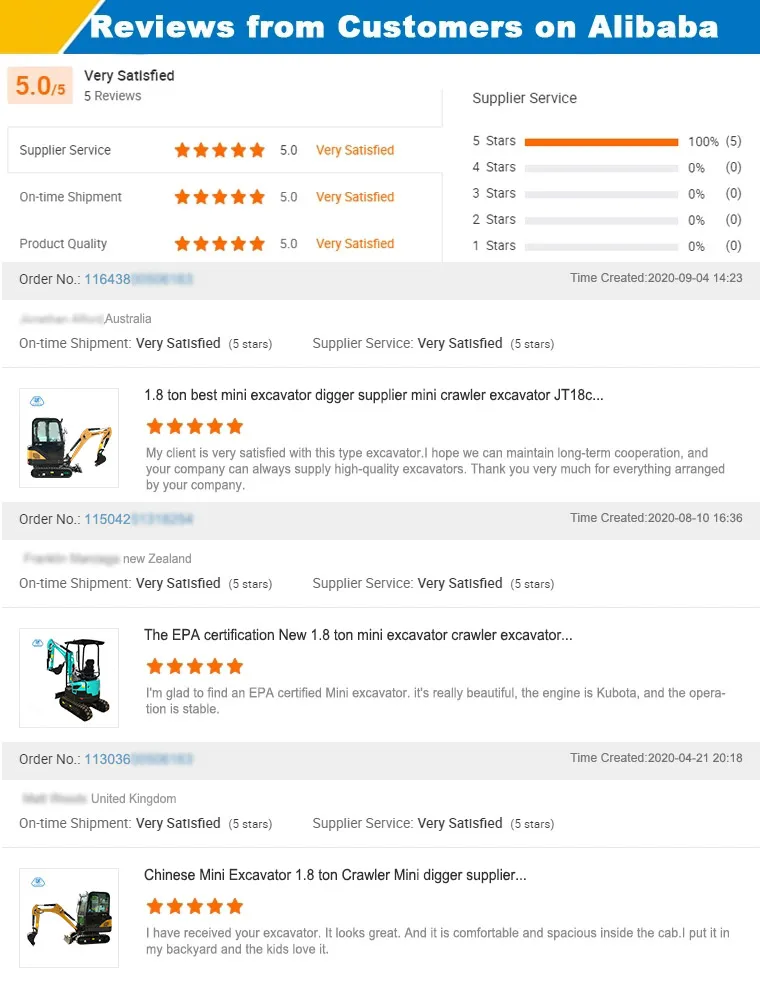

Reviews from Customers
Company Information
With nearly 10 years' sale and service experience, the company continually invents and develops products to provide customers with multiple choices of high quality. Now Yantai Jiangtu Mechanical Equipment Co., Ltd is a leading excavator & attachments manufacturer in China. Main products includes mini excavator, quick hitch couplers, hydraulic plate compactor, multifunction grapples, buckets,thumb, ripper, breaker & spare parts, etc. Its uncompromising commitment to high quality and thoughtful service wins us a good reputation and more coming partners.
Product Description
JT18 mini excavator with cab is a compact, lightweight, economic and multi-purpose excavator. It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, home garden use and so on.
Parameters
| JT18C Mini Excavator Specification | |||||||||||||||||||||||
| Engine | Travel System | ||||||||||||||||||||||
| Model | Yanmar 3TNV76 | Travel motors | Commer, Italy | ||||||||||||||||||||
| Type | Direct injection water cooled natural intake | Support roller quantities | 2×3 | ||||||||||||||||||||
| Carrier roller quantities | No | ||||||||||||||||||||||
| No. of cylinder | 3 | Travel shoes | No | ||||||||||||||||||||
| Bore and stroke | 77x81(mm) | Travel speed | 2.7/5.0(km/h) | ||||||||||||||||||||
| Displacement | 1.131L | Drawbar pulling force | 11.7kN | ||||||||||||||||||||
| Power output | 14.7kw/2200rpm | Gradeability | 58%(300) | ||||||||||||||||||||
| Max. torque | 65N.m/2000rpm | Ground clearance | 160mm | ||||||||||||||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||||||||||||||
| Pump | CASAPPA, Italy | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat | ||||||||||||||||||||
| Type | Axial-piston pump+gear pump | ||||||||||||||||||||||
| Max. discharge flow | 2x20.7+15.1(L/min) | ||||||||||||||||||||||
| Max. discharge pressure | |||||||||||||||||||||||
| Boom, arm and bucket | 21 MPa | Voltage | 12V | ||||||||||||||||||||
| Travel circuit | 12 MPa | Batteries | 1X12V | ||||||||||||||||||||
| Swing circuit | 9 MPa | Battery capacity | 60Ah | ||||||||||||||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||||||||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ60xΦ35xS440-L770 | ||||||||||||||||||||
| Main control valves | Hydro Control, Italy | Arm cylinder | Φ60xΦ35xS330-L600 | ||||||||||||||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ30xS300-L560 | ||||||||||||||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||||||||||||||
| Swing motor | Eaton, USA | Fuel tank | 28L | ||||||||||||||||||||
| Swing motor type | Axial-piston motor | Cooling system | 8L | ||||||||||||||||||||
| Brake | No | Engine oil | 4.4L | ||||||||||||||||||||
| Parking brake | No | Hydraulic oil tank | 18L Tank Oil Level | ||||||||||||||||||||
| Swing speed | 8.8 r/min | 26L Hydraulic System | |||||||||||||||||||||
| Bucket | |||||||||||||||||||||||
| Type | Backhoe bucket | ||||||||||||||||||||||
| Bucket capacity | 0.04m3 (SAE) | ||||||||||||||||||||||
| Bucket Capacity scope | 0.028-0.095m3 | ||||||||||||||||||||||
| Number of bucket teeth | 4 | ||||||||||||||||||||||
| Bucket width | 450 mm | ||||||||||||||||||||||
| Working ranges | Bitmap | ||||||||||||||||||||||
| Boom length | 1829m | ||||||||||||||||||||||
| A | Max. digging depth | 2071mm | |||||||||||||||||||||
| B | Max. dumping height | 2355mm | |||||||||||||||||||||
| C | Max. digging height | 3243mm | |||||||||||||||||||||
| D | Max. vertical digging depth | 1643mm | |||||||||||||||||||||
| F | Max. digging distance | 3891mm | |||||||||||||||||||||
| G | Max. digging radius at ground level | 3835mm | |||||||||||||||||||||
| H | Min swing radius of work equipment | 1575mm | |||||||||||||||||||||
| Digging Force (ISO6015) | |||||||||||||||||||||||
| Arm length | 950mm | ||||||||||||||||||||||
| A | Bucket digging force | 12.7 KN | |||||||||||||||||||||
| B | Arm digging force | 10.9 KN | |||||||||||||||||||||
| Overall Dimensions | |||||||||||||||||||||||
| A | Overall length | 3867mm | I | Track grounding length | 1210mm | ||||||||||||||||||
| B | Ground contact length(Transportation) | 2347mm | J | Track length | 1588mm | ||||||||||||||||||
| C | Overall height(to top of boom) | 1178mm | K | Track gauge | 760mm | ||||||||||||||||||
| D | Overall width | 1000mm | L | Track width | 990mm | ||||||||||||||||||
| E | Overall height(to top of cab) | 2261mm | M | Track Shoe width | 230mm | ||||||||||||||||||
| F | Counter weight ground clearance | 454mm | O | Bonnet height | 1218mm | ||||||||||||||||||
| G | Min. Ground clearance | 175mm | P | Revolving frame width | 1000mm | ||||||||||||||||||
| H | Tail swing radius | 1072mm | Q | Distance from swing center to tail | 1072mm | ||||||||||||||||||
| Bitmap | |||||||||||||||||||||||
| Operating Weight and Ground Pressure | |||||||||||||||||||||||
| Operating weight includes basic machine | |||||||||||||||||||||||
| Operating weight | 1800kg(with canopy) / 1900 Kg (with cab) | ||||||||||||||||||||||
| Ground pressure | 28 KPa | ||||||||||||||||||||||
Main Features
Applications
Attachments for Mini Excavator
Production Process
Packing & Delivery
Reviews from Customers
Company Information
With nearly 10 years' sale and service experience, the company continually invents and develops products to provide customers with multiple choices of high quality. Now Yantai Jiangtu Mechanical Equipment Co., Ltd is a leading excavator & attachments manufacturer in China. Main products includes mini excavator, quick hitch couplers, hydraulic plate compactor, multifunction grapples, buckets,thumb, ripper, breaker & spare parts, etc. Its uncompromising commitment to high quality and thoughtful service wins us a good reputation and more coming partners.
