Hydraulic Mini Excavator 1500kg with Breaker, Auger, Ripper, Gripper
Construction equipment 1500kg mini excavator small digger crawler excavator MT-15 1500kg digging machine has a beautiful appearance, low fuel consumption, and a wide range of operations. It is suitable for loose land in vegetable greenhouses, landscaping in municipal departments, digging of trees in......
Send Inquiry
Product Description

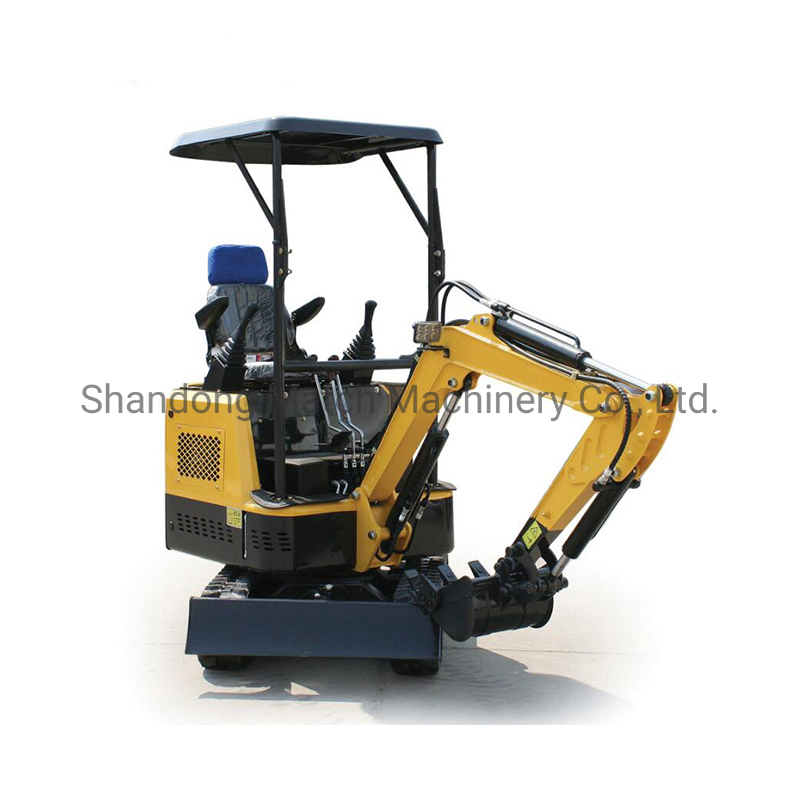

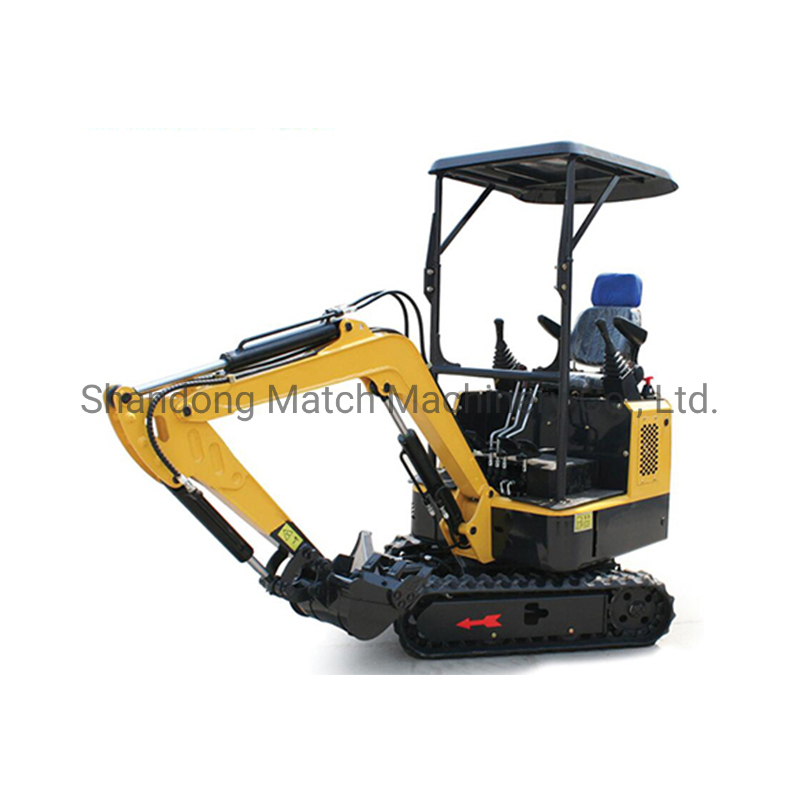

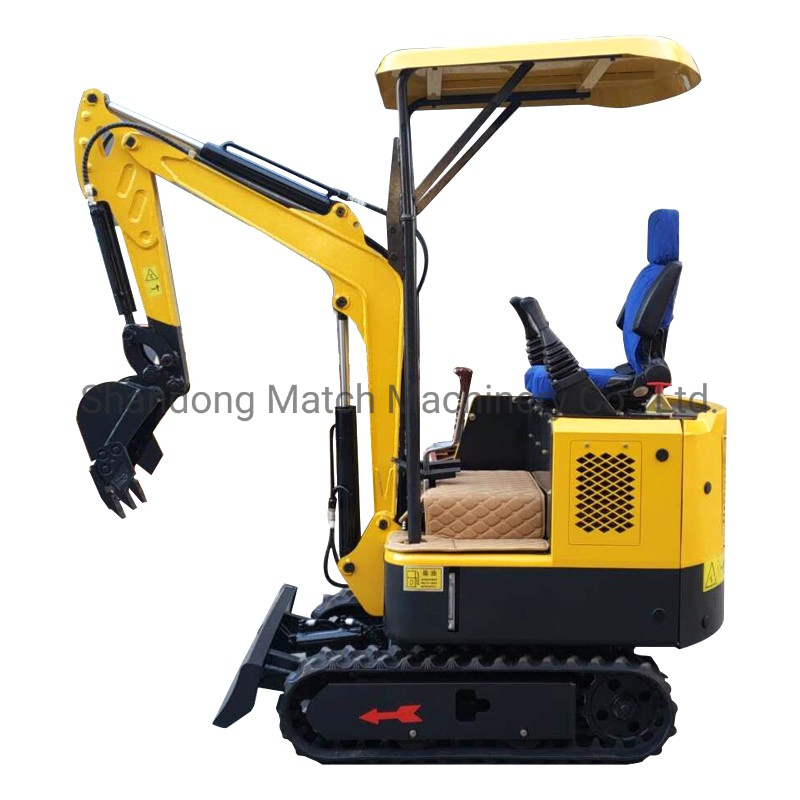

Construction equipment 1500kg mini excavator small digger crawler excavator
MT-15 1500kg digging machine has a beautiful appearance, low fuel consumption, and a wide range of operations. It is suitable for loose land in vegetable greenhouses, landscaping in municipal departments, digging of trees in orchard nursery trees, crushing of concrete pavements, mixing of sand and stone materials, and construction work in narrow spaces. Use quick-change joints, optional rotary drills, breakers, loading hoppers, and grippers to reduce maintenance and operating costs, liberate labor, and increase the degree of mechanization.
| Parameter | |||
| Operating weight | 1500kg | Bucket capacity | 0.025m3 |
| Digging bucket width | 420mm, can add narrow bucket 200mm | Hydraulic Pump | Shimadzu |
| Valve | Beifang | Swing motor | EATON |
| Traveling motor | KOREA DONGHYUN | -- | -- |
| Engine | |||
| Engine | Yanmar 3TNV70 | Rated power | 10kw/2200/r/min |
| Displacement | 0.854L | Bore stroke | Three cylinder, water cool |
| Operating range | |||
| Max. Digging depth | 2150 mm | Max. Digging radius on ground | 2850mm |
| Max. Vertical digging depth | 1650 mm | Min. Rotation radius | 1190 mm |
| Max. Digging height | 2610 mm | Max. Upgrade height of bulldozer blade | 325 mm |
| Max. Dumping height | 2310 mm | Max. Digging depth of bulldozer blade | 175mm |
Attachments for options

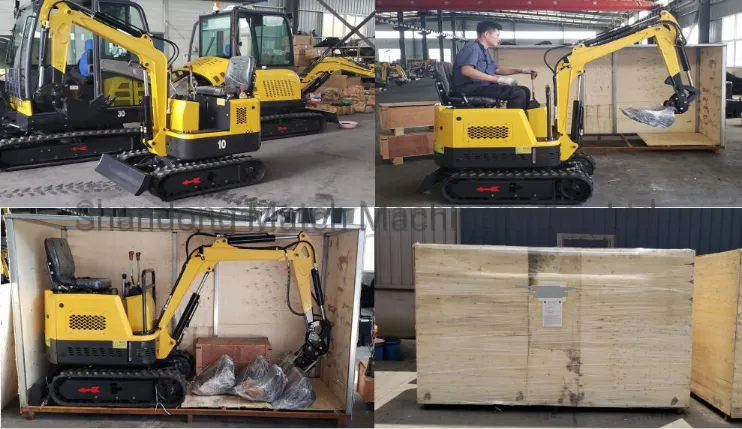

Packing Details
Other product details
