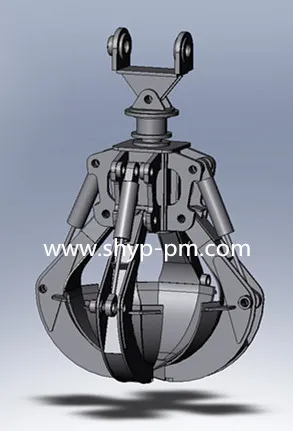

Hydraulic Orange Peels Steel Scrap Grab Bucket for Sany Excavator
The excavator grab is a special hydraulic grab with double peels and orange peels which are connected with excavator by steel. It is mainly used in industries such as port, steel mill and mine. The driving force of the grab is from hydraulic power of excavator, so the orange peel only need to be equ......
Send Inquiry
Product Description
The excavator grab is a special hydraulic grab with double peels and orange peels which are connected with excavator by steel. It is mainly used in industries such as port, steel mill and mine. The driving force of the grab is from hydraulic power of excavator, so the orange peel only need to be equipped with hydraulic cylinder and oil tube. The structure of it is simple and easy to operate.
Material density:No more than 2.9t/m3

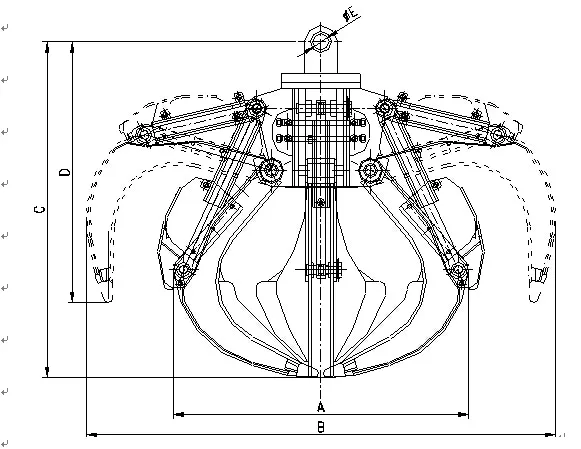

| Type | Volumem3 | Dimensions mm | Dead Weight kg | Number of shells | OperatingPressure Kg/cm2 | SWL kg | ||||
| A | B | C | D | E | ||||||
| YPYD2[0.3] | 0.3 | 1290 | 1960 | 1580 | 1410 | 70 | 1060 | 4 | 250 | 2000 |
| YPYD3[0.4] | 0.4 | 1430 | 2270 | 1680 | 1460 | 70 | 1150 | 4 | 250 | 3000 |
| YPYD4[0.5] | 0.5 | 1680 | 2400 | 1900 | 1620 | 70 | 1550 | 4 | 250 | 4000 |
| YPYD6[0.8] | 0.8 | 1890 | 2700 | 2060 | 1710 | 70 | 1700 | 6 | 250 | 6000 |
| YPYD7[1.0] | 1.0 | 1940 | 3120 | 2880 | 2490 | 100 | 3400 | 6 | 250 | 7000 |
| YPYD8[1.6] | 1.6 | 2140 | 3390 | 3090 | 2620 | 100 | 3550 | 6 | 250 | 8000 |
| YPYD9[2.0] | 2.0 | 2280 | 3620 | 3210 | 2880 | 100 | 3650 | 6 | 250 | 9000 |
Note: Parameters above are only for reference.
We can design and produce the grab according to user's special demand.
