Product Description

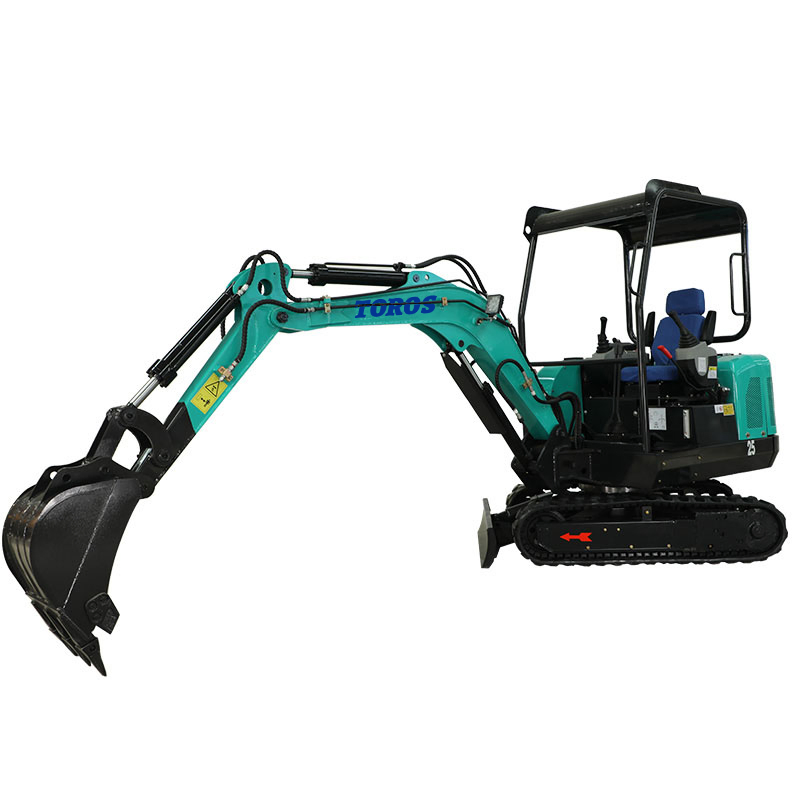

Mini digger 2200kg Mini Crawler Excavator

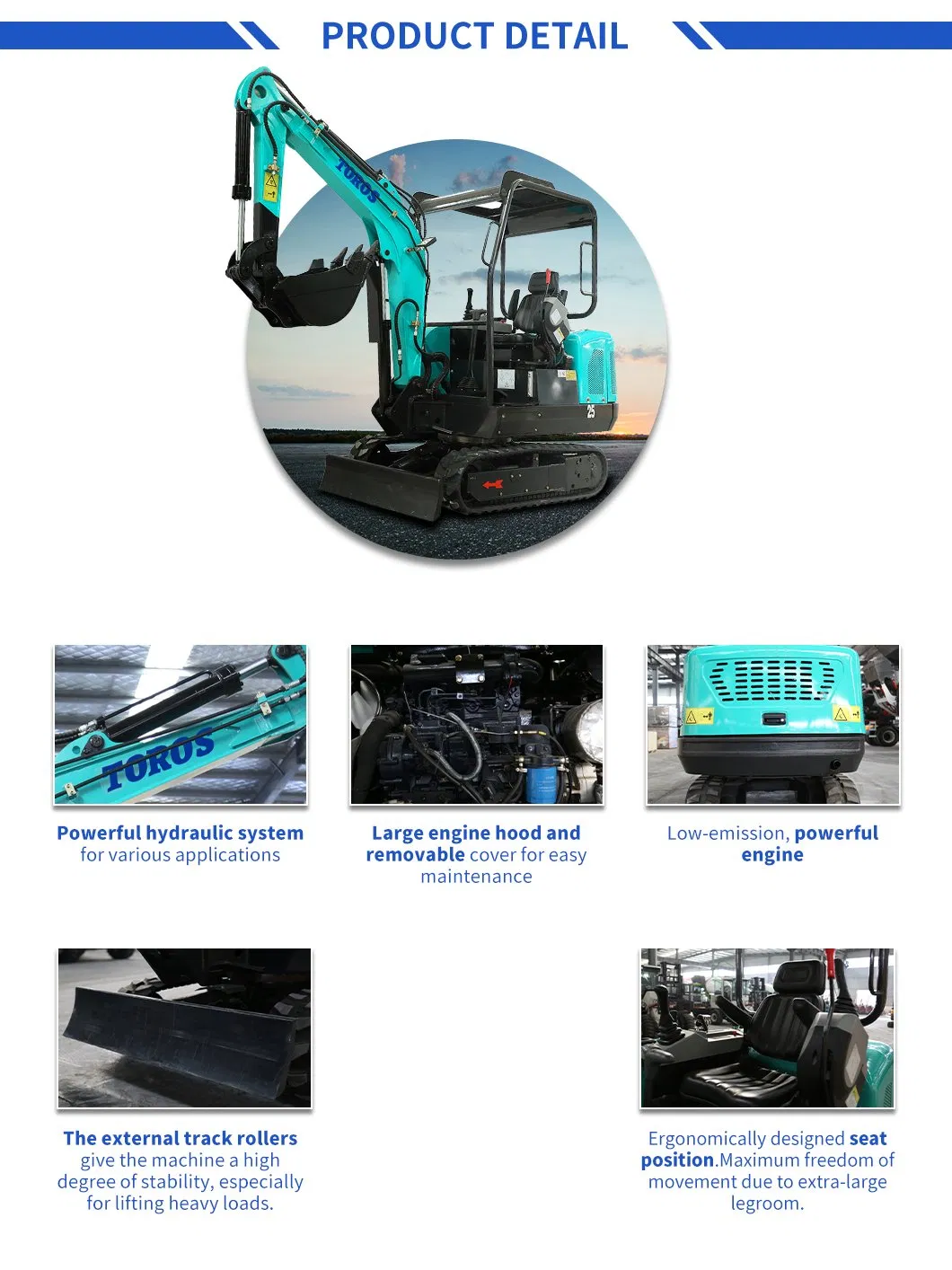

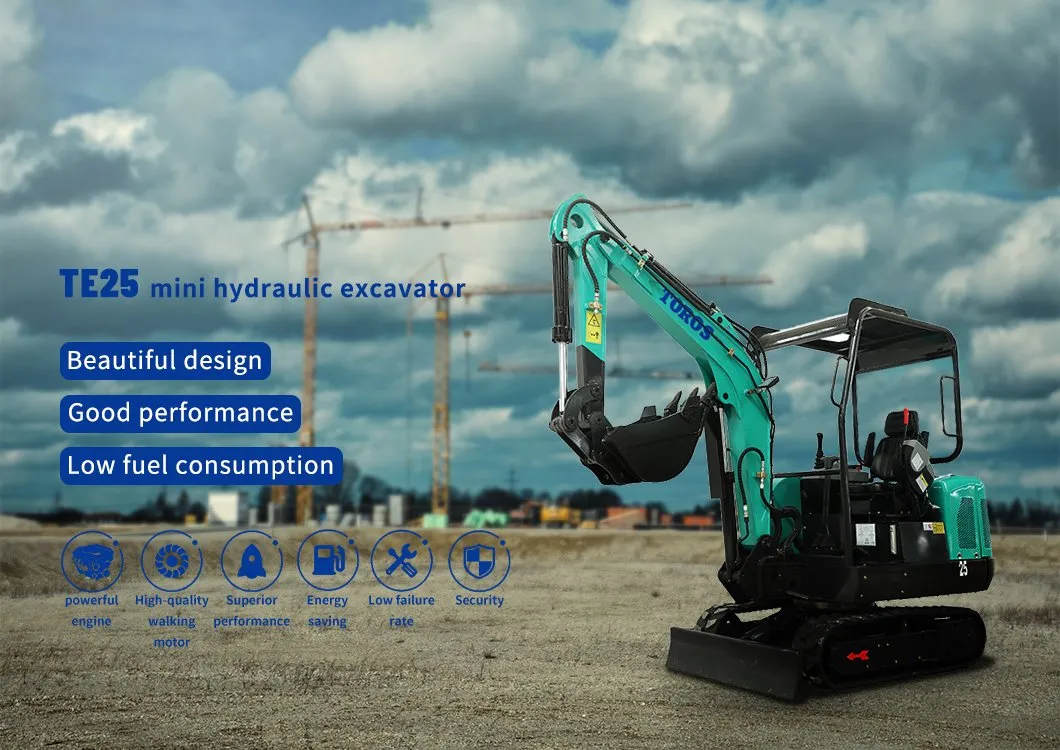

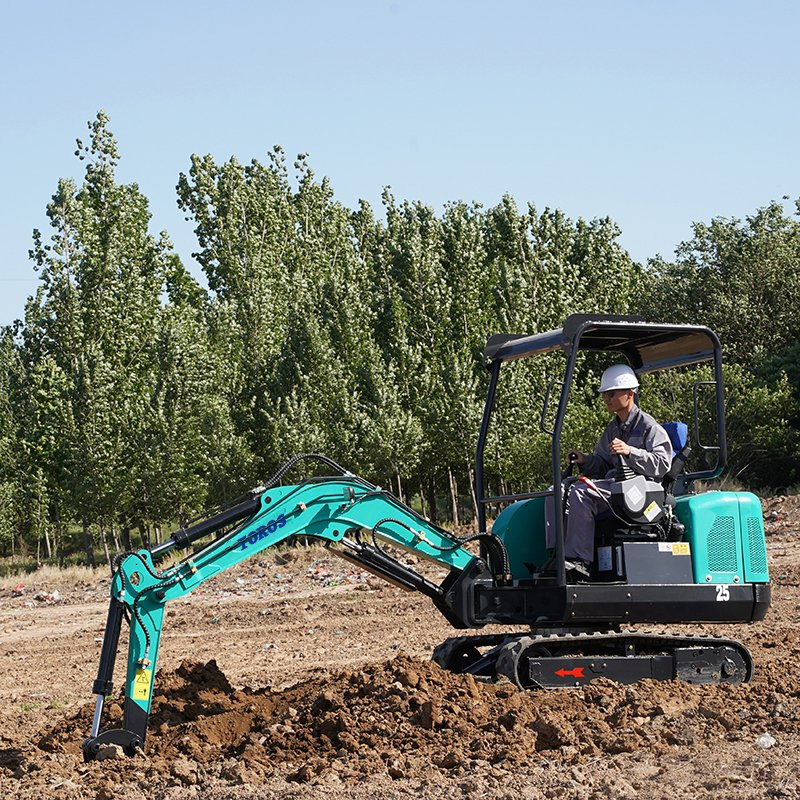

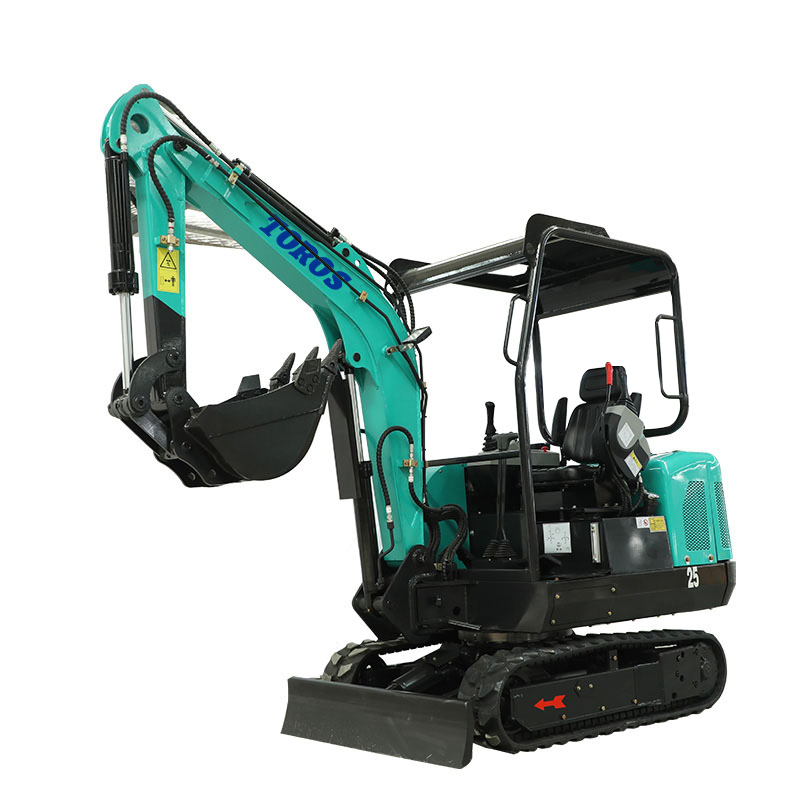

TE25 mini hydraulic excavator has beautiful design, good performance and low fuel consumption .

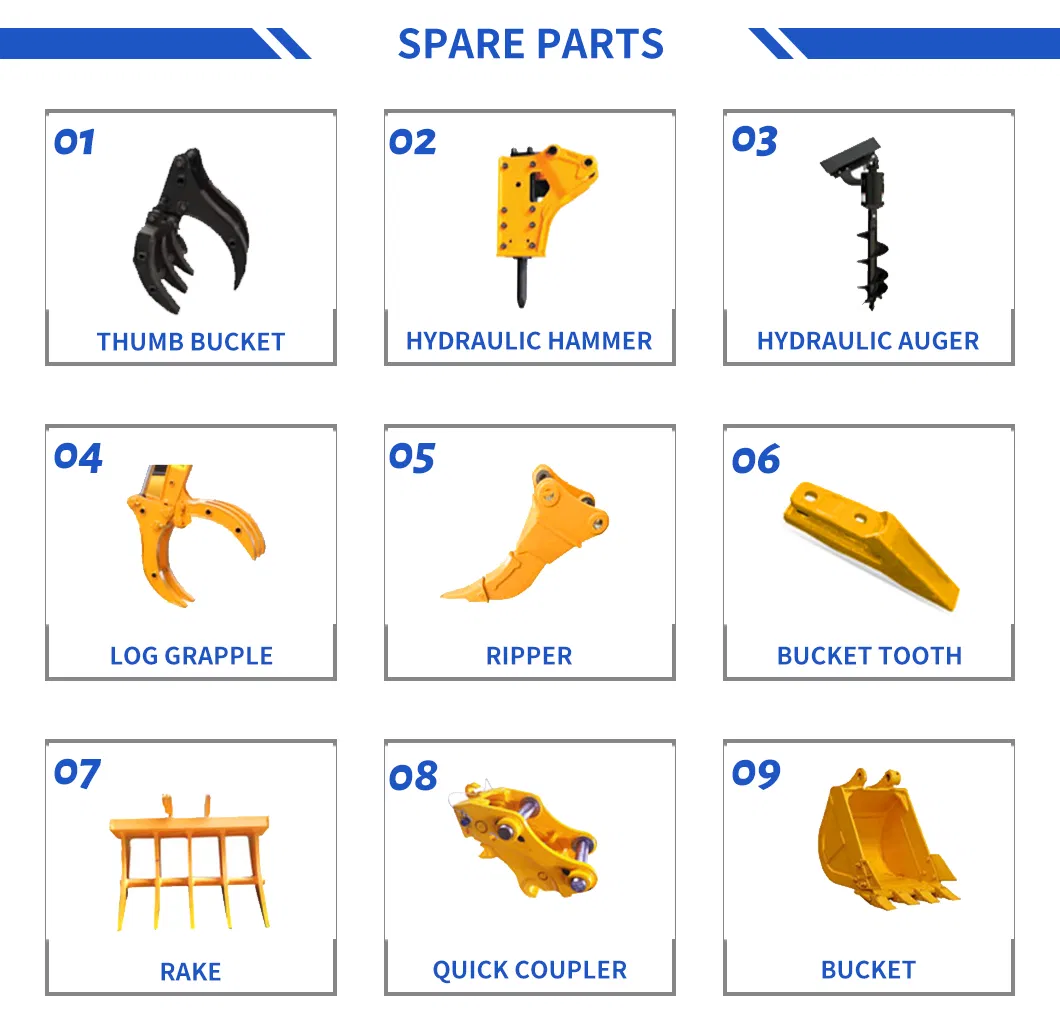

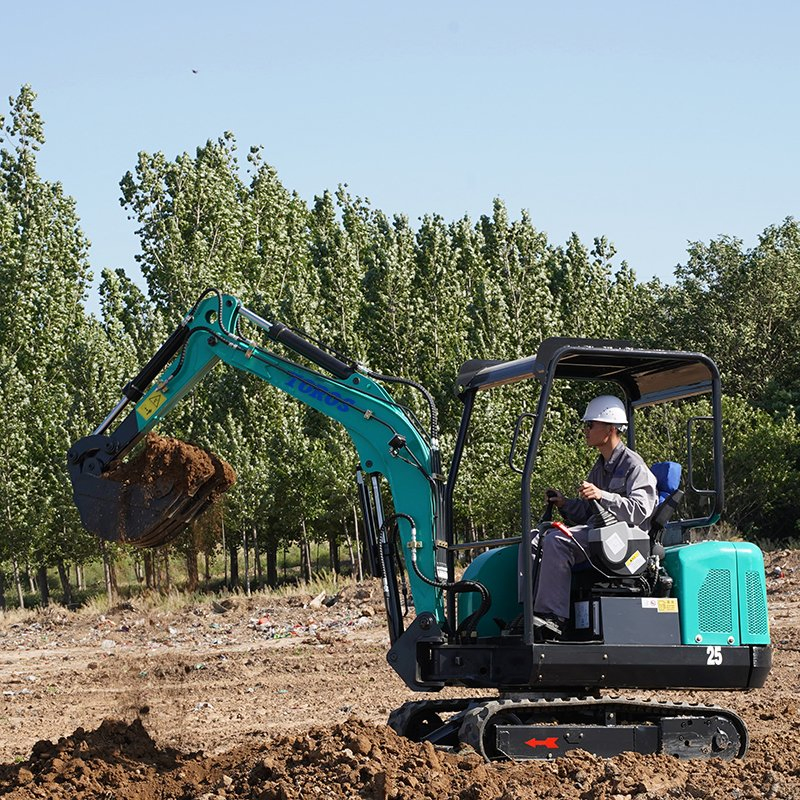

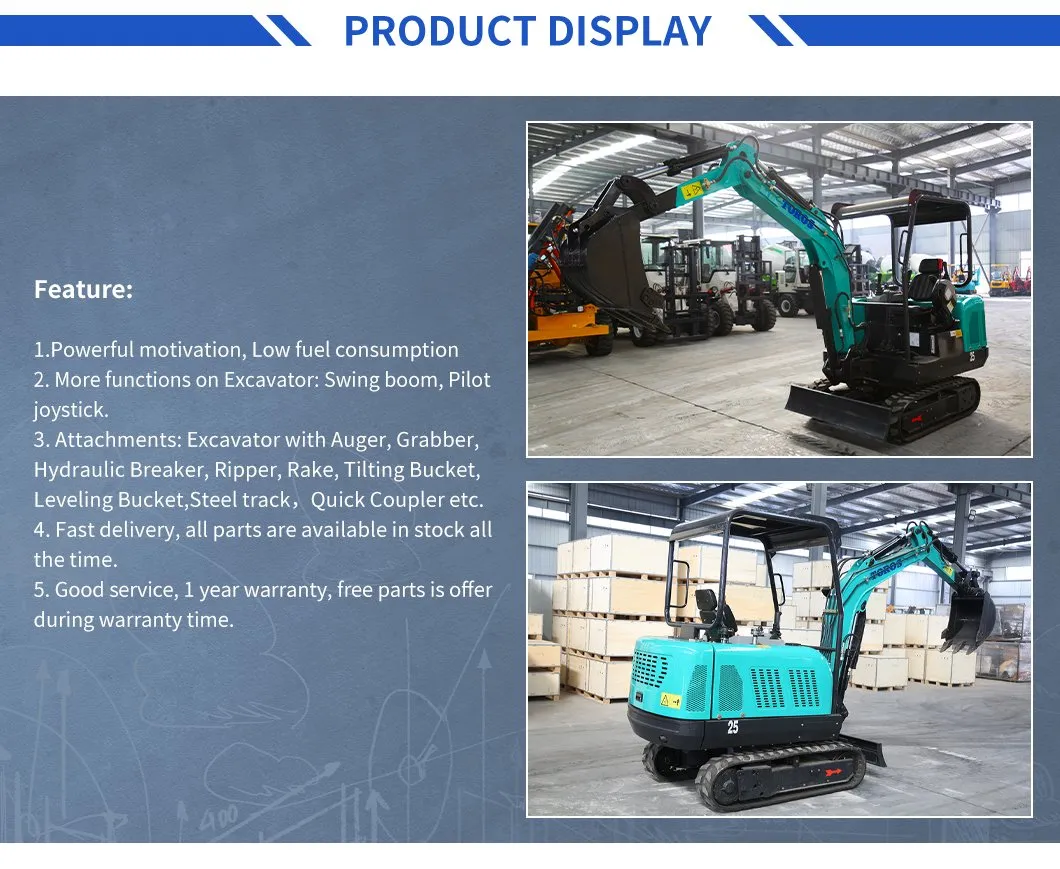

TE25 is a multifunctional and efficient excavator, Bucket Capacity is 0.06m³, Operating Weight is 2200kg, MAX. Digging Depth is 2.5m. Powerful engine of Changchai can bring you unparalleled power and productivity. Different types of attachments can be used which expand their application scope. Our excavator with multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking. It is the ideal machine for general applications from road construction and construction projects to agriculture, landscaping and utility work. All machines are CE approved. TE25 mini excavator will become your excellent partner.
| TE25 Mini Crawler excavator | |||
| METRIC | IMPERIAL | ||
| Bucket Capacity | 0.06m³ | Bucket Capacity | 2.12ft³ |
| Excavator Width | 1200mm | Excavator Width | 47.24in |
| Track Length | 1650mm | Track Length | 64.96in |
| Chassis Ground Clearance | 480mm | Chassis Ground Clearance | 18.90in |
| Track Width | 230mm | Track Width | 9.06in |
| Track Height | 400mm | Track Height | 15.75in |
| MAX.digging Force | 10kN | MAX.digging Force | 10kN |
| Gradeability | 35° | Gradeability | 95ºF |
| Excavator Height | 2300mm | Excavator Height | 90.55in |
| Overall Dimension( LxWxH) | 3850*1200*2300mm | Overall Dimension( LxWxH) | 151.57*47.24*90.55in |
| TAIFENG Multi-way Valve | EATON Traveling motor | TAIFENG Multi-way Valve | EATON Traveling motor |
| Engine | CHANGCHAI / YANMAR | Engine | CHANGCHAI / YANMAR |
| Engine Power | 20kw/2200rpm 19.6KW/2300rpm | Engine Power | 26.82hp/2200rpm 26.28hp/2300rpm |
| Turning Radius | 1950mm | Turning Radius | 76.77in |
| Max.Digging Height | 3500mm | Max.Digging Height | 137.8in |
| Max.Dumping Height | 2200mm | Max.Dumping Height | 86.61in |
| Max.Digging Depth | 2500mm | Max.Digging Depth | 98.43in |
| Max.Digging Radius | 4200mm | Max.Digging Radius | 165.35in |
| Max.Vertical Digging Depth | 1930mm | Max.Vertical Digging Depth | 75.98in |
| Max.Lift Height of Dozer Blade | 165mm | Max.Lift Height of Dozer Blade | 6.50in |
| Weight | 2200kg | Weight | 4850lb 2.72oz |
| EATON Swing Motor | Shimadzu Hydraulic Pump | EATON Swing Motor | Shimadzu Hydraulic Pump |
