Product Description

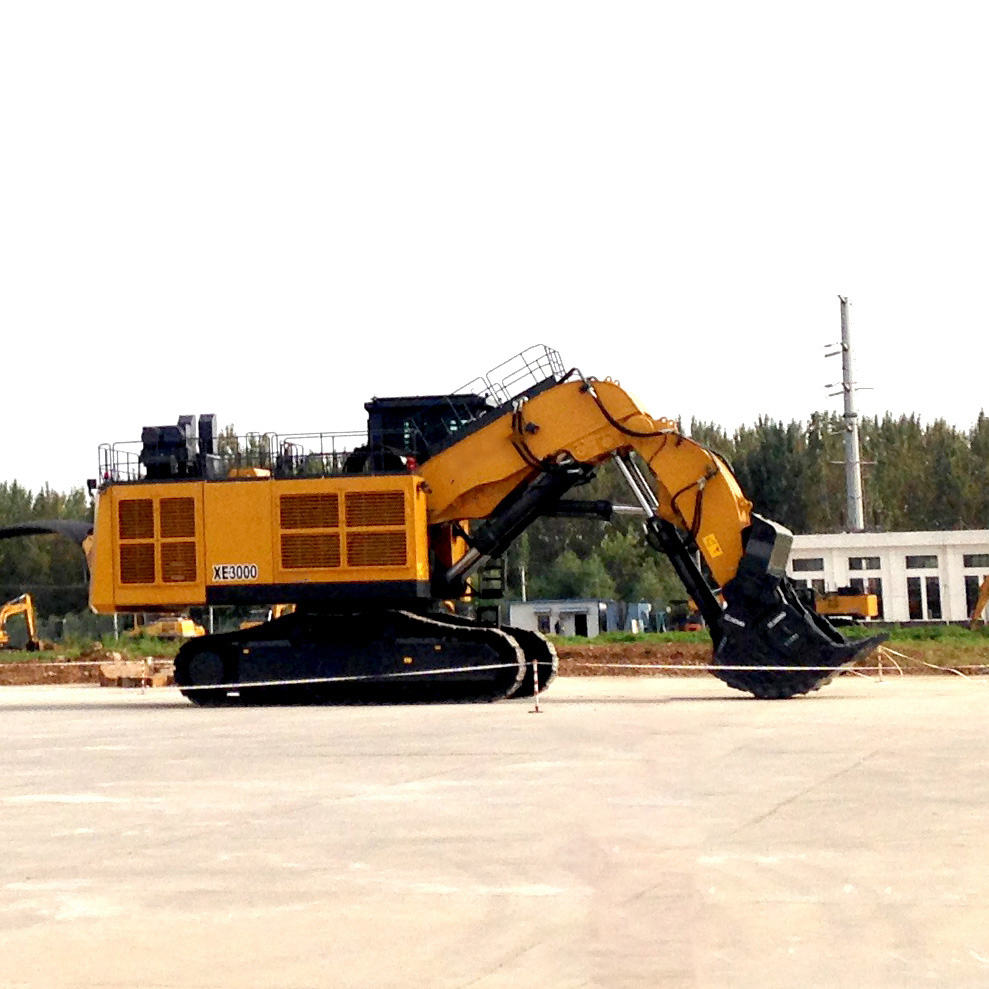

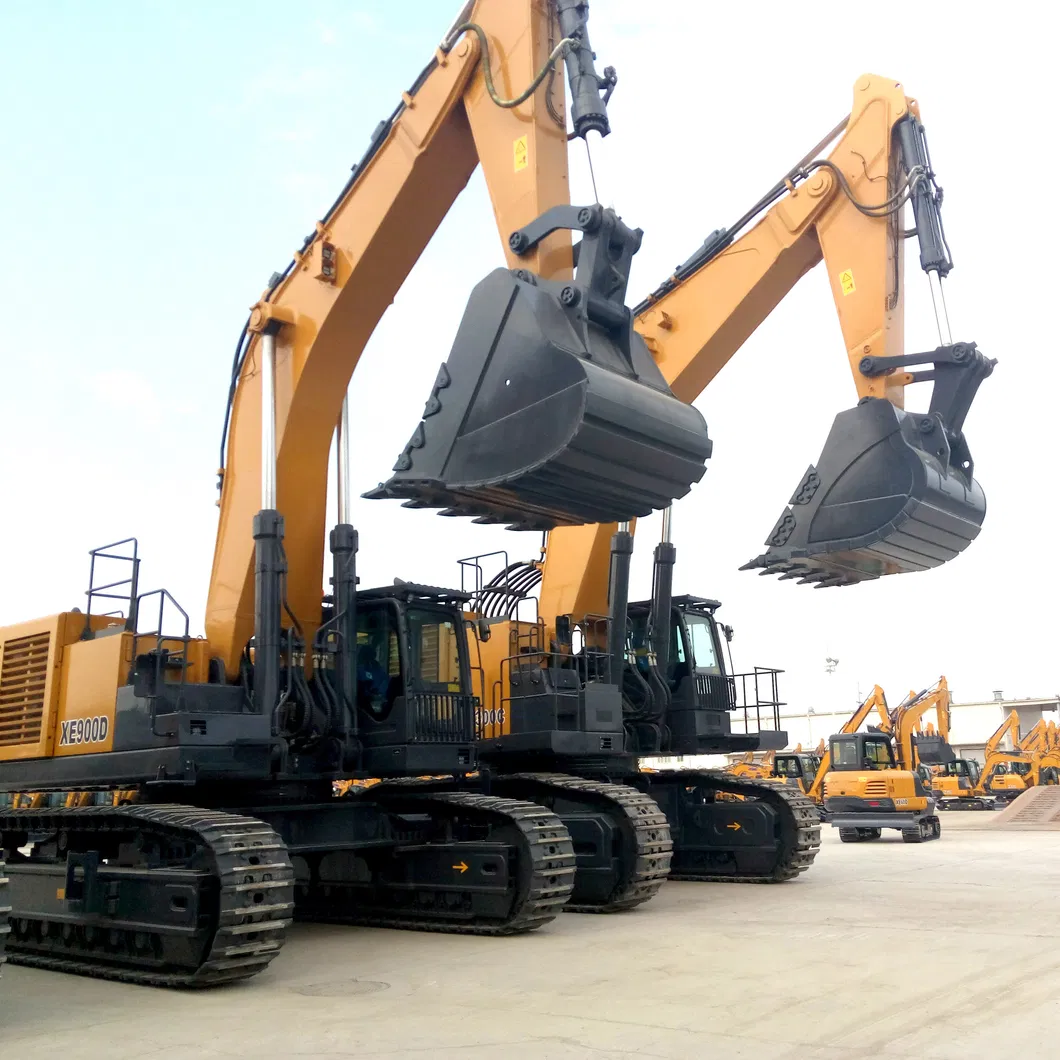

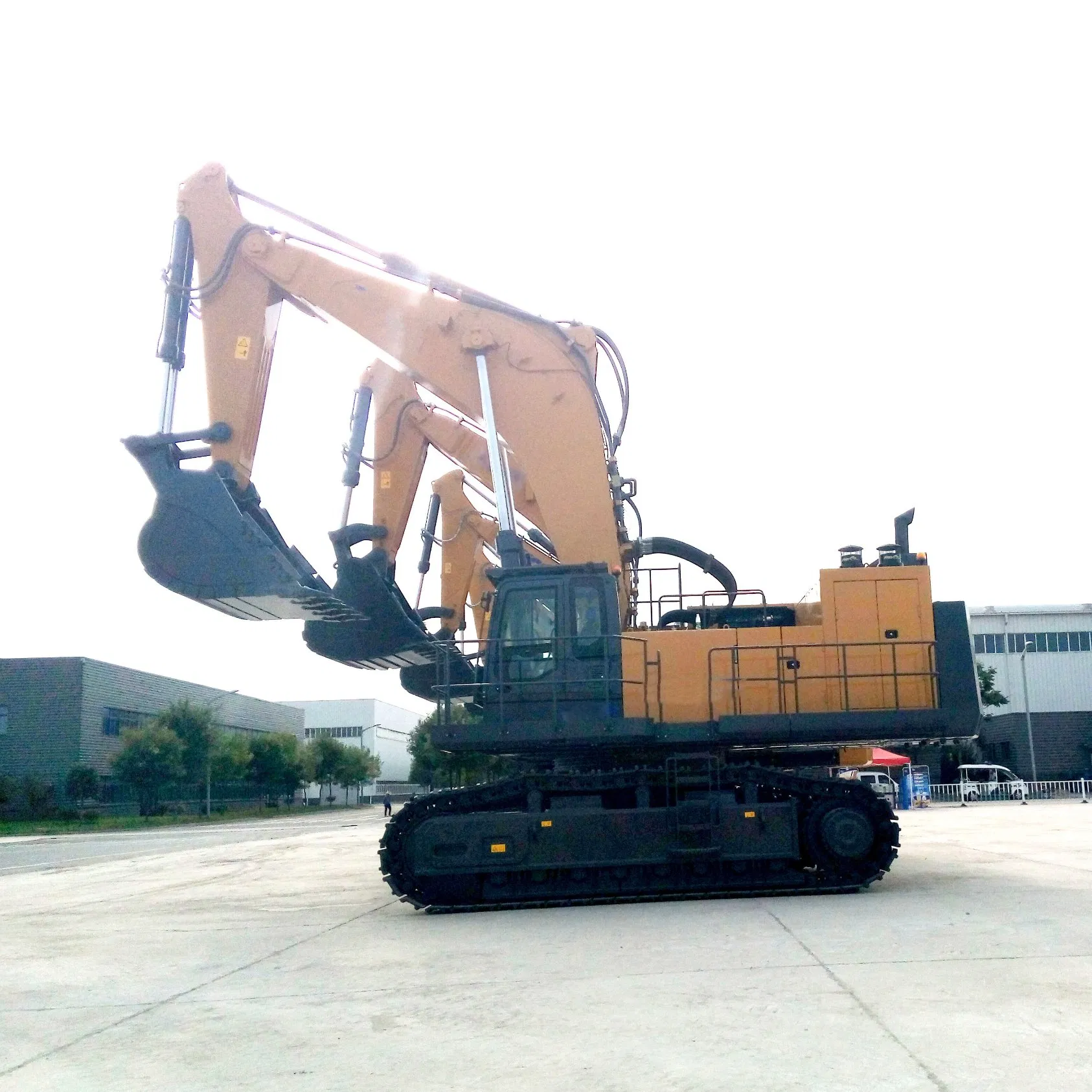

Mining heavy Excavator for XE2000 rcm 200ton atmosphere

Contact us

Hana Che(+86-17854169033)

Sales Director

Maxizm Construction Machinery (Qingdao) Co., Ltd.

Product Description

1. Double boarding passages ensure convenient and quick operation and maintenance.

2. 200L grease cylinder and centralized lubrication system guarantee ten days carefree use after one refill.

3. Exhaust gas injection device can automatically discharge dust out of air filter and reduce time of daily maintenance.

4. The 6 meters high cab provides the driver good visibility and comfortable operation experience, which helps increase working efficiency.

5. The bucket and bucket rod have stronger digging forces, more adaptable to complicated mining conditions.

6. Excellent performance of electrically controlled positive flow system that perfectly matches XCMG independently developed control system ensures that every digging or loading movement is made in a smooth and successful manner.

Parameters

Model		UOM	Parameters
Operation Weight		Kg	115000
Bucket Capacity		m³	5.2-8.5
Engine	Output power	kw/rpm	567/1800
	Torque/Speed	N.m	3468/1350
	Displacement	L	23.15
Main performance	Travel speed(H/L)	km/h	3.5/2.4
	Rotating speed	r/min	5.2
	Gradeability	°	30
	Ground pressure	kPa	143
	Bucket digging force	kN	597
	Arm crowd force	kN	470
	Maximum traction	kN	746
Outline dimension	Overall length	mm	14610
	Overall width	mm	5470
	Overall height	mm	6160
	Width of platform	mm	3450
	Length of crawler	mm	6500
	Overall width of chassis	mm	4600
	Width of crawler	mm	700
Working scope	Max. digging height	mm	12500
	Max. dumping height	mm	7997
	Max. digging depth	mm	8110
	Max. digging reach	mm	13860
	Min. swing radius	mm	6770
