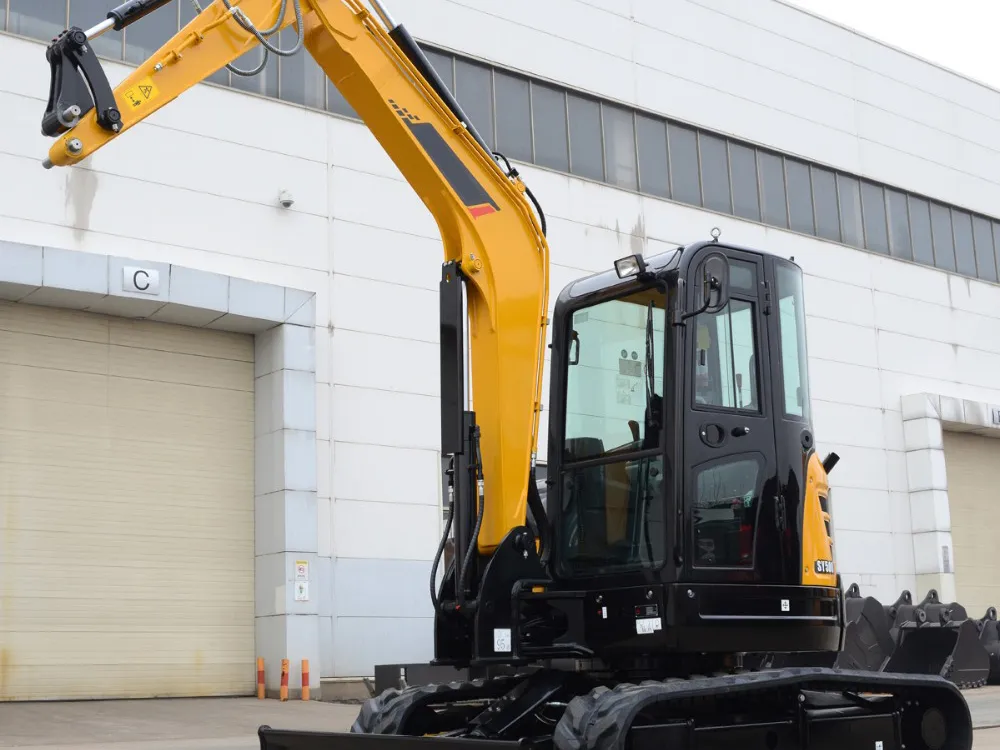

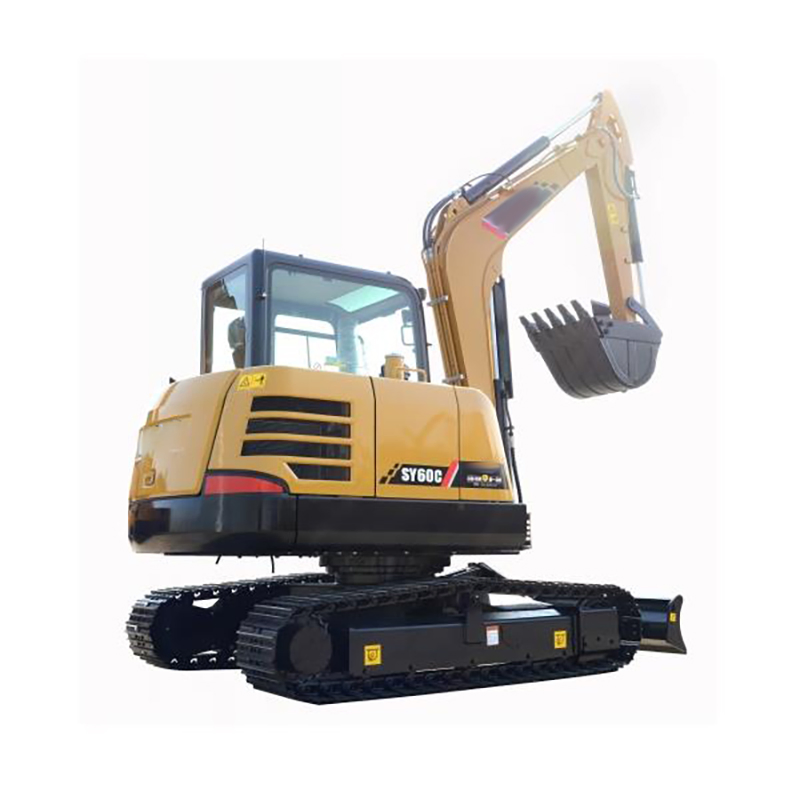

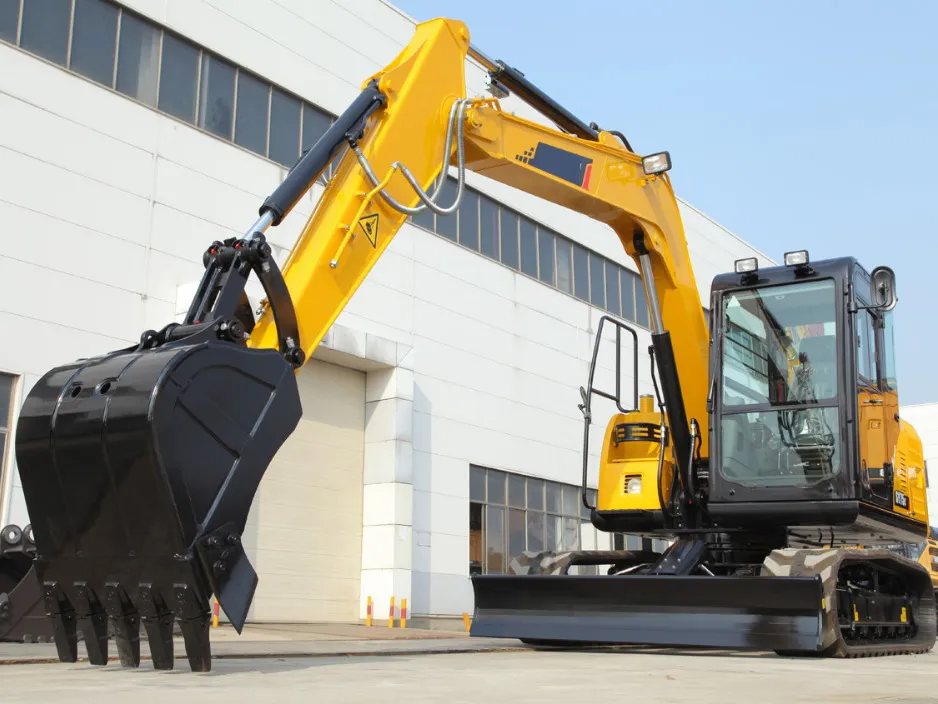

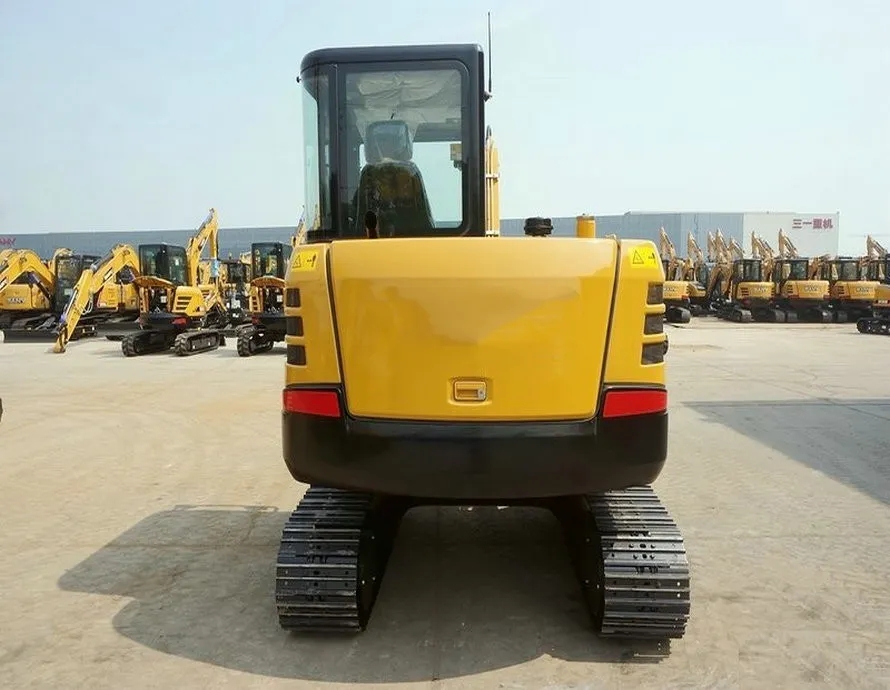

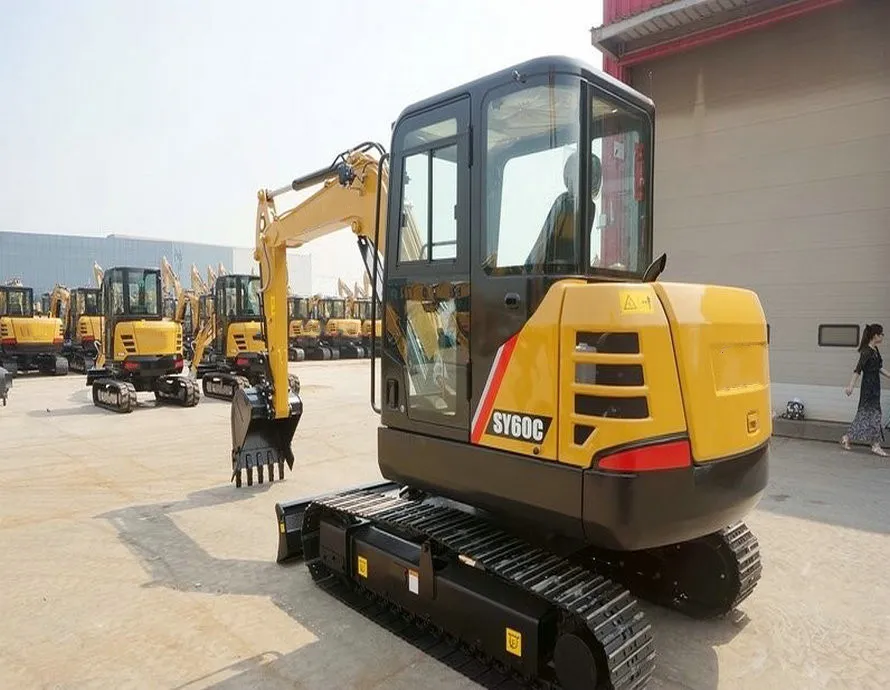

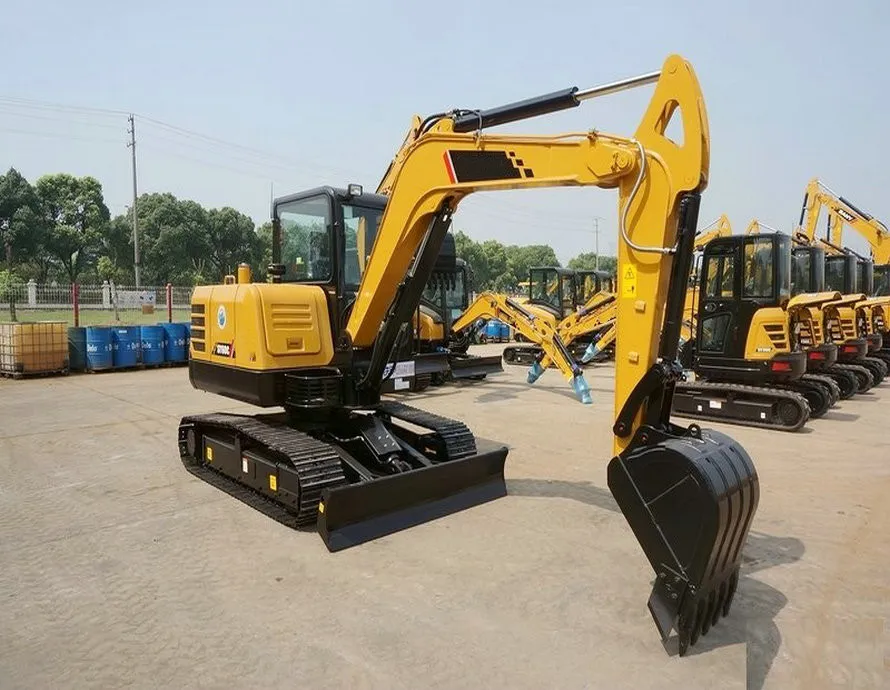

Official Manufacturer 6 Ton Hydraulic Crawler Excavator Sy60c with Yanmar Engine and Rubber Track

Product Description

Official manufacturer 6 ton hydraulic Crawler Excavator SY60C with Yanmar engine and rubber track

Description:

• Tier4 final compliant engine satisfies the emission regulations of North America.

• The SLSS hydraulic system developed by an international team ensures precise operation and energy conservation;

• Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life.

• Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient.

Parameter:

tion Range	Operating weight	6100kg
	Max. digging height	5790mm
	Max. dumping height	4060mm
	Max. digging depth	3950mm
	Max. vertical digging depth	3180mm
	Max. digging reach	6320mm
	Min. swing radius	2555mm
Dimensions	Transport length	6015mm
	Transport width	2005mm
	Transport height	2645mm
	Tail swing radius	1640 mm
	Min. ground clearance	330mm
Undercarriage/Working Device	Std. track shoe width	400 mm
	Bucket capacity	0.21 m3
	Track gauge	1600mm
	Boom length	3000 mm
	Arm length	1700mm
Performance	Travel speed	2.4/3.73km/h
	Swing speed	9.6 rpm
	Gradeability	35%
	Ground pressure	34.56 kPa
	Bucket digging force	45 kN
	Arm digging force	33 kN
	Fuel tank capacity	130 L
	Hydraulic tank capacity	85 L
