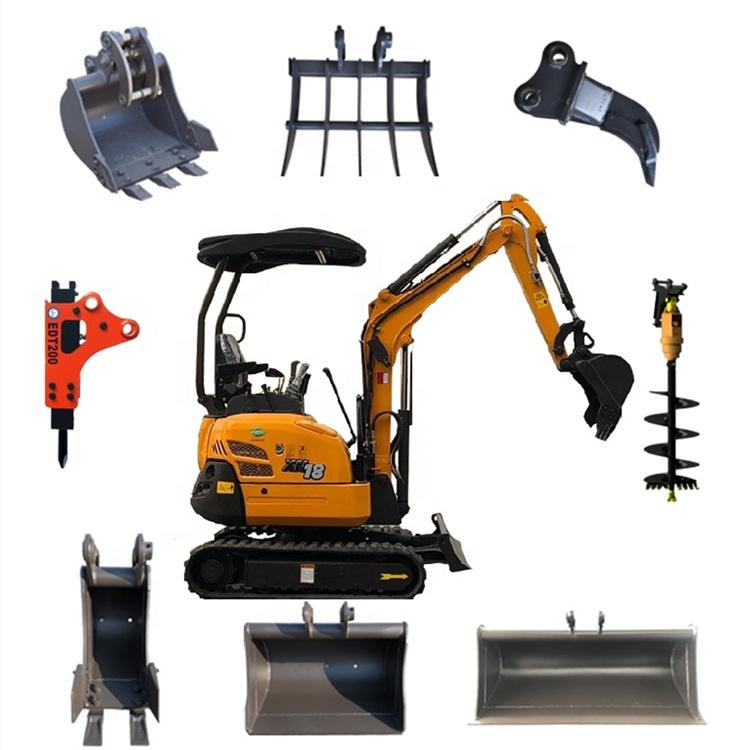

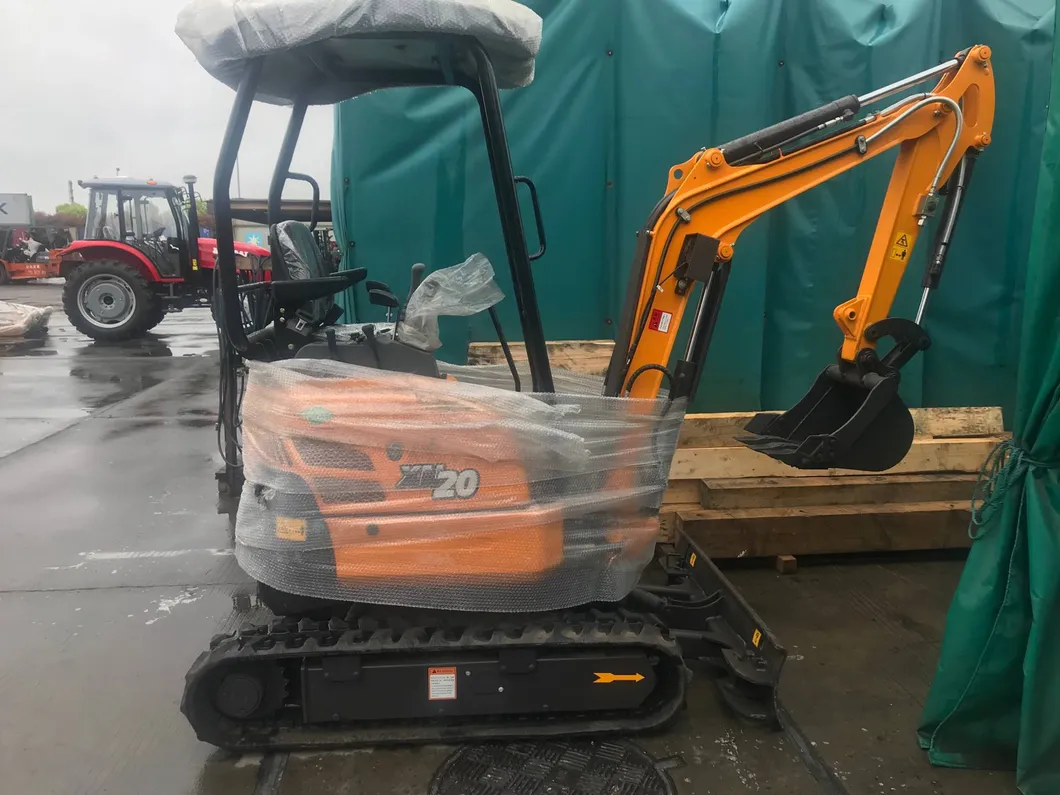

Professional Xiniu Excavator Xn20 2ton Mini Excavator

Model

XN18

Manufacturer

SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD

Brand

RHINOCEROS

Operating Weight

1800kg

Digging bucket capacity

0.045cbm/400kg

Digging bucket width

400mm, can add narrow bucket is 200mm

Engine

Yan-mar(3TNV70-S)

Rated power

10kw/2200/r/min

Displacement

0.854L

Bore stroke

three cylinder, water cool

Main pump

KDK

Pump flow

23.3L/Min

Valve

BEIFANG

Displacement

6.8ml/r

Swing motor

1

Traveling motor

DONGHYUAN

MAIN DEMENSIONS

Overall dimension( LxWxH)

3160x1040x2377mm

Total length of track

1670mm

Platform ground clearance

460 mm

Platform back turning radius

740 mm

Chassis width

10400 mm

Track width

180 mm

Chassis ground clearance

460 mm

Bucket digging force

10.5kn

Arm digging force

6.5kn

Track height

320 mm

OPERATING RANGE

Max. Digging depth

2150 mm

Max. Vertical digging depth

1740 mm

Max. Digging height

3275 mm

Max. Dumping height

2310 mm

Max. Digging radius on ground

3470 mm

Min. Rotation radius

1440 mm

Max. Upgrade height of bulldozer blade

262 mm

Max. Digging depth of bulldozer blade

192 mm
