    Product Description

    Reliable Mini Excavator, Td25u Tide Mini Excavator, NACHI Swing Motor, Eaton Travel Motor, Rubber Track, Warranty, Ce Approved, Small Excavator
    ModelTD10TD12TD20UTD25UTD30U
    Dimensions
    A- Overall Length2770mm2550mm3550mm3870mm4010mm
    B- Overall Height1000mm1500mm2200mm2360mm2360mm
    C- Overall Width925mm870mm1320mm 1420mm1540mm
    D- Track Width180mm180mm250mm250mm250mm
    E- Platform Turning Radius1330mm1330mm730mm645mm710mm
    F- Length  of Track1210mm1200mm1650mm1895mm1895mm
    G- Sprocket to Idler Centres910mm910mm210mm250mm250mm
    H- Between Undercarriage and Ground380mm380mm210mm250mm250mm
    I- Between Boom and Ground--1320mm 1340mm1380mm
    J- Width of Platform896mm896mm970mm1350mm1350mm
    L- Between Platform and Ground380mm380mm480mm480mm480mm
    20FT Load4 Sets4 Sets4/2 Sets2 Sets2 Sets
    40GP Load8 Sets8 Sets8/4 Sets4 Sets4 Sets
    Performance
    Engine ModelKOOPPERKINS 403D-11
    Power8.6kW14.7kW/2200Rmp
    Operation Pressure16Mpa16Mpa18Mpa21Mpa21Mpa
    Max. Digging Force7.2KN7.2KN12KN17.6KN18.2KN
    Gradeability30°30°30°30°30°
    Ground Pressure32Kpa32Kpa32Kpa26Kpa26Kpa
    Travel Speed2Km/h2Km/h2.7Km/h2.3-4.1Km/h2.3-4.1Km/h
    Pump Flow Rate21.6L/min21.6L/min2*17.6+6.6L/min28L/min28L/min
    Platform Swing Speed12rpm12rpm13rpm13rpm13rpm
    Bucket Capacity0.028m³0.06m³0.07m³0.08m³0.09m³
    Bucket Width410mm410mm450mm500mm550mm
    Boom Swing--45°Left/78° Right
    Overall Weight800Kg800Kg1930Kg2450Kg2650Kg
    Operating Dimensions
    A- Max. Digging Height2650mm2650mm3300/3825mm3744/4335mm3865/4510mm
    B- Max. Dumping Height1850mm1850mm2360mm2670mm2760mm
    C- Max. Digging Depth1650mm1650mm2200/2405mm2200/2486mm2580/2710mm
    D- Max. Digging Radius2900mm2900mm3975mm4155mm4375mm

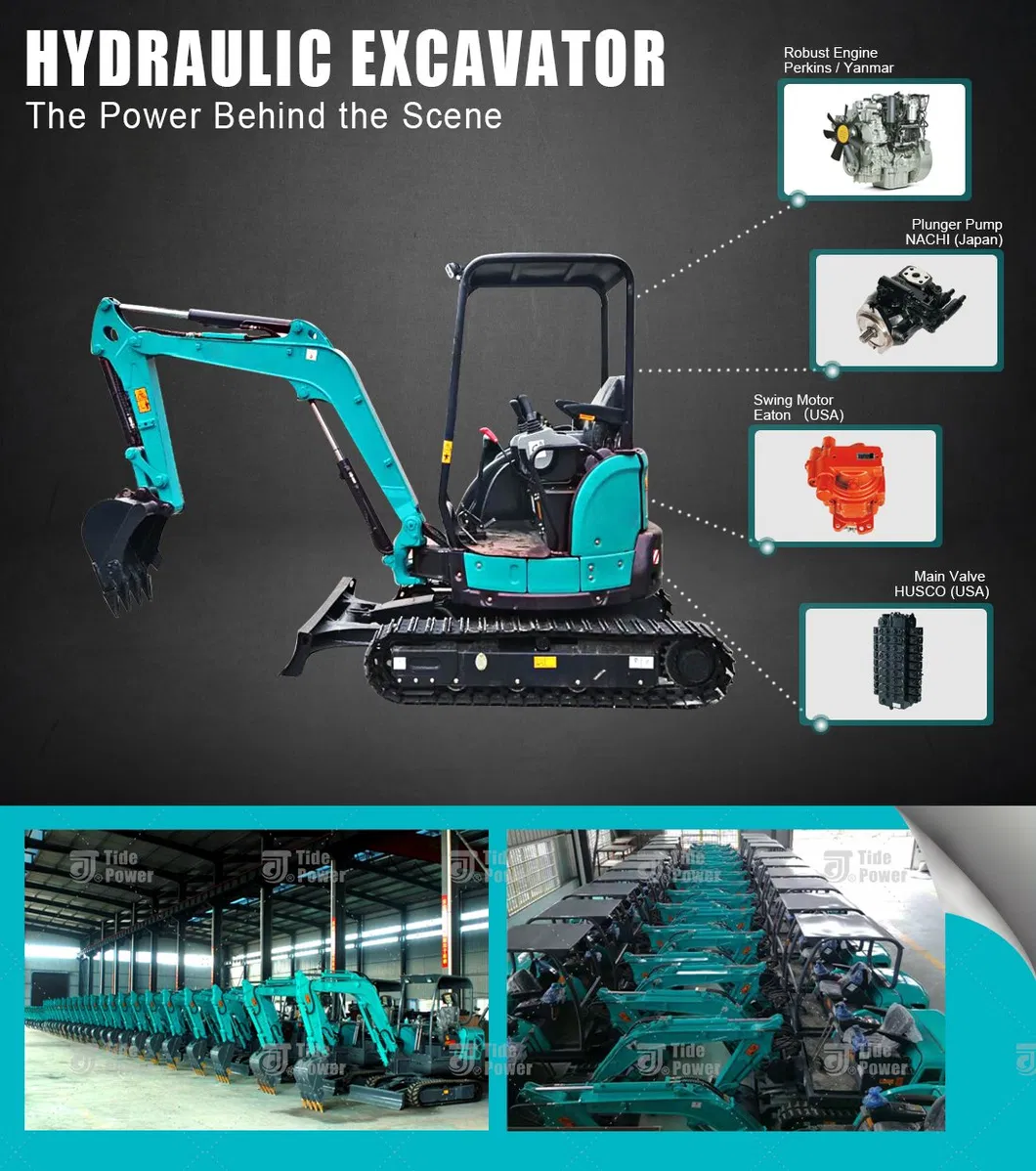

    Powerful and reliable Perkins/Yanmar engine delivers superior horsepower and performance in a compact size to help you work in the limited space.
    Imported hydraulic system & pilot operation levers provide smooth control and easy operation.

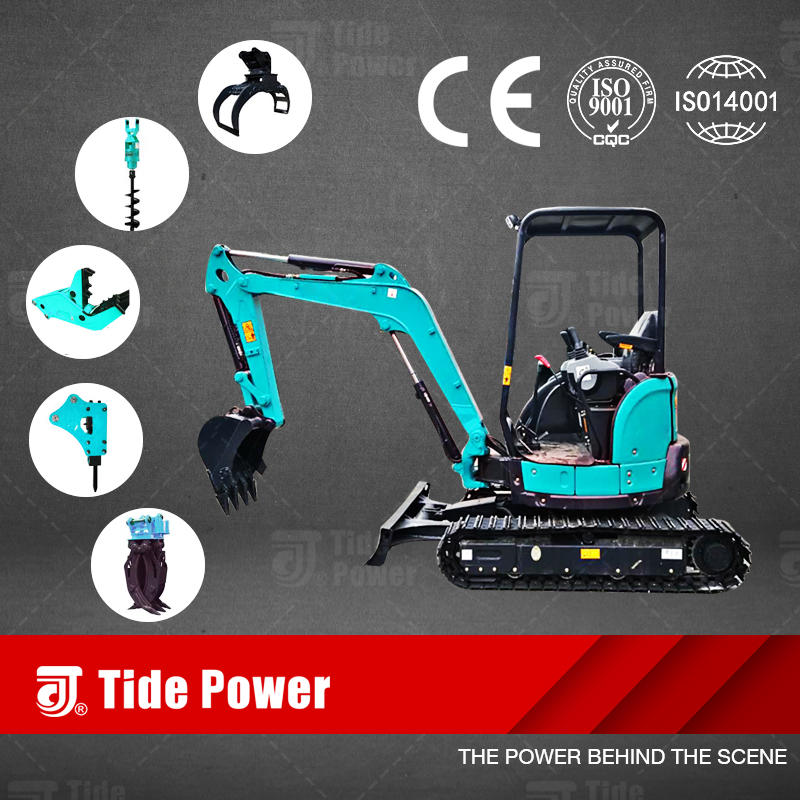

    A range of tools are matched to the excavator to optimize performance and deliver excellent value through high productivity.
